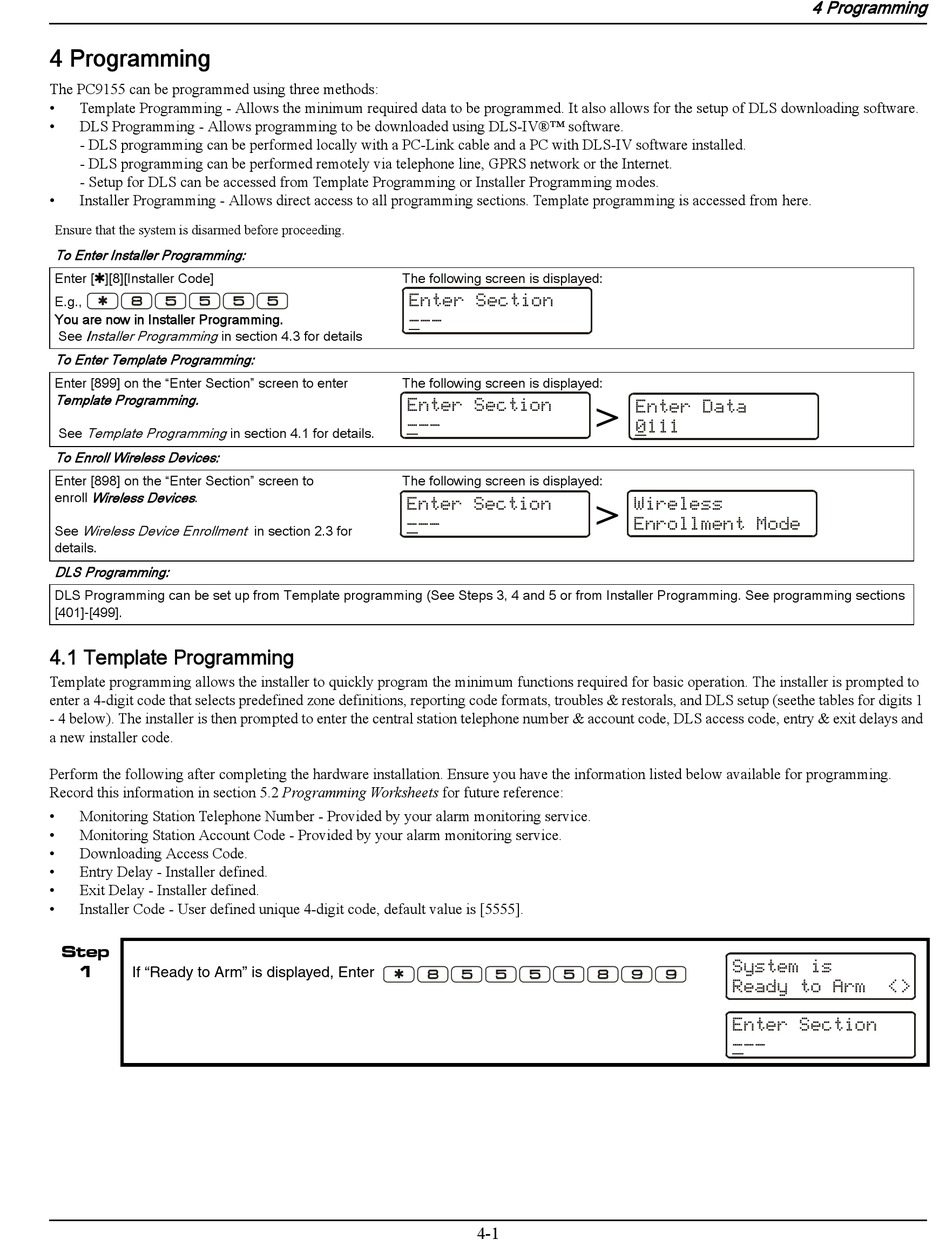

4 Programming

The PC9155 can be programmed using three methods:
• Template Programming - Allows the minimum required data to be programmed. It also allows for the setup of DLS downloading software.
• DLS Programming - Allows programming to be downloaded using DLS-IV®™ software.
- DLS programming can be performed locally with a PC-Link cable and a PC with DLS-IV software installed.
- DLS programming can be performed remotely via telephone line, GPRS network or the Internet.
- Setup for DLS can be accessed from Template Programming or Installer Programming modes.
• Installer Programming - Allows direct access to all programming sections. Template programming is accessed from here.
Ensure that the system is disarmed before proceeding.
To Enter Installer Programming:
Enter [ ][8][Installer Code]
E.g., ,
You are now in Installer Programming.
Installer Programming
See in section 4.3 for details
To Enter Template Programming:
Enter [899] on the "Enter Section" screen to enter

Template Programming.

Template Programming
See
To Enroll Wireless Devices:
Enter [898] on the "Enter Section" screen to
Wireless Devices
enroll .
Wireless Device Enrollment
See
details.
DLS Programming:
DLS Programming can be set up from Template programming (See Steps 3, 4 and 5 or from Installer Programming. See programming sections
[401]-[499].
4.1 Template Programming
Template programming allows the installer to quickly program the minimum functions required for basic operation. The installer is prompted to
enter a 4-digit code that selects predefined zone definitions, reporting code formats, troubles & restorals, and DLS setup (seethe tables for digits 1
- 4 below). The installer is then prompted to enter the central station telephone number & account code, DLS access code, entry & exit delays and
a new installer code.
Perform the following after completing the hardware installation. Ensure you have the information listed below available for programming.
Record this information in section 5.2 Programming Worksheets for future reference:
• Monitoring Station Telephone Number - Provided by your alarm monitoring service.
• Monitoring Station Account Code - Provided by your alarm monitoring service.
• Downloading Access Code.
• Entry Delay - Installer defined.
• Exit Delay - Installer defined.
• Installer Code - User defined unique 4-digit code, default value is [5555].
Step
1
If "Ready to Arm" is displayed, Enter
The following screen is displayed:
Enter Section
-
The following screen is displayed:
Enter Section
-
in section 4.1 for details.
The following screen is displayed:
Enter Section
-
in section 2.3 for
,
--
>
--
>
--
4-1
4 Programming
Enter Data
0 111
Wireless
Enrollment Mode
System is
Ready to Arm
Enter Section
- --
<>
