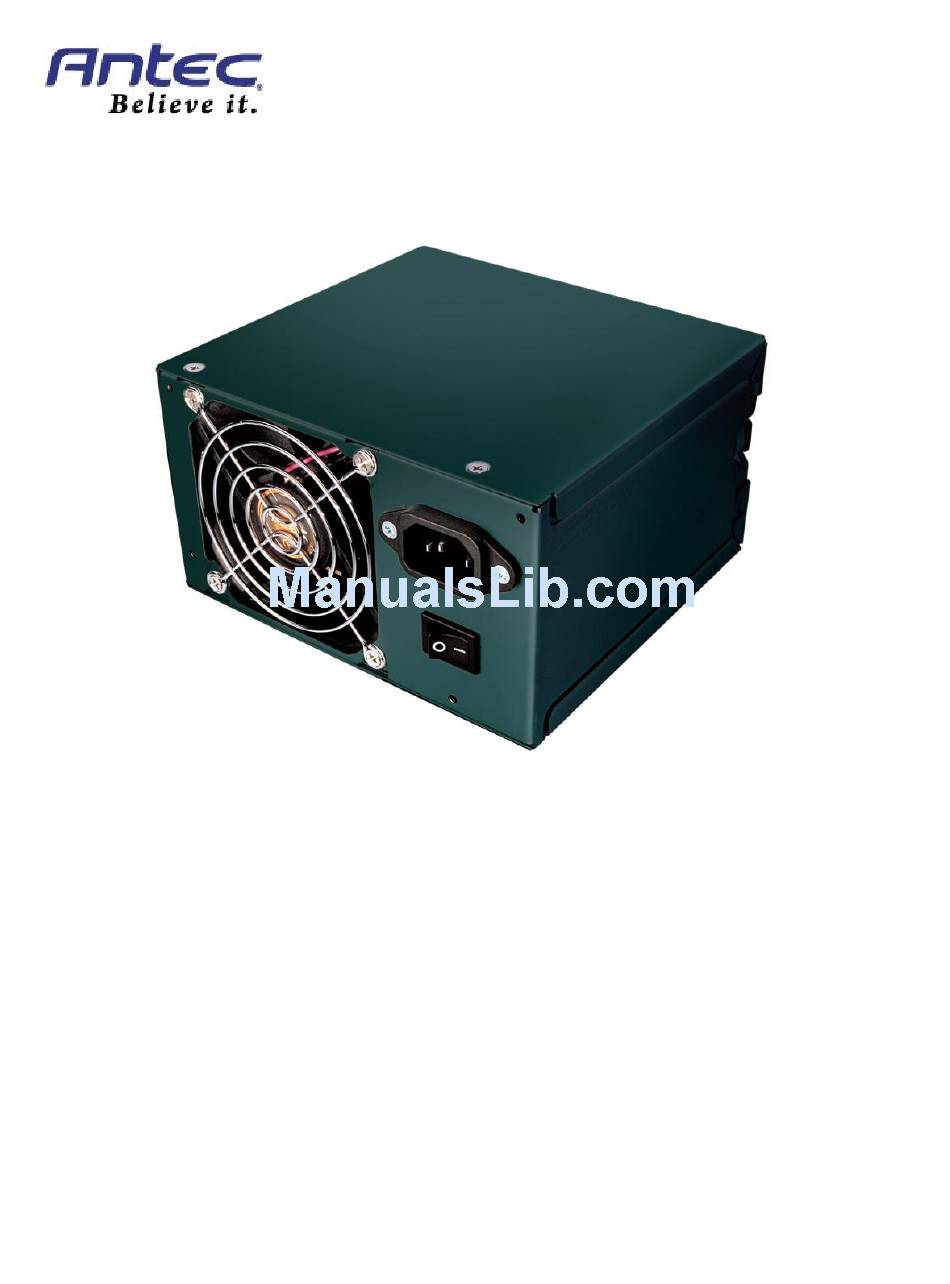

- Page 1 EA-430D G REEN OWER UPPLY ’ ANUAL...

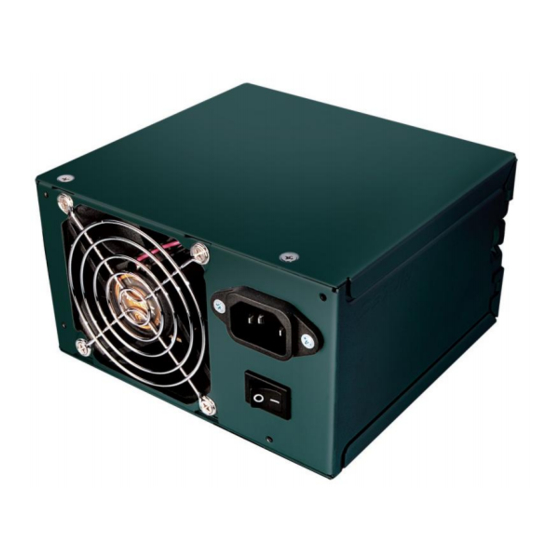

- Page 2 NERGY FFICIENT Get the power you need and the low electric bill you want with Antec’s EA-430D Green! One of the most environmentally friendly power supplies on the planet, the EA-430D Green delivers 430 watts of reliable, continuous power while meeting the Bronze level of performance from 80® PLUS, the most widely recognized independent standard in power supply efficiency.
- Page 3 +12 V ISTRIBUTION The EA-430D Green PSU uses dual +12 volt power rails. Different connectors are hooked up to separate circuits to aid in the balanced distribution of power between devices in your computer. The engineers have allocated the rails to different connectors, as shown in Table 2, to prevent voltage sags in one device due to sudden demands for power by another device.
- Page 4 OWER UTPUT The EA-430D Green PSU distributes a varying maximum number of amps on each rail. To see the output capacity and regulation for each different voltage, see Table 3. 3: O ABLE UTPUT APACITY AND EGULATION Output Load Max.
- Page 5 Note: Please also refer to your motherboard user’s manual for any special instructions. 4. Connect an AC power cord to the power supply AC inlet. To reduce waste, the EA-430D Green does not come with a power cord. Turn the switch to the “|” position after you have connected...
- Page 6 US & Canada 1-800-22ANTEC customersupport@antec.com Europe +31 (0) 10 462-2060 europe.techsupport@antec.com www.antec.com © Copyright 2009 Antec, Inc. All rights reserved. All trademarks are the property of their respective owners. Reproduction in whole or in part without written permission is prohibited.
