Adding Expander Cabinets

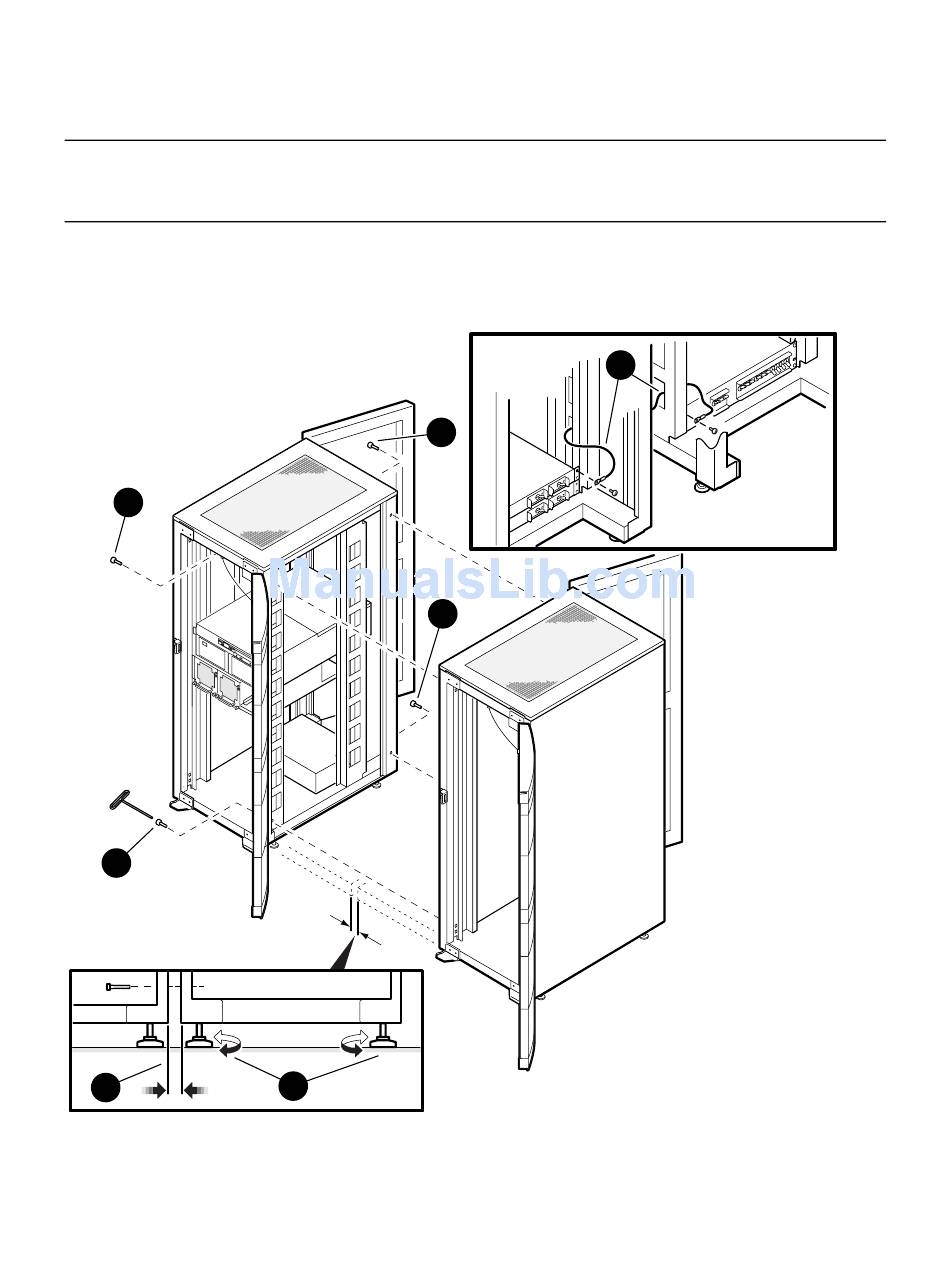

Figure 3–13 shows the addition of an expander cabinet to a power
cabinet.
Figure 3–13

Adding Expander Cabinets

Expander
4
Cabinet
3
Power
Cabinet
(H9A20)
3
Rear
3
3
Power
Cabinet
(H9A20)
Expander
Cabinet
2
1
PK2300
GS320 Assembly
3-25
