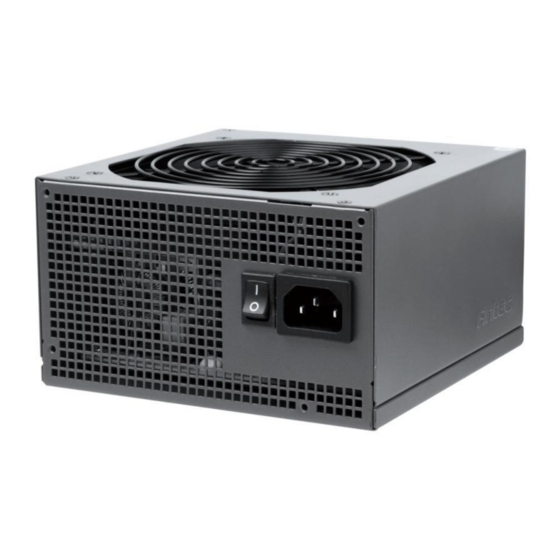

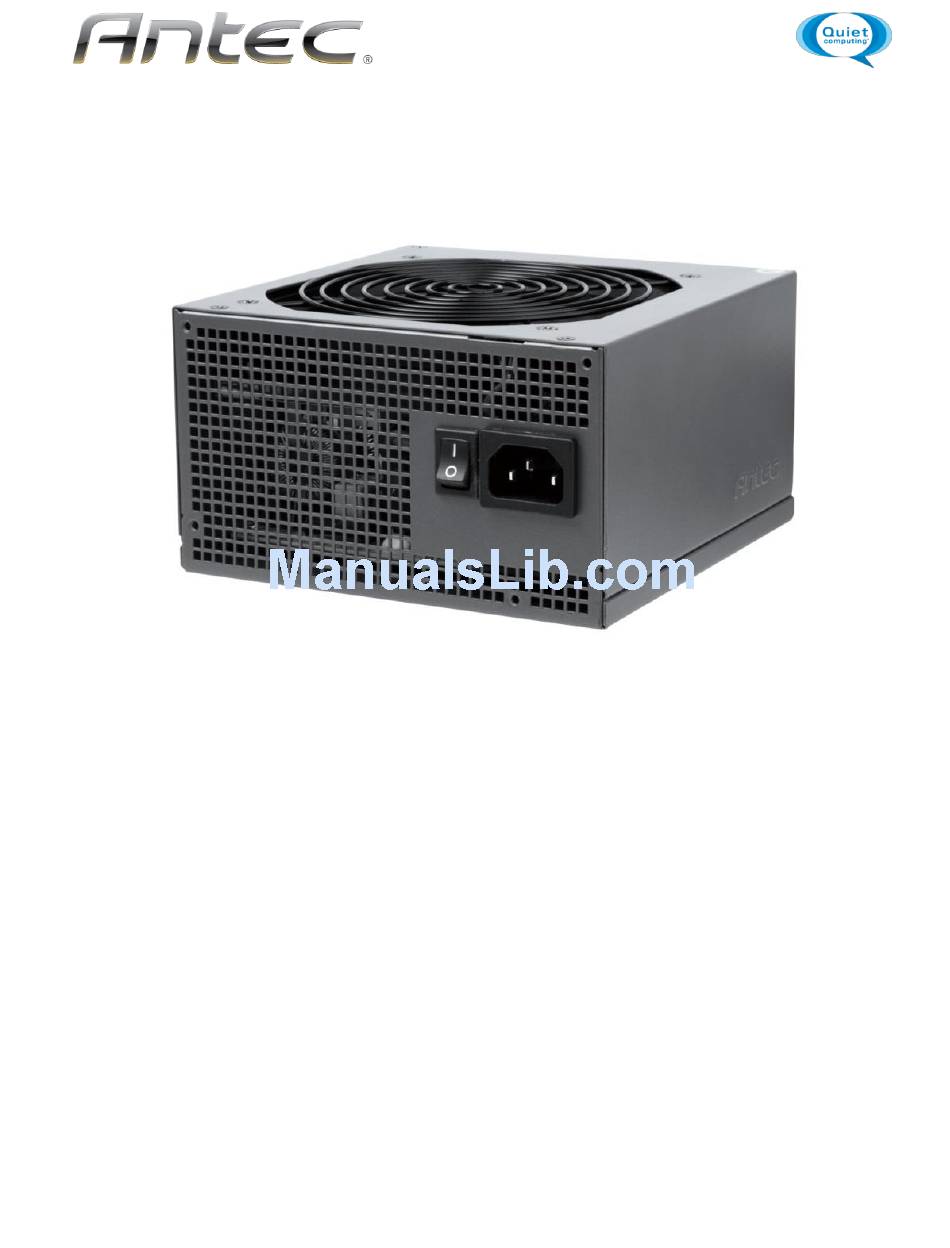

- Page 1 NEO ECO 450C POWER SUPPLY USER’S MANUAL...
- Page 2 STANDARDS AND FEATURES The connectors and power specifications of the NEO ECO 450C PSU are all compatible with ATX12V v2.32 & EPS12V v2.92 specifications. This power supply also features Active Power Factor Correction (PFC), which improves the power factor value of the power supply by altering the input current wave shape, helping to power transmission across the grid.
- Page 3 80 PLUS® BRONZE certified power supply uses less energy and generates less heat to stay cooler, run quieter and last longer. The NEO ECO 450C has been 80 PLUS® BRONZE certified to be at least 82% efficient at a wide range of operating loads; this will lower your operating costs and help protect the environment.
- Page 4 TABLE 2 Cable Quantity Connectors Description 24(20+4)-pin Motherboard 8(4+4)-pin ATX12V/EPS12V 6-pin PCI-E Molex SATA Molex SATA...
- Page 5 INSTALLATION Install the PSU into either the top or bottom of your case with the four screws provided. Refer to your case manual if you are unsure where the power supply should be installed. Connect the 24-pin main power connector to your motherboard. Connect the 8-pin or 4+4-pin connector for the CPU.
- Page 6 Connect the AC power cord to the power supply AC inlet. Be sure to use the heavy-duty cord supplied with your PSU. Hard drives, optical drives (CD/DVD/BluRay™) and other accessories will use either the older 4-pin Molex connector or the newer 15-pin SATA connector. 4-pin Molex connectors have two black, one yellow and one red wire.
-
Page 7: Technical Support
Tel: 510-770-1200 - Fax: 510-770-1288 www.antec.com © 2012 Antec, Inc. All rights reserved. Specifications are subject to change without prior notice. Actual product(s) and accessories may differ from illustrations. Omissions and printing errors excepted. Content of delivery might differ in different countries or areas. Some trademarks may be claimed as the property of others.
