Future light Pro-Head-Spot PHS-1200 User Manual

Pro-head-spot
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

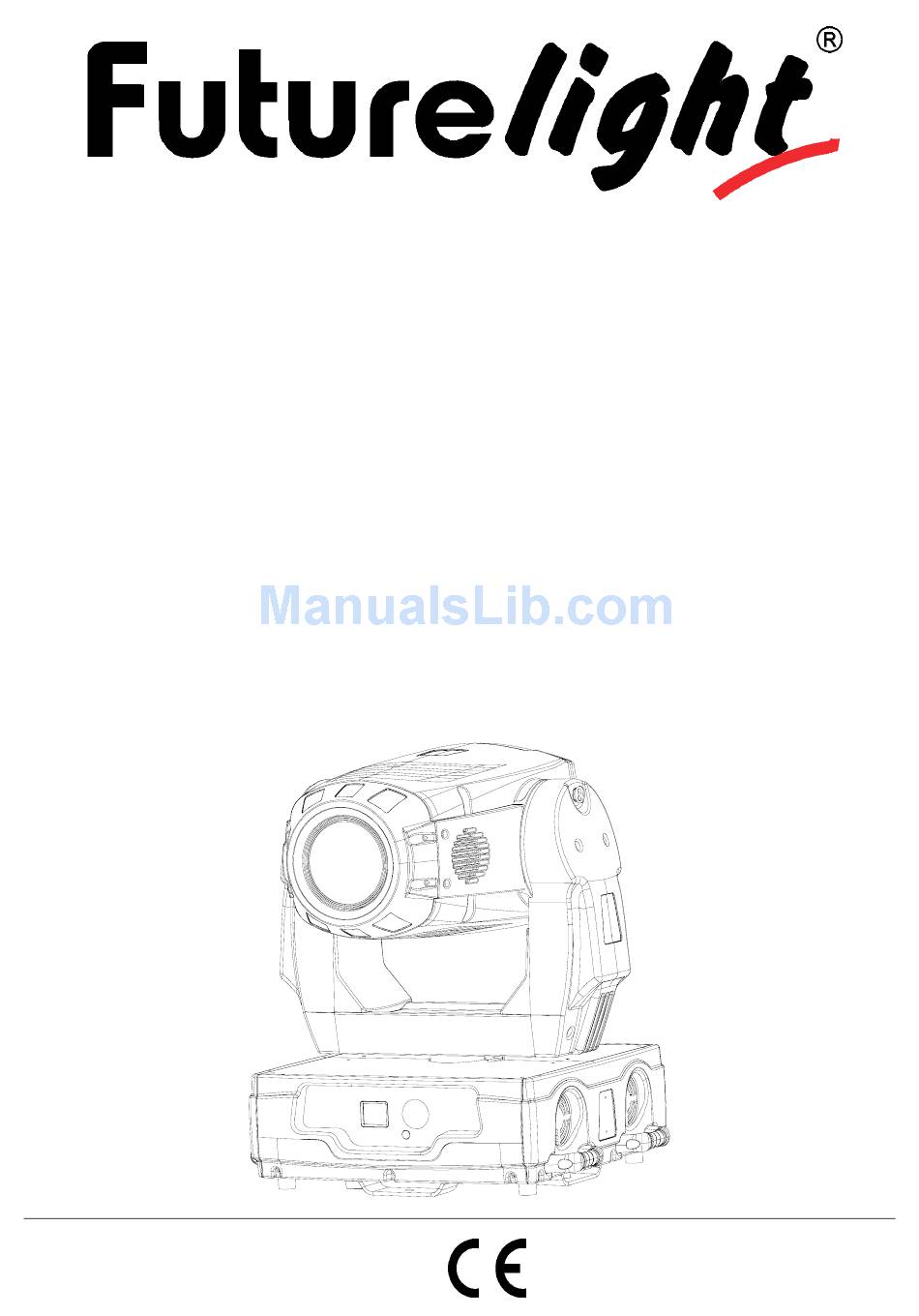

BEDIENUNGSANLEITUNG

USER MANUAL

PHS-1200
Pro-Head-Spot
©
Für weiteren Gebrauch aufbewahren!
Copyright
Keep this manual for future needs!
Nachdruck verboten!
Gardez ce mode d'emploi pour des
Reproduction prohibited!
utilisations ultérieures!
Réproduction interdit!
Guarde este manual para posteriores usos.
Prohibida toda reproducción.

Advertisement

Table of Contents
loading

Related Manuals for Future light Pro-Head-Spot PHS-1200

Summary of Contents for Future light Pro-Head-Spot PHS-1200

  • Page 1: User Manual

    BEDIENUNGSANLEITUNG USER MANUAL PHS-1200 Pro-Head-Spot © Für weiteren Gebrauch aufbewahren! Copyright Keep this manual for future needs! Nachdruck verboten! Gardez ce mode d’emploi pour des Reproduction prohibited! utilisations ultérieures! Réproduction interdit! Guarde este manual para posteriores usos. Prohibida toda reproducción.
  • Page 2 MULTI-LANGUAGE-INSTRUCTIONS Inhaltsverzeichnis/Table of contents Sommaire/Contenido EINFÜHRUNG..............................5 SICHERHEITSHINWEISE..........................5 BESTIMMUNGSGEMÄßE VERWENDUNG..................... 7 GERÄTEBESCHREIBUNG ..........................8 Features ................................. 8 Geräteübersicht.............................. 9 INSTALLATION .............................. 11 Lampeninstallation/Lampenwechsel ......................11 Lampenjustierung............................12 Einsetzen/Austauschen von Gobos ......................12 Transportsicherung ............................13 Projektormontage............................13 Anschluss an den DMX-512 Controller / Verbindung Projektor – Projektor ..........15 Anschluss ans Netz............................
  • Page 3 Function Mode ............................. 51 Information ..............................51 Personality ..............................52 Reset-functions ............................53 Effect Adjust ..............................53 Users mode set ............................54 Edit program..............................54 Error Messages............................54 CLEANING AND MAINTENANCE ......................... 55 Replacing the fuse ............................56 TECHNICAL SPECIFICATIONS........................56 INTRODUCTION .............................
  • Page 4 INTRODUCCIÓN............................. 84 INSTRUCCIONES DE SEGURIDAD ......................84 INSTRUCCIONES DE MANEJO ........................86 DESCRIPCIÓN DEL APARATO........................87 Features ............................... 87 Descripción de las partes..........................88 INSTALACIÓN ..............................90 Instalar/Reemplazar la lámpara ........................90 Ajuste de la lámpara ............................ 91 Insertar/reemplazar gobos ........................... 91 Seguro de transporte ...........................

  • Page 5: Safety Instructions

    - pass this manual on to every further owner or user of the product - download the latest version of the user manual from the Internet INTRODUCTION Thank you for having chosen a FUTURELIGHT PHS-1200. You will see you have acquired a powerful and versatile device. Unpack your PHS-1200.
  • Page 6 If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your device. Leave the device switched off until it has reached room temperature. Please make sure that there are no obvious transport damages. Should you notice any damages on the A/C connection cable or on the casing, do not take the device into operation and immediately consult your local dealer.

  • Page 7: Operating Determinations

    HEALTH HAZARD! Never look directly into the light source, as sensitive persons may suffer an epileptic shock (especially meant for epileptics)! Keep away children and amateurs! Never leave this device running unattended. OPERATING DETERMINATIONS This device is a moving-head spot for creating decorative effects. This product is only allowed to be operated with an alternating current of 230 V, 50 Hz and was designed for indoor use only.

  • Page 8: Features

    The lamp must never be ignited if the objective-lens or any housing-cover is open, as discharge lamps may explose and emit a high ultraviolet radiation, which may cause burns. The maximum ambient temperature t = 45° C must never be exceeded. Operate the device only after having familiarized with its functions.
  • Page 9 Overview Faceplate Rear panel MSR 1200 SA 7. Lamp system 8. Connection panel 36/110 51838375_V_1_2.DOC...
  • Page 10 Control Board 9. LCD-Display 10. Upload-socket 11. Microphone 12. Mode/Escape button 13. Encoder Connection panel 14. Power supply socket 15. Fuse holder 16. 3-PIN DMX output socket 17. 3-PIN DMX input socket 18. 5-PIN DMX output socket 19. 5-PIN DMX input socket 20.

  • Page 11: Installation

    INSTALLATION Installing/Replacing the lamp DANGER TO LIFE! Only install the lamp with the device switched off! Unplug from mains before! For the installation, you need one MSR 1200 SA lamp. The lamp must only be changed when wearing appropriate protective clothing (protection glasses, protection gloves, helmet with sight, leather apron).

  • Page 12: Lamp Adjustment

    Lamp adjustment The lampholder is aligned at the factory. Due to differences between lamps, fine adjustment may improve light performance. Strike the lamp, open the shutter, set the dimmer intensity onto 100 % and direct the light towards a flat surface (wall). Center the hot-spot (the brightest part of the beam) using the 3 adjustment screws "A, B, C”.
  • Page 13 Slot-in gobo-system for exchanging gobos without tools! Inserting/Exchanging gobos as described above. Transport securing The PHS-1200 comes with locked transport securings in order to avoid damages. Please note: All transport securing must be unlocked before operating the device! TILT-securing: Turn the two stop levers at the projector head from Lock to Unlock. Now, the projector head can be freely moved in the Y-direction.
  • Page 14 The operator has to make sure that safety-relating and machine-technical installations are approved by a skilled person once a year. Procedure: The projector should be installed outside areas where persons may walk by or be seated. IMPORTANT! OVERHEAD RIGGING REQUIRES EXTENSIVE EXPERIENCE, including (but not limited to) calculating working load limits, installation material being used, and periodic safety inspection of all installation material and the projector.
  • Page 15 Screw one clamp each via a M12 screw and nut onto the Omega-holders. Insert the quick-lock fasteners of the first Omega-holder into the respective holes on the bottom of the device. Tighten the quick-lock fasteners fully clockwise. Install the second Omega-holder. DMX-512 connection / connection between fixtures The wires must not come into contact with each other, otherwise the fixtures will not work at all, or will not work properly.
  • Page 16 Occupation of the XLR-connection:...

  • Page 17: Control Board

    PHS-1200 will respond to the controller. If you set, for example, the address to channel 26, the PHS-1200 will use the channel 26 to 50 for control. Please, be sure that you don’t have any overlapping channels in order to control each PHS-1200 correctly and independently from any other fixture on the DMX-chain.
  • Page 18 Decimal Hexad. Percentage S/F Feature 0 15 00 0F 0% 6% Open / white 16 31 10 1F 6% 12% Colored gobo 1 32 47 20 2F 13% 18% Colored gobo 2 48 63 30 3F 19% 25% 64 79 40 4F 25% 31% Blue...
  • Page 19 112 119 70 77 44% 47% Macro 14 120 127 78 7F 47% 50% Macro 15 128 135 80 87 50% 53% Macro 16 136 143 88 8F 53% 56% Macro 17 144 151 90 97 56% 59% Macro 18 152 159 98 9F 60% 62%...
  • Page 20 130 149 82 95 51% 58% Gobo 3 shake with increasing speed 150 169 96 A9 59% 66% Gobo 4 shake with increasing speed 170 189 AA BD 67% 74% Gobo 5 shake with increasing speed 190 255 BE FF 75% 100% Cont.
  • Page 21 Control-channel 19 - Iris Decimal Hexad. Percentage S/F Feature 0 191 00 BF 0% 75% Max. diameter to min. diameter 192 223 C0 DF 75% 87% Pulse opening with decreasing speed 224 255 E0 FF 88% 100% Pulse closing with increasing speed Control-channel 20 - Shutter, strobe Decimal Hexad.

  • Page 22: Information

    Control Board Default settings shaded. Main menu Sub menu Display Function Set DMX address DMX address setting Value display DMX value display Function Set to Slave Slave setting Mode Auto program Auto program Music control Music control Power on time XXXX Individual fixture running time...

  • Page 23: Features

    Reset default Restore factory sett. ON/OFF Reset all motors Reset All Reset only Pan/Tilt Reset Scan Reset only colors Reset Colors Reset only gobo Reset Gobos Reset only shutter Reset Shutter and/or dimmer Reset Others Reset other motors Test channel PAN Moving…...

  • Page 24: Function Mode

    Function Mode DMX address setting With this function, you can adjust the desired DMX-address via the Control Board. • Select “Set DMX address“ via the encoder. • Press the encoder, adjust the DMX address by turning the encoder. • Press the encoder to confirm. •...
  • Page 25 Software version With this function you can display the software version of the device. • Select “Software version” by turning the encoder. • Press the encoder, the display shows “V-X.X”, “X.X“ stands for the version number, e.g. “V-1.0”, “V-2.6”. • Turn the encoder in order to read the version of every individual IC. •...

  • Page 26: Effect Adjust

    • Turn the encoder to select “ON” if you wish to strike the lamp or “OFF” in order to switch it off. • Press the encoder to confirm. • Press the Mode/Esc-button in order to return to the main menu. Lamp on/off by power on With this function you can select if the the lamp will be switched on when switching the power on.

  • Page 27: Edit Program

    The PHS-1200 features an integrated DMX-recorder by which you can transmit the programmed scenes from your DMX-controller to the PHS-1200. Adjust the desired scene numbers via the encoder (from – to). When you call up the scenes at your controller, they will automatically be transmitted to the PHS-1200.

  • Page 28: Installation

    CLEANING AND MAINTENANCE The operator has to make sure that safety-relating and machine-technical installations are inspected by an expert after every four years in the course of an acceptance test. The operator has to make sure that safety-relating and machine-technical installations are inspected by a skilled person once a year.

  • Page 29: Information

    No. 51860102 Wizard-1024 USB DMX-Software + Interface No. 51860110 FUTURELIGHT ISP Upload Set No. 51836901 Flightcase for 1x PHS-1200 incl.reelboard No. 51836869 FUTURELIGHT DES-3 DMX-terminator 3-pin No. 51834001 Please note: Every information is subject to change without prior notice. 14.12.2005 ©...
