347337-UIM-A-0408
AC 1B
THERMOSTAT
*BN11C00124
C
24 – Volt Common
Y
Full Stage Compressor Full Stage Compressor
RH
24 – Volt Hot
(Heat XFMR)
G
Fan
RC
24 – Volt Hot
(Cool XFMR)
W
Full Stage Heat
2
Open on Humidity Rise
Thermostat Installer Setup Selection of GAS/ELEC
1-System Type-must be
set to 0
Thermostat Installer Setup
15-Compressor Protection
must be set to 5
2

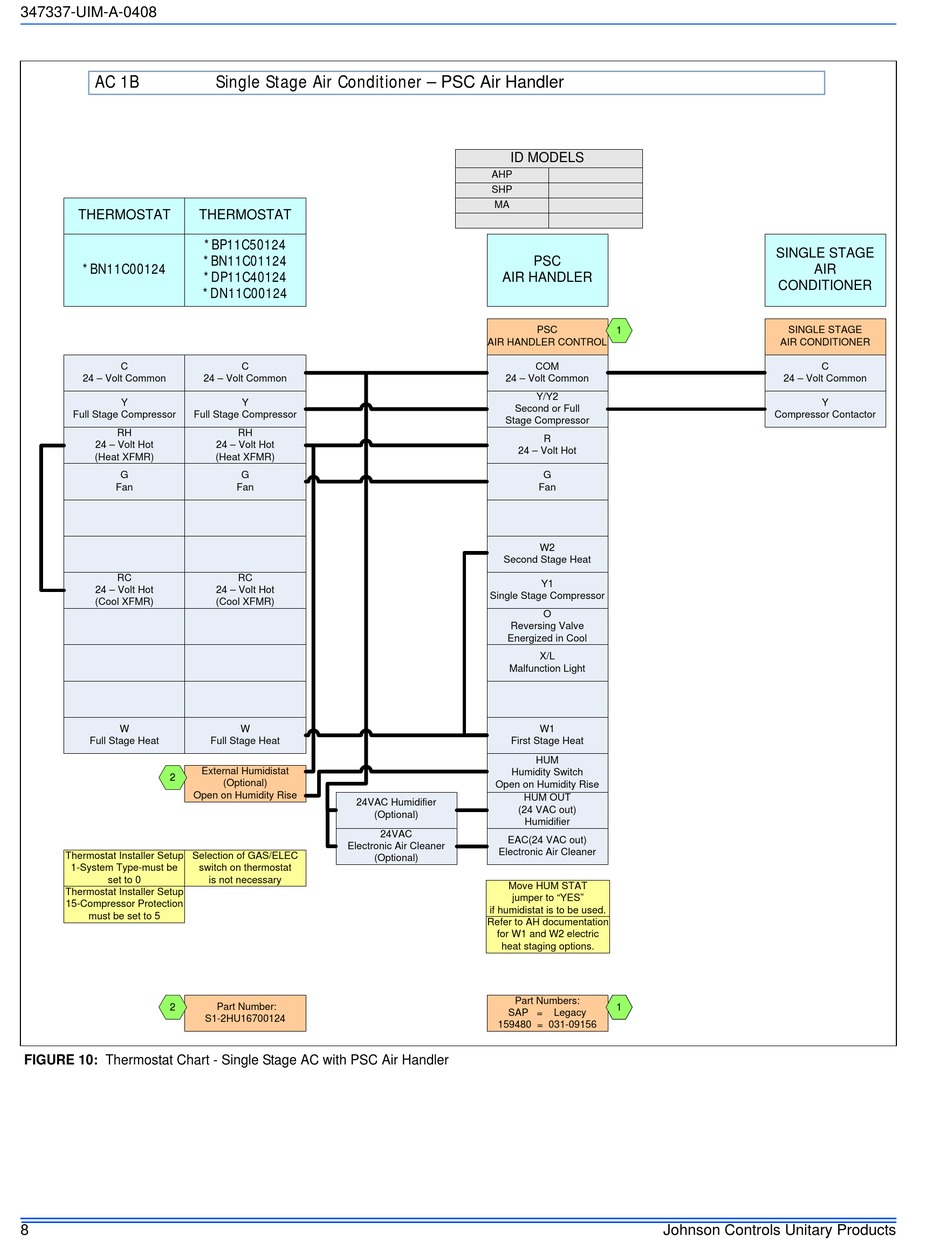

FIGURE 10: Thermostat Chart - Single Stage AC with PSC Air Handler
8
Single Stage Air Conditioner – PSC Air Handler
THERMOSTAT
*BP11C50124
*BN11C01124
*DP11C40124
*DN11C00124
C
24 – Volt Common
Y
RH
24 – Volt Hot
(Heat XFMR)
G
Fan
RC
24 – Volt Hot
(Cool XFMR)
W
Full Stage Heat
External Humidistat
(Optional)
24VAC Humidifier
(Optional)
Electronic Air Cleaner
(Optional)
switch on thermostat
is not necessary
Part Number:
S1-2HU16700124
ID MODELS
AHP
SHP
MA
PSC
AIR HANDLER
PSC
AIR HANDLER CONTROL
COM
24 – Volt Common
Y/Y2
Second or Full
Stage Compressor
R
24 – Volt Hot
G
Fan
W2
Second Stage Heat
Y1
Single Stage Compressor
O
Reversing Valve
Energized in Cool
X/L
Malfunction Light
W1
First Stage Heat
HUM
Humidity Switch
Open on Humidity Rise
HUM OUT
(24 VAC out)
Humidifier
24VAC
EAC(24 VAC out)
Electronic Air Cleaner
Move HUM STAT
jumper to "YES"
if humidistat is to be used.
Refer to AH documentation
for W1 and W2 electric
heat staging options.
Other Part Numbers: Part Numbers:
SAP = SAP = Legacy Legacy
265902 = 031-09167 159480 = 031-09156
SINGLE STAGE
CONDITIONER
1 SINGLE STAGE
AIR CONDITIONER
24 – Volt Common
Compressor Contactor
1 2
Johnson Controls Unitary Products
AIR
C
Y
