Lincat IH21 User And Installation Instructions Manual
Twin zone induction hob
Hide thumbs
Also See for IH21:
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for Lincat IH21
Summary of Contents for Lincat IH21

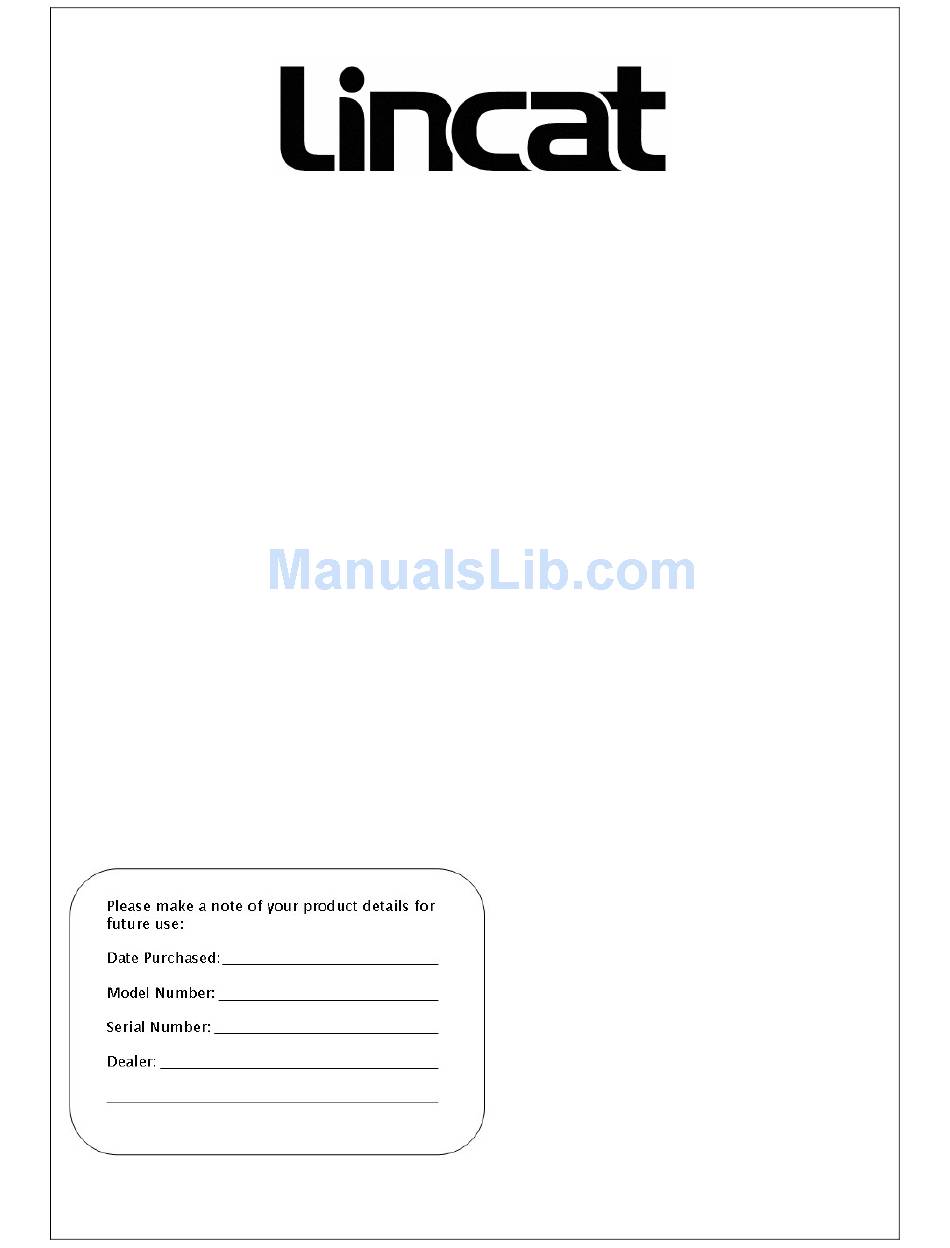

- Page 1 User and Installation Instructions Twin Zone Induction Hob IH21 IS429:ECN3369...
- Page 2 The following convention applies where indicator lights are fitted to appliances:- Green on - power to the unit. When the IH21 Induction hob is plugged into the 13amp mains supply and switched on, the green neon light will illuminate and the cooling fan will be heard running.
- Page 3 USER MAINTENANCE Before working on or cleaning the equipment, isolate it from the power supply and allow it to cool to a safe working temperature. Clean units regularly with hot water and detergent, do not use abrasive or chlorine based cleaners on stainless steel.
- Page 4 CONTROL KNOB FUNCTION AND HOB DISPLAY SYMBOLS LOW TEMP HOLD AUTOMATIC HEAT-UP & CONTROL LOCK LEVEL 1 POWER BOOST LEVEL 2 LEVEL 9 HOB INDICATOR LEVEL 8 LEVEL 3 LEVEL 7 LEVEL 6 LEVEL 4 LEVEL 5 Warning: Do not move the control knob directly between Power boost and Automatic heat-up. All symbols are observed through the ceramic glass.
- Page 5 Time limit (mins) POWER BOOST FUNCTION The IH21 is rated at 3kW total power input. Normal operation; the large rear coil is rated at 2kw, the small front coil is rated at 1kw (total 3 kW). If the large rear coil is power boosted, its power increases to 3kW, the front coil will be shut down.
- Page 6 There are numerous “E” symbol error codes, these identify issues within the induction system and are primarily of use when reporting a fault to the Service department at Lincat Ltd. Some errors can be cleared by turning the control to the “off” position, or completely turning off and unplugging the IH21, before switching on again.
- Page 7 IH21 Induction Hob Specifications Model IH21 External height (mm) External width (mm) External depth (mm) Net weight 12kg 2 zones Hob surface 6mm thick Schott Ceran® ceramic glass Electrical supply 1N~+E 230V/1ph/50Hz Electrical connection Fitted 2.0m long lead with 13amp plug...
- Page 8 Please quote both the model and serial numbers from the data plate attached to the unit. Give brief details of the service requirement. Lincat reserve the right to carry out any work under warranty during normal working hours, i.e. Monday to Friday, 8.30 a.m. - 5.00 p.m.
