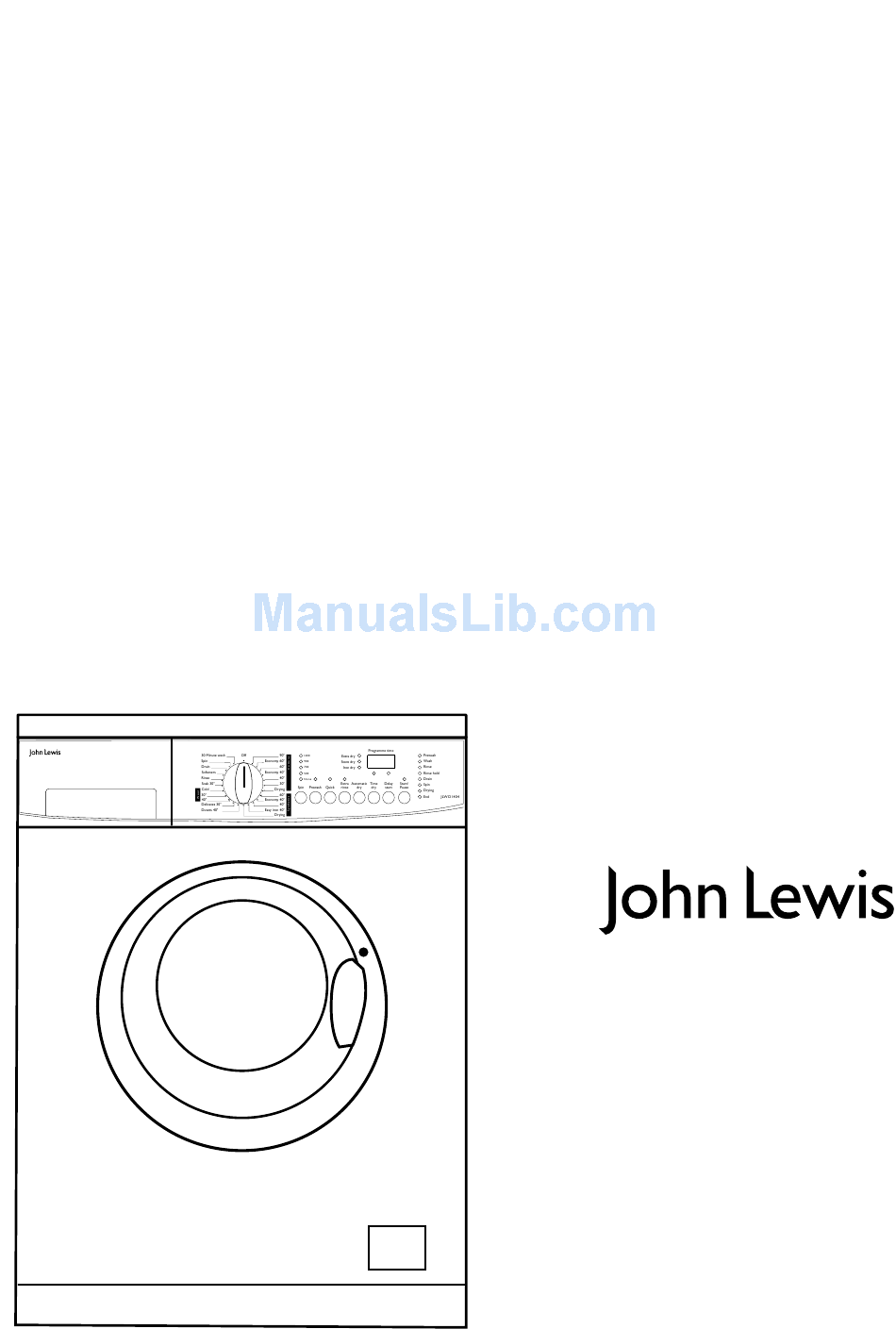

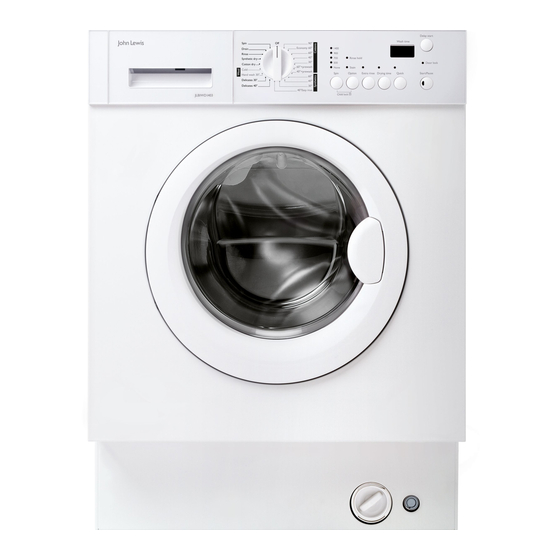

1400 spin washer-dryer
Instruction manual
132 987 220

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JLWD1404 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for John Lewis JLWD1404

  • Page 1 JLWD 1404 1400 spin washer-dryer Instruction manual 132 987 220...
  • Page 2: Important Safety Information

    These warnings have been provided in the interest of safety. You MUST read them carefully before installing or using the appliance. If you are unsure of the meanings of these warnings contact the John Lewis branch from which you purchased the appliance. Installation This appliance is heavy.
  • Page 3: Table Of Contents

    Contents For the User Important Safety Information Your New Washer-Dryer Description of the Appliance Door locked light Detergent dispenser drawer Child safety feature The Control Panel Programme information Operating Sequence Load the laundry Measure out the detergent Measure out the fabric softener Switch the machine on Select the desired programme/temperature Select the spin speed or the “None”...
  • Page 4: Your New Washer-Dryer

    Your New Washer-Dryer Your new washer-dryer, which is fitted with the Jet System, meets all modern requirements for effective treatment of laundry with low water, energy and detergent consumption. Even small loads are washed “economically” because the amount of water used is regulated automatically according to the load and type of fabric.
  • Page 5: Description Of The Appliance

    Description of the Appliance 1 Detergent dispenser drawer 2 Control panel 3 Door locked light 4 Door opening handle 5 Filter 6 Adjustable feet Door locked light It stays on during the whole programme indicating that the door is locked. When the light goes out, the door can be opened.
  • Page 6: The Control Panel

    The Control Panel 1 Detergent dispenser drawer 2 Programme selector dial The programme selector dial is divided into following sections: • Cottons, • Synthetics, • Delicates • Wool / Hand washing • Special programmes from “Soak 30°” to “30 Minute wash” •...
  • Page 7: Option Buttons

    4 “Option” buttons Depending on the programme, different functions can be combined. These must be selected after choosing the desired programme and before depressing the “”Start/Pause” button. When these buttons are pressed, the corresponding pilot lights illuminate. When they are pressed again, the pilot lights go out.
  • Page 8 • Pause: when you press this button again, the programme in progress is interrupted. The light above the button will start flashing. To restart the programme from the point at which it was interrupted, press the button again. • Draining of water: by depressing the “Start/Pause” button the water of programme “Soak 30°”...
  • Page 9 • An incorrect option selection has been made: this is indicated by the message Err when a function incompatible with the current programme is selected. • An alarm code indicates a fault in the machine operation (see the relevant chapter). 10 Programme phase indicator lights When you select a programme, the lights relevant to...
  • Page 10: Programme Information

    Programme information Easy iron 40° 40°C With this programme at it is possible to wash the synthetic garments which must be ironed. The laundry is gently washed and spun to prevent the fabrics from creasing. Soak 30° This is a special programme for heavily soiled laundry. The machine performs a soak of about 30 minutes at 30°C.
  • Page 11: Operating Sequence

    Operating Sequence Before the first wash, we recommend that you run a cotton cycle at 60°C, without any laundry in the machine, to remove any manufacturing residue from the drum and tub. Pour 1/2 a measure of detergent into the dispenser drawer and start the machine.
  • Page 12: Select The Desired Options

    The relevant light will light up. 7. Select the desired options If your laundry is very dirty, it may be advisable to select the “Prewash” option. If your laundry is only slightly soiled, select the “Quick” option. If you wish the laundry to undergo an extra rinse, select the “Extra Rinse”...
  • Page 13: End Of Programme

    Should it not be possible to open the door, and should it be absolutely necessary to do so, switch the machine off by turning the selector dial to “Off”. After approximately 3 minutes, you can open the door. Pay attention to the level and temperature of the water in the washing machine! When you close the door to restart the programme turn the dial to the previous programme repeating the...
  • Page 14: A Programme

    DRYING 3 KG OF COTTON You have for example just machine-washed and spun at 1400 rpm 6 kg of laundry. They are cotton fabrics of medium weight which you want to iron as soon as they are dry. Remove the laundry from the appliance and divide the items to obtain two loads of approx.
  • Page 15: Washing And Drying

    Washing and Drying Hints Do NOT overload the machine. Weigh the laundry the first few times you use the appliance. The average weights of the most common items are listed below as a guide: 1000g = 1 kg Sheet Pillow case Tablecloth Serviette Tea towel...
  • Page 16: Wash Care Symbols

    Wash Care Symbols Wash care labels inside garments recommend how to launder your clothes with the best results. The care labelling code is in line with care labelling used in the rest of Europe. The symbols used make it easy to select the correct programme on your washing machine.
  • Page 17: Washing Programmes

    Washing programmes Programme/ Type of laundry Fabrics temperature Sheets, household 90° White linen, towels, cotton Cottons tablecloths Economy Sheets, household White 60° linen, towels, cotton tablecloths Cottons Fast coloured and non-fast items, for 60° White and example hand towels, 40° - 30° coloured sheets, underwear, cotton...
  • Page 18: Washing Programmes

    Washing programmes Programme Programme description Soak for 30 minutes Soak 30° at 30°C 3 rinses Long spin Rinse (or short)** at the max speed 1 rinse with liquid additive Softeners Long spin at max. speed Drain For emptying out after the programme “Soak Water draining 30°...
  • Page 19: Drying Programmes

    Drying Programmes Timed drying Degree of Type of fabric drying Extra dry Cotton and linen Ideal for towelling (bathrobes, bath materials towels, etc.) Cotton and linen (towels, T-shirts, bathrobes) Store dry (*) Suitable for items to put away without ironing Synthetics and mixed fabrics (jumpers, blouses, underwear,...
  • Page 20: Maintenance And Cleaning

    Maintenance and Cleaning Before any maintenance or cleaning is carried out you must DISCONNECT the appliance from the electricity supply. Descaling The water we use normally contains lime. It is a good idea to periodically use a water softening powder in the machine.
  • Page 21: Cleaning The Water Inlet Filter

    Repeat the procedure until water stops flowing out. Unscrew and remove the filter. Clean carefully under a fast running tap. Warning When the appliance is in use and depending on the programme selected there can be hot water in the pump.
  • Page 22: Something Not Working

    Something Not Working Certain problems are due to lack of simple maintenance or oversights, which can be solved easily without calling out an engineer. Before contacting your local Service Force Centre, please carry out the checks listed below. IMPORTANT: if you call out an engineer to a fault listed below, or to repair a fault caused by incorrect use or installation, a charge will be made even if the appliance is under guarantee.
  • Page 23: Something Not Working

    Symptom The machine vibrates when spinning The door will not open Spinning starts late or the machine does not spin The machine makes an unusual noise No water is visible in the drum The machine does not dry or does not dry properly Service &...
  • Page 24: Installation Instructions

    Installation Instructions It is dangerous to alter the specifications or attempt to modify this product in any way. Care must be taken to ensure that the appliance does not stand on the electrical supply cable. Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person.
  • Page 25: Unpacking

    Unpacking All transit bolts and packing must be removed before using the appliance. You are advised to keep all the packaging for re-use in case the machine is to be transported again. Using a spanner unscrew and remove the two rear bottom screws.
  • Page 26: Water Inlet

    Water inlet Connect the hose to a tap with a 3/4” thread. Always use the hose supplied with the appliance to connect to the water supply. Do not use previously used hoses for water connection. Installation should comply with local water authority and building regulations’...
  • Page 27: Levelling

    2. Onto a sink outlet spigot. If the outlet spigot has not been used before, remove any blanking plug that may be in place. Push the drain hose onto the spigot and secure with a clip if required, ensure a loop is formed in the drain hose (see diagram) to prevent waste from the sink entering the washing machine.
  • Page 28: Electrical Connection

    If you require any further advice please contact your local water authority. Electrical connection Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person. WARNING: THIS APPLIANCE MUST BE EARTHED. The manufacturer declines any liability should this safety measure not be observed.
  • Page 29 John Lewis partnership 171 Victoria Street London SW1E 5NN www.johnlewis.com...
