- Page 1 JLBIWD 1400 Built-in 1400 spin washer-dryer Instruction manual...
-
Page 2: Important Safety Information
These warnings have been provided in the interest of safety. You MUST read them carefully before use or installation by a qualified person. If you are unsure of the meanings of these warnings contact the John Lewis branch from which you purchased the appliance. -
Page 3: Table Of Contents
Contents Important Safety Information Your New Washer-Dryer Description of the Appliance Detergent dispenser drawer Child safety feature For the Installer Installation Instructions Technical Specifications Unpacking Positioning Installation on a suspended floor Building-in Water inlet Water drainage Levelling Special conditions In the interest of the environment Electrical connection Permanent connection For the User... -
Page 4: Your New Washer-Dryer
Your New Washer-Dryer Your new washer-dryer, which is fitted with the Jet System, meets all modern requirements for effective treatment of laundry with low water, energy and detergent consumption. Even small loads are washed “economically” because the amount of water used is regulated automatically according to the load and type of fabric. -
Page 5: Description Of The Appliance

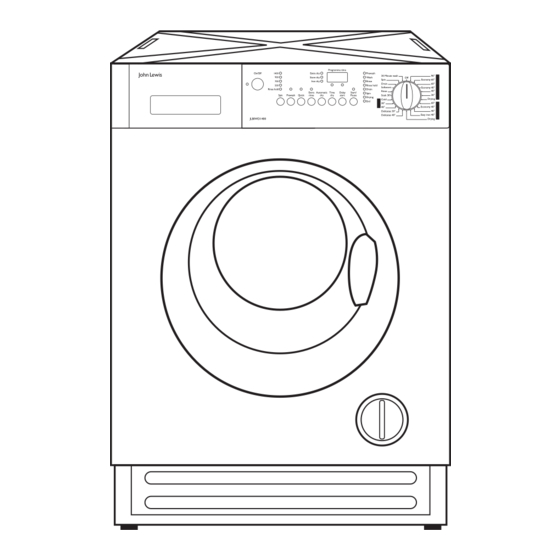

Description of the Appliance 1 Detergent dispenser drawer 2 Control panel 3 Door opening handle 4 Filter 5 Adjustable feet Detergent dispenser drawer Prewash Main wash Fabric softener Child safety feature This machine incorporates a special child safety feature to prevent small children from being trapped inside the machine. -
Page 6: Installation Instructions
Installation Instructions It is dangerous to alter the specifications or attempt to modify this product in any way. Care must be taken to ensure that the appliance does not stand on the electrical supply cable. Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person. -
Page 7: Unpacking
Unpacking All transit bolts and packing must be removed before using the appliance. You are advised to keep all the packaging for re-use in case the machine is to be transported again. Using a spanner unscrew and remove the rear right bolt. -
Page 8: Building-In
Building-in This appliance has been designed to be built into the kitchen furniture. The recess should have the dimensions shown in picture A. When installing the appliance into the kitchen furniture ensure, if possible, the hoses are placed in either of the two recesses on the back of the appliance. - Page 9 c) Mounting the door Fix the hinges (1) to the machine by means of the M5x15 screws (3-Fig. B). The hinges can be adjusted to compensate for possible uneven thickness of the door. To align the door perfectly it is necessary to loosen the screw (3-Fig.
-
Page 10: Water Inlet
Position the base into the recess with its front edge as far forward as the adjoining plinth line will allow. The reason for placing the base in this position is to allow a small strip of beading to be fitted in front of the appliance feet. -
Page 11: Water Drainage
Water drainage This appliance is designed to be permanently plumbed into your home's drainage system using one of the following methods. 1. Into a drainage standpipe. Firstly form a hook in the end of the drain hose using the “U” piece” supplied. Place the drain hose into your standpipe, which should have an internal diameter of approximately 38mm thus ensuring there is an air break between the drain hose... -
Page 12: Levelling
Levelling Level the washing machine by raising or lowering the feet. The feet may be tight to adjust as they incorporate a self locking nut, but the machine MUST be level and stable (check diagonally). Any necessary adjustment can be made with a spanner. Accurate levelling prevents vibration, noise and displacement of the machine during operation. -
Page 13: Permanent Connection
The rating plate is located at the top of the rim of the open door. The appliance is supplied with a 13amp plug fitted. In the event of having to change the fuse in the plug supplied, a 13amp ASTA approved (BS1363/A) fuse must be used. -
Page 14: The Control Panel
The Control Panel 1 Detergent dispenser drawer 2 Mains-on light This light comes on when the “On/Off” button is pressed, and goes out when it is pressed again. 3 “On/Off” button Press this button to switch the machine on. Press it again to switch the machine off. -
Page 15: Delay Start Button
• “ Quick”: select this option for laundry that is only slightly soiled in order to obtain a good wash result in a short time. This option is not available with the Wool programmes, the Energy saving programmes “Economy” and “30 Minute wash”. The washing time will be reduced according to the type of fabric and the selected temperature. - Page 16 (If, at the end of a washing cycle, the programme selector dial has not been turned to “Off” position , when you press the “On/Off” button to switch the machine on for the next washing, the display will show a blinking zero.) •...
-
Page 17: Programme Selector Dial
• An incorrect option selection has been made: this is indicated by the message Err when a function incompatible with the current programme is selected. • An alarm code indicates a fault in the machine operation (see page 31, "Something Not Working"). 11 Programme phase indicator lights When you select a programme, the lights relevant to... -
Page 18: Programme Information
Programme information Easy iron 40° 40°C With this programme at it is possible to wash synthetic garments which must be ironed. The laundry is gently washed and spun to prevent the fabrics from creasing. Max. load 1 kg. Final spin speed 900 r.p.m. Soak 30°... -
Page 19: Operating Sequence
Operating Sequence Before the first wash, we recommend that you run a cotton cycle at 90°C, without any laundry in the machine, to remove any manufacturing residue from the drum and tub. Pour 1/2 a measure of detergent into the dispenser drawer and start the machine. -
Page 20: Select The Desired Programme/Temperature
6. Select the spin speed or the “Rinse hold” option Press the “Spin” button repeatedly in order to select the desired spin speed or the “Rinse hold” option. If you select the “Rinse hold” option, the machine will stop at the end of the programme with the water still in the tub. -
Page 21: How To Interrupt A Programme
11. How to interrupt a programme Depress the “Start/Pause” button to interrupt a programme which is running, the corresponding light starts to flash. Depress the button again to restart the programme. 12. How to open the door during the cycle of a programme You can open the door, after having set the washer- dryer to Pause, provided the following conditions exist:... -
Page 22: Drying 2.5 Kg Of Cotton
Drying DRYING 2.5 KG OF COTTON You have for example just machine-washed and spun at 1400 rpm 5 kg of laundry. They are cotton fabrics of medium weight which you want to iron as soon as they are dry. Remove the laundry from the appliance and divide the items to obtain two loads of approx. - Page 23 6. Select the required options by means of the relevant buttons. If possible, do not select a spin speed lower than that proposed by the appliance to avoid a too long drying time so saving energy. In any case the reduction of the spin speed is only possible after selecting drying.
-
Page 24: Washing And Drying
Washing and Drying Hints Do NOT overload the machine. Weigh the laundry the first few times you use the appliance. The average weights of the most common items are listed below as a guide: 1000g = 1 kg Sheet Pillow case Tablecloth Serviette Tea towel... -
Page 25: Wash Care Symbols
Wash Care Symbols Wash care labels inside garments recommend how to launder your clothes with the best results. The care labelling code is in line with care labelling used in the rest of Europe. The symbols used make it easy to select the correct programme on your washing machine. -
Page 26: Washing Programmes
Washing programmes Programme/ Type of laundry Fabrics temperature Sheets, household 90° White linen, towels, cotton Cottons tablecloths Economy Sheets, household White 60° linen, towels, cotton tablecloths Cottons Fast coloured and non-fast items, for 60° White and example hand towels, 40° - 30° coloured sheets, underwear, cotton... - Page 27 Washing programmes Programme Programme description Soak for 30 minutes Soak 30° at 30°C 3 rinses Rinse Long spin at the max speed 1 rinse with liquid additive Softeners Long spin at max. speed Drain For emptying out after the programme “Soak Water draining 30°...
-
Page 28: Drying Programmes
Drying Programmes Timed drying Degree of Type of fabric drying Extra dry Cotton and linen Ideal for towelling (bathrobes, bath materials towels, etc.) Cotton and linen (towels, T-shirts, bathrobes) Store dry (*) Suitable for items to put away without ironing Synthetics and mixed fabrics (jumpers, blouses, underwear,... -
Page 29: Maintenance And Cleaning
Maintenance and Cleaning Before any maintenance or cleaning is carried out you must DISCONNECT the appliance from the electricity supply. Descaling The water we use normally contains lime. It is a good idea to periodically use a water softening powder in the machine. -
Page 30: Cleaning The Water Inlet Filter
Unscrew and remove the filter. Clean carefully under a fast running tap. Warning When the appliance is in use and depending on the programme selected there can be hot water in the pump. Never remove the pump cover during a wash cycle, always wait until the appliance has finished the cycle, and is empty. -
Page 31: Something Not Working
Something Not Working Certain problems are due to lack of simple maintenance or oversights, which can be solved easily without calling out an engineer. Before contacting your local Service Force Centre (see page 33 , Service and Spare Parts), please carry out the checks listed below. IMPORTANT: if you call out an engineer to a fault listed below, or to repair a fault caused by incorrect use or installation, a charge will be made even if the appliance is under guarantee. - Page 32 Symptom Unsatisfactory washing results The machine vibrates when spinning The door will not open Spinning starts late or the machine does not spin The machine makes an unusual noise No water is visible in the drum The machine does not dry or does not dry properly Solution Too little detergent or unsuitable detergent has been used.
-
Page 33: Service And Spare Parts
Service & Spare Parts In the event of your appliance requiring service, or if you wish to purchase spare parts, please contact our extended warranty administrators by telephoning: 0870 01 07887 They will give you details for your local Service Force Centre. - Page 34 John Lewis Partnership 171 Victoria Street London SW1E 5NN 132 984 840 www.johnlewis.com...
