Operating and Installation instructions

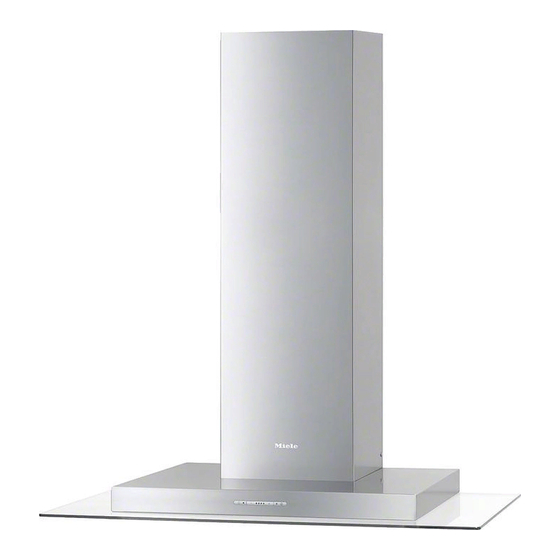

Rangehood
DA 396-5
DA 399-5
DA 399-5 EXT
en - AU, NZ
To avoid the risk of accidents
or damage to the appliance,
it is essential to read these
instructions before it is installed
and used for the first time.
M.-Nr. 09 200 310

Advertisement

   Also See for Miele DA 396-5

   Summary of Contents for Miele DA 396-5

  • Page 1

    Operating and Installation instructions Rangehood DA 396-5 DA 399-5 DA 399-5 EXT en - AU, NZ To avoid the risk of accidents or damage to the appliance, it is essential to read these instructions before it is installed and used for the first time.

  • Page 2: Table Of Contents

    Contents Caring for the environment ......... . 3 Warning and Safety instructions .

  • Page 3: Caring For The Environment

    Caring for the environment Disposal of the packing Disposal of your old appliance material or machine The transport and protective packing Electrical and electronic appliances / has been selected from materials which machines often contain materials are environmentally friendly for disposal which, if handled or disposed of and can normally be recycled.

  • Page 4: Warning And Safety Instructions

    Any other usage is at the owner's risk. requirements. Inappropriate use Miele cannot be held liable for damage can, however, lead to personal injury resulting from incorrect or improper use and damage to property.

  • Page 5: Technical Safety

    Faulty components must only be the data plate correspond to the on-site replaced by genuine Miele original electricity supply, otherwise the parts. The manufacturer can only appliance could be damaged. Consult guarantee the safety of the appliance a qualified electrician if in any doubt.

  • Page 6

    These models may only be combined with a Miele external motor. This rangehood must not be installed and operated in mobile Great care should be taken when installations (e.g.

  • Page 7

    Warning and Safety instructions In order to ensure safe operation, and to prevent gases given off by the heating appliances from being drawn back into the room when the extractor and the heater are in operation simultaneously, an underpressure in the room of 0.04 mbar (4 pa) is the maximum permissible.

  • Page 8: Correct Use

    Warning and Safety instructions Correct use Do not use the rangehood without the filters in place. This way you will Never use an open flame beneath avoid the risk of grease and dirt getting the rangehood. To avoid the danger of into the appliance and hindering its fire, do not flambé...

  • Page 9: Correct Installation

    Safety regulations prohibit the fitting of a rangehood over solid fuel stoves. All ducting, pipework and fittings must be of non-flammable material. These can be obtained from Miele or from builders' merchants. The appliance must not be connected to a chimney or vent flue which is in use.

  • Page 10: Guide To The Appliance

    Guide to the appliance...

  • Page 11: Guide To The Appliance

    Guide to the appliance a Telescopic extension piece b Tower c Canopy d Touch controls e Grease filters f Recirculation grille (only for recirculation mode) g Cooktop lighting h Charcoal filter (special accessory for recirculation mode) i On/Off control for the fan j Controls to select fan power level k On/Off control for cooktop lighting...

  • Page 12: Description Of The Functions

    Description of the functions . . . air recirculation: The rangehood works with (available as an optional extra with a conversion kit and charcoal filter: see "Technical Data") . . . air extraction: The air is drawn in and cleaned first by The air is drawn in and cleaned by the the grease filter and then by a charcoal grease filters and directed outside.

  • Page 13: Operation

    Operation To switch the fan on s Automatic switch-off of the Intensive setting ^ Press the On/Off control s. You can set the Intensive setting so that The fan will come on at power level lI. it only runs for 10 minutes before reverting automatically to level III.

  • Page 14: Cooktop Lighting I

    Operation To switch the fan off s ^ Press the On/Off control s to switch the fan off. The s symbol goes out. It is advisable to run the fan for a few minutes after cooking has finished to neutralise any lingering odours in the air, whether you are using air extraction or recirculation mode.

  • Page 15: Cleaning And Care

    Cleaning and care Housing A range of Miele branded cleaning and conditioning products is available to order from Miele (see back page for General details) or the via the internet at The surfaces and controls are www.miele-shop.com. susceptible to scratches and Before any cleaning or abrasions.

  • Page 16: Grease Filters

    (grease, dust, etc.) from the kitchen vapours, preventing soiling of the ^ Stainless steel surfaces can be rangehood. cleaned using the Original Miele all purpose microfibre cloth or with a The grease filters should be cleaned suitable, non-abrasive, proprietary regularly (at least every 3-4 weeks) to avoid a build-up of grease.

  • Page 17

    ^ Do not wash at more than 65 °C. If a Miele dishwasher is being used, select the Sensor wash programme. ^ Use a mild dishwasher detergent. Depending on the cleaning agent...

  • Page 18: Fitting And Replacing The Charcoal Filter

    It is fitted in the canopy above the household waste. grease filters. New charcoal filters can be purchased from your Miele Chartered Agent, from Miele or via the internet at www.miele-shop.com (check availability). See back cover for contact details, and "Technical data" for the model number of the filter.

  • Page 19: Changing A Halogen Lamp

    Cleaning and care ^ First remove the grease filters from Changing a halogen lamp the rangehood. ^ Before any cleaning or maintenance work, disconnect the rangehood from the mains supply. Ensure that: – it is switched off at the isolator, or –...

  • Page 20: Appliance Dimensions

    Appliance dimensions The diagram is not drawn to scale.

  • Page 21: Safety Distance Between Cooktop And Rangehood (s)

    For recirculation mode, only a connection socket needs to be fitted. If this rangehood is installed above a Connection for air extraction Miele Wok CS 1028 CombiSet C 150 mm (recommended), or C 125 appliance, a minimum safety mm with reducing collar. Please note,...

  • Page 22

    Appliance dimensions – Please be aware that if positioned Drilling diagram too high, extraction will be inefficient. – If you want the top of the rangehood telescopic extension piece to be mounted flush with the ceiling, make sure there is adequate space below the appliance for working.

  • Page 23: Installation

    Installation Dismantling Before installation, it is important to Should the appliance ever need to be read the information given on the dismantled, follow the installation following pages as well as the instructions in reverse order as "Appliance dimensions" and the described on the installation sheet.

  • Page 24: Assembly Parts

    Installation Assembly parts...

  • Page 25

    Installation a 3 protective sheets for use when fitting the tower. b 1 exhaust connection for exhaust 8 screws 5 x 40 mm and ducting C 150 mm. 8 x S 8 plugs for securing the retaining c 1 reducing collar for exhaust plates to the wall.

  • Page 26: Electrical Connection

    Electrical connection If the switch is not accessible after All electrical work should be installation, an additional means of undertaken by a suitably qualified disconnection must be provided for all and competent person in strict poles. accordance with current national For extra safety, it is advisable to install and local safety regulations.

  • Page 27: Connection For Air Extraction

    Connection for air extraction – Only use smooth pipes or flexible Important: To avoid the danger of hoses made from non-flammable toxic fumes, please observe the materials for the extraction ducting. Warning and Safety instructions. – When using an external motor, make This is especially crucial when using sure that the exhaust ducting is the rangehood at the same time as...

  • Page 28: Condensate Trap

    Connection for air extraction Condensate trap – Where ducting is horizontal, it must be laid to slope away at at least 1 cm (optional accessory) per metre. This is to ensure that condensate cannot drain back into the rangehood. – If the exhaust air is to be ducted into the open air, the installation of a telescopic wall vent or roof vent (available as an optional accessory)

  • Page 29: Silencer

    Connection for air extraction Silencer ...with air extraction: (DASD 150, optional accessory) The silencer not only reduces noise from the motor outside the house, but also sounds from outside (e.g. traffic noise). For this reason, the silencer must be positioned as close as possible to the ducting exit a.

  • Page 30: Operation With Control Module Dsm 400

    Operation with Control module DSM 400 The Miele DSM 400 control module can The components of the central be used to combine the rangehood with extraction system are not supplied as other components. standard by Miele. It enables the following: If in any doubt, the advice of a competent builder must be sought.

  • Page 31: After Sales Service

    – your Miele Chartered Agent or – Miele You will find the telephone number and address of Miele on the back cover of the manual. Please quote the model and serial number when contacting Miele. These...

  • Page 32: Technical Data

    Weight Optional extra for recirculation DA 396-5 ....21.6 kg mode: DA 399-5 ....24.6 kg - Conversion Kit DUW 20 DA 399-5 EXT .

  • Page 36

    Alteration rights reserved / 4511 M.-Nr. 09 200 310 / 01...
