Appliance dimensions
– Please be aware that if positioned
too high, extraction will be inefficient.
– If you want the top of the rangehood
telescopic extension piece to be
mounted flush with the ceiling, make
sure there is adequate space below
the appliance for working. See
maximum/minimum appliance height.
22

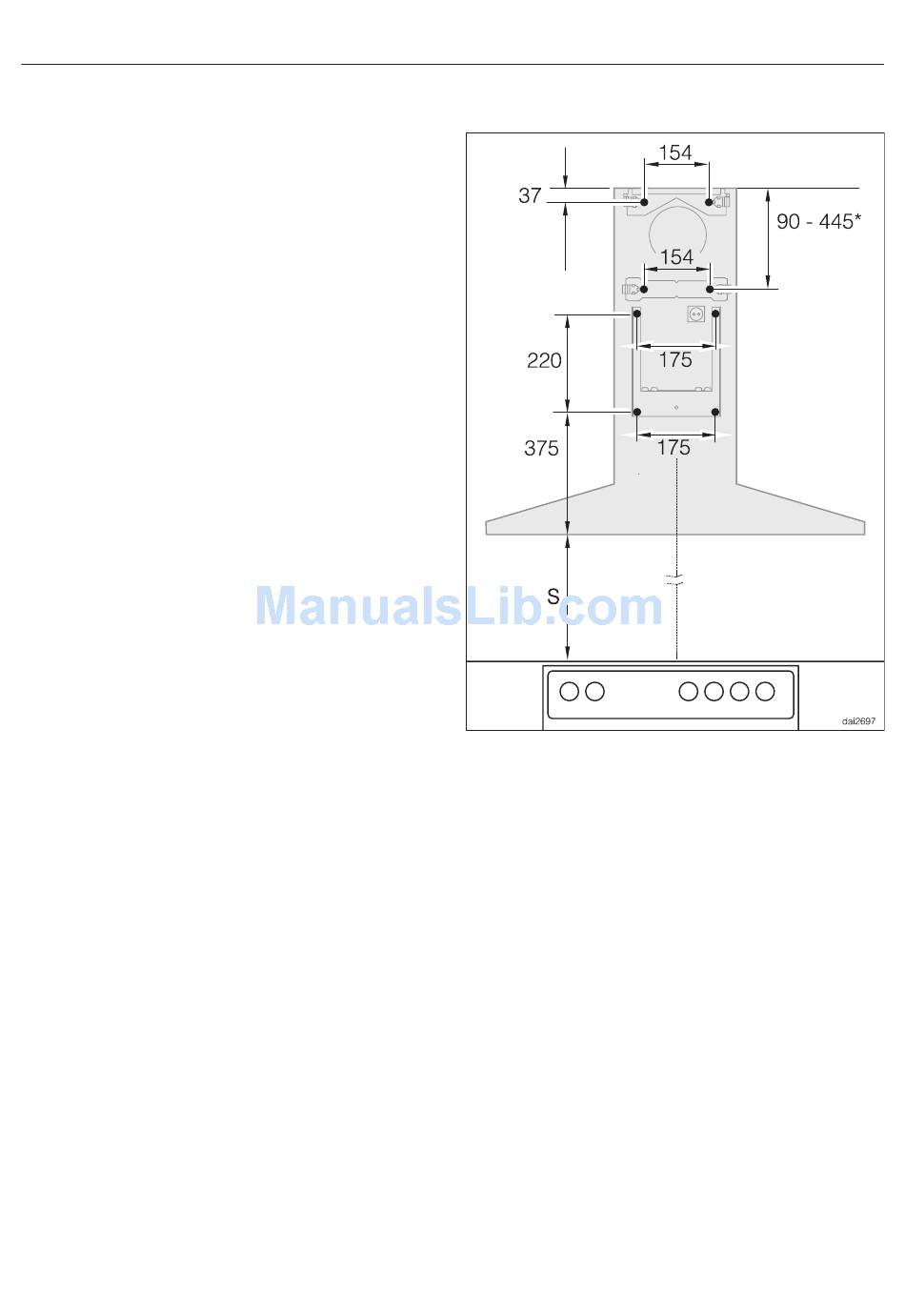

Drilling diagram
This diagram illustrates where holes for
Ø 5 mm screws need to be drilled in
the rear wall.
* The dimension between the ceiling
and the middle bracket can vary
depending on the position of the vent
cut-out and the connection socket. It
should be installed as low as possible.
If the rangehood is being secured
directly to the wall, please follow the
drilling instructions given in the
installation instructions supplied.
