Summary of Contents for John Lewis JLBICH601

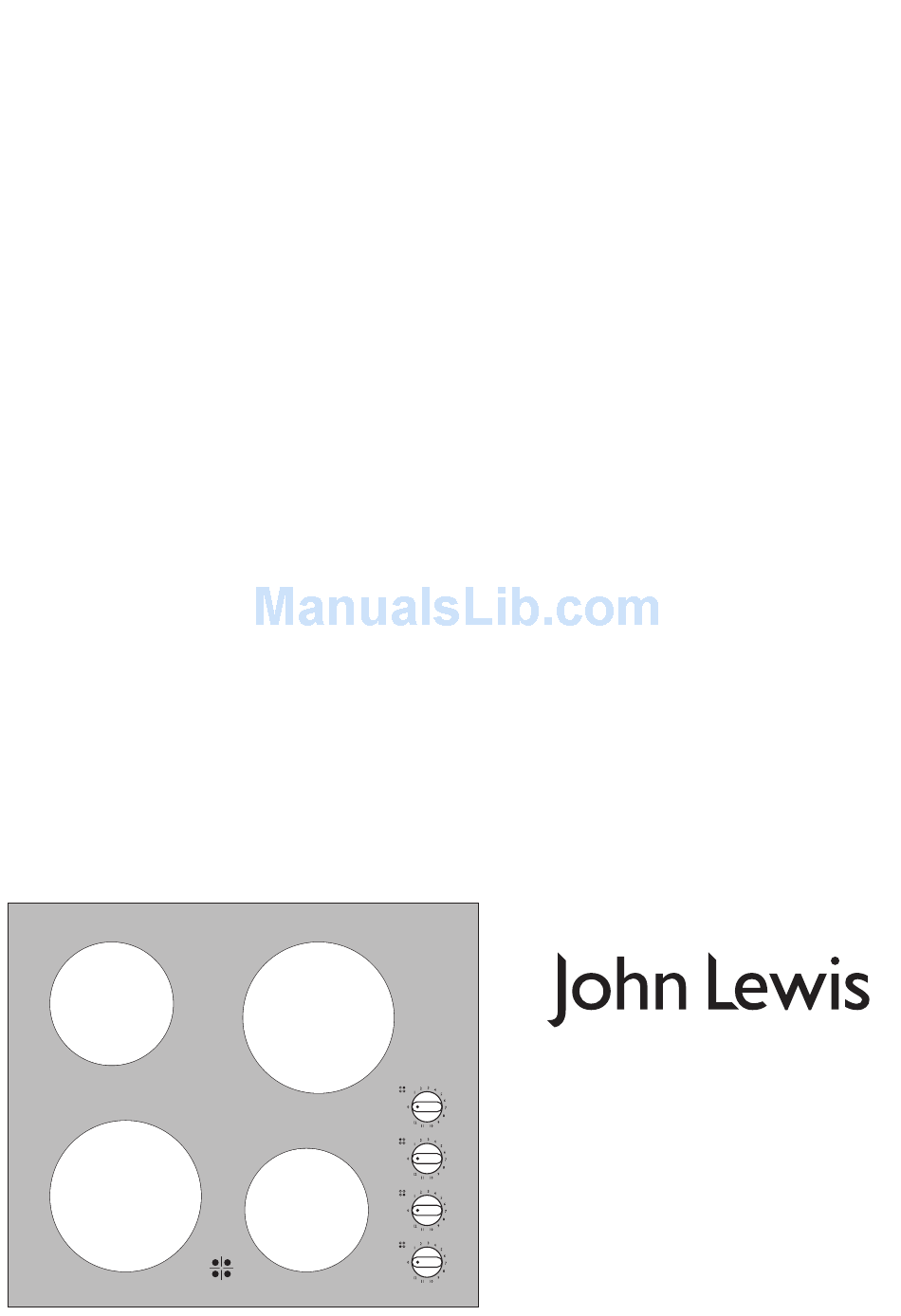

- Page 1 JLBICH601 built-in ceramic hob Instruction manual...
-
Page 2: Important Safety Information
You MUST read them carefully before use or installation by a qualified person. If you are unsure of the meanings of these warnings contact the John Lewis branch from which you purchased the appliance. -
Page 3: Table Of Contents
Contents For the User Important Safety Information Description of the Appliance The Control Panel - - - - - - - - - - - - - - Control Knobs - - - - - - - - - - - - - - - - - - - Residual heat indicator - - - - - - - - - - - - - - - Selecting the heat setting - - - - - - - - - - - - - - When the hob is first installed... -
Page 4: Description Of The Appliance
Description of the Appliance Cooking surface layout Single cooking zone Single cooking zone 1200W 1700W Control Knobs Single cooking zone Residual heat indicator Single cooking zone 1200W 1700W... -
Page 5: Installation
Installation Technical Data Appliance dimensions Width Depth Height Worktop cut-out dimensions Width Depth Electrical Connection This hob must be earthed. Electrical Requirements Any permanent electrical installation must comply with the latest I.E.E. Regulations and local Electricity Board regula- tions. For your own safety this should be undertaken by a qualified electrician, e.g. - Page 6 Building In The hob must be installed according to the in- structions supplied by qualified and compe- tent personnel to the relevant National Standards. Building In • The dimensions of the cut-out section and recess re- quired must be as shown in the relevant diagrams. •...
-
Page 9: The Control Panel
The Control Panel Control Knobs The cooking power can be set anywhere between level 1 and 12. lowest power highest power Off position Residual heat indicator The residual heat indicator lights up, as soon as the corre- sponding cooking zone is hot. Warning! Risk of burns from residual heat. -
Page 10: When The Hob Is First Installed
When the hob is first installed Remove all packaging, both inside and outside the hob including the advertising labels and any protec- tive film, before using the hob. When a cooking zone is switched on, it may hum briefly. This is a characteristic of all ceramic glass cooking zones and does not impair either the func- tion or the life of the appliance. -
Page 11: Cooking Chart
Cooking chart This chart is intended as a guide only. It may be nec- essary to increase or decrease the temperature to suit your individual requirements. Only experience will enable you to determine the correct setting for your personal requirements. Heat set- Cooking ting... -
Page 12: Cleaning The Hob
*Scrapers and cleaners for glass ceramic and stainless steel can be pur- chased from your local John Lewis branch. Remove stubborn residues with a cleaner for glass ceramic or stainless steel. Scratches or dark stains on the glass ceramic that cannot be removed do not affect the functioning of the appliance. -
Page 13: Something Not Working
Something not working If the hob is not working correctly, please carry out the following checks, before contacting your local Service Force repair agent. In the event of any other fault codes that arise, disconnect the appliance from the electrical supply for a few seconds (take out the fuse from the housing wiring system). -
Page 14: Repairs - After Sales Service
Repairs - After Sales Service If your hob is not performing satisfactorily; consult the fault finding guide within this instruction book (Something not working). In the event of a fault occurring which you cannot resolve yourself from advice given within this instruction manual your first step is to contact our extended warranty administrators on 0870 0107887 who will give you details for your local Service Force. -
Page 15: Rating Plates
Rating Plates JLBICH601 PEE2001 230 V 50 Hz JOHN LEWIS JLBICH601 PEE2001 230 V 50 Hz JOHN LEWIS 949 591 899 5,8 kW 949 592 456 5,8 kW... - Page 16 John Lewis Partnership 171 Victoria Street London SW1E 5NN www. johnlewis.com 822 925 325-B-10 01/06...
