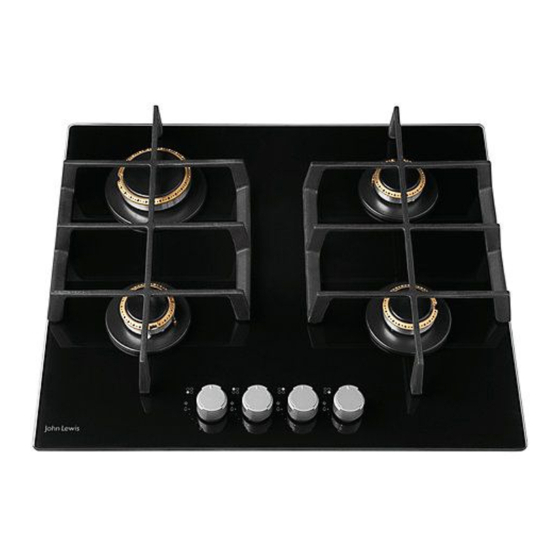

- Page 1 JLBIGGH606 User Manual...
-
Page 2: Table Of Contents
Contents Periodic maintenance Safety information Troubleshooting Children and vulnerable people safety General Safety What to do if... If you cannot find a solution... Safety instructions Labels supplied with the accessories bag Installation Installation Electrical Connection Gas connection Before the installation Important safety requirements Care and cleaning Gas Connection... -
Page 3: Safety Information
Safety information Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damages that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference. - Page 4 Do not operate the appliance by means of an external timer or • separate remote-control system. WARNING: Unattended cooking on a hob with fat or oil can be • dangerous and may result in fire. NEVER try to extinguish a fire with water, but switch off the •...
- Page 5 incorporated in the appliance. The use of inappropriate guards can cause accidents. Hob User Manual...
-
Page 6: Safety Instructions
Safety instructions • Plywood or kitchen carcass material is This appliance is suitable for the following acceptable for the panel. markets: • The panel must be removable for servicing. Screws used to fix the panel must be accessible Installation after installation. Warning! Only a qualified Electrical Connection person must install this... -
Page 7: Gas Connection
• Connect the mains plug to the mains socket • Set the cooking zone to “off” after each use. only at the end of the installation. Make sure • Do not put cutlery or saucepan lids on the that there is access to the mains plug after the cooking zones. -
Page 8: Care And Cleaning
• The use of a gas cooking appliance results in the • Cut off the mains electrical cable close to the production of heat and moisture. Provide good appliance and dispose of it. ventilation in the room where the appliance is •... -
Page 9: Product Description
Product description Cooking surface layout 1. Rapid burner 2. Semi-rapid burner 3. Control knobs Control knob Symbol Description no gas supply / off position ignition position / maximum gas supply minimum gas supply Hob User Manual... -
Page 10: Daily Use
Daily use Warning! Refer to Safety Warning! Be very careful chapters. when you use open fire in the kitchen environment. The manufacturer declines any Burner overview responsibility in case of the flame misuse. 1. Push the control knob down and turn it counterclockwise to the maximum gas supply position ( 2. -
Page 11: Turning The Burner Off
Caution! In the absence of electricity you can ignite the burner without electrical device; in this case approach the burner with a flame, turn the control knob counter- clockwise to maximum gas supply position and push it down. Keep the control knob pushed for equal or less than 10 seconds to let the thermocouple warm up. -
Page 12: Hints And Tips
Hints and tips Diameters of cookware Warning! Refer to Safety chapters. Use cookware with diameters applicable to the size of burners. Cookware Burner Diameter of Caution! Do not use cast iron cookware (mm) pans, potstones, earthenware, grill or toaster plates. Rapid 180 - 260 Warning! Do not put the... -
Page 13: Care And Cleaning
Care and cleaning 3. After you clean the pan supports, make sure Warning! Refer to Safety that they are in correct positions. chapters. 4. For the burner to operate correctly, make sure that the arms of the pan supports are aligned with the centre of the burner. -
Page 14: Cleaning The Hob
• To clean the enamelled parts, cap and crown, wash them with warm soapy water and dry them carefully before you put them back on. Cleaning of the Vertical Burner The crowns of brass burners can darken after long use. To remove the dark marks, do as follows: 1. -
Page 15: Troubleshooting
Troubleshooting Warning! Refer to Safety chapters. What to do if... Problem Possible cause Remedy There is no spark when you try to The hob is not connected to an Check if the hob is correctly con- activate the spark generator. electrical supply or it is connected nected to the electrical supply. - Page 16 MOD. MOD. MOD. TYPE PROD.NO. IP20 PROD.NO. PROD.NO. SER.NO. 0049 SER.NO SER.NO 03 IT DATA DATA MADE IN ITALY A. Stick it on Guarantee Card and send this part C. Stick it on instruction booklet. (if applicable). B. Stick it on Guarantee Card and keep this part (if applicable).
-
Page 17: Installation
Installation However, if the room has a door which opens Warning! Refer to Safety directly to the outside no air vent is required chapters. even if the volume is between 5 m³ and 11 m³. If there are other fuel burning appliances in the Before the installation same room, B.S. -
Page 18: Injectors Replacement
On the end of the shaft, which includes the R Caution! Make sure that the 1/2" threaded elbow, adjustment is fixed so that gas supply pressure of the the washer is fitted between the components as appliance obeys the shown in the diagram. Screw the parts together recommended values. -
Page 19: Electrical Connection
• from liquid gas to natural gas G20 20 mbar, Before carrying out the connection, make sure: undo the bypass screw approximately 1/4 1. The limiter valve and the electrical system can of a turn. take the appliance load (see the rating plate) 2. -
Page 20: Replacement Of The Connection Cable
Replacement of the Assembly connection cable The replacement of electric cable must be carried out exclusively by the service force centre or by personnel with similar competencies, in accordance with the current regulations. To replace the connection cable use only H03V2V2-F T90 or equivalent type. -
Page 21: Possibilities For Insertion
If a furniture unit is installed at a distance of 400 mm above the hob, there must be a minimum safety distance of 50 mm to the left or right from the edge of the hob. Caution! Install the appliance only on a worktop with flat surface. - Page 22 reasons and to let easy remove oven from the unit. Hob User Manual...
-
Page 23: Technical Data
Technical data Hob dimensions Width 590 mm Depth 520 mm Bypass diameters BURNER Ø BYPASS 1/100 mm Rapid Semi-rapid Other technical data Gas original: G20 (2H) 20 mbar = 7,15 kW TOTAL POWER: Gas replacement: G30 (3+) 28-30 mbar = 502 g/h G31 (3+) 37 mbar = 493 g/h Electric supply: 220-240 V ~ 50/60 Hz... -
Page 24: Gas Burners For Lpg G30/G31 28-30/37 Mbar
Gas burners for LPG G30/G31 28-30/37 mbar BURNER NORMAL MINIMUM INJECTOR NOMINAL GAS FLOW g/h POWER kW POWER kW MARK G30 28-30 G31 37 mbar mbar Rapid 0,95 Semi-rapid 0,55 Hob User Manual... -
Page 25: Energy Efficiency
Energy efficiency Product information according to EU 66/2014 Model identification JLBIGGH606 Type of hob Built-in hob Number of gas burners Left rear - Rapid 58.6% Right rear - Semi-rapid 59.2% Energy efficiency per gas burner (EE gas burner) Left front - Semi-rapid 59.3%... -
Page 26: Repairs - After Sales Service
John Lewis, Liverpool 0151 709 7070 them here: John Lewis, Milton Keynes 01908 679 171 • Mod........John Lewis, Newcastle upon Tyne 0191 232 5000 • P.N.C........John Lewis, Norwich 01603 660 021 • S.N......... John Lewis, Nottingham 0115 941 8282... - Page 27 John Lewis, Stratford 020 8532 3500 John Lewis, Croydon 020 8662 4730 John Lewis, The Trafford Centre 0161 491 4040 John Lewis, Horsham 01403 214 740 John Lewis, Watford 01923 244 266 John Lewis, Ipswich 01473 275 850 John Lewis, Welwyn 01707 323 456...
- Page 28 ENVIRONMENTAL CONCERNS marked with the symbol with the household Recycle the materials with the symbol . Put waste. Return the product to your local the packaging in applicable containers to recycle recycling facility or contact your municipal office. it. Help protect the environment and human health and to recycle waste of electrical and electronic appliances.
- Page 29 Hob User Manual...
- Page 30 Hob User Manual...
- Page 31 Hob User Manual...
- Page 32 867329017-C-012017 ( Subject to change without notice. )
