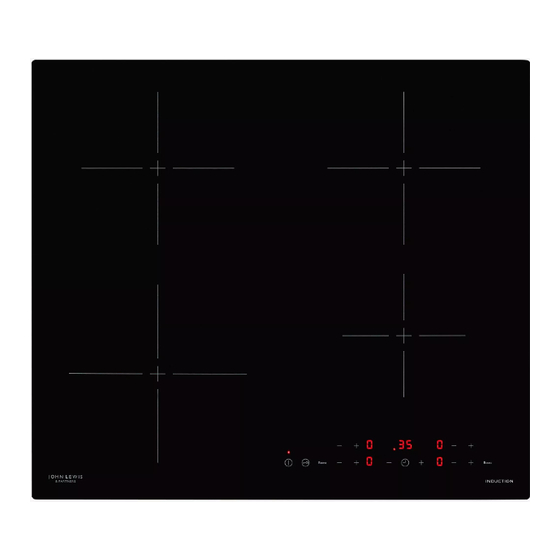

- Page 1 JLBIIH604 User Manual...
-
Page 2: Table Of Contents
Contents Cookware Safety information The noises during operation Children and vulnerable people safety Examples of cooking applications General Safety Care and cleaning Safety instructions General information Installation Cleaning the hob Electrical Connection Troubleshooting Care and cleaning What to do if... Disposal If you cannot find a solution... -
Page 3: Safety Information
Safety information Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damages that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference. - Page 4 Do not operate the appliance by means of an external timer or • separate remote-control system. WARNING: Unattended cooking on a hob with fat or oil can be • dangerous and may result in fire. NEVER try to extinguish a fire with water, but switch off the •...
-
Page 5: Safety Instructions
Safety instructions • All electrical connections should be made by a Installation qualified electrician. • The appliance must be earthed. Warning! Only a qualified • Before carrying out any operation make sure person must install this that the appliance is disconnected from the appliance. -
Page 6: Use
• The electrical installation must have an isolation • Do not put flammable products or items that device which lets you disconnect the appliance are wet with flammable products in, near or on from the mains at all poles. The isolation device the appliance. -
Page 7: Service
• Disconnect the appliance from the mains supply. • Cut off the mains electrical cable close to the appliance and dispose of it. Service • To repair the appliance contact an Authorised Service Centre. • Use original spare parts only. Hob User Manual... -
Page 8: Product Description
Product description Cooking surface layout 1. Induction cooking zone 2. Control panel 145 mm 180 mm 145 mm 210 mm Control panel layout Use the sensor fields to operate the appliance. The displays, indicators and sounds tell which functions operate. Sensor Function Comment... -
Page 9: Heat Setting Displays
Heat setting displays Display Description The cooking zone is deactivated. The cooking zone operates. Power function operates. There is a malfunction. + digit A cooking zone is still hot (residual heat). Lock / The Child Safety Device function operates. Incorrect or too small cookware or no cookware on the cooking zone. Automatic Switch Off function operates. -
Page 10: Daily Use
Daily use Warning! Refer to Safety Heat setting The hob deactivates chapters. after 4 hours Activating and deactivating 6 - 9 1.5 hour Touch for 1 second to activate or deactivate the hob. Selecting the cooking zone Automatic Switch Off To set the cooking zone touch the sensor field related to this zone. -
Page 11: Lock
Lock • The function decreases the power to the other cooking zones. • The heat setting display of the reduced zones You can lock the control panel while cooking changes between two levels. zones operate. It prevents an accidental change of the heat setting. -
Page 12: Hints And Tips
Hints and tips smaller diameter than the minimum receives Warning! Refer to Safety only a part of the power generated by the chapters. cooking zone. Refer to “Technical information” Cookware chapter. For induction cooking zones a The noises during operation strong electro-magnetic field creates the heat in the cookware If you can hear:... - Page 13 Heat setting Use to: Time Hints (min) Keep cooked food warm. as neces- Put a lid on the cookware. sary 1 - 2 Hollandaise sauce, melt: butter, choc- 5 - 25 Mix from time to time. olate, gelatine. 1 - 2 Solidify: fluffy omelettes, baked eggs.
-
Page 14: Care And Cleaning
Care and cleaning Warning! Refer to Safety chapters. General information • Clean the hob after each use. • Always use cookware with clean bottom. • Scratches or dark stains on the surface have no effect on how the hob operates. •... -
Page 15: Troubleshooting
Troubleshooting Warning! Refer to Safety chapters. What to do if... Problem Possible cause Remedy You cannot activate or operate the The hob is not connected to an Check if the hob is correctly con- hob. electrical supply or it is connected nected to the electrical supply. -
Page 16: If You Cannot Find A Solution
Problem Possible cause Remedy The sensor fields become hot. The cookware is too large or you Put large cookware on the rear put it too near to the controls. zones if possible. Automatic Switch Off operates. Deactivate the hob and activate it comes on. -
Page 17: Installation
Installation Built-in hobs Warning! Refer to Safety chapters. Only use the built-in hobs after you assemble the hob into correct built-in units and work surfaces that align to the standards. Before the installation Connection cable Before you install the hob, write down the information bellow from the rating plate. - Page 18 min. 2 mm min. 2 mm < 20 mm > 20 mm min. 500 mm min. 500 mm 30 mm 12 mm 57 mm 12 mm 57 mm 28 mm 41 mm 28 mm 41 mm 38 mm 31 mm 38 mm 31 mm min.
-
Page 19: Protection Box
Protection box If you use a protection box (an additional accessory), the front airflow space of 2 mm and the protective floor directly below the hob are not necessary. The protection box accessory may not be available in some countries. Please contact your local supplier. -
Page 20: Technical Data
Technical data Rating plate Model JLBIIH604 PNC 949 492 086 01 Typ 60 GAP D5 AU 220 - 240 V 50 - 60 Hz Induction 3.0 kW Made in Romania Ser.Nr....3.0 kW JOHN LEWIS Cooking zones specification Cooking zone... -
Page 21: Energy Efficiency
Energy efficiency Product information according to EU 66/2014 Model identification JLBIIH604 Type of hob Built-In Hob Number of cooking zones Heating technology Induction Diameter of circular cooking Left front 21.0 cm zones (Ø) Left rear 14.5 cm Right front 14.5 cm Right rear 18.0 cm... -
Page 22: Repairs - After Sales Service
John Lewis, Liverpool 0151 709 7070 them here: John Lewis, Milton Keynes 01908 679 171 • Mod........John Lewis, Newcastle upon Tyne 0191 232 5000 • P.N.C........John Lewis, Norwich 01603 660 021 • S.N......... John Lewis, Nottingham 0115 941 8282... - Page 23 John Lewis, Stratford 020 8532 3500 John Lewis, Croydon 020 8662 4730 John Lewis, The Trafford Centre 0161 491 4040 John Lewis, Horsham 01403 214 740 John Lewis, Watford 01923 244 266 John Lewis, Ipswich 01473 275 850 John Lewis, Welwyn 01707 323 456...
- Page 24 ENVIRONMENTAL CONCERNS marked with the symbol with the household Recycle the materials with the symbol . Put waste. Return the product to your local the packaging in applicable containers to recycle recycling facility or contact your municipal office. it. Help protect the environment and human health and to recycle waste of electrical and electronic appliances.
- Page 25 Hob User Manual...
- Page 26 Hob User Manual...
- Page 27 Hob User Manual...
- Page 28 867331801-B-022017 ( Subject to change without notice. )
