Summary of Contents for John Lewis JLBICH605

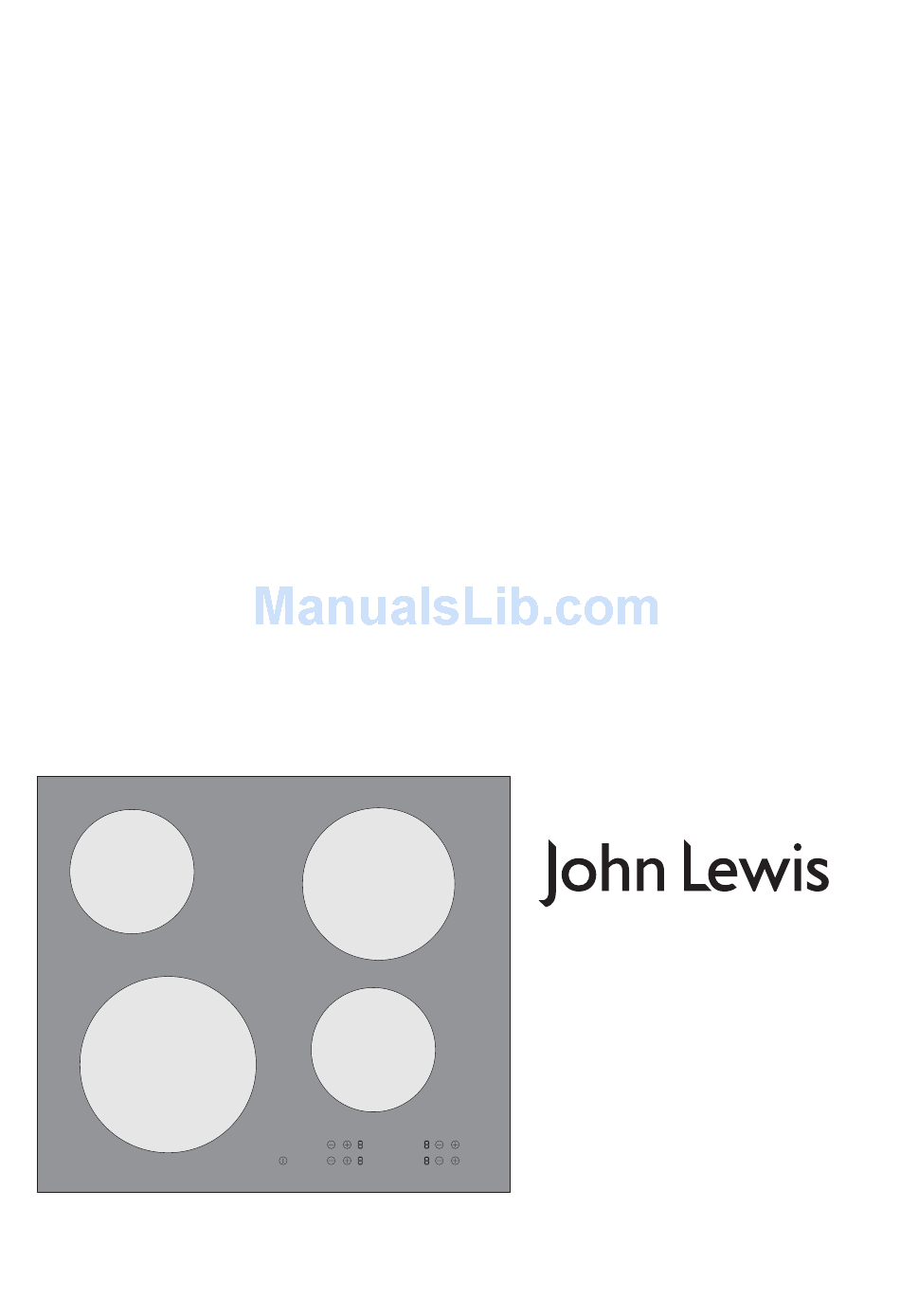

- Page 1 JLBICH605 Ceramic glass hob Instruction manual...
-
Page 2: Important Safety Information
These warnings have been provided in the interest of safety. You MUST read them carefully before installing or using the appliance. If you are unsure of the meanings of these warnings contact the John Lewis branch from which you purchased the appliance. -
Page 3: Maintenance And Cleaning
• There is the risk of burns from the appliance Service if used carelessly. • This hob should only be repaired or • Cables from electrical appliances must not serviced by an authorised Service Engineer touch the hot surface of the appliance or and only genuine approved spare parts hot cookware. -
Page 4: Table Of Contents
Contents For the User For the Installer Important safety information Installation Installation Technical data Child safety Electrical connection Electrical requirements Maintenance and cleaning Building in Service Description of the appliance Cooking surface layout The control panel Touch control sensor fields Switching the appliance on and off Guide to use the When the hob is first installed... -
Page 5: Description Of The Appliance

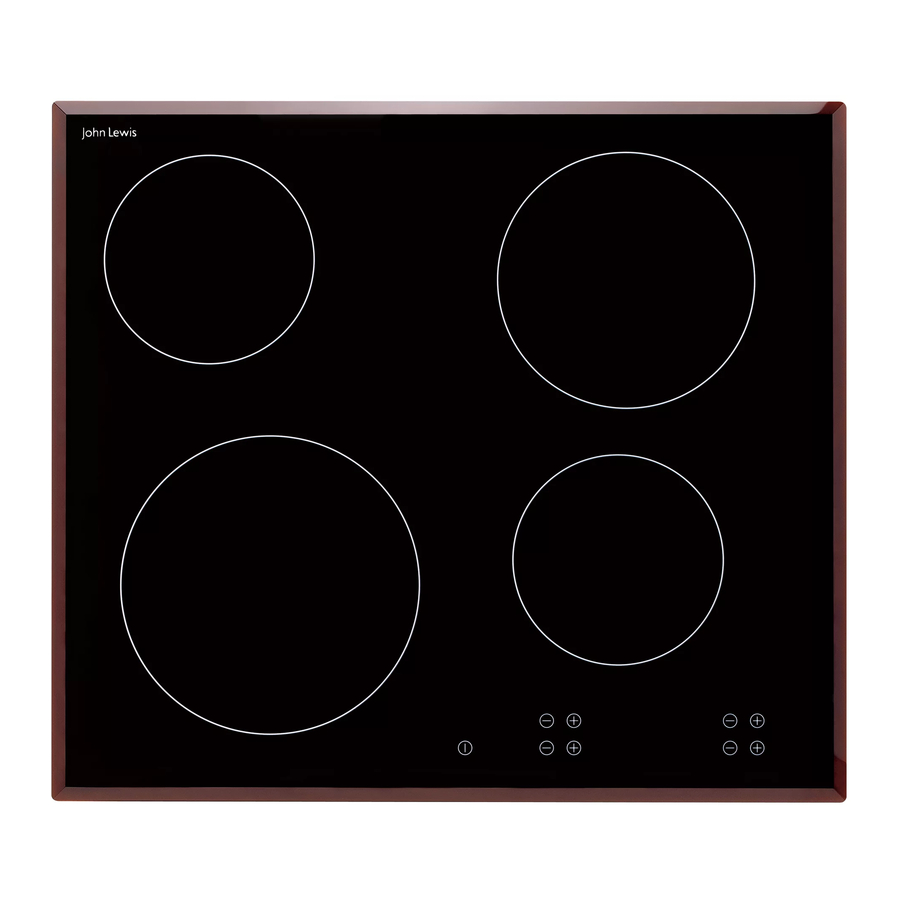

Description of the appliance Cooking surface layout 1. Single cooking zone 1200W 4. Control panel 2. Single cooking zone 1800W 5. Single cooking zone 2300W 3. Single cooking zone 1200W The control panel 1. On/Off 3. Display 2. Cooking zones and heat setting selection... -
Page 6: Touch Control Sensor Fields
Touch control sensor confirmed by displays. Touch the sensor fields from above, without covering other sensor fields fields. The appliance is operated using the Touch Control sensor fields. Functions are controlled by touching sensor fields and Sensor fields Function Switches the appliance on and off On/Off Increases the heat setting Increases settings... -
Page 7: Selecting The Heat Setting
Selecting the heat setting Control panel Indicator To increase Touch To decrease Touch To switch off Touch at the same time Using the child safety device The child safety device can only be activated immediately after the The child safety device prevents unintentional appliance has been switched on. -
Page 8: When The Hob Is First Installed
Step Control panel Display/Signal Switch the appliance on Touch of both the cooking zones at the front simultaneously for 4 seconds. Until the appliance is next switched off, it can used as normal. After switching off the appliance, the child safety device is active again. After overriding the child safety device, a heat setting or a function must be set within approx. -
Page 9: Hints And Tips On Cooking And Frying
Hints and tips on cooking and frying Information on acrylamides According to the latest scientific knowledge, intensive browning of food, especially in products containing starch, can constitute a health risk due to acrylamides. Therefore we recommend cooking at the lowest possible temperatures and not browning foods too much. -
Page 10: Cooking Table
Cooking table This table is intended as a guide only. It may be necessary to increase or decrease the temperature to suit your individual requirements. Only experience will enable you to determine the correct setting for your personal requirements. Heat Cooking Cooking Suitable for... -
Page 11: Cleaning The Hob
Cleaning the hob 2. Rub the appliance dry using a clean cloth. Warning! Risk of burns from residual Removing deposits heat. 1. Place a scraper on the glass ceramic Warning! Sharp objects and abrasive surface at an angle. cleaning materials will damage the 2. -
Page 12: Something Is Not Working
Something is not working Problem Possible cause Remedy The cooking zones will not More than 10 seconds have passed Switch the appliance on again. switch on or are not since the appliance was switched on functioning. The child safety device is switched Deactivate the child safety device (See the section “Child safety device”) -
Page 13: Repairs - After Sales Service
Rating plate located underneath the hob. So that you always have these numbers at JLBICH605 949 593 031 hand, we recommend you to make a note of 230 V 50 Hz... -
Page 14: Installation
Installation Technical data Appliance dimensions Width 590 mm Depth 520 mm Height 47 mm Worktop cut-out dimensions Width 560 mm Depth 490 mm Cooking rings Position Diameter Power Front left 210 mm 2300W Rear left 145 mm 1200W Rear right 180 mm 1800W Front right... -
Page 15: Electrical Connection
Electrical connection It is necessary that you install a double pole Warning! This hob must be earthed. switch between the hob and the electricity supply (mains), with a minimum gap of 3 mm between the switch contacts and of a type Electrical requirements suitable for the required load in compliance Any permanent electrical installation must... -
Page 16: Building In
Building in Warning! The hob must be installed according to the instructions supplied by qualified and competent personnel to the relevant National Standards. Building in • The dimensions of the cut-out section and recess required must be as shown in the relevant diagrams. - Page 20 John Lewis Partnership 171 Victoria Street London SW1E 5NN www. johnlewis.com 867201878 -A-042008...
