Moog Minimoog Operation Manual page 19

8. Turn off reference oscillator.
9. Set OSCILLATOR 1 to 2´ range.
10. Turn on OSCILLATOR 2.
11. Tune OSCILLATOR 2 to OSCILLATOR 1, using OSCILLATOR 2 high end adjustment (C) .
12. Depress lowest A key and zero beat OSCILLATOR 1 with OSCILLATOR 2 using OSCILLA-
TOR 2 low end adjustment (D).
13. Repeat steps 9 through 12 tuning OSCILLATOR 3 to OSCILLATOR 1.
how to tune the filter
(This is factory set and rarely, if ever, needs adjustment)
1. Set the front panel controls as shown in Figure 2.
2. Insert S-TRIG Shorting Plug supplied with the instrument.
3. Adjust filter resonance threshold adjustment (H) until tone is barely audible.
4. Turn FILTER EMPHASIS control on front panel to 10.
5. Turn on A-440 reference oscillator.
6. Tune filter resonance to A-440 tone using filter pitch adjustment (K).
-1.1
0

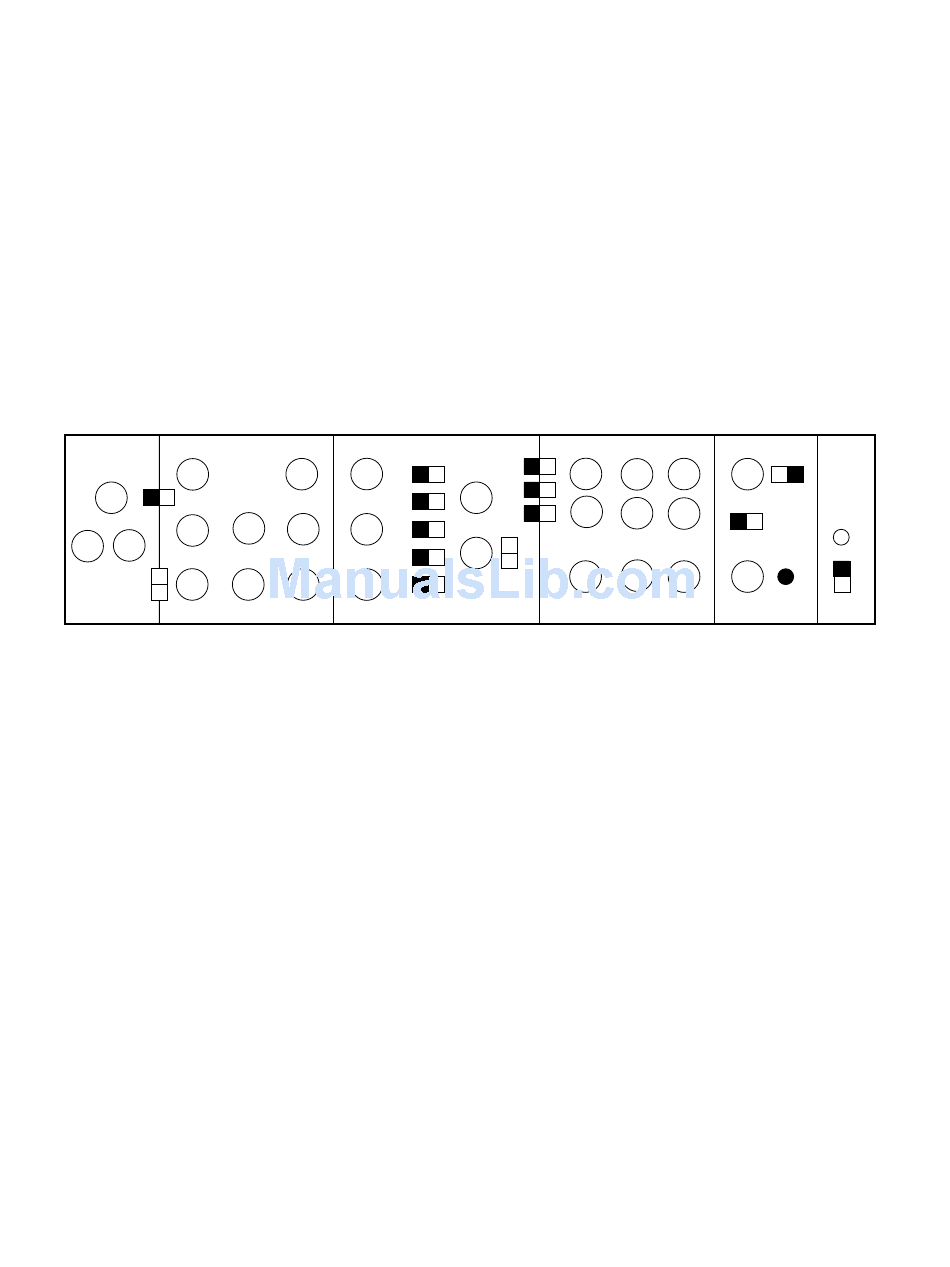

Figure 2
7.5 0 3
0 10
0
4/12/72
