- Page 1 XM / XP SERIES Uninterruptible Power Supplies XM 6005 Series XM 6007 Series XM 6010 Series XM 6012 Series XM 6015 Series Technical Manual ©1997 Alpha Technologies 017-039-B0-006 06/99...
-
Page 2: Save These Instructions
IMPORTANT SAFETY INSTRUCTIONS CONTAINED IN THIS MANUAL CAUTION RISK OF ELECTRICAL SHOCK CAUTION: TO REDUCE THE RISK OF ELECTRICAL SHOCK, AND ENSURE THE SAFE OPERATION OF THIS UNIT, THE FOLLOWING SYMBOLS HAVE BEEN PLACED THROUGHOUT THE MANUAL. WHERE THESE SYMBOLS APPEAR, SERVICING SHOULD BE PERFORMED ONLY BY QUALIFIED PERSONNEL. - Page 3 Failure to do so could damage the load or the unit’s ferroresonant power transformer. Damage caused by this condition will not be covered under warranty. For further information, contact Alpha Technologies or your nearest Alpha representative.
- Page 4 IMPORTANT SAFETY PRECAUTIONS THE POWER SUPPLY SHOULD BE SERVICED ONLY BY QUALIFIED PERSONNEL. THE POWER SUPPLY CONTAINS MORE THAN ONE LIVE CIRCUIT. EVEN THOUGH AC IS NOT PRESENT AT THE INPUT, IT MAY BE PRESENT AT THE OUTPUT. WHEN USING AN EXTERNAL SERVICE DISCONNECT, VERIFY THAT IT IS EQUIPPED WITH A HIGH MAGNETIC CIRCUIT BREAKER PROPERLY RATED (AMPERAGE) FOR USE WITH THE POWER SUPPLY.
- Page 5 BATTERY CHARGING ALWAYS REFER TO THE BATTERY MANUFACTURER’S RECOMMENDATION FOR SELECTING CORRECT FLOAT AND EQUALIZE CHARGE VOLTAGES. FAILURE TO DO SO COULD DAMAGE THE BATTERIES. VERIFY THE POWER SUPPLY’S BATTERY CHARGER FLOAT AND EQUALIZE CHARGE VOLTAGES. REFER TO THE POWER SUPPLY’S OPERATION MANUAL. BATTERIES ARE TEMPERATURE SENSITIVE.
-
Page 6: Table Of Contents
XP Series Uninterruptible Power Supplies Table of Contents INTRODUCTION The XP Series Uninterruptible Power Supply Theory of Operation 1.2.1 AC (LINE) Operation 1.2.2 Inverter (STANDBY) Operation 1.2.3 Charger Operation Specifications FRONT PANEL APM (Automatic Performance Monitor) Status Block 2.1.1 "TEST/RESET" Switch 2.1.2 "NOT INSTALLED"... - Page 7 Table of Contents, continued STANDARD FEATURES XP6005 Series Uninterruptible Power Supplies XP6007 Series Uninterruptible Power Supplies XP6010 Series Uninterruptible Power Supplies XP6012 Series Uninterruptible Power Supplies XP6015 Series Uninterruptible Power Supplies OPTIONAL FEATURES APM-XP (Automatic Performance Monitor) USM (Universal Status Monitor) LRI (Local and Remote Indicator) ACI (AC Indicator) SDD (Standby Data Display)
- Page 8 Table of Contents, continued OPERATION XM Power Module Start-up and Testing 7.1.1 AC Line Operation (LINE POWER) 7.1.2 Inverter Operation (STANDBY) Identifying Modes of Operation 7.2.1 System Status Block 7.2.1.1 AC LINE Operation 7.2.1.2 STANDBY Operation 7.2.1.3 TRANSFER or SELF-TEST Mode 7.2.2 Charger Status Block 7.2.2.1...
- Page 9 Table of Contents, continued ILLUSTRATIONS (contained in the manual) XM Series Front Panel APM Status Block Charger Status Block System Status Block Output Current Display Standby Data Display XM Series Side Panel PME and PWE Enclosures UPE and UPE/M Enclosures 120 VAC and 220 or 240 VAC Input Circuit Breaker Assemblies SPI (Service Power Inserter) Module Installation and Wiring Diagram...
-
Page 10: Introduction
Alpha Technologies, recognized as an international market leader in the field of backup power, offers complete technical support and prompt, reliable service to ensure that your... -
Page 11: Theory Of Operation
1. INTRODUCTION Theory of Operation The XP Series Uninterruptible Power Supply consists of an XM Series power module, a pole or ground-mount enclosure, and a set of gelled electrolyte, no maintenance batter- ies. The power module contains a ferroresonant transformer, resonant capacitor, dual- mode temperature-compensated battery charger, DC to AC converter (inverter), transfer / isolation relay, and a main circuit module assembly containing the logic circuit. -
Page 12: Inverter (Standby) Operation
1. INTRODUCTION Theory of Operation, continued 1.2.2 Inverter (STANDBY) Operation When the incoming AC line voltage drops significantly, or a complete power outage occurs, the control logic’s line monitor activates STANDBY operation. The battery pow- ered inverter comes on-line (in-phase with the failing AC line) as the transfer / isolation relay switches to prevent AC power from back-feeding to the utility. -
Page 13: Specifications
1. INTRODUCTION SPECIFICATIONS MODEL XM6005 XM6005 XM6007 XM6007 XM6007 XM6010 XM6010 XM6010 CONFIGURATION -24 J5 -24 J6 INPUT Voltage (VAC) Frequency (Hz) Current Max. (A) Low AC Ref. (VAC) OUTPUT Voltage (VAC) Current Max. (A) Power (VA) BATTERIES Number Voltage (VDC) Backup Time (Hrs)* WEIGHTS (lbs) - Page 14 1. INTRODUCTION SPECIFICATIONS, continued Regulation Input Voltage (VAC) +/- 15% Input Frequency (Hz) +/- 3% Output Voltage (VAC) +/- 5% Output Frequency (Hz) +/- 1% Inverter Frequency Stability +/-0.05% Output Current Limit 150% of maximum output rating Transfer Time Uninterrupted Output Efficiency 90% or better (LINE) 80% typical (STANDBY)
-
Page 15: Front Panel

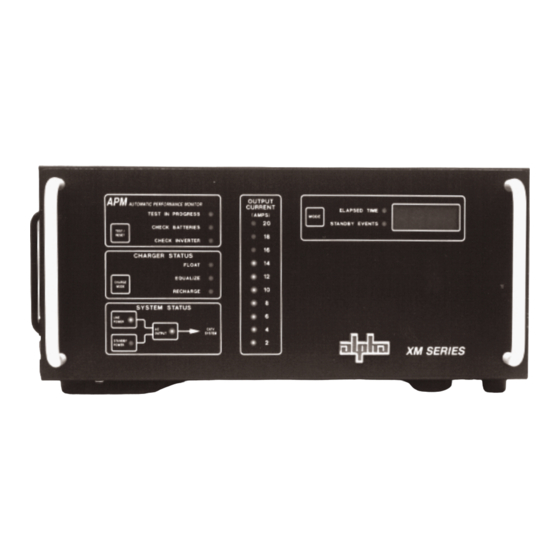

2. FRONT PANEL THE XM SERIES FRONT PANEL 2.1 - APM Automatic Performance Monitor (optional) "Test/Reset" Switch "Not Installed" LED "Test in Progress" LED "Check Batteries" LED "Check Inverter" LED 2.2 - Charger Status Block "Charge Mode" Switch "Float" LED "Equalize"... -
Page 16: Apm (Automatic Performance Monitor) Status Block
2. FRONT PANEL FRONT PANEL APM (Automatic Performance Monitor) Status Block On units equipped with an optional APM logic upgrade, the XM Series power module automatically self-tests the batteries and inverter. The duration and intervals are user programmable (see section 6.10). If a failure is detected during self-test, either the red "CHECK BATTERIES"... -
Page 17: Charger Status Block
2. FRONT PANEL Charger Status Block The XM Series power module is equipped with a dual mode, temperature-compensated battery charger. The "CHARGER STATUS" block is broken into categories to reflect the different charging modes: 2.2.1 "CHARGE MODE" Switch The "CHARGE MODE" switch is used to manually sequence the battery charger through float and equalize modes. -
Page 18: System Status Block
2. FRONT PANEL System Status Block The "SYSTEM STATUS" block is broken into three categories to quickly identify the power supply's operational status: running on AC line power; running on batteries; and nominal output power to the load. 2.3.1 "LINE POWER" (green) LED The green "LINE POWER"... -
Page 19: Output Current Display
2. FRONT PANEL Output Current Display The amount of current from the power supply to the load is indicated by the "OUTPUT CURRENT" display. The LED display is useful for determining the overall status of the load. When there is no load connected, the LEDs on the display will be OFF. In situations where LEDs light above the rated output of the power supply, such as 18 or 20 Amps, an overload or short circuit condition exists in the load. -
Page 20: Mode" Switch
2. FRONT PANEL Standby Data Display (SDD) The optional, dual-function LED "STANDBY DATA" display is used to keep track of accumulated inverter run time, and to record the number of standby events that have occurred. The "ELAPSED TIME" clock is activated only when the power supply is in inverter mode. - Page 21 2. SIDE PANEL THE XM SERIES SIDE PANEL 1. - AC Power Cord (Connects to the enclosure's convenience outlet.) 2. - Standby Status Relay (SSR) White (1) = Common; Red (2) = N.O. / N.C. (Select contact normally open / closed with wire on back plane board.) 3.
-
Page 22: Side Panel
(negative) wire is connected to the left side of the connector (3) black. The (positive) is connected to the right (4) red. The LRI circuit is rated at 24 VDC, 250mA. Use only Alpha P/N 740-139-20 (24 Volt LRI Lamp and Socket). -
Page 23: Battery Circuit Breaker
3. SIDE PANEL Battery Circuit Breaker The 60 Amp battery circuit breaker is used to disconnect the batteries from the module's DC circuit. With the breaker turned off, the power supply will not transfer to standby mode. The inverter is disabled and the battery charger is unable to charge the batteries. -
Page 24: Standard Features
XM6015 P Module (220 VAC, 60 Hz Input) / (60 VAC, 15 Amp, 900 VA Output) *XM6015-48 SE Module (230 VAC, 50 Hz Input) / (60 VAC, 15 Amp, 900 VA Output) Alpha Technologies also manufactures: XM4808 E (230 VAC, 50 Hz Input) / (48 VAC, 8 Amp, 384 VA Output) *XM4808-24 E (230 VAC, 50 Hz Input) / (48 VAC, 8 Amp, 384 VA Output) * Note: "-24"... -
Page 25: Optional Features
5. OPTIONAL FEATURES OPTIONAL FEATURES The following options can be ordered factory installed or, in most instances, can be field retrofitted by qualified service personnel. APM-XP (Automatic Performance Monitor) The APM-XP is a field replaceable, plug-in logic card that plugs directly into the edge connector located on the back of the main circuit module. -
Page 26: La-P (Lightning Arrestor)
Specify the type of enclosure when ordering. 5.16 XPA (XP Adaptor) The XPA contains a set of quick connects used to adapt existing Alpha enclosures, previously wired for AM Series power products, for use with XM Series power modules. -
Page 27: App60S (Service Power Supply)
UPE and UPE/M ground-mount enclosures are constructed of heavy-duty aluminum and come with Galvanized (UPE/M only) steel doors. Alpha enclosures are vented to promote natural convection cooling and prolong battery life. -
Page 28: Ac Series (Amp Clamps)
XP installations. The program can be manipulated entirely by the user without the need for assistance. Complete system packages, including hardware and software, are available from Alpha Technologies. Please specify format and disk requirements (3 1/2" or 5 1/4") when ordering. -
Page 29: Installation
Become familiar with the power supply's front and side panel. Review the drawings and illustrations contained in the manual before proceeding. If you have questions regard- ing the safe installation or operation of this unit, contact Alpha Technologies or your nearest Alpha representative. -
Page 30: Pole-Mount Enclosure Installation (Pme And Pwe)
6. INSTALLATION Pole-mount Enclosure Installation (PME and PWE) PME and PWE enclosures are designed to be mounted on wooden poles; however, special brackets are available for concrete pole applications. Mounting bolts should go completely through the wooden pole and be secured from the back with a large washer and nut. -
Page 31: Ground-Mount Enclosure Installation (Upe And Upe/M)
"hand hole" working space, allowing room for cable bends, wire loops and grounding connections. Pedestal supports are available for use with Alpha UPE and UPE/M ground-mount enclosures. Installation is as easy as digging a hole to the appropri- ate depth to accommodate the base of the pedestal support and backfilling using a suitable material. -
Page 32: Connecting Utility Power
Q02-4L70RB Wiring: (From duplex receptacle to service disconnect) Alpha enclosures are equipped with a duplex receptacle to provide power to the UPS and other peripheral equipment. The receptacle should protected by a 15 Amp, high magnetic circuit breaker located inside the service disconnect. The receptacle's hot side (black) is wired to the circuit breaker. -
Page 33: Connecting The Spi (Service Power Inserter)
"ON" position. When the switch is in the "ALT" position, the input is transferred to the SPI's "Jones" connector which is used with an alternative power source such as the Alpha APP60S Service Power Supply during module maintenance or replacement. Power Supply Output Connector... -
Page 34: Power Module Installation
6. INSTALLATION Power Module Installation XM Series power modules are placed in the lower-right compartment of PME enclosures; the upper-right compartment of PWE, UPE and UPE/M enclosures. The enclosure's lid lifts and the door(s) can be removed. (Refer to the Module and Battery Placement drawings located at the back of the manual). -
Page 35: Battery Installation And Wiring
6. INSTALLATION Battery Installation and Wiring WHENEVER INSTALLING OR REPLACING BATTERIES, DO NOT ALLOW LIVE BATTERY WIRES TO CONTACT THE ENCLOSURE OR THE POWER MODULE CHASSIS. Insulate any exposed wire ends with electrical tape. Shorting battery wires could result in a fire or possible explosion. - Page 36 Whenever new batteries have been in storage for more than 3 months, they should be recharged for (at least) 24 hours using an Alpha ABC-12 ABC-12 Battery Charger battery charger. They should then be thoroughly tested under load prior to installation. If, after charging, a battery varies more than 0.3 VDC from the others, it...
-
Page 37: Main Circuit Module Removal And Installation
6. INSTALLATION Main Circuit Module Removal and Installation The XM Series power module comes with a field-replaceable, main circuit module assembly containing the standard control logic. It is designed to accept APM (Automatic Performance Monitor) and USM (Universal Status Monitor) plug-in logic upgrades to facilitate self-testing and status monitoring. -
Page 38: Standard Control Logic
6. INSTALLATION Standard Control Logic The Main Circuit Module assembly comes equipped with circuitry to monitor incoming AC, charge the batteries and control the inverter. The XM Series power module uses a dual-mode (float and equalize) temperature compensated battery charger to maintain the batteries. -
Page 39: Float And Equalize Chart
2.300 EQ 3 0.150 Alpha Technologies does not assume responsibility for batteries damaged by improper jumper settings. Always consult the battery manufacturer for correct charging levels. If batteries appear to be over or under-charged, first check for defective batteries and then verify the correct charge voltage settings. -
Page 40: Apm (Automatic Performance Monitor)
6. INSTALLATION 6.10 APM (Automatic Performance Monitor) The APM is a field-replaceable logic upgrade that allows the XM Series power module to self-test the inverter and batteries at pre-determined intervals and durations. It also allows the battery charger's equalize voltage (interval and duration) to be pre-selected to further optimize battery performance. - Page 41 6. INSTALLATION 6.11 USM (Universal Status Monitor) The optional, USM status monitoring upgrade plugs directly into the APM logic card. Note: The Main Circuit Module assembly must be completely removed from the power module when installing the USM (see section 6.8). Status monitoring interfaces are listed according to their manufacturer, along with the associated parts.
- Page 42 6. INSTALLATION 6.11 USM (Universal Status Monitor), continued à à à à T à à à à T à W à à T à à 8 3 3 3 3 3 6: 6: 6: 6: 2 & & & & VTHUÃÃU@YT86I 1$ 1$ 1$ WDU6GÃTDBIT...
-
Page 43: Usm (Universal Status Monitor)
018-020-22-USM 018-020-23-USM UPE/M 018-020-23-USM USM-AM (AM Communications "LANguard") Designed for systems utilizing AM Communications TMC 8061 transponders. Transponders are internally mounted in Alpha power supply enclosures. Select the following USM kit number according to your specific enclosure: 018-022-21-USM 018-022-22-USM USM-AM... - Page 44 6.11 USM (Universal Status Monitor), continued USM-J (Jerrold "RSM") Designed for systems utilizing Jerrold model “RSM” transponders. Transponders are internally mounted in Alpha power supply enclosures. Select the following USM kit number according to your specific enclosure: 018-024-21-USM USM-J 018-024-22-USM...
-
Page 45: Serial Configuration
6.11.2 Serial Configuration USM-A The USM, used in conjunction with Alpha's status monitoring software, allows the cable operator to remotely manipulate power supply functions, maintain precise data for fault logs and direct service personnel to the exact nature of most malfunctions. Using the... -
Page 46: Operation
7. OPERATION OPERATION XM Power Module Start-up and Testing Once connections have been made to the power module, it should be tested for AC LINE and STANDBY operation before placing it into service. Note: The power module should always be started from utility AC (not batteries). This is because high inrush currents, associated with the start-up of ferroresonant transformers, could place unneces- sary stress on the batteries. -
Page 47: Identifying Modes Of Operation
7. OPERATION Identifying Modes of Operation In order to fully understand the power supply functions, it is important to recognize the modes of operation indicated by the LEDs in the front panel SYSTEM STATUS, CHARGER STATUS, and optional APM blocks. 7.2.1 System Status Block The SYSTEM STATUS block indicates the utility and battery input status, plus verifies... -
Page 48: Charger Status Block
7. OPERATION Identifying Modes of Operation, continued 7.2.2 Charger Status Block The CHARGER STATUS block indicates the battery charging modes: FLOAT, EQUALIZE or RECHARGE. During AC LINE operation, the green "FLOAT" LED remains 7.2.2.1 FLOAT Mode FLOAT LED (green) ON Indicates that the batteries are being FLOAT charged. -
Page 49: Apm (Automatic Performance Monitor) Status Block
7. OPERATION Identifying Modes of Operation, continued 7.2.3 APM (Automatic Performance Monitor) Status Block On units equipped with an APM logic upgrade, the power module automatically self- tests the batteries and inverter at pre-selected intervals. If a failure is detected, either the red "CHECK BATTERIES"... -
Page 50: Power Module Shutdown
7. OPERATION Power Module Shutdown When a power module needs to be removed from service, an Alpha APP60-S Service Power Supply is recommended as an alternate non-standby power source to prevent interruption to the cable plant. Note: When powering down a module, always switch the battery breaker OFF before removing AC, otherwise the module will transfer into inverter operation. -
Page 51: Maintenance
Inverter Events, Accumulated Inverter Run Time, Technician ID Number, Power Supply Address, Test Date and Time, can be retrieved and stored in the DataLogger. XM Series Power Module Alpha Technologies "DataLogger" records vital power supply data directly from the side of the power module. -
Page 52: Check Battery Terminals And Connecting Wires
Since batteries behave differently in the winter than they do in the summer, Alpha logic cards automatically compensate for changes in temperature by adjusting float and equalize charge voltages. -
Page 53: Check Battery Voltage Under Load
8. MAINTENANCE Check Battery Voltage Under Load This is the most accurate method to determine the condition of the batteries. CAUTION: Weak or severely discharged batteries can explode when put under load. As an added safety precaution, place the enclosure's door between the technician and batteries before attempting inverter operation. -
Page 54: Apm Manual Self-Test
Do not over-tighten semiconductor mounting hardware. 5. If the module is equipped with a SDD (Standby Data Display), check the lithium battery, located on the front of the main board, and replace if necessary. Use Alpha #185-003-10, (3VDC). 6. Re-install the Main Circuit Module assembly and test the unit for proper operation (See section 7.1). -
Page 55: Trouble-Shooting And Repair
Repair Instructions On units returned to Alpha Technologies for repair, a Return Material Authorization (RMA) should first be obtained from Alpha's Customer Service Department. The RMA should be clearly marked on the unit’s original shipping container. If the original container is no longer available, the unit should be packed with at least 3 inches of shock-absorbent material. -
Page 56: Common Parts For Xp Series Uninterruptible Power Supplies
9. TROUBLE-SHOOTING AND REPAIR Common Parts for XP Series Uninterruptible Power Supplies Alpha Part Number Description REPLACEMENT PARTS FOR PLUG-IN MODULE ASSEMBLIES 185-003-10 3V Lithium Battery 460-039-10 12A 250V Fuse 540-034-10 Jumper Plugs 700-106-20 APM Plug-In Logic Card 700-150-20 USM Status Monitor Card (Specify Application) -
Page 57: Trouble-Shooting Guide
9. TROUBLE-SHOOTING AND REPAIR TROUBLE-SHOOTING GUIDE SYMPTOM PROBABLE CAUSE REMEDY No output to cable; Utility power outage. Use voltmeter to verify No AC line power; input voltage at receptacle. Green “AC OUTPUT” LED off; Green “LINE POWER” LED off; AC power cord unplugged. Plug in AC power cord. - Page 58 9. TROUBLE-SHOOTING AND REPAIR TROUBLE-SHOOTING GUIDE , continued SYMPTOM PROBABLE CAUSE REMEDY Low output voltage when Defective inverter Replace power unit is in STANDBY mode. transistors. board assembly. SYMPTOM PROBABLE CAUSE REMEDY No output voltage when attempting Battery breaker off. Switch battery breaker on.
- Page 59 9. TROUBLE-SHOOTING AND REPAIR TROUBLE-SHOOTING GUIDE , continued SYMPTOM PROBABLE CAUSE REMEDY Incorrect, or no float or Battery breaker off. Switch battery breaker on. equalize charge voltages: Jumpers at JP1 incorrectly Check jumpers. set on main circuit module. (See section 6.9) Charger fuse F301 open Replace 10 Amp fuse.
-
Page 60: Warranty
10. WARRANTY WARRANTY. Alpha Technologies, Inc., provides a LIMITED WARRANTY covering the performance of its Broadband products. The terms and conditions of the LIMITED WARRANTY STATEMENT are contained in a separate written LIMITED WARRANTY STATEMENT included with the Operator’s manual provided with this product. If there are any warranty claims, the purchaser (or purchaser’s representative) must follow the LIMITED WARRANTY... - Page 61 3307 Limassol, Cyprus Tel: +357-5-375675 Fax: +357-5-359595 AUSTRALIA Alpha Technologies 8 Anella Ave., Unit 6 Castle Hill, NSW 2154 Tel: +612 894-7866 Fax: +612 894-0234 http://www.alpha-us.com Alpha sales and service offices located throughout the world Printed in the USA 017-039-B0-006 06/99...
