Alpha FXM 650 Installation And Operation Manual

Hide thumbs Also See for FXM 650:
Table of Contents

Advertisement

Quick Links

See also: Operator's Manual

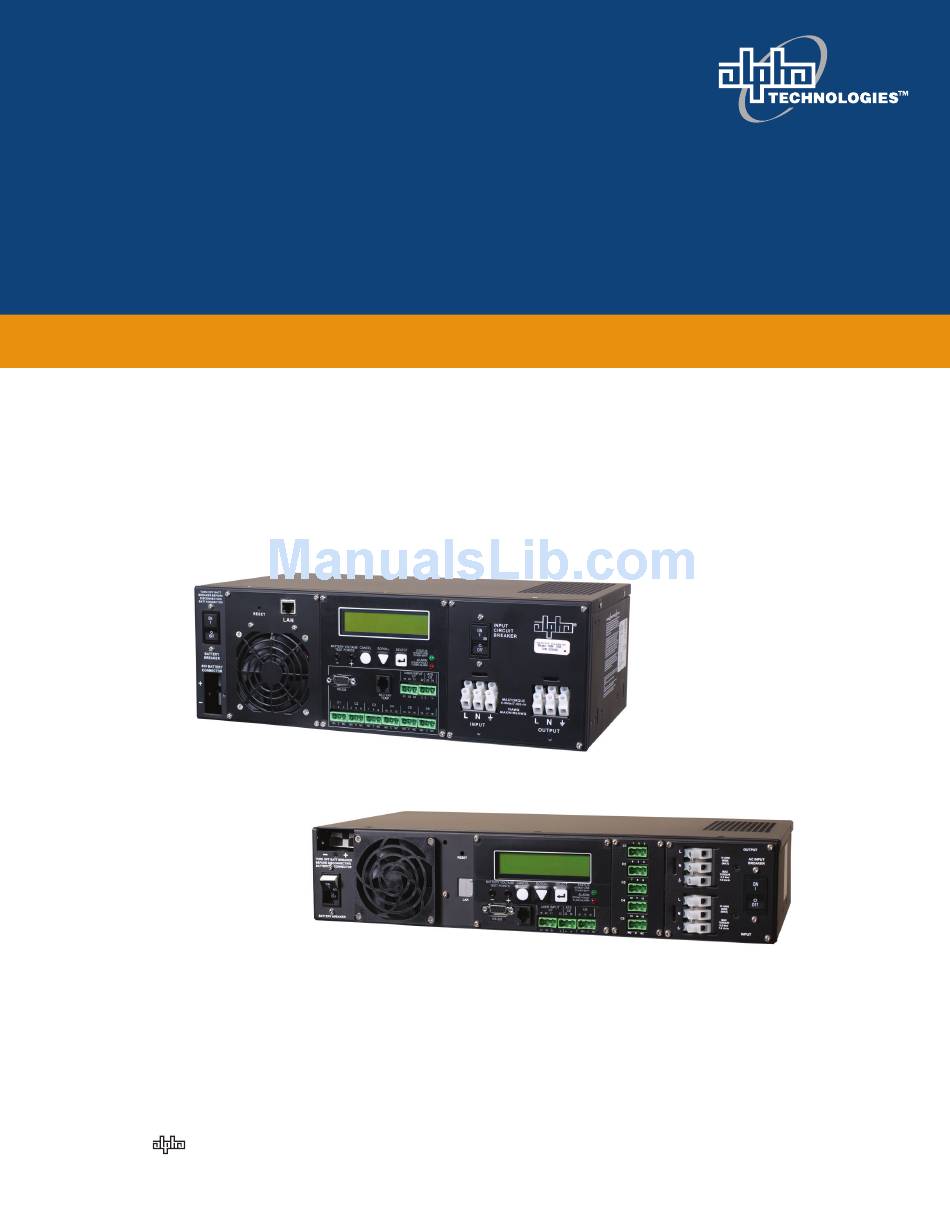

Alpha FXM 650, 1100, 2000 UPS
Installation and Operation Manual
Your Power Solutions Partner
member of The
Group
™

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FXM 650 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Alpha FXM 650

Summary of Contents for Alpha FXM 650

  • Page 1 Alpha FXM 650, 1100, 2000 UPS Installation and Operation Manual Your Power Solutions Partner member of The Group ™...
  • Page 3 International: +1-604-436-5547 Email: support@alpha.ca Copyright Copyright © 2010 Alpha Technologies Ltd. All rights reserved. Alpha is a registered trademark of Alpha Technolo- gies. No part of this documentation shall be reproduced, stored in a retrieval system, translated, transcribed, or trans- mitted in any form or by any means manual, electric, electronic, electromechanical, chemical, optical, or other- wise without prior explicit written permission from Alpha Technologies.

  • Page 4: Table Of Contents

    Table of Contents 1. Safety ............................4 1.1 Safety Symbols ........................4 1.2 General Warnings and Cautions ..................5 1.3 Certifications and Compliances .................... 6 2. General Description ......................7 2.1 Overview ..........................7 2.2 Front Panel........................... 7 3. Site Planning ........................11 3.1 Safety Precautions ......................11 3.2 Electromagnetic Compatibility (EMC) Requirements ............
  • Page 5 7. Maintenance ........................68 7.1 Updating the Software ......................68 7.2 Testing and Replacing the Batteries ................... 71 7.3 Preventative Maintenance ....................74 8. Troubleshooting ........................75 8.1 Procedure ........................... 75 9. Specifications ........................77 10. Puekert Number and Battery Capacity ................80 10.1 Introduction ........................80 10.2 Determining the Peukert’s Number and Peukert’s Capacity ..........

  • Page 6: Safety

    If there are any questions regard- ing the safe installation or operation of this product, contact Alpha Technologies or the nearest Alpha representa- tive. Save this document for future reference.

  • Page 7: General Warnings And Cautions

    1.2  General Warnings and Cautions You must read and understand the following warnings before installing the Alpha FXM and its components. Fail- ure to do so could result in personal injury or death. • Read and follow all instructions included in this manual. •...

  • Page 8: Certifications And Compliances

    • Never let live battery wires touch the Alpha FXM, the enclosure or any other metal objects. This can cause a fire or explosion. • Never dispose of batteries in a fire. The batteries may explode. Follow the manufacturer’s directions and check with your local jurisdictions for safe battery disposal.

  • Page 9: General Description

    2.1  Overview The Alpha FXM is available in 3 models – FXM 650, FXM 1100 and FXM 2000. The FXM 650 and the FXM 1100/2000 look different, but all of the front panel connectors and circuit breakers operate in the same way. How- ever the circuit breakers for each unit have different ratings.
  • Page 10 Clock” and “Alpha UPS Monitor, Operations, Relay and Load Shed”. For Contact C6, the default factory configuration is +48 VDC output (FXM 650-24 is +24 VDC), but it can be fac- tory configured as a dry contact. Figure 4 shows the contact’s layout while Figure 5 shows the +48 VDC or +24 VDC terminal block layout.
  • Page 11 Microprocessor Interior The contacts have a maximum rating of 1A at 250V. Normally Normally Closed (NC) Open (NO) Common (C) Figure 3 — Contact Layout (Standard for C1 to C5, Factory Option for C6) C1: The C1 contact is energized when line power is unqualified and the Alpha FXM provides backup battery power to the load(s).
  • Page 12 ATS (C8): When the Alpha FXM is in the Inverter mode, this normally open relay closes (Figure 6), sending 48 VDC (FXM 650-48, 1100, 2000) or 24 VDC (FXM 650-24) from the external batteries to this dry contact. If the optional Alpha Technologies’s Automatic Transfer Switch (ATS) is connected, it will cause the ATS to switch the load from line power to the Alpha FXM’s battery backup power.

  • Page 13: Site Planning

    The Alpha FXM should be placed at a properly sheltered location or inside a weather-proof enclosure to protect the electronics from water, dust and other possible contamination. • Alpha Technologies offers a wide range of outdoor enclosure systems. Visit our website at www.alpha.ca, or call customer service for more information. 017-230-B0...

  • Page 14: Electromagnetic Compatibility (Emc) Requirements

    • In the Generator mode, the Alpha FXM’s range of acceptable input frequency and voltage is expanded to accept the fluctuations created by a generator. See “Operating the Alpha FXM, Sense Type”. Use a generator with electronic speed and voltage controls which produces less than 10% voltage total harmonic distortion (THD).

  • Page 15: Unpacking Alpha Fxm

    4.  Unpacking Alpha FXM Follow these guidelines for unpacking the Alpha FXM. WARNING! The Alpha FXM. is heavy, up to 16 kg (35 lb). Use proper lifting techniques. The lifting and moving should be done by at least two people to avoid injury. 1.

  • Page 16: Installation

    5.  Installation WARNING! The Alpha FXM module MUST be correctly grounded for proper operation. The input and output lines to and from the Alpha FXM. MUST have disconnect devices attached. The Alpha FXM must be installed in a restricted area accessible only by qualified ser- vice personnel.
  • Page 17 Terminal block covers and the battery harness restraining bracket MUST be used and are available from Alpha Technologies (part number 740-698-21). If the Alpha FXM end application is mounted inside an enclosure or in an area restricted to authorized per- sonnel, then the covers and bracket may or may not be needed.

  • Page 18: Wiring The External Batteries

    For the FXM 650-24, the battery string is 24 VDC. For the FXM 650-48/1100/2000, the battery string is 48 VDC. • If you are making your own battery wiring harness, use at least 10 AWG (for FXM 650/1100) or 8 AWG (FXM 2000) wires. •...
  • Page 19 2. Wire the batteries as shown in Figure 8. If used, install the in-line fuse as shown. CAUTION! Torque the battery terminals according to the manufacturer’s specifications as given on the name plate or data sheet. 3. Verify the battery connector polarity and the DC voltage with a DC voltmeter. If correct, attach it to the Alpha FXM’s external battery connector.

  • Page 20: Uats And (Ugts) Option

    Automatic Transfer Switch (ATS) and Generator Transfer Switch (GTS) products. They are optional add-on switching units specifically designed for the FXM UPS family (FXM 650, 1100 and 2000) and the Micro UPS family (Micro 300 and 1000). These switching units provide power and/or bypass capacity (automatic or manual) so that the operator may safely disconnect the UPS from line or generator power for easy removal and servicing.

  • Page 21: Operation

    6.   Operation The following subsections describe the operation of the Alpha FXM: • Communicating with the Alpha FXM. • Operating the control panel. • Switching the Alpha FXM on and off. • Operating the Alpha FXM. • Making measurements. • Viewing the 100-event log.

  • Page 22: Communicating With The Alpha Fxm

    6.1  Communicating with the Alpha FXM There are several ways you can communicate with the Alpha FXM UPS: 1. Using the control panel. 2. Using a RS-232 interface, you can access the UPS’s command line system with Window’s HyperTerminal or other terminal emulation program. 3.

  • Page 23: Operating The Control Panel

    6.2  Operating the Control Panel The LCD control panel provides “at a glance” monitoring. This panel, when used along with the CANCEL,  SCROLL and SELECT buttons, allows you to program, make measurements, and troubleshoot the Alpha FXM. The layout is shown in the figure below. The Alpha FXM is monitored and controlled with a series of menus and submenus.
  • Page 24 Table C — UPS Operating Modes LCD display Description SHUTDOWN The Alpha FXM’s inverter is switched off. Line power is disconnected from the load. LINE The Alpha FXM is switched on. Line power is provided to the load. The Alpha FXM’s transformer is raising line voltage without using the batteries. AVR is BOOST1 OR BOOST2 enabled.
  • Page 25 Logo Screen   Starting at the Logo Press the SCROLL button to move between the menus. The (Figure 7.2) Screen, press the SELECT SCROLL button moves only in one direction, so if you overshoot, you button to go down one level. have to go all the way around the menu tree again.

  • Page 26: Switching The Alpha Fxm On And Off

    6.3  Switching the Alpha FXM On and Off Under normal operation, the Alpha FXM is always powered ON to supply uninterruptible power to the load. Switching off the Alpha FXM will disconnect the power supply to the load. If for any reason you need to switch off the Alpha FXM while maintaining power to your critical load, make sure that you have a plan that provides an alternate source of power.

  • Page 27: Operating The Alpha Fxm

    ONLY be done by a qualified technician acting under the instructions of Alpha FREQUENCY Frequency Technologies Customer Service Department. See "Service and Technical Support". Failure to contact Alpha Technologies before doing this procedure could void your warranty. 017-230-B0 Rev 0810...
  • Page 28 Table D — Control Menu LCD display Meaning Description Lets you set how long it takes for the Alpha FXM to return to Line mode after the line has become requalified to make sure the line is stable. It can be set to 3, QUAL TIME Line qualify time 10, 20, 30, 40 or 50 seconds.

  • Page 29: Making Measurements

    6.5  Making Measurements The System Status menu lets you make measurements of various Alpha FXM inputs, outputs, temperatures and other values. You can also use the Alpha UPS Monitor to make these measurements. See “Alpha UPS Monitor”. 6.5.1  Procedure 1. From the Logo screen go to the System Status menu. 2.

  • Page 30: Viewing The 100-Event Log

    6.6  Viewing the 100-Event Log Using the LCD display, RS-232 or web interface, you can view up to the last 100 events the Alpha FXM went through and the malfunctions that triggered each of them. If more than 100 events occurred, the oldest is over- written.

  • Page 31: Communicating With The Rs-232 Interface

    6.7  Communicating with the RS-232 interface The following subsections describe the operation of the Alpha FXM via the RS-232 interface. • Wiring the RS-232 port. • Using the Main menu. • Adjusting and controlling the Alpha FXM. • Programming the dry contacts and the clock. •...
  • Page 32 6.7.1  Wiring the RS-232 port The Alpha FXM’s front panel has a DE-9 female connector. When connected to a PC with Windows HyperTer- minal or other terminal emulation software, the Alpha FXM can be remotely monitored and controlled with it’s command-line system. The Alpha UPS Monitor provides a Windows or web browser type of control. Procedure 1.

  • Page 33: Using The Main Menu

    6.8  Using the Main Menu The Alpha FXM’s main menu screen runs on a command line system. This program does not recognize the backspace or delete keys even if it appears that way on the monitor. If you make a mistake and press Enter, the Alpha FXM echoes the command back exactly as you typed it.

  • Page 34: Rs-232 Menu Tree

    6.9  RS-232 Menu Tree Submenus #1, 2 and 4 are read-only screens for monitoring the Alpha FXM. To control the Alpha FXM, use sub- menu #3, the Maintenance submenu. 0-Main Menu Submenus Submenus 1-Unit Specifications 2-Input/Output Values 3-Maintenance 4-Line Slow Detection Setup Unit Model Input 30-Battery Test Options This read-only screen shows...
  • Page 35 6.9.1  Line Status Line status tells you the line’s condition. For an updated value, press Enter. Table G — Line Status Normal The line is within specifications. See specifications, “Boost/Buck/Line Transfer Thresholds”. The Alpha FXM is operating in Line mode. Boost Line voltage is out of tolerance. The Alpha FXM is operating in Boost mode. Boost2 Line voltage is out of tolerance.
  • Page 36 6.9.3  Fault and Alarm Displays Fault and alarm displays any malfunctions the Alpha FXM has encountered. Also see "Troubleshooting". Table I — Faults Short_Circuit The load has a short. Vout_Hi The output voltage is above specifications. Batt_Hi The batteries cannot be charged. Batt_Lo The batteries are almost discharged. Vout_Lo The output voltage is below specifications.
  • Page 37 6.9.4  Adjusting and Controlling the Alpha FXM The Maintenance submenu lets you control the Alpha FXM and change selected items to meet your operational needs. Procedure From the Main menu, type 3 and press Enter. Table K — Maintenance Submenu 30 Battery Test Options This starts the battery test and sets how long the test will run. The default setting for the test duration is 2 minutes, but this can be adjusted in 1 minute intervals.
  • Page 38 6.9.5  Programming the Dry Contacts and the Clock The Alpha FXM’s front panel contacts (C1 to C6) can be programmed to meet your specifications with RS–232 communications. You can also adjust the Alpha FXM’s date and time. Programming the Dry Contacts The functions of dry contacts C1 to C5 (and if factory configured, dry contact C6) can be changed with RS-232 communications.
  • Page 39 6.9.6  Setting the Timer Contact The front panel’s timer contact can be programmed to suit your application. See "Contacts C1 to C6” and "Pro- gramming the Dry Contacts and the Clock". The table below explains how. Table M — Setting the Timer Contact Enter command UPS display Description...
  • Page 40 6.9.7  Setting the Date and Time Table N — Setting the Date and Time Enter command UPS display Description Returns the current date and clock and press Enter *clock=12/31/07 22:00:00 time. clock=010107  120000 and Sets the date and time to Jan † press Enter *clock=01/01/07 12:00:00 01, 2007, 12:00 pm.
  • Page 41 6.9.8  Viewing the Serial Number To display the serial number of the Alpha FXM UPS, type "∗QY0" at the command line and press "Enter". 6.9.9  Setting the Peukert Number and Capacity You can set the Peukert Number and Capacity using the RS-232 interface or the web interface. To display the current Peukert Number, type "∗QY6"...
  • Page 42 6.9.10  100-Event Log Up to 100 events are stored in the Alpha FXM’s log. If more than 100 events occur, the oldest is over-written. Procedure 1. To see the log, type event (all lower case) and press Enter. The events are listed starting with the most recent and appear as: If less than 100 events occurred, the last entry will appear as: eventX=12/25/99 01:45:59 0000000000000000, 0000000000000000, 000 Event...
  • Page 43 6.9.11  Communicating with the Alpha UPS Monitor Introduction The Alpha UPS Monitor graphical user interface (GUI) provides web or Windows© like computer communications with the Alpha FXM. The screen and its features are shown below. It is used to monitor, control and set various parameters like the date and time, determine when to perform the weekly self test, change the relay configura- tions, etc.
  • Page 44 6.9.12  Checking Your Windows Computer for the .NET Framework 1. Click on the Start button. 2. Go to and click on Settings. 3. Click on Control Panel. 4. Double-click on the Add or Remove Programs icon. 5. When the window shown in the figure below appears, scroll through the list of applications. If you see Microsoft .NET Framework listed, the Framework is already installed and you can install the Alpha UPS Monitor.
  • Page 45 6.9.13  Installation and Set Up The following tools and materials are required: • Alpha UPS Monitor, available for download from www.alpha.ca./downloads/. • Windows 98 or later with Microsoft’s .NET framework installed. • DE–9 serial straight-through computer cable. Procedure 1. Install the Alpha UPS Monitor onto your computer. Restart the computer. If you install the Alpha UPS Monitor on a version of Windows without the .NET framework installed, an er- ror message saying the framework is not installed will appear.

  • Page 46: Operation

    6.10  Operation The various screens are described on the following pages and operate like Web or Windows-type screens. Point and click to change the various functions or fields. The on line indicator shows if you are connected to the Alpha FXM. The Alpha UPS Monitor automatically polls the Alpha FXM to obtain its status.
  • Page 47 6.10.2  UPS Monitoring These read-only screens show the Alpha FXM’s current input and output values and other measurements. Input & Output Shows the current line input and Alpha FXM output values and the Alpha FXM’s present operating mode. Figure 18 — UPS Monitoring: Input & Output screen Battery & Inverter Shows the battery string’s status and how many times and for how long the inverter has been active.
  • Page 48 Relay & Load Shed Shows how the front panel dry contacts are configured. If any relays are used for load shedding, the time setting is shown. Figure 20 — UPS Monitoring: Relay & Load Shed screen User Input Status Shows the current status of the user programmable inputs 1 to 3. Figure 21 —...
  • Page 49 6.10.3  UPS Maintenance The UPS Maintenance screens are used to configure and adjust the Alpha FXM to meet your operating needs. To change parameters, either click on the On/Off buttons or choose an item from a drop down menu. To execute the changes, click on the Update Settings button. If you do not click this button, the changes will not happen. Unit Configuration Is used to set the name, input, output and how often the GUI polls the Alpha FXM.
  • Page 50 An accurate battery runtime estimation requires the following parameter to be adjusted: •  Peukert Number: Refer to the appendix for information about how to calculate the Peukert number to be entered here. •  Battery Capacity: This is the rated capacity (Ah) of the battery shown on the battery data sheet. Do not con- fuse the battery capacity with the Peukert capacity.
  • Page 51 Relay & Load Shed Is used to configure the front panel’s dry contact to provide a signal for turning off the load. Figure 25 — UPS Maintenance: Relay & Load Shed screen Controlling the external fan by temperature triggered dry contact The Alpha FXM has up to 6 dry contacts (C1 to C6) on the front panel which can be configured by the user to open or close based on the specific trigger conditions.
  • Page 52 Dry contact functions are not programmable through the LCD. Use the RS-232 GUI or the HyperTerminal instead. 2. RS-232 GUI – Figure 26a shows the Relay Configuration window under the UPS Maintenance > Relay & Load Shed screen. As an example, to assign C1 as the Temperature trigger, select Temperature from the drop down menu.
  • Page 53 3. RS-232 HyperTerminal – the Temperature trigger function can be assigned to any available dry contacts as described in "Programming the Dry Contacts" (e.g. c1=11, where 11 is the assigned index for the Temperature trigger function.) After establishing an RS-232 connection with the Alpha FXM at the HyperTerminal screen prompt, type Temp and press Enter to display the current temperature setting (Alpha FXM returns *temp=20).
  • Page 54 A typical application of this timer controlled dry contact function is to control a traffic light. When the grid power fails, the Alpha FXM goes into the Inverter mode and continues supplying backup power to the traffic light. Since the batteries supplying the backup power have limited capacity, a timer controlled dry contact is usually config- ured to switch the traffic light into the flashing amber or flashing red mode after a user-defined period to conserve battery power.
  • Page 55 Figure 31 — Time Of Day Action Status Once the Time of Day Action is configured, the Alpha FXM will automatically disable the timers during the Inverter mode at the defined peak periods. You can switch off the Time of Day Action by setting one or both time period(s) to OFF. The dry contact will be activated by the timer regardless of the peak period settings.
  • Page 56 Password Is used to set the Alpha FXM’s password. The factory set password is 1111. Figure 33 — UPS Maintenance: Password screen The password is limited to 4 alphanumeric characters. The software will not accept more than 4 characters. User Input Three programmable User Inputs exist.
  • Page 57 Procedure 1. Select UPS Maintenance > User Input to display the User Input Configuration window. Figure 35 — User Input Configuration: Setting the Trigger Type 2. In the Input 1 column, select the Type down arrow to display the 3 types of available triggers: Edge Trigger, Level Toggle, and Level Alternative.
  • Page 58 Check the User Input Current Status at the UPS Monitoring > User Input Status page. Figure 38 — User Input Current Status Perform a quick test by shorting the User Input 1 dry contact pin (Pin 19 of C6) to ground (Pin 22 of C6) with a short length of PVC insulated electronic wire. This will trigger the Alpha FXM to issue a User Input Alarm as shown below.
  • Page 59 Operation Many of the screens used for Ethernet communications look and function the same and contain the same infor- mation as the Alpha UPS Monitor screens. There are additional screens only available with Ethernet communica- tions which are detailed below. Configure Site Information This screen is used to enter site location information into the UPS’s memory.
  • Page 60 Restoring All Parameters to Default Values The purpose of this command is to reset the Alpha FXM to the factory default state. See Table P for a list of pa- rameters that will be restored to their default values. CAUTION! This command resets all parameters that are user-configurable. All previously pro- grammed operation will be lost.
  • Page 61 Table P — List of Parameters Maximum battery charging current Temperature compensation of battery charging Maximum allowable duration of output short circuit before shutdown Property settings of programmable user input #1 Action #1 setting of programmable user input #1 Action #2 setting of programmable user input #1 Property settings of programmable user input #2 Action #1 setting of programmable user input #2 Action #2 setting of programmable user input #2...
  • Page 62 Alarms & Faults This read-only screen shows the operating status of the Alpha FXM. When the fault or alarm indicators on the horizontal bar are illuminated, place the mouse cursor over the light to display the context sensitive message. Figure 44 — Alpha UPS Monitor: UPS Alarms & Faults screen Event History This screen shows the last 100 events recorded by the Alpha FXM.
  • Page 63 To view all the events, click on the View All button to open the Event Log Monitor window. Clicking on the Clear  History button clears the log. This action cannot be undone. Figure 45 — Alpha UPS Monitor: Event Log Monitor screen In the Event Log Monitor window, the events are displayed by date and time. Scroll up and down the list to select the events you want to see.
  • Page 64 Upgrade Files This feature is available only on Alpha FXM UPS equipped with the network interface card factory option. To upgrade the Alpha UPS Monitor firmware, browse to the .bin file and click OK to start the upload. This may take a few minutes to complete. Figure 47 —...
  • Page 65 Keep Alive The Keep Alive feature can be used to reset power when a communication failure is detected. The purpose of the reset is to temporarily remove power and reset the local communications equipment powered by this unit. The goal of the Keep Alive feature is to attempt to restore communications by resetting the local communication equipment until communications is re-established 017-230-B0 Rev 0810...
  • Page 66 Keep Alive status/manual control: a. The Status field allows the user to enable or disable the Keep Alive function. When disabled the alarm is cleared. b. The Delay to Startup field allows the user to set the time to the first ping from the enable ping or UPS restart after a ping failure.

  • Page 67: Communicating Via The Intranet Or Internet

    6.11  Communicating Via The Intranet or Internet If the Alpha FXM is equipped with the optional, factory-installed FXM communication module, then the internet or a company intranet can be used to communicate with the Alpha FXM. In addition, the Alpha FXM can be moni- tored and controlled via a web browser or with SNMP protocols. 6.11.1 ...

  • Page 68: B0 Rev

    6.11.3  Types of Trigger There are 3 types of trigger: Edge trigger When the user input changes from one state to the other, the Alpha FXM is triggered to perform Action #1. If the level is set to High, the action will be triggered by a Low to High edge (leading edge). If the level is set to Low, the action will be triggered by the High to Low edge (falling edge).
  • Page 69 Level Alternative When the level is set to High, the Alpha FXM is triggered to perform the next action when the user input changes from Low to High. If the input then changes from High to Low, no action will be triggered because the level is set to High.

  • Page 70: Maintenance

    7.  Maintenance 7.1  Updating the Software The Alpha FXM’s firmware can be reinstalled or updated to the latest version with this procedure. If your Alpha FXM is provided with the factory-installed FXM communication module, the firmware upgrade can be done via an intranet or internet connection. You will need the following items: •...
  • Page 71 6. In the uBug12 screen, type (all lower case) fbulk and press ENTER. The erase pop-up appears. It disappears when the Alpha FXM’s memory is erased. If an error message appears, send the fbulk command again. 2: Erase pop-up appears. 1: Type fbulk.
  • Page 72 8. When the software has finished loading into the Alpha FXM, the pop-up shows “Loaded OK in (xx)  seconds.” If an error message appears, switch off the Alpha FXM and start over again. It should not take more than one or two restarts to load the software. If problem persists, contact Alpha technical support. Firmware is loaded.

  • Page 73: Testing And Replacing The Batteries

    7.2  Testing and Replacing the Batteries 7.2.1  Battery life Batteries lose their ability to store power as they age. Regularly test the batteries to ensure that they can continue providing reliable service. Battery life is reduced by three major factors: • Temperature – higher ambient temperatures, especially above 25°C, will reduce battery life. For example, an average operating temperature of 27°C will likely reduce the life of the battery by 25%.
  • Page 74 7.2.3  Battery Maintenance The batteries supplied with this unit are sealed and maintenance free. Regularly ensure that all connectors are tight and free of corrosion. The presence of corrosion, swelling of the battery case, or distortion in the shape of the case suggests that the batteries need to be replaced. 7.2.4 ...
  • Page 75 WARNING! Read and understand the battery safety instructions in “Product Safety Information”. CAUTION! Make sure all the replacement batteries are of the same type and rating. Failure to do so could result in improper charging and damage to the batteries. The Alpha FXM cannot provide backup battery power while the batteries are being replaced.

  • Page 76: Preventative Maintenance

    7.3  Preventative Maintenance Perform preventative maintenance on the Alpha FXM module every 6 to 12 months. For mission critical applica- tions such as backup traffic intersections, more frequent maintenance should be done. Proper implementation of the following procedure will insure that your system continues to provide reliable backup power in the event of a utility power failure.

  • Page 77: Troubleshooting

    8.  Troubleshooting When the front panel alarm LED is illuminated or flashing, the Alpha FXM has a malfunction. The alarm and fault submenus describe the malfunction. The Alpha UPS Monitor can also be used for troubleshooting. 8.1  Procedure 1. Press the SELECT button. 2.
  • Page 78 Table S — Fault Submenu LCD Shows Problem Description What To Do The load draws more power than the Overload Fault Alpha FXM can provide. This can lead Remove excess loads. to an automatic Alpha FXM shutdown. Check the output. Remove the faulty Short Circuit The load has a short.

  • Page 79: Specifications

    Table U — Mechanical Specifications Parameter Value FXM 1100-2000: 5.22 x 15.5 x 8.75 (133 x 394 x 222) Dimensions H x W x D FXM 650: 3.47 x 17 x 9 (89 x 432 x 229)  mm (in)  FXM 650: 25 (11.3) Weight without batteries kg (lb) FXM 1100-2000: 35 (15.9)
  • Page 80 Table V — Electrical Specifications Parameter Value Input Voltage (nominal), VAC 120 or 230, optional 220, optional 210 for FXM 2000, 120 only for FXM 650-48 Frequency, Hz, ±5% 60/50 (auto-detection), Output frequency = Input frequency Current, Amps  FXM 650-24: 8.7/4.5 @120/230 VAC FXM 650-48: 10.5 @120 VAC (@ nominal Vin and max ...
  • Page 81 Table V — Electrical Specifications Parameter Value Battery Charger Current,  Amps FXM 650-48/1100/2000: 48 VDC. Battery Charger Temperature  -5 mV/°C/Cell (factory default), user adjustable to -2.5, -4, -5 or -6 mV/°C/Cell. Compensation Battery type Anderson Power mating part SB50 or equivalent. Efficiency is measured at an ambient temperature of 25°C, full resistive condition and nominal Line and Battery voltage.

  • Page 82: Puekert Number And Battery Capacity

    10.  Puekert Number and Battery Capacity 10.1  Introduction The Alpha FXM series UPS units run on batteries when the AC utility power fails. In this mode, the user may want to estimate the remaining time that UPS batteries can supply power to the loads. The battery run time remaining is calculated based on the Peukert equation.

  • Page 83: Example

    10.4  Example The following example shows how to calculate Peukert’s number and capacity from a configured battery string. Consider four Alpha 180GXL batteries connected and configured as shown in the figure below. Two of the four batteries are connected in series, and the two series strings are connected in parallel to the 24 V DC output. 24 VDC ▬...

  • Page 84: Using The Spreadsheet

    10.5  Using the Spreadsheet Download the spreadsheet “Peukert’s Parameters Calculator.xls” from www.alpha.ca website. Enter the Battery voltage and nominal load From the data sheet of the batteries enter the 2 closest currents and discharge hours Enter the number of parallel strings 017-230-B0 Rev 0810...

  • Page 85: Warranty

    11.  Warranty Alpha Technologies Ltd. warrants all equipment manufactured by it to be free from defects in parts and labor, for a period of two years from the date of shipment from the factory. The warranty provides for repairing, replacing or issuing credit (at Alpha’s discretion) for any equipment manufactured by it and returned by the customer to...

  • Page 86: Emergency Shutdown Procedure

    12.  Emergency Shutdown Procedure The Alpha FXM UPS contains more than one live circuit. In an emergency, line power may be disconnected at the UPS’s input, but AC power can still be present at the output. 1. Switch OFF the input circuit breaker. 2.
  • Page 88 Technologies Argus 1628WWilliamsDrive Hansastrasse8 First de Mexico Phoenix,AZ85027 D-91126 AnatoleFranceNum.17 UnitedStates Schwabach,Germany ColoniaPolanco Tel:+16029971007 Tel:+499122798890 11560,MéxicoD.F. Fax:+16232497833 Fax:+4991227988921 Tel:+525552806990 Alpha Technologies Europe Ltd. Alphatec Ltd. Alpha TEK ooo TwyfordHouseThorley 339St.AndrewsSt. KhokhlovskiyPereulok16 Bishop’sStortford Suite101AndreaChambers Stroenie1,Office403 Hertfordshire,CM227PA P.O.Box56468 Moscow,109028 UnitedKingdom 3307Limassol,Cyprus Russia Tel:+441279501110...
