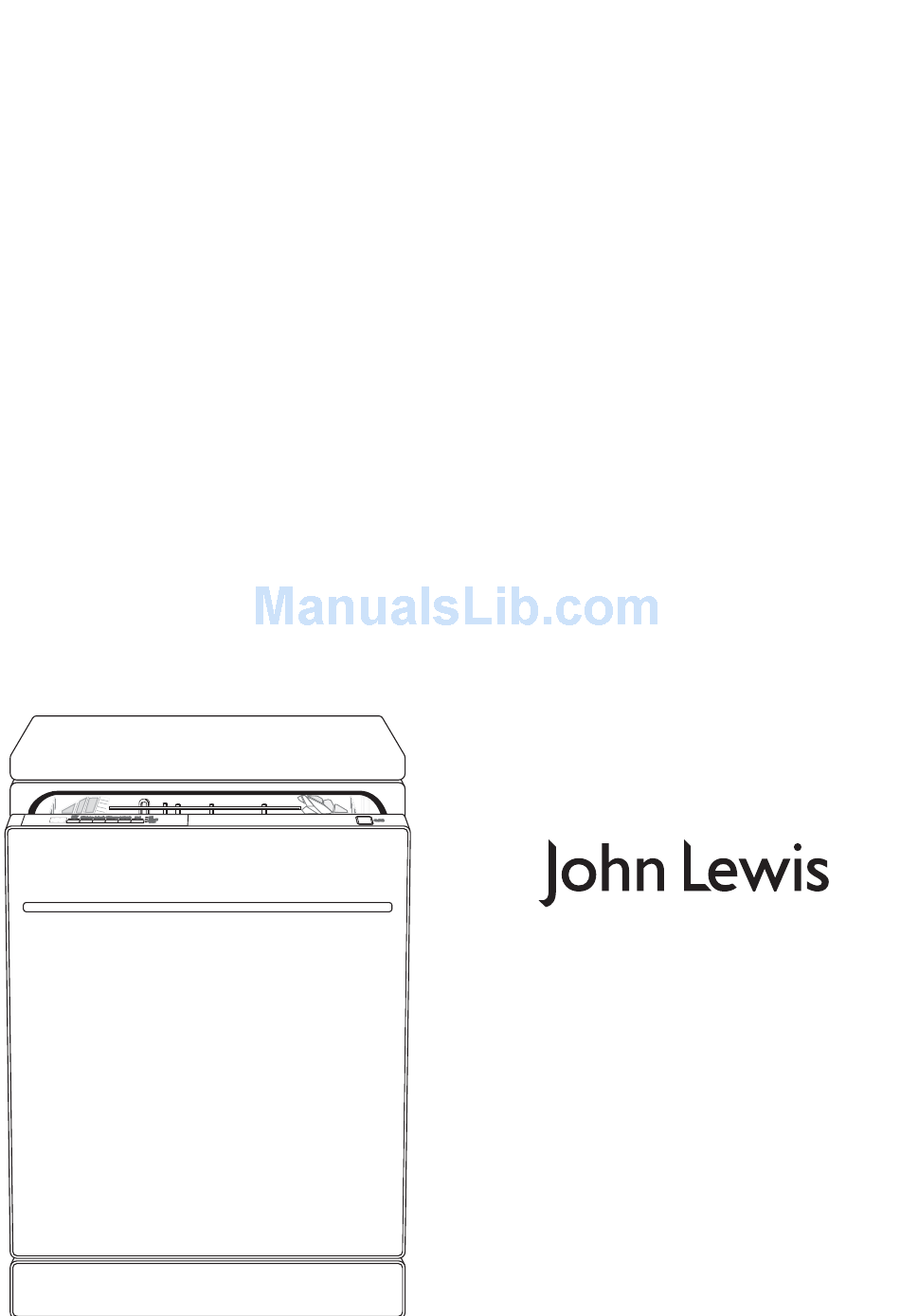

- Page 1 JLDWS 1208 Dishwasher Instruction manual...
-
Page 2: Important Safety Information
These warnings have been provided in the interest of safety. You MUST read them carefully before installing or using the appliance. If you are unsure of the meanings of these warnings contact the John Lewis branch from which you purchased the appliance. -
Page 3: Correct Use
• This dishwasher is only intended for washing household utensils suitable for machine washing. • Do not put any solvents in the dishwasher. This could cause an explosion. • Knives and other items with sharp points must be loaded in the cutlery basket with their points down or placed in a horizontal position in the upper basket. - Page 4 • Automatic Wash Programme: This machine is fitted with a turbidity sensor which intelligently adjusts the temperature and rinsing cycles during the wash programme, depending on the degree of soiling on the dishes. This helps to reduce energy and water consumption on lightly soiled loads.
-
Page 5: Table Of Contents
The control panel The digital display Function buttons (A, B, C, D and E) Audible signals Washing programmes When the dishwasher is first installed The water softener Filling with dishwasher salt Filling with rinse aid Adjusting the rinse aid dosage... -
Page 6: Description Of The Appliance
Description of the appliance Upper basket Water hardness dial Salt container Detergent dispenser Rinse aid dispenser Rating plate Filters Lower spray arm Upper spray arm 10. Worktop... -
Page 7: The Control Panel
In addition to the programme indicator lights that allow you to see which programme is running or has been selected, other indicator lights will help you in the use and maintenance of your dishwasher. Indicator lights Comes on when the special salt Salt has run out. -
Page 8: The Digital Display
It is possible to deactivate the audible signals, using the function buttons on the control panel. 1. Press the On/Off button. The dishwasher must be in setting mode. 2. Simultaneously press and hold function buttons B and C, until the lights of... -
Page 9: Washing Programmes
2) Test programme for test institute. 3) Ideal for washing a partially loaded dishwasher. This is the perfect daily programme, made to meet the needs of a family of 4 persons who only wish to load breakfast and dinner crockery and cutlery. -
Page 10: When The Dishwasher Is First Installed
2) The digital display shows the programme duration. 3) Test programme for test institutes. When the dishwasher is first installed Before using your dishwasher for the first time: • Ensure that the electrical and water connections comply with the installation instructions •... -
Page 11: Setting Manually
1,9 - 2,5 0,7 - 1,8 < 0,7 Setting electronically 1. Press the On/Off button. The dishwasher must be in setting mode. 2. Simultaneously press and hold function buttons B and C, until the lights of function buttons A, B and C start flashing. -
Page 12: Filling With Dishwasher Salt
Warning! Only use salt specifically designed for use in dishwashers. All other types of salt not specifically designed for use in a dishwasher, especially table salt, will damage the water softener. Only fill with salt just before starting one of the complete washing programmes. -
Page 13: Adjusting The Rinse Aid Dosage
Rinse aid ensures thorough rinsing, and spot and streak free drying. Rinse aid is automatically added during the last rinse. 1. Open the container by pressing the release button (A). 2. Add the rinse aid in the container. The maximum level for filling is indicated by "max". -
Page 14: Daily Use
• Before loading the dishes, you should: – Remove all left over food and debris. – Soften remnants of burnt food in pans For washing in the dishwasher the following cutlery and dishes are not suitable: • Cutlery with wooden, horn, china or mother- of-pearls handles. -
Page 15: The Lower Basket
The lower basket The lower basket is designed to take saucepans, lids, plates, salad bowls, cutlery, etc. Serving dishes and large lids should be arranged around the edge of the basket, ensuring that the spray arms can turn freely. The rows of prongs in the lower basket can lie flat to allow you to load pots, pans and bowls. -
Page 16: The Upper Basket
If the handles protrude from the bottom of the basket, obstructing the lower spray arm, load the cutlery with the handles facing upwards. Mix spoons with other cutlery to prevent them from sticking together. For best results we recommend you use the cutlery grids. -
Page 17: Adjusting The Height Of The Upper Basket
For glasses with long stems (according to the size and dimensions), set the glass holder to the left or right position. The central rows of prongs can be easily lowered to improve loading flexibility. Before closing the door, ensure that the spray arms can rotate freely. -
Page 18: Use Of Detergent
Warning! After loading your machine always close the door, as an open door can be a hazard. Use of detergent Only use detergents specifically designed for use in dishwashers. Please observe the manufacturer’s dosing and storage recommendations as stated on the detergent packaging. Using no more than the correct amount of detergent contributes to reducing pollution. -
Page 19: Multi Tab Function
Detergent tablets Detergent tablets from different manufacturers dissolve at different rates. For this reason, some detergent tablets do not attain their full cleaning power during short washing programmes. Therefore, please use long washing programmes when using detergent tablets, to ensure the complete removal of detergent residuals. -
Page 20: Activation/Deactivation Of The Rinse Aid Dispenser
Multi tab function active. Activation/deactivation of the rinse aid dispenser 1. Press the On/Off button. The dishwasher must be in setting mode. 2. Simultaneously press and hold function buttons B and C, until the lights of function buttons A, B and C start flashing. -
Page 21: Interrupt A Washing Programme In Progress
1. Open the dishwasher door. The indicator light of the programme just ended remains illuminated. 2. Switch off the dishwasher by pressing the On/Off button. 3. Leave the dishwasher door ajar and wait a few minutes before removing the dishes;... -
Page 22: Unloading The Dishwasher
Unlock the filter system using the handle on the microfilter. • Water may appear on the sides and the door of the dishwasher as the stainless steel will eventually become cooler than the dishes. 3. Turn the handle about 1/4 a turn anticlockwise and remove the filter system. -
Page 23: External Cleaning
During this process ensure that the flat filter does not protrude above the base of the washing compartment. NEVER use the dishwasher without filters. Incorrect repositioning and fitting of the filters will produce poor washing results and will result in damage to the appliance. -
Page 24: Something Not Working
Moving the machine If you have to move the machine (moving house, etc...): Something not working The dishwasher will not start or stops during operation. Certain problems are due to the lack of simple maintenance or oversights, which can be... - Page 25 • Close the water tap and contact our extended warranty administrators, refer to Repairs-After Sales Service on the following pages. Possible cause and solution • The dishwasher door has not been properly closed. Close the door. • The main plug is not plugged in. Insert the main plug.
- Page 26 There are streaks, milky spots or a bluish coating on glasses and dishes Water drops have dried onto glasses and dishes The wash results are not satisfactory • Decrease rinse aid dosage. • Increase rinse aid dosage. • The detergent may be the cause. Contact the detergent manufacturer’s consumer care line.
-
Page 27: Technical Data
Width Height Depth Information on the electrical connection is given on the rating plate on the inner edge of the dishwasher door. Minimum Maximum Fitting under a counter (Kitchen worktop or sink) By removing the machine’s worktop, you can... -
Page 28: Levelling
Be sure that once the appliance has been installed, it is easily accessible for the service engineer in the event that a repair is required. If the dishwasher is later used as a free- standing appliance, the original worktop must be re-mounted. -
Page 29: Water Drain Connection
(maximum) from the bottom of the dishwasher. The drain hose can face either to the right or left of the dishwasher. Ensure the drain hose is not bent or squashed as this could prevent or slow down the discharge of water. - Page 30 (A) must be removed. Failure to remove all the membrane will result in food particles building up over time eventually blocking the dishwasher drain hose spigot. Our appliances are supplied with a security device to protect against the return of dirty water back into the machine.
-
Page 31: Electrical Connection
Electrical connection Warning! Safety standards require the appliance to be earthed. Prior to using the appliance for the first time, ensure that the rated voltage and type of supply on the rating plate match that of the supply where the appliance is to be installed. -
Page 32: Spare Parts
S.No. : ........Your dishwasher is covered by a 3 year parts and labour guarantee (see separate details given at point of sale). - Page 36 John Lewis Partnership 171 Victoria Street London SW1E 5NN www. johnlewis.com 117971580 - 00 - 022008 - Subject to change without notice...
