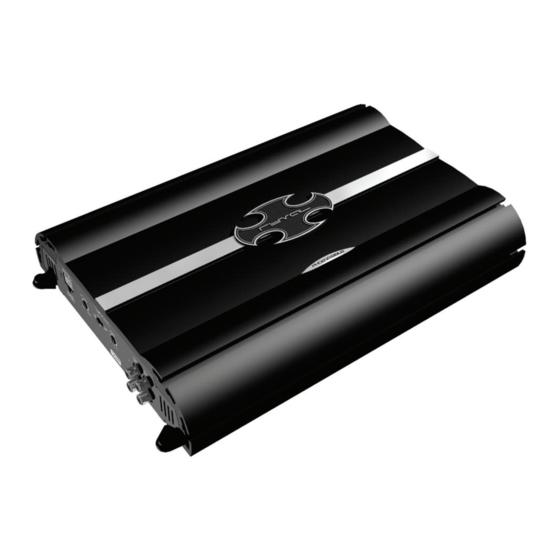

Ryval
Class A/B 4 Channel Amplifi er
V754
4 Channel Power Amplifi er
Amplifi cateurs à 4 canaux
12dB per octave Variable Lowpass Crossovers
Croisements passe-bas variables 12dB
3 Position Confi guration Switch LP/Bypass/HP (LowPass, By-Pass, HighPass)
Commutateur de confi guration LP/Bypass/HP (passe-bas, contournement, passe-haut)
Auxiliary Outputs
Sorties auxiliaires
Speaker Level Inputs
Entrées de niveau d'amplifi cateur
Remote Monitoring Display (RMD) Port
Port d'affi chage de contrôle à distance (RMD)
Extruded Aluminum Heat Sink
Drain thermique en aluminium extrudé
Drain thermique en aluminium extrudé
Congratulations on your purchase of high quality Phoenix Gold audio electronics. At Phoenix Gold our highest concern is musical reproduc-
tion. We appreciate that you chose our product. Through years of engineering expertise and critical testing procedures, we have created a
wide range of products to give your system all the clarity and richness you deserve.
Great product and competent installations are only one piece of the puzzle when it comes to your system. Make sure that your install is using
only the best installation accessories. Phoenix Gold manufactures everything from RCA cables and speaker wire to power/ground cable and
battery connectors. With proper installation and accessories your system will last for years and perform to peak audio standards.
Please read your warranty and retain your receipt and original carton for possible future use.
For more information about Phoenix Gold electronics, speakers and accessories please visit
Phoenix Gold
-
www.phoenixgold.com
Phoenix Gold
Product Manual
Advertisement
Table of Contents
Related Manuals for Phoenix Gold Ryval V754
Summary of Contents for Phoenix Gold Ryval V754
- Page 1 Drain thermique en aluminium extrudé Congratulations on your purchase of high quality Phoenix Gold audio electronics. At Phoenix Gold our highest concern is musical reproduc- tion. We appreciate that you chose our product. Through years of engineering expertise and critical testing procedures, we have created a wide range of products to give your system all the clarity and richness you deserve.
- Page 2 RCA INPUT Connect preamp signal cables from the head unit to these terminals. To maximize noise rejection, we recommend using Genuine Phoenix Gold RCA interconnects. INPUT SELECT When set to “FRONT” the front inputs will provide signal for the entire amplifi er. When set to “FRONT+REAR”...
- Page 3 CONFIG REAR 2 Ohm stereo 100Hz BRIDGED FIG 2. CONFIG CONFIG Front/Rear Stereo Low Pass System 100Hz 100Hz Lowest recommended load: 2 Ohm stereo FRONT 4 Ohm bridged SPEAKER REAR FRONT CONFIG REAR 100Hz BRIDGED V125 Phoenix Gold - www.phoenixgold.com...
- Page 4 (if a single screw makes contact with both the amplifi er and vehicle chassis, it is not insulated). This will reduce the possibility of any ground related noises and will shield minor amounts of radiated noises. Battery Alternator Head Unit FIG 3. Phoenix Gold - www.phoenixgold.com...
- Page 5 RCA Signal Input Sensitivity…………….……….100mV – 9V (RCA Inputs) Speaker Level Input Sensitivity………….200mV – 18V (High Level Inputs) DC Input Range………………………………………………………9V – 18V Typical Current Draw at Idle……………………………………………….1 A Crossover Slope…………………………………………………12dB/Octave Crossover Range (Lowpass)………………………………….45Hz – 400Hz Minimum Load Stability……………………..2 Ohm Stereo/4 Ohm Bridged Phoenix Gold - www.phoenixgold.com...
- Page 6 If the short is in the power wire, repair it. If the short is in the amplifi er itself, see your Phoenix Gold dealer. If no short is present replace the fuse.
- Page 7 LIMITED WARRANTY ELECTRONICS (USA) Phoenix Gold warrants this product to be free of defects in materials and workmanship for a period of one (1) year from the original date of purchase. This warranty is extended to two (2) years from the original date of purchase if product is installed by an authorized Phoenix Gold reseller.
- Page 8 Les articles reçus et non défectueux seront retournés et le fret payable à destination. Les frais d’expédition et d’assurance sont à la charge du client lorsque le produit est expédié à Phoenix Gold. Les dommages causés au produit lors du transport ne sont pas couverts par cette garantie.
