Summary of Contents for John Lewis JLTDC01

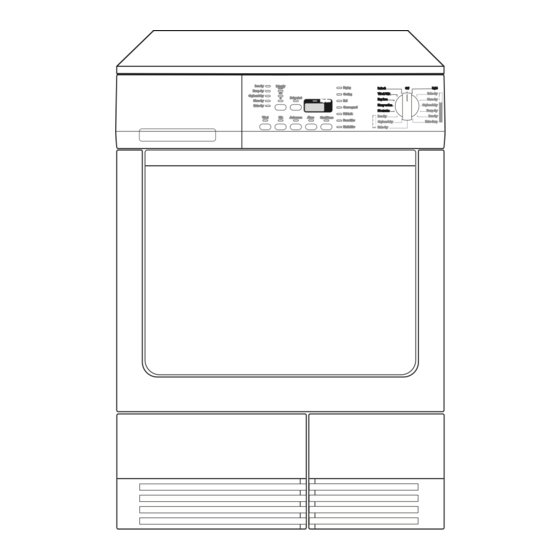

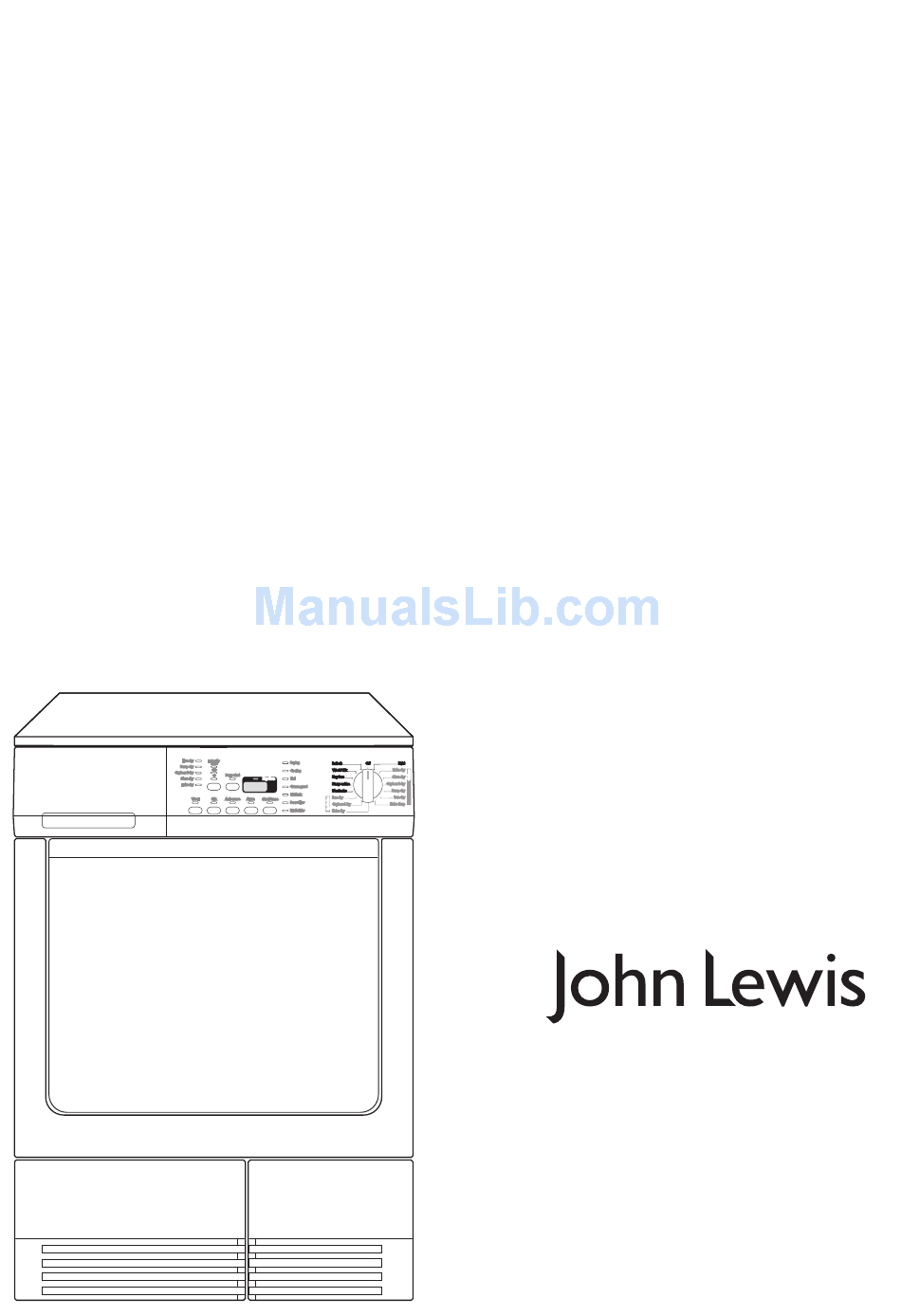

- Page 1 JLTDC01 condenser dryer with heat pump Instruction manual...
-
Page 2: Important Safety Information
These warnings have been provided in the interest of safety. You MUST read them carefully before use or installation by a qualified person. If you are unsure of the meanings of these warnings contact the John Lewis branch from which you purchased the appliance. Installation •... - Page 3 Ecological hints To save energy we recommend that you follow these hints: • Try to load the maximum capacity of the machine as small loads are uneconomical. • Always load well spun laundry. The higher the spin speed, the lower the electricity consumtion and the shorter the drying times.
-
Page 4: Table Of Contents
Contents For the User Important Safety Information Description of the Appliance The Control Panel Programme Chart Using the tumble dryer Hints & Tips on Drying Maintenance and Cleaning External cleaning Cleaning the filters Cleaning the door Cleaning the door seal Cleaning the fluff filter Emptying the water reservoir Cleaning the drum... -
Page 5: Description Of The Appliance
Description of the Appliance Water reservoir Lamp for interior illumination Micro-fine filter (lint filter) Rating plate Base door upstream of fluff filter and heat exchanger Air slots Display panel Fine strainer (lint filter) Large mesh filter (lint filter) Loading door (reversible) Screwed feet (with height... -
Page 6: Installation
Installation It is dangerous to alter the specifications or attempt to modify this product in any way. Care must be taken to ensure that the appliance does not stand on its electrical supply cable. Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person. -
Page 7: Unpacking
60 cm and width of 60cm. Read carefully the instructions supplied with the stacking kit. Please contact your local John Lewis branch for further ad- vice. Version to be supplied: – with extractable stacker plate... -
Page 8: Door Reversal
Door reversal Warning! The door may only be reversed by a specialist. Instructions for qualified personnel/specialist Warning! Before reversing the door, disconnect the mains plug; with a permanent connection: remove the fuse. 1.Open door. 2.Unscrew hinge A from the front of the machine and take off the door. -
Page 9: Electrical Connection
Electrical connection Any electrical work required to install this appliance should be carried out by a qualified electrician or competent per- son. WARNING – THIS APPLIANCE MUST BE EARTHED. Should the appliance power supply cable need to be replaced, this must be carried out by a Service Force agent (see page 23). -
Page 10: The Control Panel
The control panel 1 Wool button To select the Wool programme after setting the programme selector to WOOL/SILK. If no button is pressed, the Wool programme is automatically set. 2 Silk button To select the SILK programme after setting the programme selector to WOOL/SILK. -
Page 11: Delay Start Button
Changing a programme To change a programme which has been selected by mistake once the programme has started, first turn the programme selector to OFF and then reset the programme. The programme can no longer be changed directly once the programme has started. -
Page 12: Programme Chart
Programme Chart Automatic drying Type of laundry Cottons Synthetics Jeans Easy care fabrics Woolen fabrics Silk Synthetics 1) Never overfill the drum (do not load large quilts, for example) • Easy iron is a special programme with anti-crease mecha- nism for easy care fabrics such shirts and blouses; for min- imum ironing effort. -
Page 13: Using The Tumble Dryer
Using the tumble dryer If the appliance was not transported in an upright po- sition, leave it to stand for 12 hours before connect- ing it to the electricity supply and using it for the first time, so that the oil can flow back to the compres- sor. -
Page 14: Changing Programme
Setting time delay With the DELAY START button, you can delay the start of a programme by between 30 minutes (30' and a maximum of 23 hours (23h). 1.Select the programme 2.Press the DELAY START button as many times as neces- sary until the required start delay appears on the multi display, e.g. -
Page 15: Hints & Tips On Drying
Hints & Tips on Drying Before placing articles of laundry in your tumble dryer, check the care labels to ensure they are recommended for tumble drying. Care labels you may find on your laundry may be tumble dried normal drying (high temperature) delicate drying (low temperature) do not tumble dry Do not overload the appliance... -
Page 16: Maintenance And Cleaning
Maintenance and Cleaning You must disconnect the appliance from the elec- tricity supply, before you can carry out any cleaning or maintenance work. External cleaning Use only soap and water and then dry thoroughly. Important: Do not use methylated spirit, diluents or simi- lar products. -
Page 17: Cleaning The Fluff Filter
Cleaning the fluff filter If the indicator PLINTH FILTER lights up, the fluff filter and the filter mat in the base of the appliance must be cleaned. To protect the heat pump from dirt, the dryer is fit- ted with a special filter mat, which is located in the filter housing. -
Page 18: Emptying The Water Reservoir
Emptying the water reservoir Empty water reservoir after every drying cycle. If the water reservoir is full, an active programme will be in- terrupted automatically and the FULL TANK display will light up. In order to continue the programme, the water reservoir must be emptied. -
Page 19: Programming Options
Programming options Objective Permanently programme on the audi- ble signal which reminds you that the programme is complete. Adjust “level of dryness” detection: If you wish the laundry to be slightly drier or slightly damper at the end of the programme than with the stand- ard setting. -
Page 20: Something Not Working
Something Not Working If the tumble dryer is not working correctly, please carry out the following checks before contacting your local Service Force Centre. If, during operation, the error code (E plus number or letter) appears on the multi-display: Switch the appliance off and on again. -
Page 23: Repairs - After Sales Service
Repairs - After Sales Service In the unlikely event of your appliance requiring service, or if you wish to purchase spare parts, please contact our ex- tended warranty administrators by telephoning: 0870 01 07887 They will give you details for your local Service Force Cen- tre. - Page 24 John Lewis Partnership 171 Victoria Street London SW1E 5NN www. johnlewis.com 822 944 856-01-01 03/06...
