Summary of Contents for John Lewis JLTDC 05

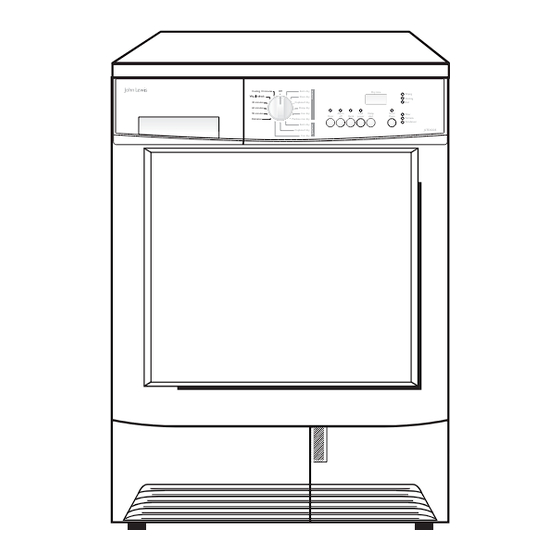

- Page 1 JLTDC 05 TUMBLE DRYER Instruction manual...
-
Page 2: Important Safety Information
These warnings have been provided in the interest of safety. You MUST read them carefully before installing or using the appliance. If you are unsure of the meanings of the these warnings contact the John Lewis branch from which you purchased the appliance. -
Page 3: Table Of Contents
Contents For the User Important Safety Information • Installation • Child Safety • Use Your New Tumble Dryer Description of the Appliance For the Installer Installation Instructions Technical Specifications • CE information • Unpacking • Positioning • Stacking kit (optional accessory) •... -
Page 4: Your New Tumble Dryer
Your New Tumble Dryer This tumble dryer will give your wash that soft, relaxed feel whatever the weather. Extremely high quality standards both during development and manufacturing guarantee a long service life for your appliance. Maximum economy in the operation of your dryer is achieved through very economical consumption and short drying times. -
Page 5: Description Of The Appliance
Description of the Appliance 01 Control panel 02 Water reservoir 3 Drum Light 04 Fluff filters 05 Rating Plate 06 Condenser unit 07 Adjustable feet... -
Page 6: Installation Instructions
Installation Instructions It is dangerous to alter the specifications or attempt to modify this product in any way. Care must be taken to ensure that the appliance does not stand on the electrical supply cable. Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person. -
Page 7: Unpacking
48 and 60 cm. Read carefully the instructions supplied with the kit. Please contact your local John Lewis branch for further advice. Door reversal To make it easier to load or unload the laundry the door can be reversed. -
Page 8: Electrical Connection
Electrical connection Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person WARNING: THIS APPLIANCE MUST BE EARTHED. The manufacturer declines any liability should this safety measure not be observed. Should the appliance power supply cable need to be replaced, this must be carried out by by a Service Force repair agent (Pg 18 service and spare parts) -
Page 9: The Control Panel
The Control Panel 1 Programme/Time Selector Dial Allows you to select electronically controlled or time controlled drying. Turn the dial to the required programme or time. Electronically controlled drying (automatic) The appliance runs these programmes with the help of probes which detect the degree of dampness of the laundry. -
Page 10: Display
Every time the button is pressed, the time is increased by 30 minutes, until the display shows a delay of “2 hours”. After this, the delay is displayed hour by hour. The minutes or hours of delay that have been selected are displayed for 2 seconds, then the display shows the duration of the previously selected programme. -
Page 11: Start/Pause Button
8 Start/Pause button Press this button to start the dryer after having selected the programme and the options. The relevant light will stop flashing. If you have chosen a delayed start, the machine will begin the countdown. If the door of the appliance or the small door at the bottom is opened while the programme is running, this button must be pressed again after closing the door in order to restart the... -
Page 12: Programme Chart
Programme Chart Automatic drying (electronic programmes) Type of laundry Extra dry store dry CUPBOARD dry COTTON damp DRY iron dry MACHINE IRON dry EXTRA DRY CUPOARD DRY SYNTHETICS IRON DRY Wollens WOOL REFRESH Jackets, trousers, DRY CLEANING dresses, skirts. • WOOL REFRESH is special programme for briefly treating woollens with warm air after they have been dried naturally, worn or stored for long periods. -
Page 13: Operating Sequence
Operating Sequence Before using your tumble dryer for the first time, we recommend that you to place a few damp cloths inside the appliance and dry for 30 minutes. There may be dust inside a brand new tumble dryer. Drying 1. -
Page 14: Hints & Tips On Drying
Hints & Tips on Drying Before placing articles of laundry in your tumble dryer, check the care labels to ensure they are recommended for tumble drying. Care Labels you may find on your laundry may be tumble dried normal drying (high temperature) delicate drying (low temperature) do not tumble dry Do not overload the appliance. -
Page 15: Maintenance And Cleaning
Maintenance and Cleaning You must disconnect the appliance from the electricity supply, before you can carry out any cleaning or maintenance work. External cleaning Use only soap and water and then dry thoroughly. Important: do not use methylated spirit, diluents or similar products. -
Page 16: Emptying The Water Reservoir
Clean it with a brush and rinse it under the shower if necessary. Also clean the outside, removing all fluff. Clean the rubber seal round the condenser cabinet and in the inner part of the small door with a damp cloth. Important! Do not use pointed objects or utensils to clean the spaces between the plates, as this could damage the condenser and make it permeable. -
Page 17: Adjusting The Level Of Conductivity
Adjusting the level of conductivity Water contains, a variable quantity of limestone and mineral salts of which quantities vary according to geographical locations thus varying its conductivity values. Relevant variations of the conductivity of the water compared to those prefixed by the factory could slightly influence the residual humidity of the laundry at the end of the cycle. -
Page 18: Something Not Working
Something Not Working Certain problems are due to lack of simple maintenance or oversights, which can be solved easily without calling out an engineer. Before contacting your local Service Force Centre, please carry out the checks listed below. IMPORTANT: if the END light flashes, the buzzer sounds and an alarm code is displayed, switch the machine off and call the Service Centre. - Page 20 John Lewis Partnership 171 Victoria Street London SW1E 5NN www.johnlewis.com 125980753 11/05...
