TRENDnet TW100-S4W1CA Quick Installation Manual

TRENDnet TW100-S4W1CA Quick Installation Manual

4-port broadband router
Hide thumbs Also See for TW100-S4W1CA:

Advertisement

Quick Links

Download this manual See also: User Manual, Quick Installation Manual
Quick Installation Guide
TW100-S4W1CA
2.01

Advertisement

loading
Need help?

Need help?

Do you have a question about the TW100-S4W1CA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TRENDnet TW100-S4W1CA

Summary of Contents for TRENDnet TW100-S4W1CA

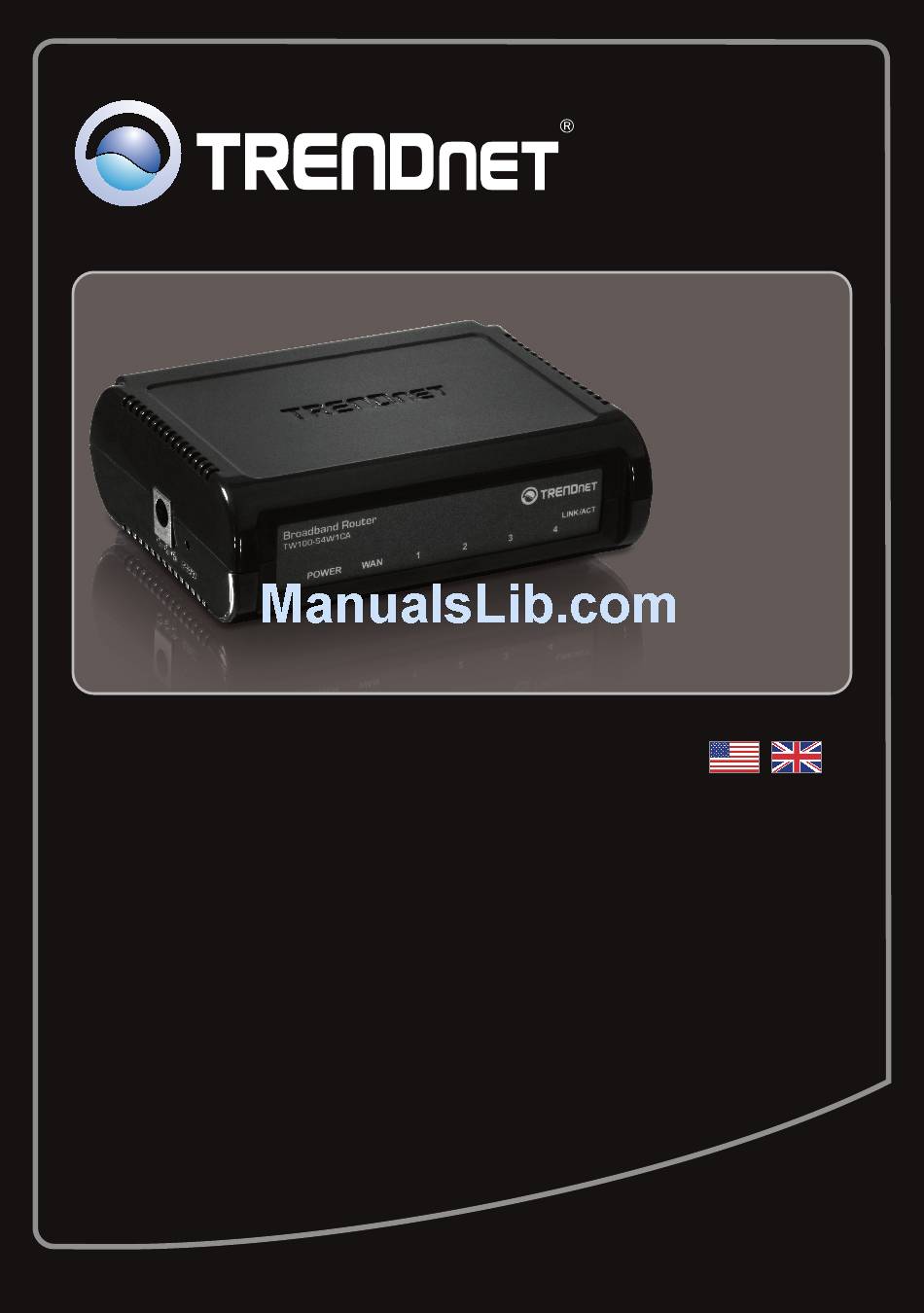

  • Page 1 Quick Installation Guide TW100-S4W1CA 2.01...

  • Page 2: Table Of Contents

    Table of Contents English 1. Before You Start 2. Hardware Installation 3. Configure the Router Troubleshooting Version 03.23.2011...

  • Page 3: English

    1. Before You Start Package Contents Ÿ TW100-S4W1CA Ÿ CD-ROM (User's Guide) Ÿ Multi-Language Quick Installation Guide Ÿ Network Cable (1.5m/5ft) Ÿ Power Adapter (5V DC, 1A) or (7.5 DC, 1A) System Requirements Ÿ A computer with a wired network adapter properly installed Ÿ...
  • Page 4 Collect Internet Service Provider (ISP) Information Please verify your Internet broadband connection type with your ISP and ensure you have all the information for one of the following connection types: 1. Dynamic IP (Cable Modem) Host Name (Optional) Mac Address (Clone) (Optional) Alias IP Address (Optional, Advanced Setup) Primary DNS Address: _____.

  • Page 5: Hardware Installation

    3. Disconnect the network cable from your Cable or DSL modem and your computer. 4. Connect one end of the provided network cable to one of the TW100-S4W1CA's LAN (1~4) ports. Connect the other end of the cable to the computer's network port.
  • Page 6 6. Connect the Power Adapter to the router and then to a power outlet. 7. Power on your cable or DSL modem. Wait until the LEDs indicate that the modem is fully booted up. If necessary consult with the modem user's guide for more information. 8.

  • Page 7: Configure The Router

    3. Configure the Router 1. Open your web browser, type http://192.168.10.1 in the Address bar, and then press Enter. 2. Enter the User Name and Password and then click OK. By default: User Name: admin Password: admin Note: User name and Password are case sensitive.

  • Page 8: Register Your Product

    Internet connection. Your configuration is now complete For detailed information regarding the TW100-S4W1CA’s configuration and advanced settings, please refer to User's Guide included on the Utility CD-ROM, or TRENDnet's website at http://www.trendnet.com. Register Your Product To ensure the highest level of customer service and support, please take a moment to www.trendnet.com/register...

  • Page 9: Troubleshooting

    Troubleshooting 1. I typed http://192.168.10.1 in my Internet Browser's Address Bar, but an error message says “The page cannot be displayed.” How can I get into the TW100-S4W1CA's web configuration page? 1. Check your hardware settings again by following the instructions in Section 2.
  • Page 10 MAC address. Follow the instructions below to clone your modem or network adapter's MAC address: 1. With the computer connected to the TW100-S4W1CA's network port, open the web browser and enter http://192.168.10.1 into the address bar. 2. Enter the user name and password (default is admin for both user name and password) 3.
  • Page 12 Informations générales GPL/LGPL Ce produit TRENDnet comprend un logiciel libre écrit par des programmeurs tiers. Ces codes sont sujet à la GNU General Public License ("GPL" Licence publique générale GNU) ou à la GNU Lesser General Public License ("LGPL" Licence publique générale limitée GNU).
  • Page 13 General Public License) ou ao LGPL (GNU Lesser General Public License). Estes códigos são distribuídos SEM GARANTIA e estão sujeitos aos direitos autorais dos desenvolvedores. TRENDnet não presta suporte técnico a estes códigos. Os detalhes do GNU GPL e do LGPL estão no CD-ROM do produto.
  • Page 14 Certifications This equipment has been tested and found to comply with FCC and CE Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received. Including interference that may cause undesired operation.
  • Page 15 Product Warranty Registration Please take a moment to register your product online. Go to TRENDnet’s website at http://www.trendnet.com/register Copyright ©2011. All Rights Reserved. TRENDnet.
