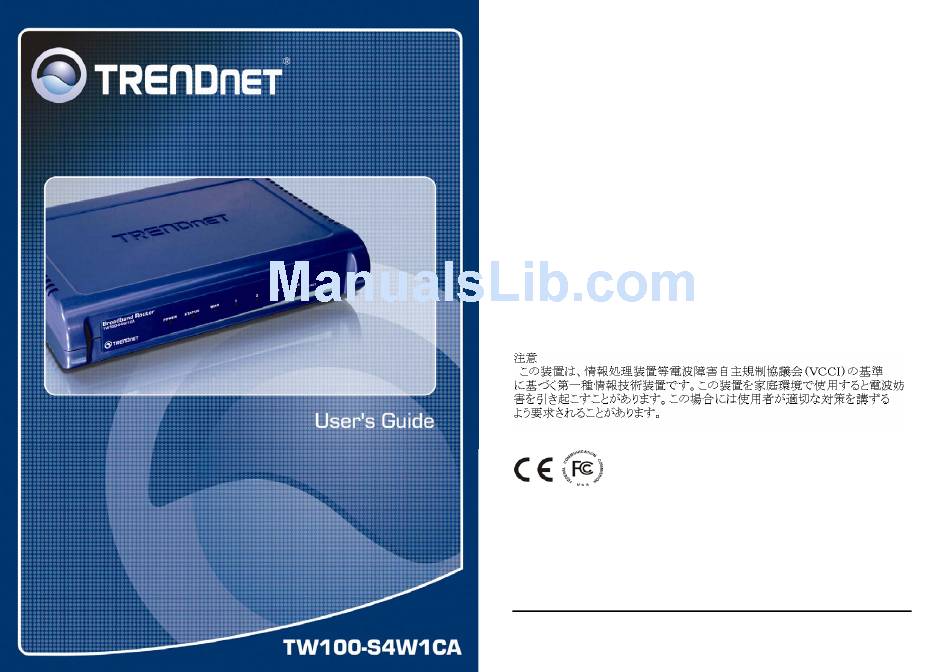

FCC Warning
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a commercial environment.
This equipment generates, uses and radiates radio frequency energy. If not
installed and used in accordance with the instructions, it may cause
harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference. In
this case the user will be required to correct the interference at their own
expense.
CE Mark Warning
This is a Class B product. In a domestic environment, this product may
cause radio interference, in which case the user may be required to take
adequate measures.
VCCI Warning
P/N: Rev.A1-01
2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TW100-S4W1CA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TRENDnet TW100-S4W1CA

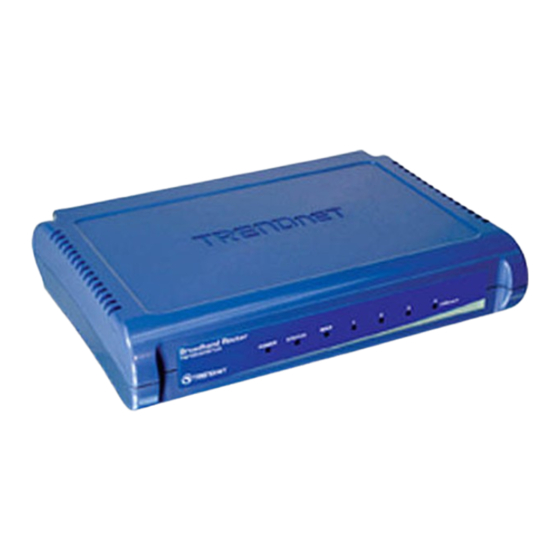

Summary of Contents for TRENDnet TW100-S4W1CA

  • Page 1 FCC Warning This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a commercial environment. This equipment generates, uses and radiates radio frequency energy.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS About This Guide .......................1 Purpose ..........................1 Overview of this User’s Guide..................1 Introduction ........................3 Applications: .........................3 Features: ........................4 Unpacking and Setup ......................5 Unpacking ........................5 Setup ..........................5 Hardware Installation ......................7 Front Panel ........................7 Rear Panel........................8 Hardware connections ....................9 Connect the Internet Broadband Router ..............9 Check the installation .....................10 PC Network TCP/IP Setting.....................11 Windows 95/98/ME ....................11...

  • Page 3: About This Guide

    ABOUT THIS GUIDE Congratulations on your purchase of this Cable/DSL 4-port Broadband Router. This device integrates 100Mbps Fast Ethernet and 10Mbps Ethernet network capabilities. This router is a complete solution for sharing the Internet and other office resources. Purpose This manual discusses how to install the 4-port Broadband Router. Overview of this User’s Guide Introduction.

  • Page 4: Introduction

    INTRODUCTION Online gaming: Your local area network allows you to play online games and use e- With the explosive growth of the Internet, accessing information and commerce services. services at any time, day or night, has become standard fare for most Firewall: people.

  • Page 5: Unpacking And Setup

    UNPACKING AND SETUP This chapter provides unpacking and setup information for the Broadband Router. Unpacking The box should contain the following items: One 4-port High Speed Broadband Router One external power adapter (5V DC, 800mA) One CD-ROM with User’s Guide Quick Installation Guide If any item is found missing or damaged, please contact your local reseller for replacement.

  • Page 6: Hardware Installation

    HARDWARE INSTALLATION The port 1 - 4 indicators light green when they’re connected to a 100Mbps Fast Ethernet station. If the indicator blinks green, the corresponding LAN port is transmitting or receiving data. Front Panel Rear Panel The figure below shows the front panel of the Broadband Router. The figure below shows the rear panel of the Broadband Router.

  • Page 7: Hardware Connections

    Check the installation Hardware connections The LEDs of the Internet Broadband Router are clearly visible and the status of the network link can be seen immediately: Once the device is connected to the broadband modem and the Power is connected, the Power, System, LAN and WAN port link LEDs of the Internet Broadband Router will light up.

  • Page 8: Pc Network Tcp/Ip Setting

    PC NETWORK TCP/IP SETTING Click on the DNS configuration tab and select “Disable DNS”. The network TCP/IP settings differ based on the computer’s operating system (Win95/98/ME/NT/2000/XP) and are as follows. Windows 95/98/ME Right click on the “Network neighborhood” icon and select properties.

  • Page 9: Windows Xp/2000

    Windows NT4.0 Click on the “Start” button located on the lower left corner of the menu Windows XP/2000 bar. Right click My Network Places and select Properties Select “Settings” and then “Control panel.” Double-click on the Local Area Connection icon and click In the “Control panel”...

  • Page 10: Internet Broadband Router Configuration

    INTERNET BROADBAND ROUTER CONFIGURATION Quick Setup On the main webpage, select “Quick Setup” to specify the Time Zone and First, make sure that the network connections are functioning normally. the WAN connection type. This Internet Broadband Router can be configured using Internet Explorer 5.0 or later.
  • Page 11 1-2-1 Dynamic IP (Cable Modem) The Service Name, IP Address, and DNS Address fields must be To connect to a Dynamic IP (Cable Modem) Internet connection with the completed if your ISP provided Broadband Router, check the cable modem with the related user’s guide. you with this information.

  • Page 12: Advanced Setup

    control the connection time (default time=0, always connect). Check the 2-1-1 System Time Connect-on-demand box to enable your router to connect your ISP Connecting to a Simple Network whenever an Internet connection is required. Time Protocol (SNTP) server allows the Broadband Router to 1-3 DNS synchronize the system clock to the global Internet time through the...
  • Page 13 2-1-3 Firmware Upgrade To restore the factory default settings of the Broadband Router, select the “Restore Factory Default Configuration” option. Upgrading firmware for this Broadband Router improves functionality • and performance. Enter the path and name of the upgrade file then click Backup Settings the APPLY button below.
  • Page 14 2-1-7 Reset 2-2-2 Static IP If the Service Provider has assigned a fixed IP address, enter assigned 2-2 WAN address subnet mask and The Broadband Router supports the following types of Internet gateway address provided. connections: Dynamic IP Address, Static IP Address, PPPoE, and PPTP. Click “yes”...
  • Page 15 The MTU feature specifies the largest packet size permitted for network If your ISP provided at least one DNS Server IP Address, type that IP transmission. Enter the value desired; for most DSL users, 1492 is Address in the Primary DNS address fields. You may also enter another recommended.
  • Page 16 Enter the username provided by your Dynamic DNS service 2-4 NAT provider. Network Address Translation (NAT) allows multiple users at the local site • to access the Internet through a single public IP address. NAT can also Password prevent hacker attacks by mapping local addresses to public addresses for Enter the password provided by your Dynamic DNS service key services such as the Web or FTP.
  • Page 17 Specifically, UDP doesn't provide sequencing of the packets that the data arrives in. This means that the application program that uses UDP must be able to make sure that the entire message has arrived and is in the right order. Network applications that want to save processing time because they have very small data units to exchange (and therefore very little message reassembling to do) may prefer UDP to TCP.
  • Page 18 2-5-2 Client Filtering To block certain client PCs from accessing the Internet: You can filter Internet access for local clients based on IP addresses, application types, (i.e., HTTP port), and time of day. For example, this screen shows that clients in the address range 192.168.0.50-99 are permanently restricted from using FTP (Port 21), while clients in the address range 192.168.0.110-119 are blocked from browsing the Internet (port 80) from Monday to Friday and from 0:00AM...

  • Page 19: Technical Specifications

    2-5-4 DMZ (Demilitarized Zone) TECHNICAL SPECIFICATIONS If a local client PC cannot run an Internet application properly from General behind the NAT firewall, open the client up to unrestricted two-way Internet access by defining a PC as a virtual DMZ Host. Standards IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet...

  • Page 20: Limited Warranty

    MERCHANTABILITY If a product does not operate as warranted above during the applicable warranty period, TRENDnet shall, at its option and expense, repair the FITNESS FOR A PARTICULAR PURPOSE. TRENDNET NEITHER defective product or deliver to customer an equivalent product to replace ASSUMES NOR AUTHORIZES ANY OTHER PERSON TO ASSUME the defective item.
  • Page 21 OF THE PURCHASE PRICE PAID, AT TRENDNET’S OPTION. THIS DISCLAIMER OF LIABILITY FOR DAMAGES WILL NOT BE AFFECTED IF ANY REMEDY PROVIDED HEREIN SHALL FAIL OF ITS ESSENTIAL PURPOSE. Governing Law: This Limited Warranty shall be governed by the laws of the state of California.
