Page 1 All rights reserved. Reproduction by any means, electronic or mechanical including photocopying, recording or by any information storage and retrieval system or translation in whole or part is not permitted without written authorization from Ford Motor Company. Ford may change the contents without notice and without incurring obligation.
Page 2: Introduction
Introduction The following warning may be required by California law: CALIFORNIA Proposition 65 Warning WARNING: Engine exhaust, some of its constituents, and certain vehicle components contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
Page 3 INFORMATION ABOUT THIS GUIDE The information found in this guide was in effect at the time of printing. Ford may change the contents without notice and without incurring obligation. EMISSION WARRANTY The New Vehicle Limited Warranty includes Bumper-to-Bumper Coverage, Safety Restraint Coverage, Corrosion Coverage, and 7.3L...
Page 4 Introduction SPECIAL NOTICES Notice to owners of pickup trucks and utility type vehicles Utility vehicles have a significantly higher rollover rate than other types of vehicles. Before you drive your vehicle, please read this Owner’s Guide carefully. Your vehicle is not a passenger car. As with other vehicles of this type, failure to operate this vehicle correctly may result in loss of control or an accident.
Page 5 Introduction Using your vehicle as an ambulance Do not use this vehicle as an ambulance. Your vehicle is not equipped with the Ford Ambulance Preparation Package. Electric vehicles For information on operating your Electric Vehicle, also refer to the Electric Vehicle Owner’s Guide Supplement.
Page 6 Introduction These are some of the symbols you may see on your vehicle. Vehicle Symbol Glossary Safety Alert See Owner’s Guide Fasten Safety Belt Air Bag-Front Air Bag-Side Child Seat Child Seat Installation Child Seat Tether Warning Anchorage Brake System Anti-Lock Brake System Brake Fluid - Traction Control...
Page 7 Introduction Vehicle Symbol Glossary Interior Luggage Child Safety Door Compartment Release Lock/Unlock Symbol Panic Alarm Engine Oil Engine Coolant Engine Coolant Temperature Do Not Open When Hot Battery Avoid Smoking, Flames, Battery Acid or Sparks Explosive Gas Fan Warning Maintain Correct Fluid Power Steering Fluid Level Emission System...
Page 8: Instrumentation
Instrumentation Instrument panel Instrument cluster dimmer control (pg. 10) (pg. 21) Headlamp control (pg. 20) DOOR AJAR CHECK 60 70 GAGE 0 0 0 RPMx1000 SPEED 0 0 0 0 0 0 CHECK CONT ENGINE HIGH CHECK FUEL km/h R N D 2 1 THEFT BRAKE COAST...
Page 9 Instrumentation Audio system 4wd control* Auxiliary (pg. 29) (pg. 139) power point (pg. 28) PUSH HIGH SEEK TONE TONE VOL TUNE AM/FM PASSENGER AIRBAG Fog lamp control (pg. 20) Passenger air bag deactivate switch Climate control (pg. 108) system * if equipped (pg.
Page 10 Instrumentation WARNING LIGHTS AND CHIMES Check engine Your vehicle is equipped with a computer that monitors the engine’s CHECK emission control system. This ENGINE system is commonly known as the On Board Diagnostics System (OBD II). This OBD II system protects the environment by ensuring that your vehicle continues to meet government emission standards.
Page 11 Instrumentation 3. The fuel cap may not have been properly installed and securely tightened. These temporary malfunctions can be corrected by filling the fuel tank with high quality fuel of the recommended octane and/or properly installing and securely tightening the gas cap. After three driving cycles without these or any other temporary malfunctions present, the Check Engine light should turn off.
Page 12 Instrumentation Check gage Illuminates when the engine coolant CHECK temperature is high, the engine oil GAGE pressure is low or the fuel gauge is at or near empty. The ignition must be in the ON position for this lamp to illuminate. The lamp will also stay illuminated after the ignition is turned to the ON position.
Page 13 Instrumentation Anti-lock brake system (ABS) Momentarily illuminates when the ignition is turned to the ON position to indicate a system check. If the light remains on, continues to flash or fails to illuminate, have the system serviced immediately. With the ABS light on, the anti-lock brake system is disabled and normal braking is still effective unless the brake warning light also remains illuminated with the parking brake released.
Page 14: Controls And Features
Instrumentation O/D off (if equipped) Illuminates when the Transmission Control Switch (TCS), refer to Overdrive control in the Controls and Features chapter, has been pushed turning the transmission overdrive function OFF. When the light is on, the transmission does not operate in the overdrive mode, refer to the Driving chapter for transmission function and operation.
Page 15: Seating And Safety Restraints
Instrumentation Speed control This light comes on when either the SPEED SET/ACCEL or RESUME controls CONT are pressed. It turns off when the speed control OFF control is pressed, the brake or clutch (if equipped) is applied or the ignition is turned to the OFF position.
Page 16 Instrumentation GAUGES Fuel gauge Displays approximately how much fuel is in the fuel tank (when the key is in the ON position). The fuel gauge may vary slightly when the vehicle is in motion or on a grade. The ignition should be in the OFF position while the vehicle is being refueled.
Page 17: Driving
Instrumentation Engine coolant temperature gauge Indicates the temperature of the engine coolant. At normal operating temperature, the needle remains within the normal area (the area between the “H” and “C”). If it enters the red section, the engine is overheating. Stop the vehicle as soon as safely possible, switch off the engine immediately and let the engine cool.
Page 18: Trip Odometer
Instrumentation Speedometer Indicates the current vehicle speed. 60 70 0 0 0 0 0 0 0 0 0 km/h Odometer Registers the total kilometers 60 70 (miles) of the vehicle. 0 0 0 0 0 0 0 0 0 km/h Trip odometer Registers the kilometers (miles) of 60 70...
Page 19 Instrumentation Engine oil pressure gauge This shows the engine oil pressure in the system. Sufficient pressure exists as long as the needle remains in the normal range (the area between the “L” and “H”). If the gauge indicates low pressure, stop the vehicle as soon as safely possible and switch off the engine immediately.
Page 20: Controls And Features
Controls and features HEADLAMP CONTROL Rotate the headlamp control to the first position to turn on the parking lamps. Rotate to the second position to also turn on the headlamps. Foglamp control (if equipped) The foglamps can be turned on when the headlamp control is in either of the following positions: •...
Page 21 Controls and features High beams • Push forward to activate. • Pull toward you to deactivate. Flash to pass Pull toward you to activate and release to deactivate. PANEL DIMMER CONTROL Use to adjust the brightness of the instrument panel during headlamp and parklamp operation.
Page 22 Controls and features CLIMATE CONTROL SYSTEM Heater only system (if equipped) Fan speed control Controls the volume of air circulated in the vehicle. Temperature control knob Controls the temperature of the airflow inside the vehicle. On heater-only systems, the air cannot be cooled below the outside temperature.
Page 23 Controls and features Operating tips • In humid weather conditions, place the climate control system in DEF before driving. This will reduce fogging on your windshield. Once the windshield has been cleared, operate the climate control system as desired. • To reduce humidity buildup inside the vehicle in cold weather conditions, do not drive with the climate control system in the OFF position.
Page 24 Controls and features Manual heating and air conditioning system (if equipped) Fan speed control Controls the volume of air circulated in the vehicle. Temperature control knob Controls the temperature of the airflow inside the vehicle. Mode selector control Controls the direction of the airflow to the inside of the vehicle.
Page 25 Controls and features • (Panel)-Distributes outside air through the instrument panel registers. However, the air will not be cooled below the outside temperature because the air conditioning does not operate in this mode. • OFF-Outside air is shut out and the fan will not operate. For short periods of time only, use this mode to prevent undesirable odors from entering the vehicle.
Page 26 Controls and features • To reduce humidity buildup inside the vehicle in warm weather conditions, don’t drive with the climate control system in the OFF position. • Under normal weather conditions, your vehicle’s climate control system should be left in any position other than MAX A/C or OFF when the vehicle is parked.
Page 27 Controls and features To aid in defogging/demisting in cold weather conditions: 1. Select 2. Set the temperature control to full heat 3. Set the fan speed to HI 4. Direct the outer panel vents towards to side windows To increase airflow to the outer panel vents, close the central panel vents.
Page 28 Controls and features AUXILIARY POWER POINT SEEK TUNE AM-FM Power outlets are designed for accessory plugs only. Do not hang any type of accessory or accessory bracket from the plug. Improper use of the power outlet can cause damage not covered by your warranty.
Page 29 Controls and features PASSENGER AIR BAG ON/OFF SWITCH This switch must be used to deactivate the passenger air bag whenever a child seat is used in the right front or center front passenger seat position. Refer to Passenger air bag ON/OFF switchin the Seating and safety restraints PASSENGER AIRBAG chapter.
Page 30 Controls and features Volume/power control Press the control to turn the audio PUSH system on or off. Turn the control to raise or lower volume. PUSH If the volume is set above a certain level and the ignition is turned off, the volume will come back on at a “nominal”...
Page 31 Controls and features Tune adjust in radio mode • Press to move to the next SEEK frequency down the band (whether or not a listenable TUNE station is located there). Hold the control to move through the frequencies quickly. • Press to move to the next frequency up the band (whether or not a listenable station is located there).
Page 32 Controls and features Bass adjust The bass adjust control allows you PUSH to increase or decrease the audio system’s bass output. TONE Press the TONE control once, then use the volume knob to adjust the desired level. Treble adjust The treble adjust control allows you PUSH to increase or decrease the audio system’s treble output.
Page 33 Controls and features • to decrease hours and • to increase hours. SEEK SEEK TUNE TUNE To set the minute, press and hold the CLK control until CLOCK SET TONE appears in the display and press the TUNE control: • to decrease minutes and SEEK SEEK...
Page 34 Controls and features AM/FM Stereo / Single CD Radio VOL - PUSH ON BASS TREB FADE DISC SEEK TUNE COMP DISCS SHUFFLE Volume/power control Press the control to turn the audio VOL - PUSH ON system on or off. Turn the control to raise or lower volume.
Page 35 Controls and features AM/FM select The AM/FM select control works in radio and CD modes. AM/FM select in radio mode This control allows you to select AM or FM frequency bands. Press the control to switch between AM, FM1 or FM2 memory preset stations. AM/FM select in CD mode Press this control to stop CD play and begin radio play.
Page 36 Controls and features Tune adjust for CD changer (if equipped) • Press to select the previous SEEK disc in the CD changer. (Play will begin on the first track of the TUNE disc unless the CD changer is in DISCS shuffle mode.
Page 37 Controls and features Scan function in radio mode Press SCN to hear a brief sampling of all listenable stations on the frequency band. Press SCN again to stop the scan mode. Scan function in CD mode Press SCN to hear a short sampling of all selections on the CD. (The CD scans in a forward direction, wrapping back to the first track at the end of the CD.) To stop on a particular selection, press the control again.
Page 38 Controls and features Speaker fade adjust Speaker sound can be adjusted between the front and rear speakers. FADE CD select • To begin CD play (if CD[s] are loaded), press the CD control. The first track of the disc will begin playing.
Page 39 Controls and features Eject function Press the control to stop and eject a CD. Compression feature Compression adjust brings soft and COMP loud CD passages together for a more consistent listening level. Press the COMP control to activate and deactivate compression adjust. Shuffle feature (if equipped with CD changer) The shuffle feature operates in CD SHUFFLE...
Page 40 Controls and features To set the minute, press and hold SEEK the CLK control and press the TUNE TUNE control: DISCS • to decrease minutes and SEEK SEEK • to increase minutes. TUNE TUNE Premium AM/FM Stereo/Cassette/Single CD DISC VOL PUSH ON FM 1 MUTE TAPE...
Page 41 Controls and features Volume/power control Press the control to turn the audio VOL - PUSH ON system on or off. Audio power can also be turned on by pressing the AM/FM select control or the tape/CD select control. Audio power is turned off by using the volume/power control.
Page 42 Controls and features Tune adjust in radio mode • Press to move to the next frequency down the band (whether or not a listenable station is located there). Hold the control to move through the frequencies quickly. • Press to move to the next frequency up the band (whether or not a listenable station is located there).
Page 43 Controls and features Scan function in radio mode Press the SCAN control to hear a brief sampling of all listenable stations on the frequency band. Press the control again to stop the scan mode. Scan function in tape mode Press the SCAN control to hear a short sampling of all selections on the tape.
Page 44 Controls and features Starting autoset memory preset 1. Select a frequency using the AM/FM select controls. 2. Press the AUTO control. 3. When the first six strong stations AUTO are filled, the station stored in memory preset control 1 will start playing.
Page 45 Controls and features Treble adjust The treble adjust control allows you BASS TREB to increase or decrease the audio system’s treble output. Press the TREB control then press: • to decrease the treble output • to increase the treble output. Speaker balance adjust Speaker sound distribution can be FADE...
Page 46 Controls and features Tape select • To begin tape play (with a tape loaded into the audio system) TAPE while in the radio or CD mode, press the TAPE control. Press the button during rewind or fast forward to stop the rewind or fast forward function.
Page 47 Controls and features Press the EJ control to stop and eject a CD. Dolby noise reduction Dolby noise reduction operates in tape mode. Dolby noise reduction reduces the amount of hiss and static during tape playback. Press the control to activate (and deactivate) the Dolby noise reduction.
Page 48 Controls and features Setting the clock To set the hour, press and hold the CLK control and press SEEK: AUTO • to decrease hours and • to increase hours. To set the minute, press and hold the CLK control and press TUNE: AUTO •...
Page 49 Controls and features The CLK control will allow you to switch between media display mode AUTO (radio station, stereo information, etc.) and clock display mode (time). When in clock mode, the media information will display for 10 seconds, when the radio is turned on, and then revert to clock information.
Page 50 Controls and features Volume/power control Press the control to turn the audio system on or off. PUSH ON Turn the control to raise or lower volume. If the volume is set above a certain level and the ignition is turned off, the volume will come back on at a “nominal”...
Page 51 Controls and features Tune adjust in radio mode • Press to move to the next frequency down the band (whether or not a listenable station is located there). Hold the control to move through the frequencies quickly. • Press to move to the next frequency up the band (whether or not a listenable station is located there).
Page 52 Controls and features Seek function in CD mode • Press to seek to the previous track of the current disc. If the beginning of the disc is reached, the CD player seeks to the beginning of the last track on the current disc and begins playing.
Page 53 Controls and features 4. Press and hold a memory preset control. The playing media will mute momentarily. When the sound returns, the station is held in memory on the control you selected. The display will read SAVED. Autostore Autostore allows you to set the strongest local radio stations without losing your original manually set preset stations.
Page 54 Controls and features CD select CD mode may be entered by pressing the CD control and the LOAD control. Load the CD into the audio system. The first track of the disc will begin playing. After that, CD play will begin where it stopped last. If an alternative CD is desired, press the corresponding preset control (1–6) of a loaded CD, or press the TUNE control to access the other loaded CDs.
Page 55 Controls and features has been loaded, the door will close and the CD will begin to play. For example, to load a CD into slot 2, press the LOAD control and then press preset 2. Auto load This feature allows you to autoload up to 6 discs into the multi disc CD player internal to the radio.
Page 56 Controls and features Rewind The rewind control works in CD modes. Press and hold the REW control until the desired selection is reached. If the beginning of the disc is reached, the CD will begin play at the first track. Release the control to disengage rewind mode. When in rewind mode, your audio system will automatically lower the volume level of the playing media.
Page 57 Controls and features Bass adjust The bass adjust control allows you BASS to increase or decrease the audio system’s bass output. TREB Press the BASS control. Use the SEL control to increase or decrease the amount of bass. Treble adjust The treble adjust control allows you BASS to increase or decrease the audio...
Page 58 Controls and features Menu mode The MENU control allows you to MENU access many different features within your audio system. There are three sets of menus available depending upon which mode or feature is activated. While in FM mode, two menus are available.
Page 59 Controls and features Traffic announcements This feature allows you to hear traffic announcements. When in this MENU mode, traffic announcements will interrupt radio and CD play. When in FM mode and RDS is activated, press the MENU until TRAFFIC OFF displays. Press the SEL control to engage the feature.
Page 60 Controls and features Radio data system (RDS) feature This feature allows your audio system to receive text information MENU from RDS-equipped FM radio stations. To activate RDS: • When in FM mode, press the MENU control until RDS OFF displays. •...
Page 61 Controls and features Program type This feature allows you to search for RDS stations selectively by their program type. Press the MENU control until FIND program type is displayed. MENU Use the SEL control to select the program type. With the feature on, use the SEEK or SCAN control to find the desired program type from the following selections: •...
Page 62 Controls and features Mute mode Press the control to mute the playing media. Press the control again to return to the playing media. Setting the clock Press the MENU control until SELECT HOUR or SELECT MINUTE is displayed. (The menu mode must be engaged to enable clock mode).
Page 63 Controls and features Radio frequency information The Federal Communications Commission (FCC) and the Canadian Radio and Telecommunications Commission(CRTC) establish the frequencies AM and FM stations may use for their broadcasts. Allowable frequencies are: AM 530, 540–1600, 1610 kHz FM 87.7, 87.9–107.7, 107.9 MHz Not all frequencies are used in a given area.
Page 64 Controls and features TURN SIGNAL CONTROL • Push down to activate the left turn signal. • Push up to activate the right turn signal. Turn signal flasher reprogramming information During operation of the turn signals, if the lights flash faster or slower than the normal rate the vehicle has an electrical malfunction.
Page 65 Controls and features POSITIONS OF THE IGNITION 1. ACCESSORY, allows the electrical accessories such as the radio to operate while the engine is not running. 2. LOCK, locks the steering wheel, automatic transmission gearshift lever and allows key removal. 3. OFF, shuts off the engine and all accessories without locking the steering wheel.
Page 66 Controls and features To turn speed control off • Press OFF or • Turn off the vehicle ignition. Once speed control is switched off, the previously programmed set speed will be erased. To set a speed • Press SET ACC. For speed control to operate, the speed control must be ON and the vehicle speed must be greater...
Page 67 Controls and features To set a higher set speed • Press and hold SET ACC. Release the control when the desired vehicle speed is reached or • Press and release SET ACC to operate the Tap-Up function. Each press will increase the set speed by 1.6 km/h (1 mph) or COAST •...
Page 68 Controls and features To disengage speed control • Depress the brake pedal or • Depress the clutch pedal (if equipped). Disengaging the speed control will not erase the previously programmed set speed. Fully depressing the clutch pedal may cause a flare in engine RPM as the throttle is returned to idle.
Page 69 Controls and features To return to a previously set speed • Press RSM. For RSM to operate, the vehicle speed must be faster than 48 km/h (30 mph). COAST Indicator light This light comes on when either the SPEED SET ACCEL or RES controls are CONT pressed.
Page 70 Controls and features The transmission will operate in all gears except overdrive. To return to normal overdrive mode, press the ON/OFF Transmission Control Switch again. The TCIL will no longer be illuminated. When you shut off and re-start your vehicle, the transmission will automatically return to normal (Overdrive) mode.
Page 71: Roadside Emergencies
Controls and features HAZARD FLASHER For information on the hazard flasher control, refer to Hazard flasher in the Roadside emergencies chapter. WINDSHIELD WIPER/WASHER CONTROLS Rotate the windshield wiper control to the desired interval, low or high speed position. The bars of varying length are for intermittent wipers.
Page 72 Controls and features POWER WINDOWS (IF EQUIPPED) Press and hold the rocker switches to open and close windows. • Press the top portion of the rocker switch to close. AUTO • Press the bottom portion of the rocker switch to open. AUTO One touch down •...
Page 73 Controls and features POWER DOOR LOCKS (IF EQUIPPED) Press the top of the control to UNLOCK unlock all doors and the bottom to lock all doors. LOCK POWER SIDE VIEW MIRRORS (IF EQUIPPED) To adjust your mirrors: 1. Select to adjust the left mirror or to adjust the right mirror.
Page 74 Controls and features CARGO AREA FEATURES Cargo area shade (if equipped) Your vehicle may be equipped with notches in the side trim panels that are used for a cargo area shade. See your dealer for more information. BED EXTENDER (IF EQUIPPED) Your vehicle may be equipped with a bed extender designed to extend the pickup box for longer loads.
Page 75 Controls and features 4. Evenly push down on the extender and push the round knobs in on each side locking it in place. Green markings on the shaft indicate the locked position. The locking clip screws below the middle bar can be tightened counterclockwise for extra security.
Page 76 Controls and features To remove the bed extender: 1. Extend the bed extender. 2. Pull the round knobs on each side of the extender to unlock it. Make sure the locking clip screws are loose before removing the extender. 1. Press the locking clips below the middle bar on each side and lift the extender out of the channels on the “D”...
Page 77 Controls and features To open the front panel: • Open the lock cover and unlock the front panel. • Lift the panel to access items in the pickup box near the cab. The front panel will automatically lock when lowered onto the pickup box.
Page 78 Controls and features To stow the rear panel: • Before driving with the tonneau cover open, stow the rear panel. • Release four cylinder clips and remove two hydraulic cylinders from the pickup box and rear panel. • Lift the rear panel up, lay it on top of the front panel and secure it with the two straps on the front panel tiedowns.
Page 79 Controls and features The cargo divider is designed to divide your pickup box in half or rotate 90° to allow you full use of the pickup box. To rotate the cargo divider 90°: • Open front panel. • Pull the lower release lever out on each side of the cargo divider to unlatch from the pickup box.
Page 80 Controls and features To remove the tonneau cover: The tonneau cover needs to be supported during removal. This is a two person operation. • Remove the cargo divider, refer to To remove the cargo divider in this procedure. • Open and support the front panel.
Page 81 Controls and features To open the tonneau cover from the inside, pull the “T” shaped handle and push up on the tonneau cover panel. The material that the handle is made of will glow for hours in the darkness of the pickup box following brief exposure to ambient light.
Page 82 Controls and features The remote entry features only operate with the ignition in the LOCK position. If there is any potential remote keyless entry problem with your vehicle, ensure ALL key fobs (remote entry transmitters) are brought to the dealership, to aid in troubleshooting. Unlocking the doors Press this control to unlock the driver’s door.
Page 83 Controls and features Sounding a panic alarm Press this control to activate the alarm. To deactivate the alarm, press the control again or turn the ignition to ACC or ON. Panic alarm will only operate with the ignition in the OFF position. Replacing the battery The transmitter is powered by one coin type three-volt lithium battery CR2032 or equivalent.
Page 84 Controls and features Replacing lost transmitters If a remote transmitter has been lost and you would like to remove it from the vehicle’s memory, or you would like to purchase additional remote transmitters and have them programmed to your vehicle: •...
Page 85 The SecuriLock passive anti-theft system is not compatible with non-Ford aftermarket remote start systems. Use of these systems may result in vehicle starting problems and a loss of security protection. Automatic arming...
Page 86 If a problem occurs, turn ignition OFF and restart the engine with all other objects on the key ring held away from the ignition key. Check to make sure the coded key is an approved Ford coded key.
Page 87 Controls and features If your keys are lost or stolen you will need to do the following: • Use your spare key to start the vehicle, or • Have your vehicle towed to a dealership or locksmith. The key codes will need to be erased from your vehicle and new key codes will need to be re-coded.
Page 88 Controls and features 1. Insert the first previously programmed coded key into the ignition and turn the ignition from 3 (OFF) to 4 (ON) (maintain ignition in 4 (ON) for at least one second). 2. Turn ignition to 3 (OFF) then 2 (LOCK) and remove the first coded key from the ignition.
Page 89: Seating And Safety Restraints
Seating and safety restraints SEATING Adjusting the front manual seat Never adjust the driver’s seat or seatback when the vehicle is moving. Do not pile cargo higher than the seatbacks to reduce the risk of injuring people in a collision or sudden stop. Always drive and ride with your seatback upright and the lap belt snug and low across the hips.
Page 90 Seating and safety restraints Pull lever up to adjust seatback. Using the manual lumbar support (if equipped) Turn the lumbar support control clockwise to increase firmness. Turn the lumbar support control counterclockwise to increase softness. REAR SEATS Center facing jump seat (2 door SuperCab) (if equipped) To open, pull inboard and down on the seat handle.
Page 91 Seating and safety restraints Center facing jump seat (4 door SuperCab) (if equipped) To open, pull seat assembly down, then raise seatback. To stow the seat, fold seat back down and raise seat assembly to the fully upright position. Do not install a child seat in a center facing jump seat.
Page 92 Seating and safety restraints In a rollover crash, an unbelted person is significantly more likely to die than a person wearing a safety belt. Each seating position in your vehicle has a specific safety belt assembly which is made up of one buckle and one tongue that are designed to be used as a pair.
Page 93 Seating and safety restraints The front outboard safety restraints in the vehicle are combination lap and shoulder belts. The front passenger outboard safety belt has two types of locking modes described below: Energy Management Feature • This vehicle has a seat belt system with an energy management feature at the front outboard seating positions to help further reduce the risk of injury in the event of a head-on collision.
Page 94 Seating and safety restraints The automatic locking mode is not available on the driver safety belt. When to use the automatic locking mode • Any time a child safety seat is installed in a passenger front or outboard rear seating position (if equipped). Children 12 years old and under should be properly restrained in the rear seat whenever possible.
Page 95 Seating and safety restraints How to disengage the automatic locking mode Disconnect the combination lap/shoulder belt and allow it to retract completely to disengage the automatic locking mode and activate the vehicle sensitive (emergency) locking mode. After any vehicle collision, the front passenger outboard seat belt system must be checked by a qualified technician to verify that the “automatic locking retractor”...
Page 96 Seating and safety restraints Front safety belt height adjustment Your vehicle has safety belt height adjustments for the driver and front passenger. Adjust the height of the shoulder belt so the belt rests across the middle of your shoulder. • Regular Cab and 4–door Super •...
Page 97 Seating and safety restraints Position the shoulder belt height adjusters so that the belt rests across the middle of your shoulder. Failure to adjust the safety belt properly could reduce the effectiveness of the seat belt and increase the risk of injury in a collision. Lap belts Adjusting the front center seat lap belt (if equipped) The lap belt does not adjust automatically.
Page 98 Seating and safety restraints Adjusting the rear center facing jump seat lap belt (if equipped) The lap belt will adjust automatically. To fasten, grasp the tongue, and with a continuous motion, pull out enough webbing to buckle the tongue into the correct buckle. If you did not pull out enough webbing to reach the buckle, allow the tongue to retract fully before trying to pull it out again.
Page 99 Seating and safety restraints If... Then... The driver’s safety belt is buckled The safety belt warning light and before the ignition switch is turned indicator chime remain off. to the ON position... Belt minder The Belt Minder feature is a supplemental warning to the safety belt warning function.
Page 100 Seating and safety restraints Reasons given... Consider... “Belts are We design our safety belts to enhance comfort. If uncomfortable” you are uncomfortable - try different positions for the safety belt upper anchorage and seatback which should be as upright as possible; this can improve comfort.
Page 101 Seating and safety restraints Deactivating/activating the belt minder feature Read steps 1 - 9 thoroughly before proceeding with the deactivation/activation programming procedure. The Belt Minder feature can be deactivated/activated by performing the following procedure: Before following the procedure, make sure that: •...
Page 102 (if equipped), LATCH child seat tether anchors and lower anchors (if equipped), and attaching hardware, should be inspected after a collision. Ford recommends that all safety belt assemblies used in vehicles involved in a collision be replaced.
Page 103 This information will assist Ford in the servicing of your vehicle and may help Ford better understand real world collisions and further improve the safety of future vehicles.
Page 104 Do not attempt to service, repair, or modify the Air Bag Supplemental Restraint System or its fuses. See your Ford or Lincoln Mercury dealer. Modifications to the front end of the vehicle, including frame, bumper, front end body structure and tow hooks may affect the performance of the air bag sensors increasing the risk of injury.
Page 105 Seating and safety restraints Children and air bags For additional important safety information, read all information on safety restraints in this guide. Children must always be properly restrained. Failure to follow these instructions may increase the risk of injury in a collision. An infant in a rear-facing seat faces a high risk of serious or fatal injuries from a deploying passenger air bag.
Page 106 Seating and safety restraints The air bags inflate and deflate rapidly upon activation. After air bag deployment, it is normal to notice a smoke-like, powdery residue or smell the burnt propellant. This may consist of cornstarch, talcum powder (to lubricate the bag) or sodium compounds (e.g., baking soda) that result from the combustion process that inflates the...
Page 107 Seating and safety restraints • and the electrical wiring which connects the components. The RCM (restraints control module) monitors its own internal circuits and the supplemental air bag electrical system warning (including the passenger air bag deactivation switch, the impact sensors, the system wiring, the air bag system readiness light, the air bag back up power and the air bag ignitors).
Page 108 If the light fails to illuminate when the passenger air bag switch is in the OFF position and the ignition switch is in ON, have the passenger air bag switch serviced at your Ford or Lincoln-Mercury dealer immediately. In order to avoid inadvertent activation of the switch, always remove the ignition key from the passenger air bag ON/OFF switch.
Page 109 If the OFF light is illuminated when the passenger air bag ON/OFF switch is in the ON position and the ignition switch is in ON, have the passenger air bag ON/OFF switch serviced at your Ford or Lincoln-Mercury dealer immediately.
Page 110 Seating and safety restraints The vast majority of drivers and passengers are much safer with an air bag than without. To do their job and reduce the risk of life threatening injuries, air bags must open with great force, and this force can pose a potentially deadly risk in some situations, particularly when a front seat occupant is not properly buckled up.
Page 111 Seating and safety restraints 3. Medical condition. A passenger has a medical condition which, according to his or her physician: • causes the passenger air bag to pose a special risk for the passenger; • makes the potential harm from the passenger air bag in a crash greater than the potential harm from turning OFF the air bag and allowing the passenger, even if belted, to hit the dashboard or windshield in a crash.
Page 112 Seating and safety restraints • the child has a medical condition that, according to the child’s physician, makes it necessary for the child to ride in the front seat so that the driver can monitor the child’s condition. 3. Medical condition: A passenger has a medical condition that, according to his or her physician: •...
Page 113 To improve the fit of lap and shoulder belts on children who have outgrown child safety seats, Ford recommends use of a belt-positioning booster seat that is labelled as conforming to all applicable Federal motor vehicle safety standards. Belt-positioning booster seats raise the child and provide a shorter, firmer seating cushion that encourages safer seating posture and better fit of lap and shoulder belts on the child.
Page 114 Seating and safety restraints SAFETY SEATS FOR CHILDREN Child and infant or child safety seats Use a safety seat that is recommended for the size and weight of the child. Carefully follow all of the manufacturer’s instructions with the safety seat you put in your vehicle. If you do not install and use the safety seat properly, the child may be injured in a sudden stop or collision.
Page 115 (passenger side front and outboard rear seating positions) (if equipped) section in this chapter. Ford recommends the use of a child safety seat having a top tether strap. Install the child safety seat in a seating position which is capable of providing a tether anchorage.
Page 116 Seating and safety restraints Rear facing child seats should NEVER be placed in the front seats unless the passenger airbag switch is turned off. 2. Pull down on the shoulder belt and then grasp the shoulder belt and lap belt together. 3.
Page 117 Seating and safety restraints 5. To put the retractor in the automatic locking mode, grasp the shoulder portion of the belt and pull downward until all of the belt is extracted and a click is heard. 6. Allow the belt to retract. The belt will click as it retracts to indicate it is in the automatic locking mode.
Page 118: Bucket Seats
Seating and safety restraints Attaching child safety seats with tether straps Most new forward-facing child safety seats include a tether strap which goes over the back of the seat and hooks to an anchoring point. Tether straps are available as an accessory for many older safety seats. Contact the manufacturer of your child seat for information about ordering a tether strap.
Page 119 Seating and safety restraints 3. Locate the correct anchor for the selected seating position. The tether anchor is located on the rear lower portion of the passenger seat.
Page 120 Seating and safety restraints 4. Clip the tether strap to the anchor.
Page 121 Seating and safety restraints Center seating location When installing a child safety seat in the center position, route the tether strap over the center arm rest and clip it to the center anchor.
Page 122 Seating and safety restraints Center seating location 60/40 vinyl seats When installing a child safety seat in the center position on a 60/40 vinyl seat, route the tether strap through the guiding sleeve and clip it to the center anchor. If the tether strap is clipped incorrectly, the child safety seat may not be retained properly in the event of a collision.
Page 123 Starting PREPARING TO START YOUR VEHICLE Engine starting is controlled by the powertrain control system. This system meets all Canadian Interference-Causing Equipment standard requirements regulating the impulse electrical field strength of radio noise. When starting a fuel-injected engine, avoid pressing the accelerator before or during starting.
Page 124 Starting 2. Make sure the headlamps and vehicle accessories are off. If starting a vehicle with an automatic transmission: • Make sure the parking brake is set. • Make sure the gearshift is in P (Park). If starting a vehicle with a manual transmission: •...
Page 125 Cold starting performance can also be improved with the use of an engine block heater. The engine block heater is available as a Ford option and can also be obtained from your Ford dealer. Consult the engine block heater section for proper use of the engine block heater.
Page 126 Starting If the engine fails to start using the preceding instructions 1. Press the accelerator pedal 1/3 to 1/2 of the way to floor and hold. 2. Turn the key to START position. 3. When the engine starts, release the key, then release the accelerator pedal gradually as the engine speeds up.
Page 127 Starting (-10°F) or below. Your engine block heater also comes with a battery warmer. The battery warmer wraps around the battery and keeps the battery warm when the engine block heater is plugged in. For best results, plug the heater in at least three hours before starting the vehicle.
Page 128 Driving BRAKES Your service brakes are self-adjusting. Refer to the scheduled maintenance guide for scheduled maintenance. Occasional brake noise is normal and often does not indicate a performance concern with the vehicle’s brake system. In normal operation, automotive brake systems may emit occasional or intermittent squeal or groan noises when the brakes are applied.
Page 129 Driving steering control of your vehicle and, providing there is sufficient space, will enable you to avoid obstacles and bring the vehicle to a controlled stop. • The anti-lock system does not decrease the time necessary to apply the brakes or always reduce stopping distance. Always leave enough room between your vehicle and the vehicle in front of you to stop.
Page 130 Driving The BRAKE warning lamp in the instrument cluster illuminates and remains illuminated (when the BRAKE ignition is turned ON) until the parking brake is released. Always set the parking brake fully and make sure that the gearshift is securely latched in P (Park) (automatic transmission) or in 1 (First) (manual transmission).
Page 131 Driving If the steering wanders or pulls, the condition could be caused by any of the following: • underinflated tire(s) on any wheel(s) • uneven vehicle loading • high crown in center of road • high crosswinds • wheels out of alignment •...
Page 132 Driving Your vehicle has the capability to haul more cargo and people than most passenger cars. Depending upon the type and placement of the load, hauling people and cargo may raise the center of gravity of the vehicle. Use extra caution while becoming familiar with your vehicle. Know the capabilities and limitations of both you as a driver and your vehicle.
Page 133 Driving If the parking brake is fully released, but the brake warning lamp remains illuminated, the brakes may not be working properly. See your dealer or a qualified service technician. Driving with a 5–speed automatic transmission (if equipped) Your automatic transmission electronically controls the shift feel by using an adaptive learning strategy.
Page 134 Driving Always come to a complete stop before shifting into P (Park). Make sure the gearshift lever is securely latched in P (Park). This position locks the transmission and prevents the rear wheels from turning. Always set the parking brake fully and make sure the gearshift is latched in P (Park).
Page 135 Driving Drive – Not shown on the display. Activate by pressing the transmission control switch on the end of the gearshift lever with the gearshift in (Overdrive) position. The TCIL will illuminate on the instrument cluster. Transmission operates in gears one through four. Drive (O/D OFF) provides more engine braking than (Overdrive) and is useful whenever driving conditions (i.e., city traffic, hilly terrain, etc.) cause the...
Page 136 Driving Manual transmission operation (if equipped) Using the clutch Vehicles equipped with a manual transmission have a starter interlock that prevents starting the engine unless the clutch pedal is fully depressed. When starting a vehicle with a manual transmission: 1. Hold down the brake pedal. 2.
Page 137 Driving 2. Engage the parking brake. 3. Shift into 1 (First). 4. Turn the ignition to Off. Do not park your vehicle in Neutral, it may move unexpectedly and injure someone. Use 1 (First) gear and set the parking brake fully.
Page 138 Driving Upshifts when accelerating (for best fuel economy) Maximum downshift speeds Transfer case position (if equipped) Shift from: 5 (Overdrive) - 4 88 km/h (55 mph) 34 km/h (22 mph) 4 - 3 72 km/h (45 mph) 27 km/h (18 mph) 3 - 2 56 km/h (35 mph) 21 km/h (14 mph)
Page 139 4WD system indicator lights The 4WD system indicator lights illuminate only under the following conditions. If these lights illuminate when driving in 2WD, contact your Ford dealer as soon as possible. • 4WD HIGH-momentarily illuminates when the vehicle is started. Illuminates when 4H (4WD High) is engaged.
Page 140 Driving Shifting from 4X4 HIGH (4WD high) to 2WD (2WD high) Move the 4WD control to 2WD position at any forward speed. HIGH • You do not need to operate the vehicle in R (Reverse) to disengage your front hubs. Shifting from 2WD (2WD high) to 4X4 LOW (4WD low) 1.
Page 141 Driving 4. Move the 4WD control to the 2WD position. HIGH Shifting between 4X4 HIGH (4WD high) and 4X4 LOW (4WD low) 1. Bring the vehicle to a stop. 2. Depress the brake. 3. Place the gearshift in N (Neutral) (automatic transmission) or depress the clutch (manual transmission).
Page 142 Driving You should either know the terrain or examine maps of the area before driving. Map out your route before driving in the area. For more information on driving off-road, read the “Four Wheeling” supplement in your owner’s portfolio. If your vehicle gets stuck If the vehicle is stuck it may be rocked out by shifting from forward and reverse gears, stopping between shifts, in a steady pattern.
Page 143 Driving Water intrusion into the transmission may damage the transmission. Replace rear axle lubricant any time the axle has been submerged in water. The rear axle does not normally require a lubricant change for the life of the vehicle. Rear axle lubricant quantities are not to be checked or changed unless a leak is suspected or repair is required.
Page 144 Driving TRACTION-LOK AXLE (IF EQUIPPED) This axle provides added traction on slippery surfaces, particularly when one wheel is on a poor traction surface. Under normal conditions, the Traction-Lok axle functions like a standard rear axle. Extended use of other than the manufacturer’s specified size tires on a Traction-Lok rear axle could result in a permanent reduction in effectiveness.
Page 145 Driving • GVW (Gross Vehicle Weight): Base curb weight plus payload weight. The GVW is not a limit or a specification. • GVWR (Gross Vehicle Weight Rating): Maximum permissable total weight of the base vehicle, occupants, optional equipment and cargo. The GVWR is specific to each vehicle and is listed on the Safety Certification Label on the driver’s door pillar.
Page 146 Driving The Safety Certification Label, found on the driver’s door pillar, lists several important vehicle weight rating limitations. Before adding any additional equipment, refer to these limitations. If you are adding weight to the front of your vehicle, (potentially including weight added to the cab), the weight added should not exceed the front axle reserve capacity (FARC).
Page 147 Driving 3. Subtract your loaded vehicle weight from the maximum GCWR on the following charts. This is the maximum trailer weight your vehicle can tow and must fall below the maximum shown under maximum trailer weight on the chart. TRAILER TOWING Your vehicle may tow a class I, II or III trailer provided the maximum trailer weight is less than or equal to the maximum trailer weight listed for your engine and rear axle ratio on the following charts.
Page 148 Driving 4x2 w/manual transmission Regular Cab w/7’ box 2.3L 2 177 (4 800) 726 (1 600) Equal to frontal area of vehicle 3.0L 2 722 (6 000) 1 179 (2 600) 4.64 (50) 4.0L 3 175 (7 000) 1 597 (3 520) 4.64 (50) SuperCab 2.3L...
Page 149 Driving 4x4 w/manual transmission Engine Rear Maximum Maximum Maximum axle GCWR - kg trailer weight frontal area ratio (lbs.) - kg (lbs) of trailer - Regular Cab w/6’ box 3.0L 2 722 (6 000) 1 180 (2 380) 4.64 (50) 4.0L 3 175 (7 000) 1 506 (3 320)
Page 150 Driving 4x2 w/automatic transmission Engine Rear Maximum Maximum Maximum axle GCWR - kg trailer frontal area ratio (lbs.) weight - kg of trailer - (lbs.) Regular Cab w/6’ box 2.3L 2 495 (5 500) 1 025 (2 260) Equal to frontal area of vehicle 3.0L...
Page 151 Driving 4x2 w/automatic transmission SuperCab 3.0L 3 402 (7 500) 1 787 (3 940) 4.64 (50) (non-torsion bar suspension) 3.0L (torsion 3 402 (7 500) 1 715 (3 780) 4.64 (50) bar suspension) 4.0L 4 309 (9 500) 2 667 (5 880) 4.64 (50) (non-torsion bar suspension)
Page 152 Driving 4x4 w/automatic transmission Engine Rear Maximum Maximum Maximum axle GCWR - kg trailer frontal area ratio (lbs.) weight - kg of trailer - (lbs.) Regular Cab w/6’ box 3.0L 3 402 (7 500) 1 751 (3 860) 4.64 (50) 4.0L 4 309 (9 500) 2 622 (5 780)
Page 153 Driving Preparing to tow Use the proper equipment for towing a trailer, and make sure it is properly attached to your vehicle. See your dealer or a reliable trailer dealer if you require assistance. Hitches For towing trailers up to 907 kg (2 000 lb), use a weight carrying hitch and ball which uniformly distributes the trailer tongue loads through the underbody structure.
Page 154 Driving Trailer lamps Trailer lamps are required on most towed vehicles. Make sure your trailer lamps conform to local and Federal regulations. See your dealer or trailer rental agency for proper instructions and equipment for hooking up trailer lamps. Using a step bumper The optional step bumper is equipped with an integral hitch and requires only a ball with a 19 mm (3/4 inch) shank diameter.
Page 155 Driving Refer to the following chart for information regarding the factory-equipped trailer tow connector: Trailer tow connector Color Function Comment 1. Dark Green Trailer right-hand Circuit activated when brake turn signal pedal is depressed or when ignition is on and right-hand turn signal is applied.
Page 156 Driving Trailer towing tips • Practice turning, stopping and backing up before starting on a trip to get the feel of the vehicle trailer combination. When turning, make wider turns so the trailer wheels will clear curbs and other obstacles. •...
Page 157 • Do not exceed 56 km/h (35 mph) vehicle speed. If a distance of 80 km (50 miles) or a speed of 56 km/h (35 mph) must be exceeded, you must disconnect the driveshaft. Ford recommends the driveshaft be removed/installed only by a qualified technician. See your local dealer for driveshaft removal/installation.
Page 158: Roadside Emergencies
Roadside emergencies Getting roadside assistance To fully assist you should you have a vehicle concern, Ford Motor Company offers a complimentary roadside assistance program. This program is separate from the New Vehicle Limited Warranty. The service is available: • 24–hours, seven days a week •...
Page 159 Roadside coverage beyond basic warranty In the United States, you may purchase additional roadside assistance coverage beyond this period through the Ford Auto Club by contacting your Ford or Lincoln Mercury dealer. Similarly in Canada, for uninterrupted Roadside Assistance coverage, you may purchase extended coverage prior to your Basic Warranty’s Roadside...
Page 160 Roadside emergencies The fuel pump shut-off switch is located in the passenger’s foot well, by the kick panel. Use the following procedure to reset the fuel pump shut-off switch. 1. Turn the ignition to the OFF position. 2. Check the fuel system for leaks. 3.
Page 161 Roadside emergencies FUSES AND RELAYS Fuses If electrical components in the vehicle are not working, a fuse may have blown. Blown fuses are identified by a broken wire within the fuse. Check the appropriate fuses before replacing any electrical components. NOTE: Always replace a fuse with one that has the specified amperage rating.
Page 162 Roadside emergencies Passenger compartment fuse panel The fuse panel is located on the left-hand side of the instrument panel facing the driver’s side door. Pull the panel cover outward to access the fuses. To remove a fuse use the fuse puller tool provided on the fuse panel cover.
Page 163 Roadside emergencies The fuses are coded as follows: Fuse/Relay Fuse Amp Passenger Compartment Fuse Location Rating Panel Description Power Mirror Switch Daytime Running Lights (DRL), Back-up Lamps, Transmission, Passenger Air Bag Deactivation Switch, Blower Motor Relay 7.5A Right Stop/Turn Trailer Tow Connector —...
Page 164 Roadside emergencies Fuse/Relay Fuse Amp Passenger Compartment Fuse Location Rating Panel Description Cigar Lighter, Data Link Connector (DLC) — Not Used PCM Power Diode, Ignition, PATS 7.5A Generic Electronic Module (GEM), Radio Flasher (Hazard) Auxiliary Power Socket — Not Used 7.5A Clutch Pedal Position (CPP) switch, Starter Interrupt Relay...
Page 165 Roadside emergencies Power distribution box The power distribution box is located in the engine compartment. The power distribution box contains high-current fuses that protect your vehicle’s main electrical systems from overloads. Always disconnect the battery before servicing high current fuses. Always replace the cover to the Power Distribution Box before reconnecting the battery or refilling fluid reservoirs.
Page 166 Roadside emergencies 2.3L engine (if equipped) 56 B 56 A 46 B 45 B 50 B 46 A 45 A 50 A The high-current fuses are coded as follows: Fuse/Relay Fuse Amp Power Distribution Box Location Rating Description 50A** I/P Fuse Panel —...
Page 167 Roadside emergencies Fuse/Relay Fuse Amp Power Distribution Box Location Rating Description — Not Used — Not Used 40A** Blower Motor 20A** Auxiliary Cooling Fan — Not Used — Not Used — Not Used 10A* PCM Memory — Not Used 20A* Fuel Pump Motor 30A* Headlamps...
Page 168 Roadside emergencies Fuse/Relay Fuse Amp Power Distribution Box Location Rating Description — Wiper HI/LO — Wiper Park/Run — Fuel Pump — Trailer Tow — Starter — Auxiliary Cooling Fan — Not Used — Not Used — Not Used — Not Used —...
Page 169 Roadside emergencies 3.0L and 4.0L engines (if equipped) The high-current fuses are coded as follows: Fuse/Relay Fuse Amp Power Distribution Box Location Rating Description 50A** I/P Fuse Panel — Not Used — Not Used — Not Used — Not Used 50A** ABS Pump Motor 30A*...
Page 170 Roadside emergencies Fuse/Relay Fuse Amp Power Distribution Box Location Rating Description — Not Used — Not Used 40A** Blower Motor — Not Used — Not Used — Not Used — Not Used 10A* PCM Memory — Not Used 20A* Fuel Pump Motor 30A* Headlamps 10A*...
Page 171 Roadside emergencies Fuse/Relay Fuse Amp Power Distribution Box Location Rating Description — Not Used — Wiper High/Low — Wiper Park/Run — Not Used — Front Washer Pump — Not Used — Not Used — Fog Lamps — Fog Lamp Relay —...
Page 172 Roadside emergencies It is not recommended that the vehicle be operated in 4WD modes with a temporary spare. If 4WD operation is necessary, do not operate above speeds of 16 km/h (10 mph) or for distances above 80 km (50 miles). If you use the temporary spare tire continuously or do not follow these precautions, the tire could fail, causing you to lose control of the vehicle, possibly injuring yourself or others.
Page 173 Roadside emergencies Location of the spare tire and tools The spare tire and tools for your vehicle are stowed in the following locations: Tool Location Spare tire Under the vehicle, just forward of the rear bumper Jack, jack handle, Regular Cab: behind seats and underneath the wheel nut wrench jack and tools cover SuperCab: stowed in the passenger side rear cab...
Page 174 Roadside emergencies 2. If equipped, unlock and remove the spare tire carrier lock from the rear access hole located just above the rear bumper and below the tailgate. 3. Insert the straight end of the jack handle into the rear access hole located just above the rear bumper and below the tailgate.
Page 175 Roadside emergencies Stowing the spare tire 1. Lay the tire on the ground with the valve stem facing up. 2. Install the retainer through the wheel center and slide the wheel under the vehicle. 3. Turn the spare handle clockwise until the tire is raised to its original position underneath the vehicle.
Page 176 Roadside emergencies 3. Block the diagonally opposite wheel. 4. Insert tapered end of the lug wrench behind hub caps and twist them off. 5. Loosen each wheel lug nut one-half turn counterclockwise but do not remove them until the wheel is raised off the ground.
Page 177 Roadside emergencies • Rear To lessen the risk of personal injury, do not put any part of your body under the vehicle while changing a tire. Do not start the engine when your vehicle is on the jack. The jack is only meant for changing the tire.
Page 178 Roadside emergencies 10. Remove the jack and fully tighten the lug nuts in the order shown. 11. Stow the flat tire. Refer to Stowing the spare tire. 12. Stow the jack and lug wrench. Make sure the jack is fastened so it does not rattle when you drive.
Page 179 Roadside emergencies 4. Check all battery terminals and remove any excessive corrosion before you attach the battery cables. Ensure that vent caps are tight and level. 5. Turn the heater fan on in both vehicles to protect any electrical surges. Turn all other accessories off. Connecting the jumper cables 1.
Page 180 Roadside emergencies 3. Connect the negative (-) cable to the negative (-) terminal of the assisting battery. 4. Make the final connection of the negative (-) cable to an exposed metal part of the stalled vehicle’s engine, away from the battery and the carburetor/fuel injection system.
Page 181 Roadside emergencies Jump starting 1. Start the engine of the booster vehicle and run the engine at moderately increased speed. 2. Start the engine of the disabled vehicle. 3. Once the disabled vehicle has been started, run both engines for an additional three minutes before disconnecting the jumper cables.
Page 182 Roadside emergencies 3. Remove the jumper cable from the positive (+) terminal of the booster vehicle’s battery. 4. Remove the jumper cable from the positive (+) terminal of the disabled vehicle’s battery. After the disabled vehicle has been started and the jumper cables removed, allow it to idle for several minutes so the engine computer can relearn its idle conditions.
Page 183 It is recommended that your vehicle be towed with a wheel lift or flatbed equipment. Do not tow with a slingbelt. Ford Motor Company has not approved a slingbelt towing procedure.
Page 184: Maintenance And Care
Maintenance and care SERVICE RECOMMENDATIONS To help you service your vehicle: • We highlight do-it-yourself items in the engine compartment for easy location. • We provide a scheduled maintenance guide which makes tracking routine service easy. If your vehicle requires professional service, your dealership can provide the necessary parts and service.
Page 185 Maintenance and care 3. Turn off the engine and remove the key. 4. Block the wheels to prevent the vehicle from moving unexpectedly. Working with the engine on • Automatic transmission: 1. Set the parking brake and ensure the gearshift is securely latched in P (Park).
Page 186 Maintenance and care IDENTIFYING COMPONENTS IN THE ENGINE COMPARTMENT 2.3L I4 engine 1. Windshield washer fluid reservoir 2. Engine coolant reservoir 3. Engine oil dipstick 4. Transmission fluid dipstick (automatic transmission) 5. Engine oil filler cap 6. Brake fluid reservoir 7.
Page 187 Maintenance and care 3.0L V6 engine 1. Engine coolant reservoir 2. Windshield washer fluid reservoir 3. Engine oil filler cap 4. Automatic transmission fluid dipstick (if equipped) 5. Engine oil dipstick 6. Brake fluid reservoir 7. Power distribution box 8. Clutch fluid reservoir (if equipped) 9.
Page 188 Maintenance and care 4.0L SOHC V6 engine 1. Windshield washer fluid reservoir 2. Automatic transmission fluid dipstick (if equipped) 3. Engine oil filler cap 4. Engine oil dipstick 5. Brake fluid reservoir 6. Power distribution box 7. Clutch fluid reservoir (if equipped) 8.
Page 189 Maintenance and care ENGINE OIL Checking the engine oil Refer to the scheduled maintenance guide for the appropriate intervals for checking the engine oil. 1. Make sure the vehicle is on level ground. 2. Turn the engine off and wait a few minutes for the oil to drain into the oil pan.
Page 190 Maintenance and care • 3.0L V6 engine • 4.0L SOHC V6 engine...
Page 191 Maintenance and care 6. Wipe the indicator clean. Insert the indicator fully, then remove it again. • If the oil level is between the MIN and MAX marks, the oil level is acceptable, DO NOT ADD OIL. • If the oil level is below the MIN mark, add enough oil to raise the level within the MIN-MAX range.
Page 192 Maintenance and care • 4.0L SOHC V6 engine • Oil levels above the MAX mark may cause engine damage. Some oil must be removed from the engine by a service technician. 7. Put the indicator back in and ensure it is fully seated. Adding engine oil 1.
Page 193 Only use oils “Certified For Gasoline Engines” by the American Petroleum Institute (API). Use Motorcraft (Part: XO–5W20–QSP in U.S.)or an equivalent oil meeting Ford Specification WSS-M2C153–H. SAE 5W-20 oil provides optimum fuel economy and durability performance meeting all requirements for your vehicle’s engine.
Page 194 Ford production and aftermarket (Motorcraft) oil filters are designed for added engine protection and long life. If a replacement oil filter is used that does not meet Ford Material and design specifications, start-up engine noises or knock may be experienced.
Page 195: Capacities And Specifications
If the fluid level drops, refill the fluid level to the step in the reservoir. Use only a DOT 3 brake fluid designed to meet Ford specification ESA-M6C25–A. Refer to Capacities and specifications. Brake fluid is toxic. If brake fluid contacts the eyes, flush eyes with running water for 15 minutes.
Page 196 Only use a washer fluid that meets Ford specification . Refer to Lubricant specifications in the Capacities and specifications chapter. State or local regulations on volatile organic compounds may restrict the use of methanol, a common windshield washer antifreeze additive.
Page 197 Maintenance and care Note:Do not put washer fluid in the engine coolant reservoir. Washer fluid placed in the cooling system may harm engine and cooling system components. ENGINE COOLANT Checking engine coolant The concentration and level of engine coolant should be checked at the mileage intervals listed in the scheduled maintenance guide.
Page 198 Maintenance and care • 3.0L and 4.0L engines When the engine is cold, check the level of the engine coolant in the reservoir. • The engine coolant should be at the “cold fill level” or within the “cold fill range” as listed on the engine coolant reservoir (depending upon application).
Page 199 The cooling system in your vehicle is filled with either green-colored Motorcraft Premium Engine Coolant meeting Ford specification ESE-M97B44–A or yellow-colored Motorcraft Premium Gold Engine Coolant meeting Ford Specification WSS-M97B51–A1. To determine your vehicle’s coolant type (color), check your coolant reservoir. • Add Motorcraft Premium Engine Coolant (green-colored), VC-4–A (U.S.) or CXC-10 (Canada) or Motorcraft Premium...
Page 200 Maintenance and care • Do not mix with recycled coolant unless from a Ford-approved recycling process (see Use of Recycled Engine Coolant section). For vehicles with overflow coolant systems with a non-pressurized cap on the coolant recovery system, add coolant to the coolant recovery reservoir when the engine is cool.
Page 201 Operating an engine with a low level of coolant can result in engine overheating and possible engine damage. Recycled engine coolant Ford Motor Company recommends the use of a recycled engine coolant produced by Ford-approved processes in vehicles originally equipped with Motorcraft Premium Engine Coolant (green-colored). However, not all coolant recycling processes produce coolant that meets Ford specification ESE-M97B44–A.
Page 202 Maintenance and care If you drive in extremely hot climates: • It is still necessary to maintain the coolant concentration above 40%. • NEVER decrease the coolant concentration below 40%. • Decreased engine coolant concentrations below 40% will decrease the corrosion protection characteristics of the engine coolant and may cause engine damage.
Page 203 Maintenance and care 3. Turn the engine off. 4. If your vehicle is equipped with a 3.0L V6 engine, check the fluid level on the dipstick. It should be within the FULL HOT range. Do not add fluid if the level is within this range. 5.
Page 204 Maintenance and care 7. Remove the dipstick and inspect the fluid level. The fluid should be in the designated area for normal operating temperature or ambient temperature. Low fluid level Do not drive the vehicle if the fluid level is at the bottom of the dipstick and the ambient temperature is above 10°C (50°F).
Page 205 Maintenance and care Adjusting automatic transmission fluid levels Before adding any fluid, make sure the correct type is used. The type of fluid used is normally indicated on the dipstick and also in the Lubricant specifications section in the Capacities and specifications chapter.
Page 206 5. Install and tighten the fill plug securely. Use only fluid that meets Ford specifications. Refer to the Capacities and specifications chapter. Checking and adding transfer case fluid (if equipped) 1. Clean the filler plug.
Page 207 Maintenance and care DRIVELINE UNIVERSAL JOINT AND SLIP YOKE Your vehicle may be equipped with universal joints that require lubrication. Refer to the scheduled maintenance guide for maintenance intervals. If the original universal joints are replaced with universal joints equipped with grease fittings, lubrication will also be necessary. BATTERY Your vehicle is equipped with a Motorcraft maintenance-free battery...
Page 208 Maintenance and care If you see any corrosion on the battery or terminals, remove the cables from the terminals and clean with a wire brush. You can neutralize the acid with a solution of baking soda and water. Batteries normally produce explosive gases which can cause personal injury.
Page 209 Maintenance and care 6. Drive the vehicle to complete the relearning process. • The vehicle may need to be driven to relearn the idle and fuel trim strategy. • If you do not allow the engine to relearn its idle trim, the idle quality of your vehicle may be adversely affected until the idle trim is eventually relearned.
Page 210 10 to 12 inches or limited production tires as defined in Title 49 Code of Federal Regulations Part 575.104(c)(2). U.S. Department of Transportation-Tire quality grades: The U.S. Department of Transportation requires Ford to give you the following information about tire grades exactly as the government has written it.
Page 211 Maintenance and care Treadwear The treadwear grade is a comparative rating based on the wear rate of the tire when tested under controlled conditions on a specified government test course. For example, a tire graded 150 would wear one and one-half (1 1/2) times as well on the government course as a tire graded 100.
Page 212 Maintenance and care SERVICING YOUR TIRES Checking the tire pressure • Use an accurate tire pressure gauge. • Check the tire pressure when tires are cold, after the vehicle has been parked for at least one hour or has been driven less than 5 km (3 miles).
Page 213 If you do not follow these precautions, your vehicle may not drive properly and safely. Make sure that all replacement tires are of the same size, type, load-carrying capacity and tread design (e.g., “All Terrain”, etc.), as originally offered by Ford.
Page 214 Maintenance and care Do not replace your tires with “high performance” tires or larger size tires. Failure to follow these precautions may adversely affect the handling of the vehicle and make it easier for the driver to lose control and roll over. Tires that are larger or smaller than your vehicle’s original tires may also affect the accuracy of your speedometer.
Page 215 Maintenance and care • The suspension insulation and bumpers will help prevent vehicle damage. Do not remove these components from your vehicle when using snow tires and chains. WHAT YOU SHOULD KNOW ABOUT AUTOMOTIVE FUELS Important safety precautions Do not overfill the fuel tank. The pressure in an overfilled tank may cause leakage and lead to fuel spray and fire.
Page 216 Maintenance and care Observe the following guidelines when handling automotive fuel: • Extinguish all smoking materials and any open flames before fueling your vehicle. • Always turn off the vehicle before fueling. • Automotive fuels can be harmful or fatal if swallowed. Fuels such as gasoline and ethanol are highly toxic and if swallowed can cause death or permanent injury.
Page 217 Maintenance and care Pure ethanol is the alcohol which is the intoxicating agent in liquor, beer and wine. It is distilled from the fermentation of plants such as field corn and sugar cane. When ethanol is used in the making of motor fuels, a small amount of a bad tasting chemical is added to discourage beverage use.
Page 218 The customer warranty may be void for any damage to the fuel tank or fuel system if the correct genuine Ford or Motorcraft fuel filler cap is not used. The fuel system may be under pressure. If the fuel filler cap is venting vapor or if you hear a hissing sound, wait until it stops before completely removing the fuel filler cap.
Page 219 Maintenance and care If you do not use the proper fuel filler cap, excessive pressure or vacuum in the fuel tank may damage the fuel system or cause the fuel cap to disengage in a collision, which may result in possible personal injury.
Page 220 Maintenance and care U.S. government regulations require fuel ethanol dispensing pumps to have a small, square, orange and black label with the common abbreviation E85 or the appropriate percentage for that region. Use of other fuels such as Fuel Methanol may cause powertrain damage, a loss of vehicle performance, and your warranty may be invalidated.
Page 221 “Ethanol Fuel Compatible” dispensing station equipment. These standards and guidelines can be obtained from Ford Motor Company. Fuel stations may apply to be certified as meeting these standards. However, not all stations meet these standards at this time. To ensure proper operation of your FFV on fuel ethanol, refuel at certified stations.
Page 222 Maintenance and care ESSENTIALS OF GOOD FUEL ECONOMY Measuring techniques Your best source of information about actual fuel economy is you, the driver. You must gather information as accurately and consistently as possible. Fuel expense, frequency of fillups or fuel gauge readings are NOT accurate as a measure of fuel economy.
Page 223 Maintenance and care Calculating fuel economy 1. Fill the fuel tank completely and record the initial odometer reading (in kilometers or miles). 2. Each time you fill the tank, record the amount of fuel added (in liters or gallons). 3. After at least three to five tank fill-ups, fill the fuel tank and record the current odometer reading.
Page 224 Maintenance and care • Driving at reasonable speeds (traveling at 88 km/h [55 mph] uses 15% less fuel than traveling at 105 km/h [65 mph]). • Revving the engine before turning it off may reduce fuel economy. • Using the air conditioner or defroster may reduce fuel economy. •...
Page 225 If other than Ford, Motorcraft or Ford-authorized parts are used for maintenance replacements or for service of components affecting emission control, such non-Ford parts should be equivalent to genuine Ford Motor Company parts in performance and durability.
Page 226 Maintenance and care Illumination of the “Check Engine” light, charging system warning light or the temperature warning light, fluid leaks, strange odors, smoke or loss of engine power, could indicate that the emission control system is not working properly. Exhaust leaks may result in entry of harmful and potentially lethal fumes into the passenger compartment.
Page 227 Maintenance and care BULBS Replacing exterior bulbs Check the operation of the following lamps frequently: • Headlamps • Foglamps • High-mount brakelamp • Brakelamps • Turn signals • License plate lamp • Tail lamps • Back-up lamps Do not remove lamp bulbs unless they can be replaced immediately with new ones.
Page 228 Maintenance and care 5. Remove the bulb retaining ring by rotating it counterclockwise (when viewed from the rear) to free it from the bulb socket, and slide the ring off the plastic base. Keep the ring to retain the new bulb. 6.
Page 229 Maintenance and care Replacing front side marker bulbs 1. Open the hood. 2. Remove two screws and cover (if equipped). 3. At the back of the headlamp, pry up the two retainer pins to release the headlamp assembly from the vehicle and pull headlamp forward.
Page 230 Maintenance and care 6. Rotate bulb socket counterclockwise and remove from lamp assembly. 7. Carefully pull bulb straight out of socket and push in the new bulb. 8. Install the bulb socket in lamp assembly by turning clockwise. 9. Align the lamp on the vehicle and push to snap in place.
Page 231 Maintenance and care 3. Rotate bulb socket counterclockwise turn and remove from lamp assembly. 4. Carefully pull the bulb straight out of the socket and push in the new bulb. 5. Install the bulb socket in lamp assembly by turning clockwise. 6.
Page 232 Maintenance and care To remove the brakelamp assembly: 1. Remove the two screws and lamp assembly from vehicle. 2. Remove the bulb socket from lamp assembly by rotating it counterclockwise. 3. Carefully pull bulb straight out of socket and push in the new bulb. To install the brakelamp assembly: 1.
Page 233 Maintenance and care Function Number of bulbs Trade number Park/turn/side marker 3457 lamps (front) Headlamps 9007 Foglamps (if 9145 equipped) Hi-mount brakelamp Cargo lamps Rear stop/turn/tail 3157 lamps Rear license plate lamps Backup lamp 3156 Dome lamp Glove compartment Map/dome-SuperCab (if equipped) Map/dome-Regular Cab (if equipped)
Page 234: Customer Assistance
Maintenance and care CLEANING AND CARING FOR YOUR VEHICLE Refer to the Customer Assistance chapter for a list of Ford-approved cleaners, polishes and waxes. Washing your vehicle Wash your vehicle regularly with cold or lukewarm water. Never use strong detergents or soap. If your vehicle is particularly dirty, use a quality car wash detergent.
Page 235 Ultra Touch Prep and Finishing Kit (F7AZ-19K507–BA), Lacquer Touch-up Paint (ALBZ-19500–XXXXA), or Exterior Acrylic Spray Lacquer (ALAZ-19500–XXXXA) from the Ford Car Care Chemicals line. Please note that the part numbers (shown as XXXX above) will vary with your vehicle’s specific coloring. Observe the application instructions on the products.
Page 236 Maintenance and care Cleaning the engine Engines are more efficient when they are clean because grease and dirt buildup keep the engine warmer than normal. When washing: • Take care when using a power washer to clean the engine. The high pressure fluid could penetrate the sealed parts and cause damage.
Page 237 Maintenance and care • 3.0L • 4.0L • Never wash or rinse the engine while it is running; water in the running engine may cause internal damage. Cleaning non-painted plastic exterior parts Use vinyl cleaner for routine cleaning. Clean with a tar remover if necessary.
Page 238 Cleaning the exterior lamps Wash with the same detergent as the exterior of your vehicle. If necessary, use a tar remover such as Ford Extra Strength Tar and Road Oil Remover (B7A-19520–AA). To avoid scratching the lamps, do not use a dry paper towel, chemical solvents or abrasive cleaners.
Page 239 Maintenance and care Cleaning the interior fabric Remove dust and loose dirt with a whisk broom or a vacuum cleaner. Remove fresh spots immediately. Do not use household or glass cleaners. These agents can stain and discolor the fabric. Use a mild soap and water solution if necessary.
Page 240 Cylinders No. 4, 5 and 6 have a “P” suffix. If any spark plug needs to be replaced, use only spark plugs with the service part number suffix letters “PP” as shown on the engine decal. REFILL CAPACITIES Fluid Ford Part Application Capacity Name Engine oil Motorcraft SAE 2.3L engine...
Page 241 Capacities and specifications Fluid Ford Part Application Capacity Name Power steering Motorcraft Fill to range on fluid MERCON ATF dipstick or reservoir Transmission Motorcraft 5-speed manual 2.65L (2.8 fluid MERCON ATF quarts) Motorcraft 4x2 vehicles with 9.4L (9.9 quarts) MERCON V ATF automatic and 2.3L I4 engine...
Page 242 Capacities and specifications Fluid Ford Part Application Capacity Name Fuel tank Regular cab 62.4L (16.5 (Short wheel gallons) base) Regular cab 75.7L (20.0 (Long wheel gallons) base) SuperCab 73.8L (19.5 gallons) Transfer case Motorcraft 4x4 Vehicles 1.2L (1.25 Fluid MERCON ATF...
Page 243 Traction-Lok axles use 2.2–2.4L (4.75–5.0 pints) of rear axle lubricant. Add 118 ml (4 oz.) of Additive Friction Modifier C8AZ-19B546-A or equivalent meeting Ford specification EST-M2C118–A for complete refill of Traction-Lok axles. Service refill capacities are determined by filling the rear axle 6 mm to 14 mm (1/4 inch to 9/16 inch) below the bottom of the filler hole.
Page 244 Capacities and specifications Ford part Ford part Ford Item name or number specification equivalent 2.3L and 3.0L XO-5W20-QSP WSS-M2C153-H engines and API Motorcraft SAE Certification 5W-20 Super Mark Premium Motor Engine oil XO-5W30-QSP WSS-M2C153-G 4.0L engines Motorcraft SAE and API...
Page 245 Washer Concentrate Add 118 ml (4 oz.) of Additive Friction Modifier C8AZ-19B546-A or equivalent meeting Ford specification EST-M2C118–A for complete refill of Traction-Lok axles. Ensure the correct automatic transmission fluid is used. Transmission fluid requirements are indicated on the dipstick or on the dipstick handle.
Page 246 Capacities and specifications VEHICLE DIMENSIONS Vehicle Regular Cab Regular Cab Supercab mm dimensions Short Wheel Long Wheel (in) Base (SWB) mm Base (LWB) (in) mm (in) (1) Overall 4 763 (187.5) 5 093 (200.5) 5 153 (202.9) length (2) Overall 1 785 (70.3) 1 785 (70.3) 1 785 (70.3)
Page 247 Capacities and specifications...
Page 248 Capacities and specifications IDENTIFYING YOUR VEHICLE Certification label The National Highway Traffic Safety Administration Regulations require that a Certification label be affixed to a vehicle and prescribe where the Certification label may be located. The Certification label is located on the front door latch pillar on the driver’s side.
Page 249: Customer Assistance
5,000 participating Ford or Lincoln Mercury and Ford of Canada dealers. If you did not take advantage of the Ford Extended Service Plan at the time of purchasing your vehicle, you may still be eligible. Please contact your dealer for further information. Since this information is subject to...
Page 250 Ford Customer Relationship Center. Away from home If you own a Ford or Mercury vehicle and are away from home when your vehicle needs service, or if you need more help than the dealership could provide, after following the steps described above, contact the Ford Customer Relationship Center to find an authorized dealership to help you.
Page 251 P.O. Box 2000 Oakville, Ontario L6J 5E4 1-800-565-3673 (FORD) In order to help you service your Ford or Lincoln Mercury vehicle, please have the following information available when contacting a Customer Relationship Center: • Your telephone number (home and business).
Page 252 THE DISPUTE SETTLEMENT BOARD (U.S. only) The Dispute Settlement Board is: • an independent, third-party arbitration program for warranty disputes • available free to owners and lessees of qualifying Ford Motor Company vehicles The Dispute Settlement Board may not be available in all states. Ford...
Page 253 • the name of the dealer(s) who sold or serviced the vehicle • a brief description of your unresolved concern • a brief summary of the action taken by the dealer(s) and Ford Motor Company • the names (if known) of all the people you contacted at the dealership(s) •...
Page 254 After a case is reviewed, the Board mails you a decision letter and a form on which to accept or reject the Board’s decision. The decisions of the Board are binding on Ford (and, in some cases, on the dealer) but not on consumers who are free to pursue other remedies available to them under state or federal law.
Page 255 UTILIZING THE MEDIATION/ARBITRATION PROGRAM (CANADA ONLY) In those cases where you continue to feel that the efforts by Ford and the dealer to resolve a factory-related vehicle service concern have been unsatisfactory, Ford of Canada participates in an impartial third party mediation/arbitration program administered by the Canadian Motor Vehicle Arbitration Plan (CAMVAP).
Page 256 If your vehicle must be serviced while you are traveling or living in Central or South America, the Caribbean, or the Middle East, contact the nearest Ford dealership. If the dealership cannot help you, write or call: FORD MOTOR COMPANY...
Page 257 * May be sold with the Motorcraft name FORD ACCESSORIES FOR YOUR VEHICLE A wide selection of genuine Ford accessories are available for your vehicle through your local authorized Ford, Lincoln Mercury or Ford of Canada dealer. These quality accessories have been specifically engineered to fulfill your automotive needs;...
Page 258 Customer assistance Comfort and convenience Air conditioning Battery warmer Cargo organizers Cargo retention net Cargo shades (Super Cab 2 door) Engine block heaters Manual sliding rear window Tire step Underbody lighting Travel equipment Automatic headlamp system with DRL Bed extender Bed rail caps Bed tent (Short bed, Styleside only) Cellular phone holder...
Page 259 Customer assistance Protection and appearance equipment Air bag anti-theft locks All weather slush mats Bed mat/tailgate kit Bed hooks Bed mats Bedliners Carpeted floor mats with logo Door edge guards Front end covers (full and sport) Bug deflectors Instrument panel trim (brushed aluminum) Locking gas cap Lubricants and oils Rally bar with off road lighting...
Page 260 • Ford cannot assume responsibility for any adverse effects or damage that may result from the use of such equipment. ORDERING ADDITIONAL OWNER’S LITERATURE...
Page 261 Customer assistance attempts, the manufacturer shall be required to either replace the vehicle with one substantially identical or repurchase the vehicle and reimburse the buyer in an amount equal to the actual price paid or payable by the consumer (less a reasonable allowance for consumer use).
Page 262: Reporting Safety Defects
However, NHTSA cannot become involved in individual problems between you, your dealer or Ford Motor Company. To contact NHTSA, you may either call the Auto Safety Hotline toll-free at 1–800–424–9393 (202–366–0123 in the Washington D.C.
Page 263: Index
Index Air bag supplemental restraint Battery ........207 system ........103 acid, treating emergencies ..207 and child safety seats ....105 charging system description ......103 warning light ......13 disposal ........107 jumping a disabled battery ..178 driver air bag ......105 maintenance-free ....207 indicator light ....12, 107 replacement, specifications ...240 operation .........105 servicing ........207...
Page 264 ....142, 144 specifications ....243, 245 Cruise control (see Speed control) ........65 Emergencies, roadside Customer Assistance ....158 jump-starting ......178 Ford accessories for your vehicle ........256 Emission control system ..225 Ford Extended Service Engine ........245–246 Plan ..........249 check engine/service Getting assistance outside engine soon light ......10...
Page 265 Index lubrication specifications ..243, filter, specifications ..221, 240 fuel pump shut-off switch ..159 refill capacities ......240 gauge .........16 service points ....186–188 improving fuel economy ..222 starting after a collision ..159 octane rating ...219, 245–246 quality ........220 Engine block heater ....126 running out of fuel ....221 Engine oil ........189 safety information relating to...
Page 266 Index Hazard flashers ......159 Keys ........85–87 key in ignition chime ....15 Headlamps ........20 positions of the ignition ...65 aiming ........233 bulb specifications ....232 daytime running lights .....20 flash to pass ......21 Lamps high beam ......13, 21 bulb replacement replacing bulbs .......227 specifications chart ....232 turning on and off ....20 cargo lamps .......21...
Page 267 Index trailer towing ......144 fluid, specifications ..243, 245 Loading instructions ....146 Preparing to drive your vehicle ........131 Lubricant specifications ...243, 245 Lumbar support, seats ....90 Radio ..........29 Relays ........161 Manual transmission ....136 fluid capacities ......240 Remote entry system ...81, 83 lubricant specifications ..245 illuminated entry ......85 reverse ........138...
Page 268 Index Servicing your vehicle ....184 Transmission automatic operation ....132 Snowplowing .........4 fluid, checking and adding Spark plugs, (automatic) ......203 specifications .....240, 245–246 fluid, checking and adding (manual) .........205 Special notice ........4 fluid, refill capacities ....240 ambulance conversions ....5 lubricant specifications ..243, 245 utility-type vehicles ....4 manual operation ....136 Specification chart,...
Page 271: Filling Station Information
73.8L (19.5 gallons) Engine oil capacity (includes filter 3.8L (4.0 quarts). Use Motorcraft change)-2.3L I4 engine SAE 5W-20 Super Premium Motor Oil, Ford specification WSS-M2C153-H. Engine oil capacity (includes filter 4.3L (4.5 quarts). Use Motorcraft change)- 3.0L V6 engines SAE 5W-20 Super Premium Motor Oil, Ford specification WSS-M2C153-H.
Page 272 Use either green-colored Motorcraft Premium Engine Coolant or yellow-colored Motorcraft Premium Gold Engine Coolant. DO NOT USE Ford Extended Life Engine Coolant (orange in color). Refer to Adding engine coolant, in the Maintenance and Care chapter. Ensure the correct automatic transmission fluid is used. Transmission fluid requirements are indicated on the dipstick or on the dipstick handle.

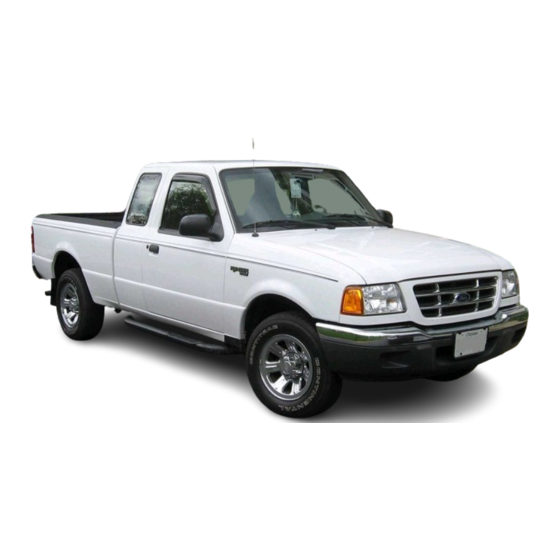

Ford 2001 Ranger Owner's Manual

Quick Links

Related Manuals for Ford 2001 Ranger

Summary of Contents for Ford 2001 Ranger

Table of Contents
