Page 1: Air Conditioning

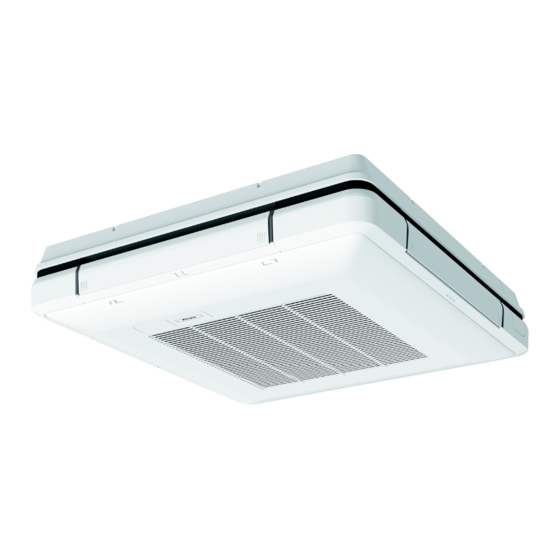

Air Conditioning Technical Data 4-way blow ceiling suspended unit EEDEN13-204 FXUQ-A... -
Page 3: Table Of Contents
• Indoor Unit • 4-way blow ceiling suspended unit • FXUQ-A TABLE OF CONTENTS FXUQ-A Features ............. 2 Specifications . -
Page 4: Features
• Indoor Unit • 4-way blow ceiling suspended unit • FXUQ-A Features e m s U n i o o r Q - A I n d V R V F X U • Ideal solution for commercial spaces with narrow or no false ceilings •... -
Page 5: Specifications
• Indoor Unit • 4-way blow ceiling suspended unit • FXUQ-A Specifications 2-1 Technical Specifications FXUQ71A FXUQ100A Cooling capacity Nom. 11.2 Heating capacity Nom. 12.5 Power input - 50Hz Cooling Nom. 0.090 0.200 Heating Nom. 0.073 0.179 Power input - 60Hz Cooling Nom. -
Page 6: Electrical Specifications
• Indoor Unit • 4-way blow ceiling suspended unit • FXUQ-A Specifications Standard Accessories : Washer clamp; Standard Accessories : Clamps; Standard Accessories : Washer for hanger bracket; Standard Accessories : Clamp metal; Standard Accessories : Drain hose; Standard Accessories : Declaration of conformity;... -
Page 7: Electrical Data
• Indoor Unit • 4-way blow ceiling suspended unit • FXUQ-A Electrical data 3 - 1 Electrical Data • VRV Systems • Indoor Unit... -
Page 8: Safety Device Settings
• Indoor Unit • 4-way blow ceiling suspended unit • FXUQ-A Safety device settings 4 - 1 Safety Device Settings • VRV Systems • Indoor Unit... -
Page 9: Options
• Indoor Unit • 4-way blow ceiling suspended unit • FXUQ-A Options 5 - 1 Options • VRV Systems • Indoor Unit... -
Page 10: Capacity Tables
• Indoor Unit • 4-way blow ceiling suspended unit • FXUQ-A Capacity tables 6 - 1 Cooling Capacity Tables FXUQ-A TC: Total capacity; kW Cooling Capacity SHC: Sensible heat capacity; kW Indoor air temp. 14.0 °CWB 16.0 °CWB 18.0 °CWB 19.0 °CWB... -
Page 11: Heating Capacity Tables
• Indoor Unit • 4-way blow ceiling suspended unit • FXUQ-A Capacity tables 6 - 2 Heating Capacity Tables FXUQ-A Heating Capacity Indoor air temp. °CDB Unit size 16.0 18.0 20.0 21.0 22.0 24.0 13.1 13.1 12.5 12.1 11.7 10.9... -
Page 12: Capacity Correction Factor
• Indoor Unit • 4-way blow ceiling suspended unit • FXUQ-A Capacity tables 6 - 3 Capacity Correction Factor FXUQ-A Capacity correction factor Te = 9°C Indoor air 14.0 °CWB 16.0 °CWB 18.0 °CWB 19.0 °CWB 20.0 °CWB 22.0 °CWB 24.0 °CWB... - Page 13 • Indoor Unit • 4-way blow ceiling suspended unit • FXUQ-A Capacity tables 6 - 3 Capacity Correction Factor FXUQ-A Capacity correction factor Te = 11°C Indoor air 14.0 °CWB 16.0 °CWB 18.0 °CWB 19.0 °CWB 20.0 °CWB 22.0 °CWB 24.0 °CWB...
-
Page 14: Dimensional Drawings
• Indoor Unit • 4-way blow ceiling suspended unit • FXUQ-A Dimensional drawings 7 - 1 Dimensional Drawings • VRV Systems • Indoor Unit... -
Page 15: Piping Diagrams
• Indoor Unit • 4-way blow ceiling suspended unit • FXUQ-A Piping diagrams 8 - 1 Piping Diagrams • VRV Systems • Indoor Unit... -
Page 16: Wiring Diagrams
• Indoor Unit • 4-way blow ceiling suspended unit • FXUQ-A Wiring diagrams 9 - 1 Wiring Diagrams - Single Phase • VRV Systems • Indoor Unit... -
Page 17: Sound Data
• Indoor Unit • 4-way blow ceiling suspended unit • FXUQ-A Sound data 10 - 1 Sound Pressure Spectrum • VRV Systems • Indoor Unit... - Page 19 All content is copy- righted by Daikin Europe N.V. Naamloze Vennootschap - Zandvoordestraat 300, B-8400 Oostende - Belgium - www.daikin.eu - BE 0412 120 336 - RPR Oostende...
