Ness Premium H.264 Setup Manual

Package Content

Inspect the packaging carton. Make sure the Premium H.264 DVR is properly delivered. Remove
all items from the box and make sure the box contains the following items.

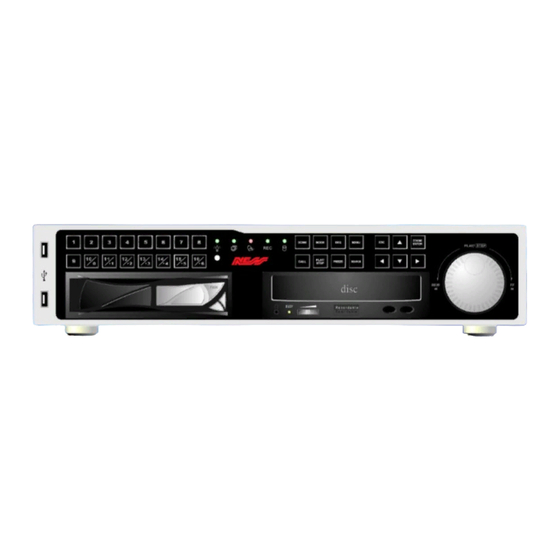

Premium H.264 DVR

Front Panel

1
USB 2.0 Ports
2 Power Switch
3 Network LED
4 Alarm LED
5 Record LED
6 Channels
7
DOME
8
MODE
9
SEQ
10 MENU
11 IP
00P5DG600NESEB2
Premium H.264 DVR
Setup Guide
SATA Cable
Mounting Kit
The USB 2.0 ports allow users to connect an external USB device to the
unit, such as a USB ThumbDrive© or a USB mouse.
1. Press this switch to power on the DVR. The LED will be lighten up.
2. Press and hold this key to quick shutdown the DVR. The LED will blink
when the power source is still available.
It lights up when network is connected. In addition, it blinks when data is
being transmitted via the network.
It lights up when an alarm is triggered.
It blinks when videos are being recorded.
1. In Live and Playback modes, press any key to view the corresponding
video in full-screen.
2. In input interface, 1~10 can be used for direct input of numbers 0~9.
3. In Dome Camera Control mode, 1 is for entering the Set/ Go preset
menu; 11~16 is for quick access of preset points 1~6.
Press this key to enter Dome Camera Control mode.
Press this key to view in full-screen or multiple window modes.
Press this key to start automatic sequence display of cameras.
Press this key to enter the OSD setup menu.
Press this key and press channel keys to show full-screen display of IP
Camera channels. Press this key again to exit IP Camera viewing mode.
Remote Controller
Software CD-CMS
Power Cord
User's Manual
1
