Summary of Contents for Wattbike Exercise Bike

  • Page 2 - Setup - HR Monitor Interface - Peak Power Test - Logcard - Battery - Sockets 5. Preventative Maintenance and Troubleshooting 6. Wattbike Expert Software and Wattbike Racing 7. Regulatory Information - FCC and Other Domestic Regulations - European Regulations...
  • Page 3 To get you started immediately, this section provides instructions for unpacking, assembling and rider adjustment of the Wattbike. 4. Operating Instructions Provides step by step instructions to set up your cycling position, the Wattbike dual braking system and for operating the Wattbike Performance Computer. 5. Preventative Maintenance and Troubleshooting Describes the preventative maintenance measures required to keep your Wattbike in good condition and likely causes and solutions to any problems you may encounter.

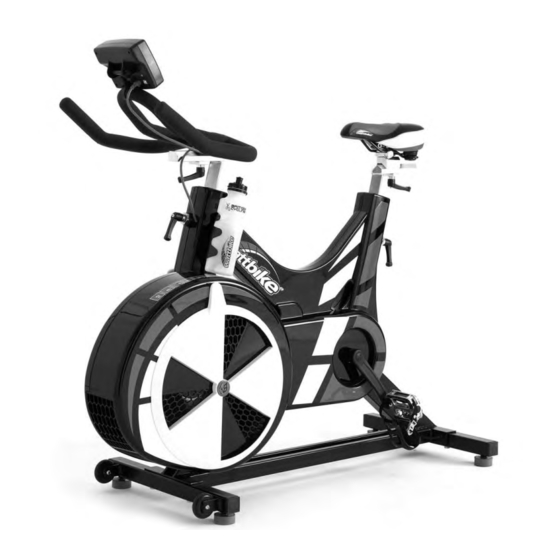

  • Page 4 The Wattbike accurately measures power output - Watts. No other product of its type does this. The Wattbike is an indoor bike, it is an exercise bike, group cycling bike, testing bike, competition bike and rehabilitation bike all wrapped up in one. It offers an unlimited range of resistance provided by a unique air braked flywheel, and a supplementary magnetic climb lever;...
  • Page 5 Riders can recall and race against previous workouts either from the WPC memory or from a Logcard. In addition it will soon be possible to share data files through the Wattbike World Ranking and there will be the capacity to download and race against performances of other riders, all from the comfort of the home.
  • Page 6 - Do not insert any object, hands or feet into any opening on or underneath the Wattbike. - Do not attempt to remove any covers or modify your Wattbike unless it is part of a recognized maintenance programme as outlined in this manual.
  • Page 7 Recreational saddle, saddle bottom plate (one hole), adjustment lever and washer Handlebar bottom plate (two holes), 5 mm hex head 40 mm screw, adjustment lever and washer 2 x 25 mm thumb screws and 2 small washers for fixing the Wattbike Performance Computer to the handlebar bracket...
  • Page 8 You will need an assistant to hold the bike in this position whilst you fit the rear foot. Thread the 2 holes of the rear foot onto the lugs on the Wattbike frame. Secure with 2 x 17 mm hex bolt head 25 mm screws and washers - tighten securely with a 17 mm spanner.
  • Page 9 F - Attach Wattbike Performance Computer Secure the Wattbike Performance Computer to the bracket using the 2 x 25mm thumb screws and 2 small washers – tighten securely. Attach the cable to the sensor socket on the back of the Wattbike Performance Computer. NOTE - The Wattbike Performance Computer should always be switched off when attaching the cable.
  • Page 10 PULL NOTE – The adjustment levers on the Wattbike are of a ratchet type, to move the lever pull the lever outwards placing your fingers away from the Wattbike. There are two adjustment levers on the frame of the Wattbike to set the height of the saddle and handlebar stems, and two adjustment levers to set the horizontal position of the saddle and handlebars. The saddle height range is 59 cm to 84 cm.
  • Page 11 How your Wattbike should look.
  • Page 12 Learning how to adjust the resistance levels and familiarizing yourself with the WPC is just as easy. In this section you will learn how to set-up a comfortable cycling position, how to adjust the Wattbike’s unique dual resistance system to recreate the feel of cycling on the flat or climbing; and how to get the most out of your WPCr.
  • Page 13 ‘7’ a very steep gradient. The combination of an air brake gear lever and magnetic climb lever means that the Wattbike can be used for high cadence low wattage at one extreme and low cadence high wattage at the other.
  • Page 14 • Accurate tracking of performance data – Time (h:m:s), 1km Pace (m:s), Speed (km/h), Energy (Joules) and Power (Watts) • Four Text modes – Speed (/1km), Speed (km/h), Energy (J), Power (Watt). • Three Graph modes – Polar-Graph (Force Curve), Signal- Graph (Force Curve [N]) and Bar-Graph (Speed [km/h], Power [W] and Energy [J]) • Logcard – removable Logcard stores workout data and personal preferences. One Logcard included with each Wattbike Performance Computer • Heart Rate Monitoring – integrated heart rate display for Polar ANT/ANT+SPORT wireless technology • Power generation – this draws power from the cycling to extend the battery life • USB Interface – transfer of data to PC Automatic Operation – Turn the WPC on, select ‘Just ride’, press ENTER and start pedaling and the WPC will give immediate feedback. The WPC turns off after 4 minutes if inactive.
  • Page 15 Text Modes Just ride – Speed (Pace/1km) The top portion of the display is standard across all 4 Text Modes. • Top left is Time elapsed (0:00:00) • Top right is cadence (r/m) The second row and largest portion of the display shows the major units in each mode. • Pace (/1km) • Speed (km/h) • Energy (J) Just ride – Speed (Km/h or mph) • Power (Watt)
  • Page 16 Graph Modes Just ride – Polar-Graph You can also show the parameters in Graph Mode. As with the top of the 4 standard Text Modes the top portion of the display is standard across all 3 Graph Modes. • Top left is Time elapsed (0:00:00) • Top right is cadence (r/m) On the left hand side of each graphic display are graphs in Polar (Force Curve –...
  • Page 17 Workout Press ENTER - The Workout feature offers a variety of workout options. Use the up/down keys on the WPC to scroll through the displays and ENTER to select an option • Last workout – this repeats the last workout completed • Standard – offers a choice of six pre programmed workouts - 1,000 m - 3,000 m - 4,000 m - 10,000 m - 30 minutes - 60 minutes...
  • Page 18 Recall After a Just Ride, Standard, ReRide or Custom workout the Recall of the workout is automatic. To see a saved workout press ENTER after accessing Recall in the Main menu - Each workout can be reviewed in Graphical or Text mode and pre-defined split intervals can be set in Set split.
  • Page 19 Setting the Zero State of the Monitor Whilst the Wattbike is factory calibrated there is a function to Set zero from the Wattbike Performance Computer. This can be used to ensure that the Wattbike has been returned to zero prior to testing.
  • Page 20 – Your HR will now appear on all the Just ride screens. Peak Power Test The Wattbike has a built in peak power test. In the Just ride mode press ENTER until you see ‘peak Watt’ in the bottom left of the screen and ‘peak rpm’...
  • Page 21 – the workouts can be recalled to ReRide against on another occasion. It is recommended that data is transferred directly from the WPC to the PC using a USB cable (see the Wattbike Expert Software User Manual). The Logcard memory is sufficient to store six individual Custom workouts and 58.5 hours (3,510 minutes) of data.

  • Page 22: Weekly Maintenance

    There is a RESET button on the back of the Wattbike Performance Computer – this should only be used if the Wattbike Performance Computer displays stops working or shows inconsistent data. NOTE – you will not lose any data saved in the Memory if you activate the RESET button.
  • Page 23 39 different parameters. The range of data capture is unrivalled but the full power of the software is realized when the WPC is linked directly to a PC and the Wattbike Expert Software via its USB port.
  • Page 24 The 39 Parameters Measured by Wattbike Expert Software Name Description Elapsed time Elap. Time [s] Elapsed time per revolution Elapsed time Elp.time tot [s] Elapsed time in the session Turns number Turns.Nr. [Nr] Ordinal number of turns in the session...
  • Page 25 Computer. FCC AND OTHER DOMESTIC REGULATIONS The Wattbike has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC rules. Under FCC guidelines, operation is subject to the following: This device does not cause harmful interference This device must accept any interference received including interference that may cause undesired operation The Wattbike generates and uses radio frequency energy.
  • Page 26 Table 1: Guidance and manufacturer’s declaration – electromagnetic emission The Wattbike is intended for use in the electromagnetic environment specified below. The customer or the user of the Wattbike should assure that it is used in such an environment. Emission test Compliance Electromagnetic environment - guidance The Wattbike uses RF energy only for its RF emissions internal function.
  • Page 27 RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the Wattbike is used exceeds the applicable RF compliance level above, the Wattbike should be observed to verify normal operation. If abnormal performance is observed, additional measures may be necessary, such as reorienting or relocation the Wattbike.
  • Page 28 The Wattbike is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the Wattbike can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the Wattbike as recommended below, according to the maximum output power of the communications equipment.
  • Page 29 Wattbike Limited | 2-Year Parts Warranty Limited Guarantee This Wattbike Product (the “Product”) is guaranteed for 2 years for non-wear items and 1 year for wear items from the date of purchase (in either case the “Guarantee Period”) against defects materials or workmanship which effect the operation of the Product on the terms set out below.
  • Page 30 To the maximum extent permitted by the applicable law, in no event shall Wattbike Ltd be liable for any damages whatsoever (including direct or indirect damages, loss of business profits, loss of savings or other special, incidental, exemplary or consequential damages whether for breach of warranty, contract/liability, tort or otherwise) arising out of or resulting from the use or inability to use the Product.
