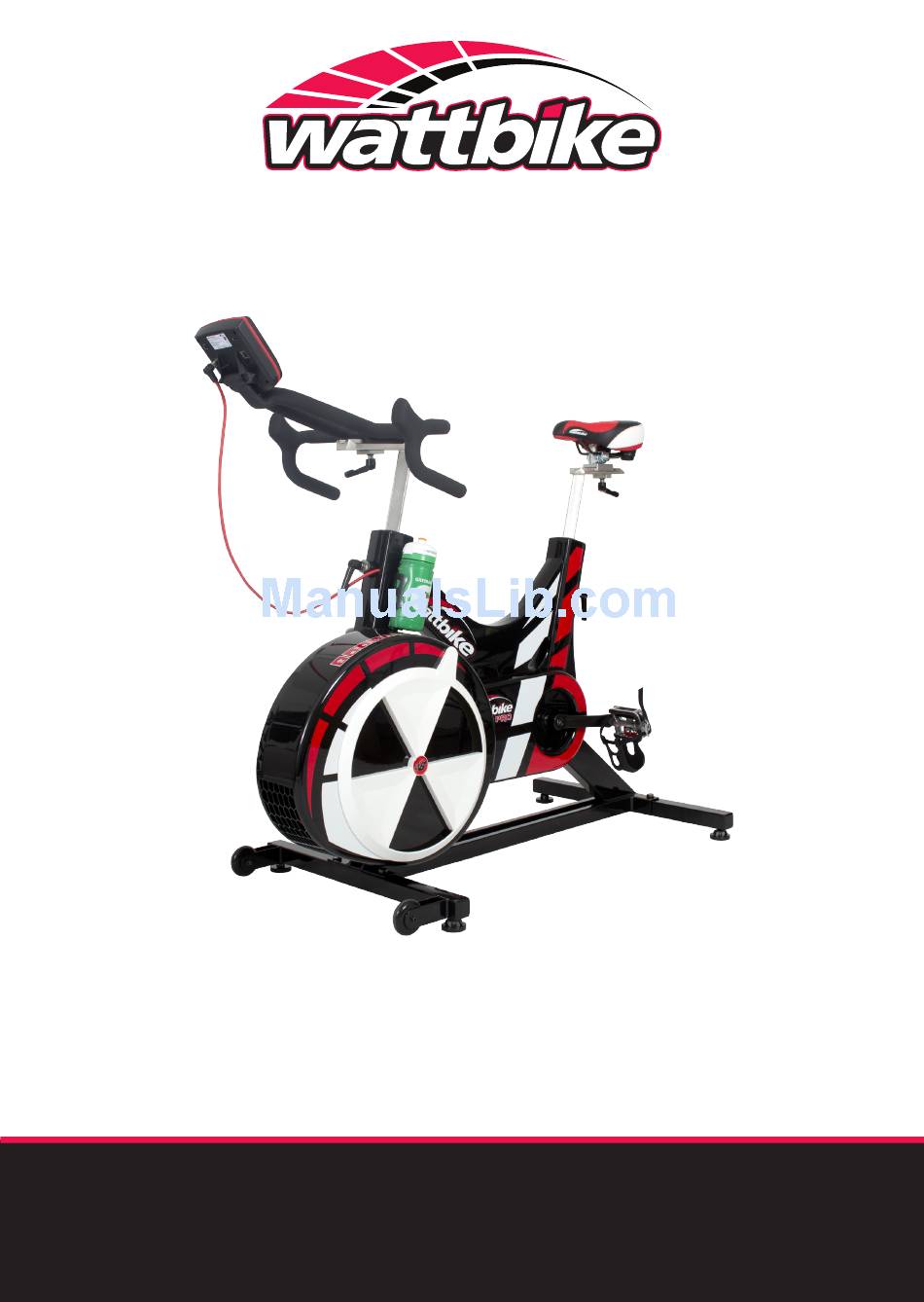

  • Page 1 ASSEMBLY & SERVICE MANUAL...

  • Page 2: Important Safety Instructions

    Your Wattbike is designed for exercise and training in a commercial and consumer environment by adults and children. For your safety the Wattbike should only be used for it’s intended purpose. Any other use of the Wattbike is prohibited and may be dangerous. The manufacturers cannot be held liable for damage or injury caused by improper use of the Wattbike.
  • Page 3 2.3 Attach the Rear Foot Ask your assistant to lift the rear of the Wattbike up and align the 2 holes in the rear foot with the 2 holes in the frame of the bike. Please do support the weight of the Wattbike on the fan cage at the front of the bike.
  • Page 4 Ask your assistant to lift the front of the Wattbike so the weight is supported by the rear foot. Align the 2 holes in the front foot with the 2 holes in the frame of the Wattbike. Push the bolt up through the hole in the foot and frame place the washer over the thread of the bolt and then thread the nut onto the bolt and tighten using the 6mm Hex Allen Key for the bolt and 17mm spanner for the nut.

  • Page 5: Set Up

    We reserve the right to carry out preliminary assembly work at the Wattbike factory. The Wattbike and all its components are subject to constant, innovative quality assurance. We reserve the right to perform technical modifications. Please keep the Wattbike original packaging so that it can be used, if necessary to transport the Wattbike at a later date. Always store packing material in a way that will not cause any danger. Keep plastic bags away from children. 3. Wattbike Set Up The correct set up is crucial to maximise performance, prevent injury and ensure the most comfortable riding on your Wattbike. The correct sequence for set up is, saddle height, horizontal saddle position, handlebar height and horizontal handlebar position. Before starting, ensure that your saddle is horizontal, use a spirit level if necessary. 3.1 Saddle Height The easiest way to get a rough height for the saddle height is to stand the rider next to the bike with the heel pushed into the back stabiliser, and then lift the saddle up so that the top of the saddle is level with the boney protrusion of the hip.

  • Page 6: Performance Computer

    There is a RESET button on the back of the Wattbike Performance Computer – this should only be used if the Wattbike Performance Computer display stops working or shows inconsistent data. NOTE – You will not lose any data saved in the Memory if you activate the RESET button. If in doubt contact your local Wattbike distributor.

  • Page 7: Daily Maintenance

    Rotate the cranks anticlockwise 2 turns and then press Enter. 7. Calibration The Wattbike is factory calibrated and does not need further calibration. It is recommended that you set the zero state on a regular basis. Select Settings, then Device Settings. Select Set Zero State then press Enter.
  • Page 8 Contact Details Corporate Headquarters Wattbike Ltd Vermont House Nottingham South and Wilford Industrial Estate Ruddington Lane Nottingham NG11 7HQ United Kingdom Tel: +44 (0)115 945 5450 Email: info@wattbike.com Web: wattbike.com w w w . w a t t b i k e . c o m...
