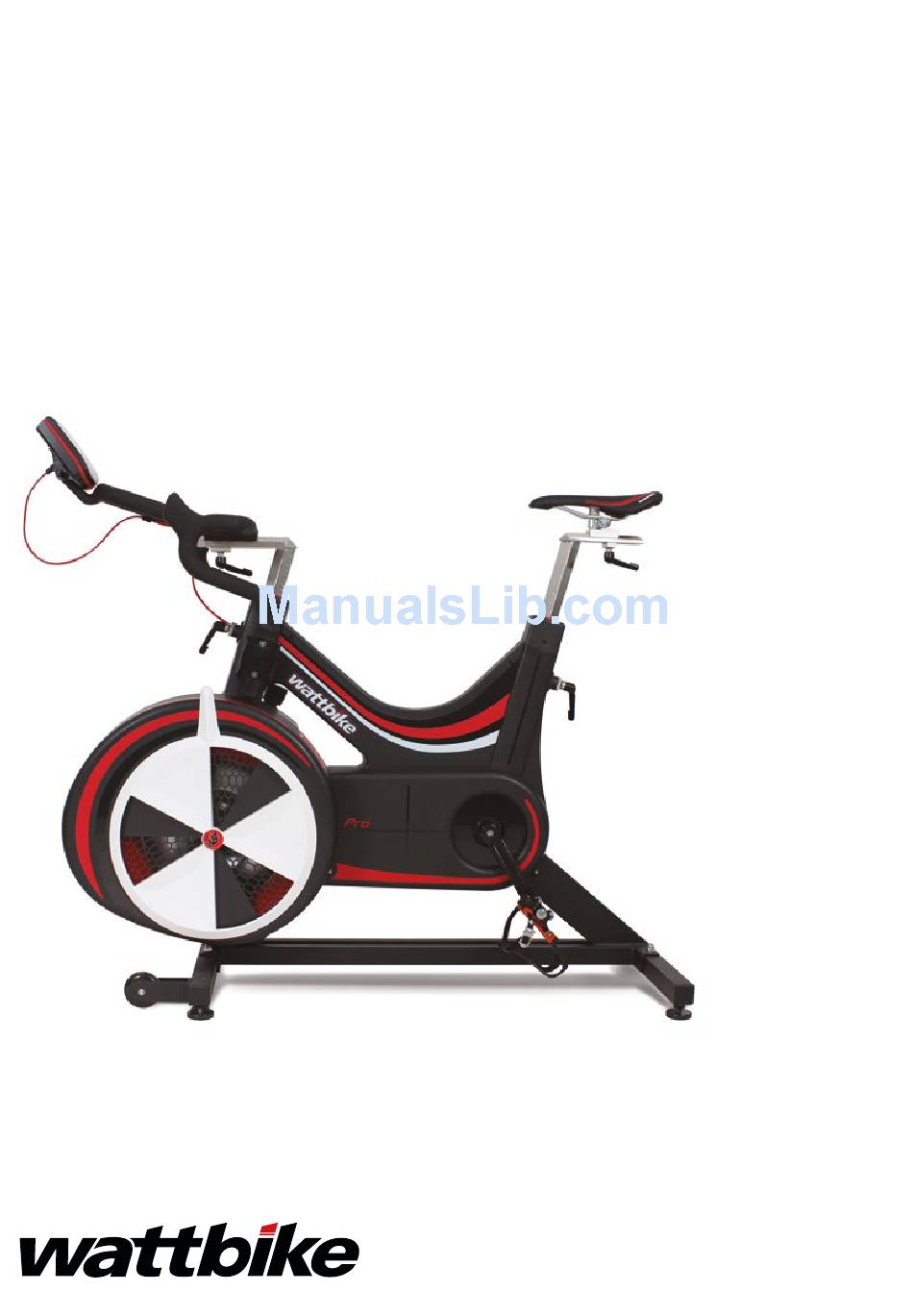

- Page 1 Wattbike Servicing Manual (WSM)
- Page 2 Use a cross head screwdriver to remove the 4 x 40mm screws either side of the handlebar and saddle stems. Use a 2.5mm Allen key to remove the screw holding the cover to the frame. Use a long screw driver to remove the 7 x 20mm cross head screws from the cover. wattbike.com @wattbike /wattbike...
- Page 3 Use a pair of long nose pliers or flat head screw driver to hold the nut. Use a cross head screw driver to remove the 20mm cross head screws on the left hand side of the turbine. Wattbike Service Manual | QF36 – Issue 2 – Issue date 01/11/2015...
- Page 4 Use a 5mm Allen key to remove the bolt securing the fan wheel. Remove the fan wheel. Occasionally the fan wheel can seize to the Axel. A gear puller may be required to help remove the fan wheel. wattbike.com @wattbike /wattbike...
- Page 5 Use a 4mm Allen key and an 8mm spanner to remove the 2 x Allen headed bolts on the left hand side. Remove the left hand cover and thread down the left hand crank. Reverse the process to replace. Wattbike Service Manual | QF36 – Issue 2 – Issue date 01/11/2015...
- Page 6 Use a 2.5mm Allen key to remove the screws on either side of the saddle and handlebar stem caps. Slide the stem caps up the stems. Use a 2.5mm Allen key to remove the 4 screws on the step through cover. wattbike.com @wattbike /wattbike...
- Page 7 Use a 3mm Allen key to remove the 4 long bolts either side of the saddle and handlebar stems. N.B Keep separate from the other screws as these are a different length. Wattbike Service Manual | QF36 – Issue 2 – Issue date 01/11/2015...
- Page 8 To replace cover reverse steps ensuring the rubber seals are aligned around the locking lever. PICTURE OF LOCKING LEVER SEALS. 1.2c Turbine cover Using a 3mm Allen key remove the screw underneath the turbine Using a 3mm Allen key remove all the screws attaching the turbine cover to the left hand cover wattbike.com @wattbike /wattbike /wattbike...
- Page 9 Use a 3mm Allen key to remove bolt at rear of the bike. Use a 4mm Allen key to loosen the grub screw on the fan wheel. Using a 5mm Allen key remove the fan wheel screw. Wattbike Service Manual | QF36 – Issue 2 – Issue date 01/11/2015...
- Page 10 Remove 2 x Allen headed bolts on the left hand side using a 4mm Allen key and an 8mm spanner. Remove the left hand cover and thread down the left hand crank. Reverse the process to replace. wattbike.com @wattbike /wattbike...
