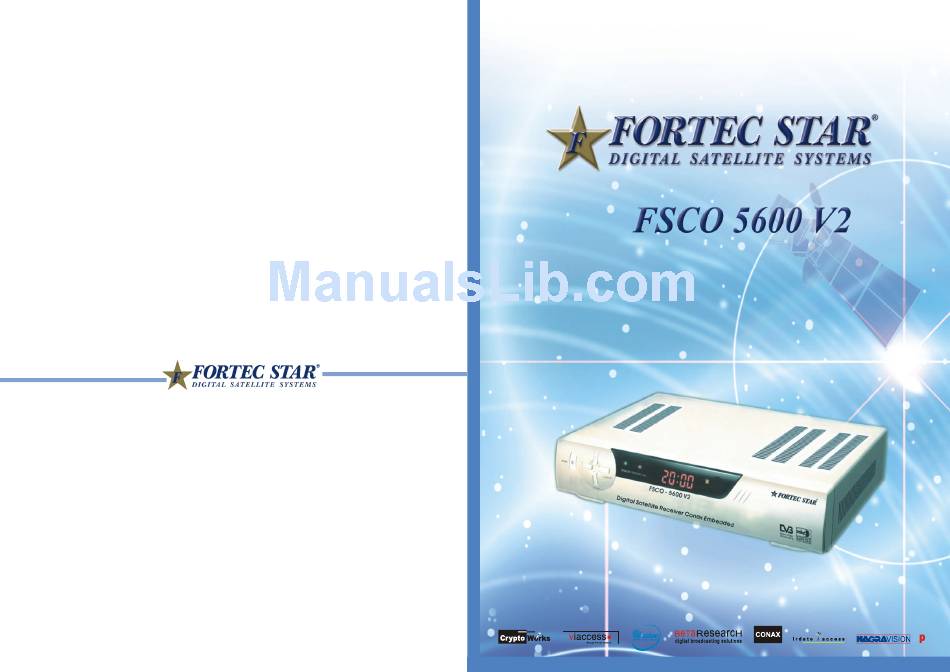

Fortec Star FSCO 5600 V2 User Manual

Digital satellite systems
Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FSCO 5600 V2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Fortec Star FSCO 5600 V2

Summary of Contents for Fortec Star FSCO 5600 V2

  • Page 2: Table Of Contents

    Contents Safety Instructions 1. Before You Begin • Be sure to read this User’s Manual before starting the operation of the 1.1 Features receiver 1.2 Accessories • Never open the cover. It is dangerous to touch the inside of the receiver 2.Controls and Functions due to possible electric hazard.

  • Page 3: Features

    1.2 Accessories Features • User’s Manual • Remote Control Unit 1.1 Features • Batteries <Common Part> • Easy Graphic MENU Interface • RS232C Port for Updating Control Software and Additional Service • Video Connector(RCA, SCART) • Supports DiSEqC 1.2 • Multi-language Function(Menu, Audio) •...
  • Page 4 2.1 Front Panel 2.2 Remote Control Unit All features of the set-top box can be controlled with the remote 1. POWER Turns the receiver On/Off. 2. MUTE Mutes audio output of the receiver. 3. TV/SAT Control scart output whenever TV/SAT button is pressed scart Figure 2.

  • Page 5: Rear Panel

    11. UP/DOWN 2.3 Rear Panel Change the current program to the previous/next program in NO-menu state. Moves the cursor to upward/downward in Menu state. 12. P+/P- Page up and down in menu list. 13. OK Activates the highlighted menu item. Or view the program guide in No menu state.

  • Page 6: Connecting To Tv&Vcr

    8. RS232 Serial Port Connecting to TV&VCR This serial port can be used to connect your PC to your receiver, and enables you to download new versions of software into your receiver. 3.1 Connecting to TV & VCR 9. TV/VCR RF Modulator(male part).
  • Page 7 < Basic connection with a Scart cable > <Advanced connection of the receiver to the TV set, VCR and Audio amplifier> 1. Connect the satellite signal from the LNB to the LNB IN connector. 2. Connect the TV scart connector at the back of the receiver to the 1.

  • Page 8: Connecting To Dish

    3.2 Connecting to Dish <Connecting multiple fixed dishes to your receiver using a DiSEqC 1.0 switch> Aiming a satellite dish and LNB to the correct longitude and Azimuth (angle of elevation) of a satellite is a specialist job, and can If you want to watch program from more than satellites(For in instance best be done by an official dealer.

  • Page 9: Connecting To Smart Card

    <Connecting a dish on a motorized positioner to your receiver> 3.3 Connecting to SMART CARD (CAS Model Only) Another possibility to watch program from multiple satellites is by Insert Smart Card into Smart Card slot for watching TV program from mounting a dish to a motorized DiSEqC 1.2 positioner.

  • Page 10: Setting And Operations

    Setting and Operations 4.2 Basic Settings 4.1 Before Settings To install the receiver properly you have to perform Antenna Setup. <Starting up for the First Time> When you have finished the setup procedure, you can start watching TV or listening to Radio. 1.
  • Page 11 2. If you selected “on” item of ON/OFF mode, you can setup position. <Antenna Setup> Move the cursor to the “Position” item and then<Screen 3> will appear as displayed below. In order to setup your equipments(Satellite dish and LNB) you need to use the following menus.
  • Page 12 3. If you want to scan with a fixed antenna, set the LNB and various 5. If you want to scan each transponder or edit transponder list. switch values in <Screen 7> following to your physical antenna setting. Press a hotkey buttons in RCU. <Screen 6> <screen 7>...
  • Page 13 <Manual Scan> <System Upgrade> You can scan TP frequency and channel manually in the Manual Scan If there is a new version of software available for your receiver, you are menu. able to download it automatically via the satellite signal of Hot bird 13 Press the OK button in the Manual Scan menu of Installation.<screen 5>...

  • Page 14: Viewing Tv(Or Radio)

    4.3 Viewing TV(or Radio) <Viewing TV(or Radio) Program Menu> In normal viewing mode(NO-MENU State), only the current TV program Press the TV(or Radio) button. You can view the TV(or Radio) program is displayed on the screen. list. In this mode, you can change channel with the numeric, UP/DOWN or P+/- buttons, and almost all of other remote control buttons have their functions.
  • Page 15 <Manipulating TV(or Radio) Program Menu> 2. Favorite Setup You can change channel information in Channel Organize of the main Select the channel you like. If you want select to every group, Move the menu. cursor to the channel you want to select press FAV1,2,3,4 button in. Then Press EXIT to save and finish.

  • Page 16: Other Settings

    4. Data Transfer 4.4 Other Settings If you want to data transfer the receiver to receiver press the OK button in the data transfer menu of channel<screen23> 1. Turn on your TV and receiver. Must insert PIN Code to insert this function 2.
  • Page 17 <TV Output Setup> <Parental Lock> You can set the various video output format. Changes the PIN(Personal Identification Number) which is used to control the access to the receiver and also individual channels. If you press the OK button on Parental Lock menu item, the following window will appear, In the window, you are requested to enter Current PIN, New PIN and Retype PIN for confirmation.

  • Page 18: Trouble Shooting

    <Factory Reset> Trouble Shooting Resets the parameters of the receiver to the factory default setting. A.1 Trouble Shooting There may be various reasons for the abnormal operation of the Factory Reset will erase all installed data, use this function carefully. receiver.

  • Page 19: Specifications

    A.2 Specifications 3. System & Memory 1. Smart card Main Processor SC2005(LSI-LOGIC) Flash Memory 1 Mbyte(up to 8Mbyte) Smart 2 slot Processor SDRAM 8 Mbyte(up to 16Mbyte) card ISO 7816, GSM11.11 and EMV(payment systems) compatibility A/V decoder 2 Mbyte(up to 4Mbyte) 2.
  • Page 20 5. Front panel 8. Power Supply Display 4-digit 7-segment Display Input Voltage AC 90~240V, 50Hz~60Hz Function keys Power, Left/Right, Up/Down, Menu/Exit Type PWM Regulator Power Max. 30W Consumption 6. A/V & Data In/Out Stand-by Power <= 6.5W TV Scart Output RGB, CVBS, L, R Output with Volume Control Protection Separate Internal Fuse...

  • Page 21: Glossary Of Terms

    A.3 Glossary of Terms C band 3.7 ~ 4.2 GHz Frequency. DiSEqC Digital Satellite Equipment Control. Ku band 11 ~ 18GHz Frequency. LNB(Low-Noise Block converter) The LNB is an electronic unit mounted on the satellite dish. It receives the signals reflected by the dish ad converts them to signals that can be used by Satellite receiver.
