    LIFETIME ULTRA+ User’s Manual TABLE OF CONTENTS SAFETEY PRECAUTIONS 1. INTRODUCTION 1.1. ABOUT THIS MANUAL 1.2. GENERAL DESCRIPTION 1.3. GENERAL FEATURES 2. HARDWARE DESCRIPTION 2.1. FRONT PANEL CONFIGURATION 2.2. REAR PANEL CONFIGURATION 2.3. REMOTE CONTROL UNIT 3. VIEWING GENERAL INFORMATION 3.1.
  • Page 3 LIFETIME ULTRA+ User’s Manual 3.4. USER PREFERENCE 3.4.1. Languages 3.4.2. TV Screen Format 3.4.3. Audio / Video Output 3.4.4. Menu Style 3.4.5. Parental Control 3.4.6. Change Password 3.4.7. Time Adjustment 3.4.8. RF Modulator 3.4.9. System Information 3.5. GAMES 3.5.1. Othello Game 3.5.2.
  • Page 4: Safetey Precautions

    LIFETIME ULTRA+ User’s Manual SAFETEY PRECAUTIONS This STB (Integrated Receiver & Decoder) has been manufactured to meet international safety standards. Please read the following safety precautions carefully before you handle the STB. MAINS SUPPLY Use only 100-250V AC 50/60Hz. Use standard certified cables to prevent any malfunction of the CABLE STB.
  • Page 5: Introduction

    LIFETIME ULTRA+ User’s Manual 1. INTRODUCTION 1.1. ABOUT THIS MANUAL This manual describes how to setup and operate the Model STB. Only the qualified personnel should handle any problems beyond this manual. 1.2. GENERAL DESCRIPTION The STB is a high-performance digital cable receiver which is fully compliant with the MPEG2 based on DVB transmission standards for in-home reception of digital cable services such as digital TVs and radio channels.
  • Page 6: Hardware Description

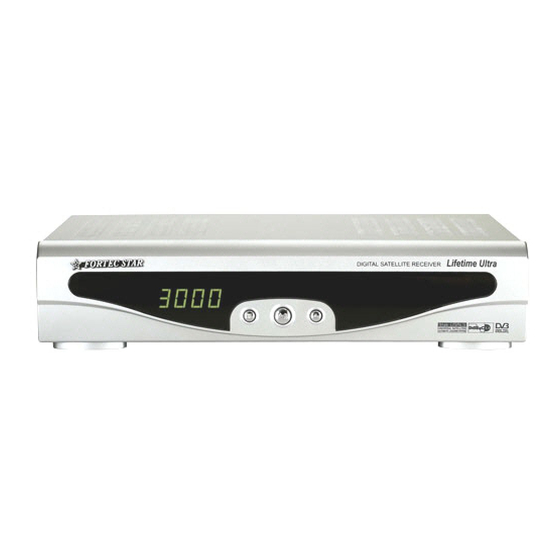

    LIFETIME ULTRA+ User’s Manual 2. HARDWARE DESCRIPTION 2. 1. FRONT PANEL CONFIGURATION ① POWER :This key allows you to turn your STB on or off (stand by). ② CHANNEL UP&DOWN : These keys are used to change the channels. ③ LED DISPLAY : This LED display will show the current channel number.
  • Page 7: Rear Panel Configuration

    LIFETIME ULTRA+ User’s Manual 2.2. REAR PANEL CONFIGURATION ① ANT.IN : For a terrestrial(conventional) TV aerial. ② TO TV : For connecting an RF cable to the aerial input of a TV. ③ Audio R/L Phone Connectors : Stereo outputs. Connect these terminals to audio L/R input terminals of TV, VCR or HI-FI audio system.
  • Page 8: Remote Control Unit

    LIFETIME ULTRA+ User’s Manual 2.3. REMOTE CONTROL UNIT 1) POWER : Turns the receiver On/Off. 2) MUTE : Mutes audio output. 3) NUMERIC KEY(0-9) : Controls the numerical operation and especially changes program directly. 4) BACK : This key returns you to the previous mode or menu.
  • Page 9 LIFETIME ULTRA+ User’s Manual 6) PAUSE : To pauses video during viewing normal display but audio remains active. 7) UHF : Display and select the UHF channel for the RF modulator. The factory default setting is channel 36. 8) TV/SAT : Selects TV or SAT service.
  • Page 10: Viewing General Information

    LIFETIME ULTRA+ User’s Manual 3. VIEWING GENERAL INFORMATION 3.1. Edit Channels Main menu shows the following information. Edit Setup Edit TV / Radio Program Rename / Move / Delete / Lock / Hide / Favorite Channels. Program Guide See Current / Weekly Program Guide.
  • Page 11: Move Channels

    LIFETIME ULTRA+ User’s Manual 3.1.2. Move Channels In this mode you can arrange the sequence of channels within your lists. ① Select the channel you want to move Using the ▲,▼ keys. ② Press the GREEN key to select the Move mode.
  • Page 12: Channel Lock / Hide / Favorite

    LIFETIME ULTRA+ User’s Manual 3.1.4. Channel Lock / Hide / Favorite By pressing the key from the Edit Channel menu, you will enter this mode. If you turn the lock attribute on, the channel will only viewable after you enter password. This feature is useful to prevent young viewers from watching in appropriate channels.
  • Page 13: Weekly Program Guide

    LIFETIME ULTRA+ User’s Manual 3.2.2. Weekly Program Guide This mode displays all the events for the day. Select the desired channel using the ▲,▼ keys and the desired day of the week using the ▲,▼ keys. Then press the OK key to display the events for that selected item.
  • Page 14: Antenna Configuration

    LIFETIME ULTRA+ User’s Manual 3.3.1. Antenna Configuration This mode will display the Antenna adjustment menu on the screen and can adjust all required installation information for each selected Satellite. By selecting the Red, Green, Yellow or Blue keys in Satellite name list box, you...
  • Page 15: Pid Edit

    LIFETIME ULTRA+ User’s Manual 3.3.3. PID Edit Use this in case of a specific Transponder which has non - DVB standard channels and which only can be found when you have entered the necessary settings. You can also add or delete channels from a specific TP.
  • Page 16: Automatic Search

    LIFETIME ULTRA+ User’s Manual 3.3.5. Automatic Search Press the OK key to place a check mark next to the satellites you wish to search. Pressing the OK key a second time will clear the check mark Once you have selected the desired satellites, press the Red key to start searching those satellites.
  • Page 17: Antenna Positioning(Diseqc1.2)

    LIFETIME ULTRA+ User’s Manual 3.3.7. Antenna Positioning(DiSEqC1.2) This mode will allow you to set the antenna position for each satellite. In order to use antenna positioning you must use a motor controlled by DiSEqC1.2 commands. To move the antenna, select the desired satellite, transponder, and step size.
  • Page 18: User Preference

    LIFETIME ULTRA+ User’s Manual 3.4. User Preference From here you can access the Language, TV Screen Format, Audio / Video Output, Menu Style, Parental Control, Time Adjustment, RF Modulator, System Information and Data Transfer menus. 3.4.1. Languages Select the desired menu language simply by using the ◀,▶...
  • Page 19: Tv Screen Format

    LIFETIME ULTRA+ User’s Manual 3.4.2. TV Screen Format Select the type of television Screen Format you have : either 4:3 or 16:9, Then select the Display Format for how to display transmissions that don't match the picture format of your TV. If your TV set...
  • Page 20: Menu Style

    LIFETIME ULTRA+ User’s Manual 3.4.4. Menu Style You can choose which menu style best suits your tastes. If you turn the transparency feature on, the menus will be transparent, enabling you to see t he program video through the menu. There...
  • Page 21: Change Password

    LIFETIME ULTRA+ User’s Manual 3.4.6. Change Password From here you can change the access PIN code from the standard 0000. DO NOT FORGET IT. Without it you do not have access to any of the functions where the code is required. To change the...
  • Page 22: Rf Modulator

    LIFETIME ULTRA+ User’s Manual 3.4.8. RF Modulator If receiver is connected to the TV by an RF lead, you can select the RF modulator channel and RF audio type. Channel 36 is the default factory setting for the channel to which your TV must be set in order to...
  • Page 23: Games

    LIFETIME ULTRA+ User’s Manual 3.5. Games 3.5.1. Othello Game Receiver has a built-in Othello game for your enjoyment. Use the color keys to change options and right / left / up / down keys to move. When finished, press Exit to return to channel viewing mode.
  • Page 24: Other Functions

    LIFETIME ULTRA+ User’s Manual 3.6. Other Functions 3.6.1. Channel Information Every time you change channels, program information will be displayed for a few seconds. The information may include: ① Current time. ② Channel name. ③ Information about the current / next program.
  • Page 25: Channel List For Tv / Radio / Favorite

    LIFETIME ULTRA+ User’s Manual 3.6.4. Channel List for TV / Radio / Favorite When you press the OK key, you can directly see the channel list. You can select the channel you would like to watch bymoving the highlighted bar to the Channel of yourChoice Using ◀,▶,▲,▼...
  • Page 26: Subtitle

    LIFETIME ULTRA+ User’s Manual 3.6.6. Subtitle The displays of subtitles are based on transmitted data using the EBU teletext specification and DVB Bitmap. Press select User preference menu and select language item Use the ◀,▶ keys to select the desired subtitle language.
  • Page 27: Trouble Shooting

    LIFETIME ULTRA+ User’s Manual 5. TROUBLE SHOOTING Problem Possible causes What to do The display on the Main cable is not Check that the main cable is front panel does not connected. plugged into the power light up. socket. Wrong connection of the...
  • Page 28: Technical Specifications

    LIFETIME ULTRA+ User’s Manual 6. TECHNICAL SPECIFICATIONS IF / Tuner 1. Input Frequency 950Mhz to 2150MHz 2. Input Signal Level -25 to -65dBm 3. Input Impedance 75 ohm nominal 4. Input Connector F-type, IEC109-24, Female 5. FEC Decoder Convolutional Code Ratel/2,2/3,3/4,5/6 and with Constraint Length K=7 6.
