Summary of Contents for Fortec Star Digital Satellite Receiver

  • Page 2: Table Of Contents

    GENERAL INFORMATION Main Features For your Safety Unpacking General Operation Front Panel Rear Panel INSTALLATION Connecting to TV& VCR using SCART support Connecting to Digital Amplifier MENU INFORMATION Main Menu 1. Edit Channel 1.1 TV Channel List 1.2 Radio Channel List 1.3 Delete All 2.
  • Page 3 4. Tools 4.1 Information 4.2 Factory Setting 4.3 Conditional Access Upgrade by USB 4.5 Media Player 4.6 Remove USB device safely 4.7 Network Local Setting 4.8 Upgrade by network 4.9 Network DDNS Setting 5. Game 6. REC 6.1 Storage Info 6.2 DVR Configuration 7.

  • Page 4: General Information

    A Digital Satellite Receiver is a convenient product that allows you to view a variety of programs provided through satellite. This user's guide covers the installation of the DSR and the necessary steps to implement various features. This also explains special features available only in this DSR in detail, which will allow you to make full use of these feature.

  • Page 5: For Your Safety

    For Your Safety To avoid electric-shock hazards, do not Keep the receiver away from flower vases, open the cabinet, refer servicing to qualified tubs, sinks, etc., in order to avoid damaging personnel only. the equipment. Do not expose the receiver un-der the Do not block ventilation holes of the sunlight.

  • Page 6: Unpacking

    Remote Control Batteries Guide Audio/Video cable General Operation Throughout this manual you will notice that the everyday operation of the receiver is based on a series of user friendly on screen display and menus. These menus will help you get the most from your receiver, guiding you through installation, channel organizing, viewing and many other functions.

  • Page 7: Rcu

    Function Turns power ON/OFF of the DSR When watching a channel, mute the sound Enter number of the required menu item or select a channel number to watch TV/RADIO Switches between TV and Radio mode Switches back to previous channel Displays the favorite group list Timeshift function key SHIFT...

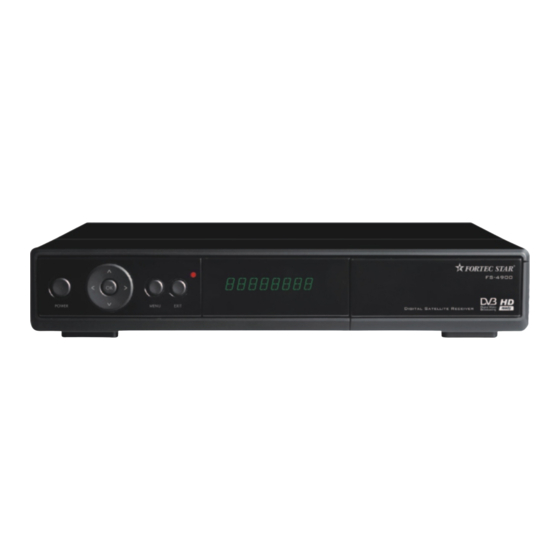

  • Page 8: Front Panel

    Rear Panel Front Panel Rear Panel Rear Panel LNB IN: CONNECT TO SATELLITE ANTENNA LNB OUT: CONNECT TO THE OTHER RECEIVER CONNECT TO A DIGITAL AMPLIFIER CONNECT TO AUDIO R/L TO TV OR AUDIO TUNER CONNECT TO A PC FOR S/W UPGRADE POWER ON/OFF CONNECT TO TV SET OR VIDEO PROJECTOR YPbPr OR COMPONENT INPUTS...

  • Page 9: Installation

    Connecting to TV using SCART support Satellite AUDIO VIDEO Dish Connecting to Digital Amplifier Satellite Dish DIGITAL AUDIO CONVERTOR OR DIGITAL AUDIO AMPLIFIER SPEAKER The picture is only for reference,please make the object as the standard.

  • Page 10: Menu Information

    Main Menu Make sure that you have properly installed and connected the cables of the receiver . If the receiver is the factory status or there is no program list, when power on, the Main Menu window will be displayed on the screen. During the normal TV/Radio mode, press MENU key on the RCU to enter into the Main Menu window.

  • Page 11: Edit Channel

    If there is no program, you can not exit from the Main Menu window by pressing MENU or EXIT key. System will inform "No channel" and the following items turn grey. Sub-menu Turn grey when there is no program Edit Channel TV Channel List Radio Channel List Delete all...
  • Page 12 3. Press FAV key to move the FAV button upward. Select the program and press OK key to pop up the favourite group list. In the list, select the group that you want to add into and press OK key, and then you will find the favourite mark is displayed at the right side of the selected program.
  • Page 13 i . Sort (red colour key) Press red colour key to pop up the Sort drop-down list. Name(A-Z): The ascending order, omitting the $ character, the number is ahead, then the capital letter, at last the lowercase. Name (Z-A): The opposite order of the above Name (A-Z).

  • Page 14: Radio Channel List

    iii. Delete (blue colour key) In Delete window, press blue colour key to move the Delete button upward. Select the program and press OK key to mark this program with the deletion mark. You can cancel this mark by pressing OK key again. Press EXIT key to pop up the dialogue "Are you sure to save?".

  • Page 15: Satellite List

    2.2 Satellite List 1. Press PR+, PR- keys to select the satellite up or down. Press OK key to select and mark, and you can press OK key again to cancel the selection and the mark. 2. If there is no satellite, the red colour and blue colour keys will be invalid.

  • Page 16: Antenna Setup

    2.3 Antenna Setup Part A: Fixed Suppose that you have selected Fixed Antenna in the Antenna Connection window. 1. Satellite: All selected satellites in the satellite list are displayed in this item. Press keys to select the satellite in circle. Or press OK key to pop up the drop-down list, then select the desired satellite in the list and press OK key to confirm.
  • Page 17 Position No., & Save: The range is from 0 to 63. "0" delegates the original position. You can select the proper value when you has rotated the antenna. Go to X: Press OK key to pop up the drop-down list, select the proper position (reference or from 1to 63) to realize the selected position.

  • Page 18: Single Satellite Search

    7. Motor Setting: Press OK key to enter into the Motor setting window. Satellite, Transponder: Press keys to select satellite or transponder, or press OK key to pop up the drop-down list and select in the list. 2.4 Single Satellite Search 1.

  • Page 19: Tp List

    4. Network Search: Select between No and Yes. This item turns grey when Auto Scan is selected in the following Scan mode item. 5. Scan Mode: Press keys to select between Auto Scan and Preset Scan. Auto Scan is Blind scan, while Preset Scan is to search the preset frequencies. 6.

  • Page 20: System Setup

    4. Press yellow colour key to pop up dialogue " Are you sure to delete?". Press OK key at the Yes button to delete the selected TP, or press EXIT key to cancel the operation. 5. Press blue colour key to pop up the TP Search window.

  • Page 21: Tv System

    3.2 TV System Press PR+, PR- key to move the cursor up or down, while press keys to change the s e t t i n g a n d t h e s e t t i n g w i l l t a k e e f f e c t immediately.

  • Page 22: Timer Setting

    3.5 Timer Setting If there is no program, you can not enter into this window. There are 8 timers that can be set. Select Timer up or down, and press OK key to enter into the setting window. 1. Timer mode: The default mode is off. You can set the timer once, daily, weekly, monthly and yearly.

  • Page 23: Osd Setting

    3.7 OSD Setting 1. OSD Timeout: Press keys toselect from 1 to 10 by step1. The default values Is 5. 2. OSD Transparency: Press keys to select among Off, 10%, 20%, 30%, 40%. The default option is Off. Press MENU or EXIT key to save and exit. 3.8 Favorite There are 32 favorites group listed in this window.

  • Page 24: Factory Setting

    4.2 Factory Setting Press OK key to enter into the Factory Setting window. Select Yes button and press OK key to return to the factory setting. All searched channels and set information will be erased. Select No button and press OK key to cancel this operation, or press MENU or EXIT key to cancel and exit.

  • Page 25: Upgrade By Usb

    4.3.4 Maturity Level Input the PIN then Move cursor to Select Maturity level,you can select A-Over18,X- Erotic,G-General audience,PG-Parental Guidance,move cursor to Change Maturity level button and press OK key,and then system will pop up a dialogue informing you the changing result. 4.3.5 Subscription Status Know the detail information of Subscription Status.
  • Page 26 Color key operation: 1.Green key: Press green key to add the favorite symbol on your selected files, and put the file selected by scroll bar to play list . 2.Yellow Key: Press yellow key to add all the image and music files to the play list . 3.Red Key: Show the Play List.

  • Page 27: Remove Usb Device Safely

    4.6 Remove USB device safely Press OK on this item it will pop up a dialogue:"You can safely remove USB device now! ", then you can move your USB device safely. 4.7 Network Local Setting HDCP: Select between ON and OFF, when it ON, the IP Address, Subnet Mask and Gateway item will turn gray, you can not edit them.

  • Page 28: Rec

    6. REC 6.1 Storage Information Show you the information in windows as besides. Yellow key: Press yellow key to format the disk Blue key: Press blue key to pop up DVR Set windw. 6.2 DVR Configuration 1.Time shift: Select between Off and On. 2.

  • Page 29: Find

    3. Detail Information: In the EPG window, press PR+, PR- keys to select the channel and program, and press OK key to know the detail information of the current program. 4. Press green colour key to enter into the Timer window. You can add the current program to the Timer.

  • Page 30: Audio

    7.10 OK 1. During the viewing or listening, press OK key to pop up the TV program list or the Radio program list. 2. Press PR+, PR- keys to select the channel up or down, and then press OK key to play this channel in full-screen.
  • Page 31 Problem Possible causes What to do The display on the front Check that the main cable is plugged into Main cable is not connected. panel does not light up. the power socket. No sound or picture, but the receiver is in standby mode. Press the standby button.
