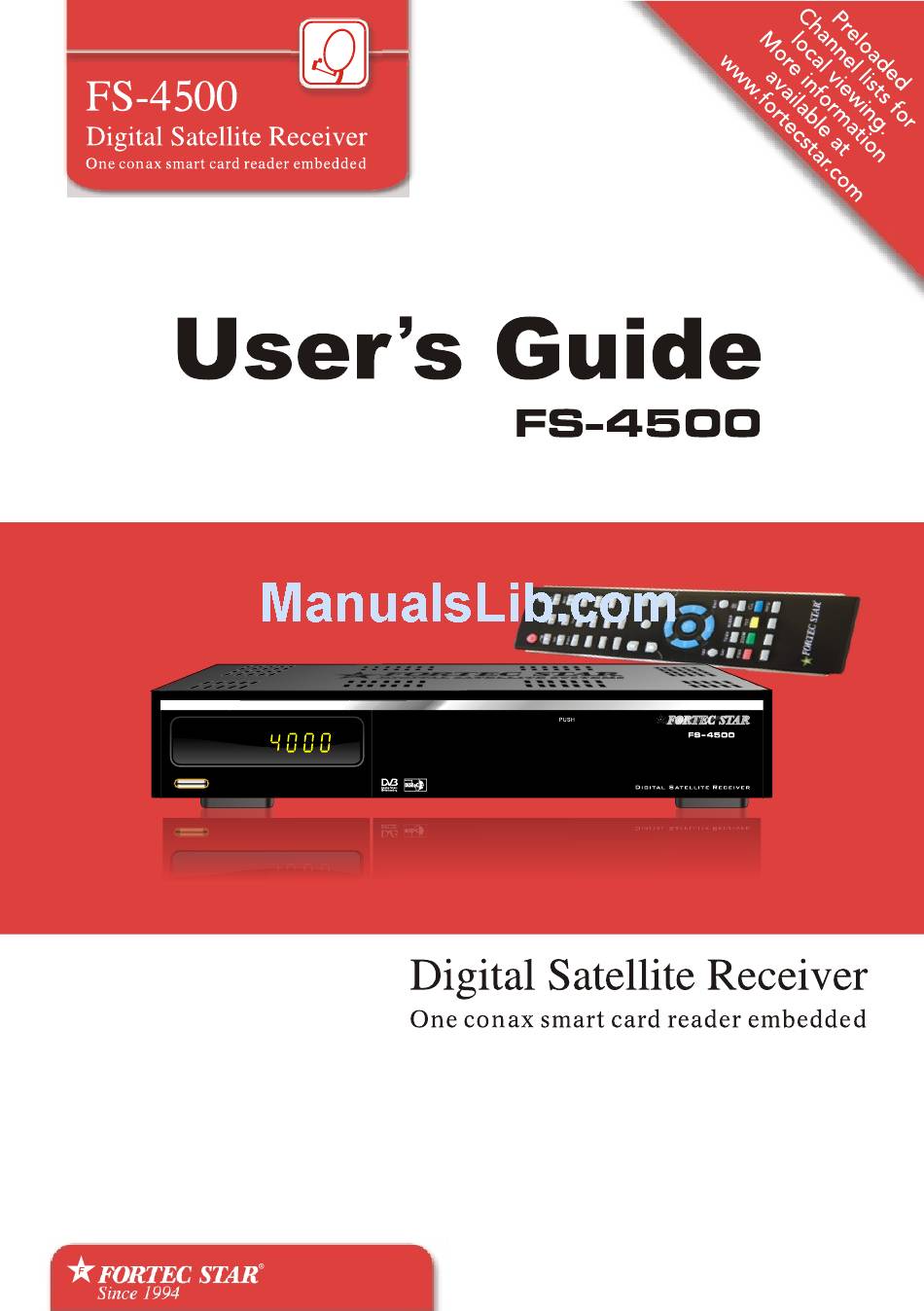

Fortec Star FS-4500 User Manual

Digital satellite receiver one conax smart card embedded
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FS-4500 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Fortec Star FS-4500

Summary of Contents for Fortec Star FS-4500

  • Page 2: Table Of Contents

    GENERAL INFORMATION Main Features For your Safety Unpacking General Operation INSTALLATION Front Panel Rear Panel Connecting to TV& VCR using SCART support Connecting to TV using RCA support Connecting to Digital Amplifier MENU INFORMATION Main Menu 1. Edit Channel 1.1 TV Channel List 1.2 Radio Channel List 1.3 Delete All Delete channels by satellite...
  • Page 3 4. Tools 4.1 Information 4.2 Factory Setting 4.3 Upgrade by USB 4.4 Conditional Access 4.5 USB 5. REC 5.1 Record Mangager 5.2 PVR Setting 5.3 HDD Information 6. Hot key 6.1 Info 6.2 EPG 6.3 Find 6.4 Number 6.5 TV/Radio 6.6 Up/Down 6.7 Left/Right 6.8 Mute...

  • Page 5: General Information

    A Digital Satellite Receiver is a convenient product that allows you to view a variety of programs provided through satellite. This user's guide covers the installation of the DSR and the necessary steps to implement various features. This also explains special features available only in this DSR in detail, which will allow you to make full of these feature.

  • Page 6: For Your Safety

    WARNING WARNING For Your Safety To avoid electric-shock hazards, do not Keep the receiver away from flower vases, open the cabinet, refer servicing to qualified tubs, sinks, etc., in order to avoid damaging personnel only. the equipment. Do not expose the receiver un-der the Do not block ventilation holes of the sunlight.

  • Page 7: Unpacking

    Remote Control Batteries Guide AV cable General Operation Throughout this manual you will notice that the everyday operation of the receiver is based on a series of user friendly on screen display and menus. These menus will help you get the most from your receiver, guiding you through installation, channel organizing, viewing and many other functions.

  • Page 8: Rcu

    Function Turns power ON/OFF of the DSR When watching a channel, mute the sound .,*?!@ Enter number of the required menu item or select a channel number to watch TV/RADIO Switches between TV and Radio mode PQRS WXYZ Switches back to previous channel Displays the favorite group list TV/RADIO Timeshift function key...

  • Page 9: Installation

    Rear Panel Front Panel Rear Panel Rear Panel LNB IN: CONNECT TO SATELLITE ANTENNA LNB OUT:CONNECT TO THE OTHER RECEIVER CONNECT TO A PC FOR S/W UPGRADE Serial Number CONNECT TO TV AND VCR USING A SCART CABLE POWER ON/OFF CONNECT TO 12V TO AN EXTERNAL 0/12V SWITCH CONNECT VIDEO TO TV USING RCA JACK...

  • Page 10: Connecting To Tv Using Rca Support

    Connecting to TV using RCA support Satellite VIDEO AUDIO Dish Serial Number Connecting to Digital Amplifier Satellite Dish Serial Number DIGITAL AUDIO CONVERTOR OR AMPLIFIER DIGITAL AUDIO SPEAKER...

  • Page 11: Menu Information

    Main Menu Make sure that you have properly installed and connected the cables of the receiver well. If the receiver is the factory status or there is no program list, when power on, the Main Menu window will be displayed on the screen. During the normal TV/Radio mode, press MENU key on the RCU to enter into the Main Menu window.

  • Page 12: Edit Channel

    If there is no program, you can not exit from the Main Menu window by pressing MENU or EXIT key. System will inform "No channel" and the following items turn grey. Sub-menu Turn grey when there is no program System backup Edit Channel TV Channel List System Recover...
  • Page 13 3. Press FAV key to move the FAV button upward. Select the program and press OK key to pop up the favourite group list. In the list, select the group that you want to add into and press OK key, and then you will find favourite mark is displayed at the right side of the selected program.
  • Page 14 7. Press blue colour key to enter into the E d i t c h a n n e l w i n d o w . i . Sort (red colour key) Press red colour key to pop up the Sort drop- down list.
  • Page 15 iii. Delete (blue colour key) In Delete window, press blue colour key to move the Delete button upward. Select the program and press OK key to mark this program with the deletion mark. You can cancel this mark by pressing OK key again.
  • Page 16 2. Installation 1. Press OK key or key to pop up the "Input Password" dialogue, you can not enter into the menu unless the correct password is inputted. The default password is "0000". 2. Press PR+, PR- keys to move the cursor up or down.
  • Page 17 4. Press green colour key to pop up the Add Satellite window. Since the same operation as the above Edit Satellite window, here we don't explain any more. 5. Press blue colour key to pop up the dialogue "Are you sure to delete?". Select Yes button and press OK key to delete the selected satellite.
  • Page 18 3. Delete All: Press OK key to pop up the dialogue "Are you sure to clear set satellite position of this tuner?". Press OK key at the Yes button to clear all the memories about the position of the satellites that has connected to the current turner.
  • Page 19 6. If select USALS, Delete All item will turn grey. Local Longitude, Local Latitude: Press keys to switch between West and East, press keys to switch between North and South. Press OK key to enter into the editing mode. Use numeric keys (0-9) to input the longitude or latitude, press MENU key or EXIT key to exit.
  • Page 20 2.5 Multi Satellite Search From the Multi Satellite Search window, you can search several satellites at the one time. 1. Satellite: All selected satellites in the satellite list window are displayed on the down part. You can press keys to switch among them. 2.

  • Page 21: System Setup

    4. Press yellow colour key to pop up dialogue " Are you sure to delete?". Press OK key at the Yes button to delete the selected TP, or press EXIT key to cancel the operation. 5. Press blue colour key to pop up the TP Search window.

  • Page 22: Tv System

    3.2 TV System Press PR+, PR- key to move the cursor up or down, while press keys to change the setting and the setting will take effect immediately. 1. Display Mode: Select among Auto,PAL, PAL-M, PAL-N, SECAM and NTSC. 2. Aspect Mode: Select among 4:3LetterBox, 4:3PanScan, 16:9.

  • Page 23: Parental Control

    2.Timer Service: Select between Channel and Record. If Channel is selected, the Wakeup Channel is displayed in the following item. If Record is selected, the Wakeup Record is displayed in the following item. 3. Wakeup Date, On Time: Use numeric keys to input the valid date.

  • Page 24: Osd Setting

    3.6 OSD Setting 1. Subtitle Display: Press keys to select between On and Off. 2. OSD Timeout: Press keys toselect from 1 to 10 by step1. The default values Is 5. 3. OSD Transparency: Press keys to select among Off, 10%, 20%, 30%, 40%. The default option is Off.

  • Page 25: Information

    4.3 Upgrade by USB 1.Upgrade File: Show the Upgrade File. 2.Upgrade Mode: Select among AllCode+bootloader, Allcode, S17-2, maincode, RadioBack, FS-4500, seeback, defaultdb,data1, data2, userdb and Dump. When users switch the upgrade mode, ¡° Upgrade File¡± will show the corresponding file according to the...
  • Page 26 4.4.1 About CA Info In About CA Info sub-menu, you can know the basic information about this conditional access such as Card Status, CAS System ID, Interface Version, Card Number, Number of sessions, Country Indicator, and Maturity Level. 4.4.2 Change PIN Changes PIN window is designed for changing the smart card's PIN, which is required if you want change the maturity level settings.

  • Page 27: Usb

    4.5 USB USB menu will be automatically shown when insert U disk to USB port except auto scan, multi picture, upgrade. Or open USB menu according to Menu -> Tools-> USB. Press OK to enter into this window. USB menu will be disabled when no USB device is plugged.

  • Page 28: Rec

    Sort Pressing green key, it will pop up the Sort drop- down list. Name(A-Z): The ascending order, omitting the $ character, the number is ahead, then the capital letter, at last the lowercase. Name (Z-A): The opposite order of the above Name (A-Z).

  • Page 29: Pvr Setting

    5.2 PVR Setting 1.Timeshift:If you set timeshift "On", it will record the current channel you watch automatically. Then you can press [Pause] / [Fast Backward] / [Slow Backward] key to watch the previous program. If timeshift is "Off", timeshift function doesn't work. Select between ON and OFF.

  • Page 30: Find

    : Press OK key at this button to move the cursor to the current time line. : Press OK key to push the time forward or backward by half an hour. : Press OK key to push the time forward or backward by half an hour. : Press OK key to push the time forward or backward by a day.

  • Page 31: Mute

    6.8 Mute Press key to close the volume. You can press key once again to restore the volume, or press keys to open the volume. 6.9 Pause During the viewing, you can press PAUSE key to stop the picture while the volume continues.

  • Page 32: Fav

    6.13 FAV 1. Press FAV key to pop up the favourite group window. 2. Press keys to select the favorite group. Press PR+, PR- keys to select the channel up or down.. Press OK key at the selected channel to view it in full-screen. Press MENU or EXIT key to exit.
  • Page 33 Problem Possible causes What to do The display on the front Check that the main cable is plugged into Main cable is not connected. panel does not light up. the power socket. No sound or picture, but the receiver is in standby mode. Press the standby button.
