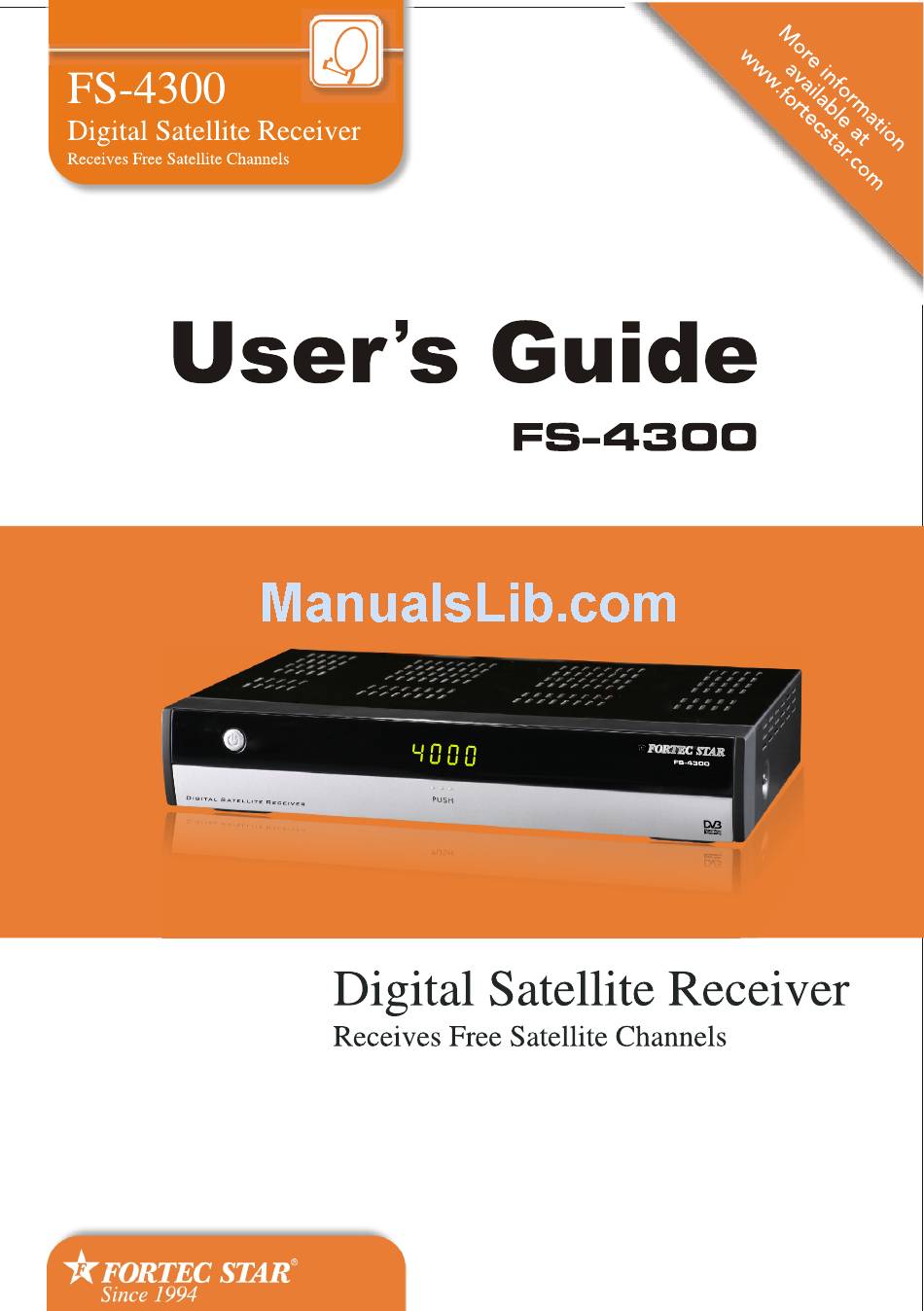

Fortec Star FS-4300 User Manual

Digital satellite receiver
Hide thumbs Also See for FS-4300:
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FS-4300 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Fortec Star FS-4300

Summary of Contents for Fortec Star FS-4300

  • Page 2: Table Of Contents

    GENERAL INFORMATION Main Features For your Safety Unpacking General Operation INSTALLATION Rear Panel Connecting to TV& VCR using SCART support Connecting to TV using RCA support Connecting to Digital Amplifier MENU INFORMATION Main Menu 1. Channel List 1.1 TV Channel List 1.2 Radio Channel List 1.3 Delete All 1.4 Deltec channels by satellite...
  • Page 3 4. Tools 4.1 Information 4.2 Factory Setting 5. Game 6. Hot key 6.1 Info 6.2 EPG 6.3 Find 6.4 Number 6.5 TV/Radio 6.6 Up/Down 6.7 Left/Right 6.8 Mute 6.9 Pause 6.10 OK 6.11 Audio 6.12 Recall 6.13 Fav 6.14 Teletext 6.15 Zoom TROUBLE SHOOTING...

  • Page 5: General Information

    A Digital Satellite Receiver is a convenient product that allows you to view a variety of programs provided through satellite. This user's guide covers the installation of the DSR and the necessary steps to implement various features. This also explains special features available only in this DSR in detail, which will allow you to make full of these feature.

  • Page 6: For Your Safety

    For Your Safety To avoid electric-shock hazards, do not Keep the receiver away from flower vases, open the cabinet, refer servicing to qualified tubs, sinks, etc., in order to avoid damaging personnel only. the equipment. Do not expose the receiver un-der the Do not block ventilation holes of the sunlight.

  • Page 7: Unpacking

    Remote Control Batteries User's Guide General Operation Throughout this manual you will notice that the everyday operation of the receiver is based on a series of user friendly on screen display and menus. These menus will help you get the most from your receiver, guiding you through installation, channel organizing, viewing and many other functions.

  • Page 8: Rcu

    Function Turns power ON/OFF of the DSR When watching a channel, mute the sound .,*?!@ Enter number of the required menu item or select a channel number to watch TV/RADIO Switches between TV and Radio mode PQRS WXYZ Switches back to previous channel Display the favorite group list Display the satellite list Display the Find window...

  • Page 9: Installation

    Rear Panel Rear Panel LNB IN: CONNECT TO SATELLITE ANTENNA LNB OUT:CONNECT TO THE OTHER RECEIVER CONNECT TO A PC FOR S/W UPGRADE CONNECT TO TV AND VCR USING A SCART CABLE POWER ON/OFF CONNECT TO A DIGITAL AMPLIFIER CONNECT TO AUDIO R/L TO TV OR AUDIO TUNER CONNECT VIDEO TO TV USING RCA JACK CONNECT TO 12V TO AN EXTERNAL 0/12V SWITCH RF OUT: CONNECT TO TV ANT INPUT...

  • Page 10: Connecting To Tv Using Rca Support

    Connecting to TV using RCA support VIDEO AUDIO Satellite Dish Connecting to Digital Amplifier Satellite Dish DIGITAL AUDIO CONVERTOR OR DIGITAL AUDIO AMPLIFIER SPEAKER...

  • Page 11: Menu Information

    Main Menu Make sure that you have properly installed and connected the cables of the receiver well. If the receiver is the factory status or there is no program list, when power on, the Main Menu window will be displayed on the screen. During the normal TV/Radio mode, press MENU key on the RCU to enter into the Main Menu window.

  • Page 12: Channel List

    If there is no program, you can not exit from the Main Menu window by pressing MENU or EXIT key. System will inform "No channel" and the following items turn grey. Sub-menu Turn grey when there is no program Edit Channel TV Channel List Radio Channel List Delete all...
  • Page 13 3. Press FAV key to move the FAV button upward. Select the program and press OK key to pop up the favourite group list. In the list, select the group that you want to add into and press OK key, and then you will find the favourite mark is displayed at the right side of the selected program.
  • Page 14 i . Sort (red colour key) Press red colour key to pop up the Sort drop-down list. Name(A-Z): The ascending order, omitting the $ character, the number is ahead, then the capital letter, at last the lowercase. Name (Z-A): The opposite order of the above Name (A-Z).

  • Page 15: Radio Channel List

    iii. Delete (blue colour key) In Delete window, press blue colour key to move the Delete button upward. Select the program and press OK key to mark this program with the deletion mark. You can cancel this mark by pressing OK key again. Press EXIT key to pop up the dialogue "Are you sure to save?".

  • Page 16: Installation

    2. Installation 1. Press OK key or key to pop up the "Input Password" dialogue, you can not enter into the menu unless the correct password is inputted. The default password is "0000". 2. Press PR+, PR- keys to move the cursor up or down.

  • Page 17: Antenna Setup

    Longitude: You can press keys to switch between east longitude and west longitude. After pressing OK key, you can use numeric keys to edit the longitude, press EXIT key or the PR+, PR- keys to exit editing mode. The range of the longitude is from 1to 180 degree.
  • Page 18 Part B: Motor Suppose that you have selected Moter Antenna in the Antenna Connection window. 1. LNB Type: Select the proper LNB type. 2. Motor Type: Select between DiSEqC1.2 and USALS. If you select DiSEqC1.2, the following Local Longitude and Local Latitude items will turn grey.
  • Page 19 5. Limit Setup: Press OK key to pop up the Limit Setup window. Limit Setup: Press keys to switch among Disable Limit, East Limit and West Limit. Limit Setup: Move cursor to the Limit Setup button. You can press key to turn west , or press key to turn east.

  • Page 20: Single Satellite Search

    2.4 Single Satellite Search 1. Satellite : Press keys to select the satellite in circle. Or press OK key to pop up the drop-down list, then select the desired satellite in the list and press OK key to confirm. 2. FTA Only: Press keys to select between Yes and No.

  • Page 21: Tp List

    2.6 TP List 1. Press PR+,PR- keys to select the proper satellite. 2. Press red colour key to pop up the Edit TP window. Frequency, Symbol rate: Press keys to add or reduce by step one. Or press numeric keys (0-9) to input the desired value.

  • Page 22: System Setup

    5. Press blue colour key to pop up the TP Search window. FTA only, Scan Channel, Network Search: Press keys to select the proper option. Press OK key at the OK button to start searching. 1. Press OK key or key to move the cursor to the right menu.

  • Page 23: Local Time Setting

    3.3 Local Time Setting 1. Summer Time: Select between ON and OFF. "OFF" delegates the normal time. If select ON, time will add one hour. 2. GMT Offset: When select "ON" in GMT Usage item, system will get the date and time information from the screen automatically.

  • Page 24: Parental Control

    Duration: Set the gap time. After waking up, system will power off automatically after the duration time. Press MENU or EXIT key to save and exit. 3.5 Parental Lock Before entering into the Parental Lock window, you need input the correct password. The default password is 0000.

  • Page 25: Favorite

    3.7 Favorite There are 32 favorites group listed in this window. Press PR+, PR- keys to select one and press OK key to the Rename window. Since the same operation as the above the Add Satellite window, here we don't explain any more.

  • Page 26: Information

    4.1 Information Press OK key to the Information window. 4.2 Factory Setting Press OK key to enter into the Factory Setting window. Select Yes button and press OK key to return to the factory setting. All searched channels and set information will be erased. Select No button and press OK key to cancel this operation, or press MENU or EXIT key to cancel and exit.

  • Page 27: Hot Key

    6. Hot Key 6.1 Info Press INFO key to pop up the Info bar. Press INFO key again to pop up the program guide of the current program. You can press keys to know the program guide of the future 16 days. 6.2 EPG Press EPG key to enter into the EPG window.

  • Page 28: Find

    6.3 Find Press A-Z key on to pop up the Find window. User numeric keys to enter into the character and use the colour keys to realized the corresponding operation. 6.4 Number Use the numeric keys (0-9) to input the number of the desired channel.

  • Page 29: Audio

    6.11 Audio 1. Press keys to enter into the Audio window. 2. Press keys to select among Left, Right, Stereo, and Mono. 3 . C h a n g i n g t h e a u d i o m o d e i s o n l y connected with the current channel, not all the channels.
  • Page 30 Problem Possible causes What to do The display on the front Check that the main cable is plugged into Main cable is not connected. panel does not light up. the power socket. No sound or picture, but the receiver is in standby mode. Press the standby button.
