Page 1: Table Of Contents
CC 9045 Index Introductory information 1. General 2. Security guidelines Installation of the hands-free car kit 3. Scope of supply 4. Positioning of the 3-button remote control 5. Connecting the Electronic box 6. Installation of the audio switchbox AC 5120 7. -
Page 2: Introductory Information
Congratulation on purchasing a BURY hands-free car kit. You have cho- sen a high quality product that is extremely easy to use. All aspects of BURY production through to sales and service are subject to strict qua- lity management according to DIN EN ISO 9001. All BURY hands-free car kits meet CE and e1 security standards. - Page 3 Faults Do not commission the device if you detect or assume a defect. In this case, contact a Bury specialised dealer or our hotline. Improper repair efforts can be dangerous for you. Therefore, only skilled personnel may perform inspections.
-
Page 4: Installation Of The Hands-Free Car Kit

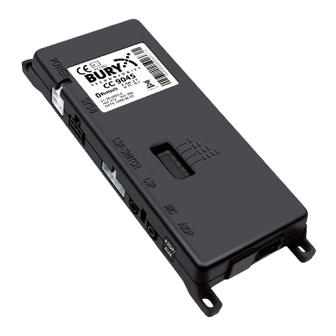

Installation of the hands-free car kit 3. Scope of supply... - Page 5 Description of the components: 1) Electronics box (with or without an internal switch box, depending on version) 2) Remote control 3) Microphone 4) Installation and Operating manual 5) Fixing screws for electronics box, rider Variant 1: 6) External loudspeaker switch-box AC 5120 Variant 2: 6) Power supply cable with fuses 7) Cable for internal loudspeaker switch box...
-
Page 6: Positioning Of The 3-Button Remote Control
Installation of the hands-free car kit 4. Positioning of the 3-button remote control Step 1: First of all, choose the most suitable location for the 3-button remote control by positioning it or holding it at different locations in the vehicle yourself. -
Page 7: Connecting The Electronic Box
difficulty. Before connecting the components to the electronics box you should branch off the battery for safety reasons. In doing so, take into account that there might be a radio coding (confer radio manual). Important: Please install the electronics box behind a cover or so- mewhere you can only reach by opening or unfastening a protective cover / a cover. - Page 8 Refer to the separate chapter: Installation of the audio switch box AC 5120 2 - System 9 Socket Socket for connection of the basePlate suitable for the CC 9045 from the System 9. 3 - Voice output of the hands-free car kit...
- Page 9 5 - Speaker output Please connect the 3.5 mm jack plug of the external BURY loudspeaker (available as an accessory) to this socket. 6 - AUX-Out connection Stereo music is output at connection 2. Here you can connect the AUX- In input of your radio (if existent) via adapters available at local retai- lers.
-
Page 10: Installation Of The Audio Switchbox Ac 5120
If your car radio doesn‘t have this function, then the signals will be suppressed by the speaker switchbox. You can use the AC 5120 through the connections that your BURY hands free car kit offers, which guarantee voltage supply via molex plugs and also have a speaker output. - Page 11 After checking that all the cable lengths are sufficient, decide where you are able to attach the Audio switchbox. Now secure the Audio switchbox so that it isn’t able to flap about and/or rattle against other parts of your vehicle. Now connect the audio switchbox plug (1) to the hands-free car kit.
- Page 12 Installation of the hands-free car kit The two ‘Phone-In’ cables are marked accordingly and must be plugged into the appropriate connections on the radio (blue, green or yellow). In this regard, please refer to the instructions concerning the connection configuration of your car radio in your car radio handbook. In lots of radios, the volume level (feedback of your conversation partner) can be controlled via the phone input and the selection of the loudspeaker.
- Page 13 Configuration II If the configuration of pin 7 of the ISO plug is connected to the ignition and pin 4 is connected to the power supply, you should check to see whether the connection looks like the illustration below. 7 (red) Switchbox Vehicle blue...
-
Page 14: Installation Instructions For The Fuses
Installation of the hands-free car kit 7. Installation instructions for the fuses If you install the CC 9045 without the AC 5120 switch box then the power supply must be secured with a fuse in the way described below. Please cut through the red, the black and the blue cable by means of a wire cutter or scissors. Now insert the two endings of the red cable resulting from the cut into one of the binders, then close it. -
Page 15: Operating Guidelines
HFCK. An overview dealing with this subject can be found on the Inter- net at www.bury.com. If you have questions with regard to the menu navigation, functions and operation of your mobile phone, please refer to the operating guidelines of your mobile phone. - Page 16 Operating guidelines The Bluetooth ® connection is automatically re-established only if you re-enter the reception area of the HFCK (approx. 10 metres) and if you want to perform or receive a phone call. Exceptions hereto are some mobile telephones which only re-establish the Bluetooth ®...
-
Page 17: Button Remote Control
10. 3-Button Remote Control... - Page 18 Operating guidelines...
-
Page 19: Play Music With A2Dp
11. Play music with A2DP If your mobile telephone possesses the Bluetooth ® profile A2DP, you can play music (e.g. MP3 files) in stereo quality via the HFCK. It is im- portant to play the music title selected respectively on the HFCK via the function ‚play via...‘. -
Page 20: Further Information
In case of general or technical queries, suggestions and comments, please do not hesitate to contact our team at any time. Suggestions and feedback are always welcomed: BURY GmbH & Co. KG Robert-Koch-Straße 1-7 32584 Löhne Hotline: +49(0)180 5 - 842 468*...
