CC 9048 / CC 9058
QUICK USER GUIDE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CC 9058 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BURY CC 9058

Summary of Contents for BURY CC 9058

  • Page 1 CC 9048 / CC 9058 QUICK USER GUIDE...

  • Page 2: Installation Of The Hands-Free Car Kit

    Installation of the hands-free car kit Dear customer, Congratulations on purchasing a BURY hands-free car kit. You have chosen a high quality product that is extremely easy to use. Scope of supply CC 9048...
  • Page 3 CC 9058...

  • Page 4: Scope Of Delivery

    Installation of the hands-free car kit Scope of delivery: 1. Electronic box 2. Illuminated remote control / Multifunction display with cradle and mount, screws for the holder and rubber cover, adhesive tape 3. Microphone 4. ISO cable harness 5. Extension cord 6.
  • Page 5 Connections on the electronics box: Mini-USB Power supply/muting using Mute via ISO cable tree Microphone LINE-IN Multifunction display RJ45-remote control...

  • Page 6: Installation Of The System

    Installation of the system...
  • Page 7 Installation of the hands-free car kit...
  • Page 8 PWR/LSP/LINE OUT Step 1: Pull the ISO jacks at the back of the radio off and replace them with the jacks at the ISO cable harness. Connect the now free ISO jacks with both sockets from the ISO cable harness (see picture). If you want music or voice signals to be fed via the four LINE cables, you must adjust them accordingly to the respective type of radio and its connections (PHONE-IN or AUX-IN).
  • Page 10 Installation of the hands-free car kit...
  • Page 11 - 12V Power - 12/24V Ignition - Ground - Line-out 1 - Line-out 2 1-Line L + / Phone L + 1-Line R + / Phone R + 2-Line L - / Phone L - 2-Line R - / Phone R -...
  • Page 12 Installation of the hands-free car kit - Micro Molex 24 - ISO - connection to the electronic box (HFCK) - connection to the vehicle’s speakers - connection to the vehicle’s power supply - connection to the car radio - connection to the car radio 1 - Mute 3 2 - Mute 2 3 - Mute 1...
  • Page 13 Operating guideline Establishing a Bluetooth connection „CC 9048 ...“ „CC 9058“ PIN: 1234...

  • Page 14: Language Selection

    Operating guidelines CC 9048 Language selection After properly connecting the HFCK to the power supply, the device will start with the launch of the car ignition. To use voice prompts, activate them by pressing and holding the Plus button for 10 seconds. Then select the language for voice prompts after the device informs about it by emitting „Choose lan- guage“.

  • Page 15: Overview Of The Key Functions

    Overview of the key functions CC 9048 Status Hold Plus Hold Minus Hold Middle Status Hold Plus and Hold Plus Hold Minus Press Middle description Press Plus Press Minus Press Middle and Middle and Middle key for Minus key for key for key for key once...

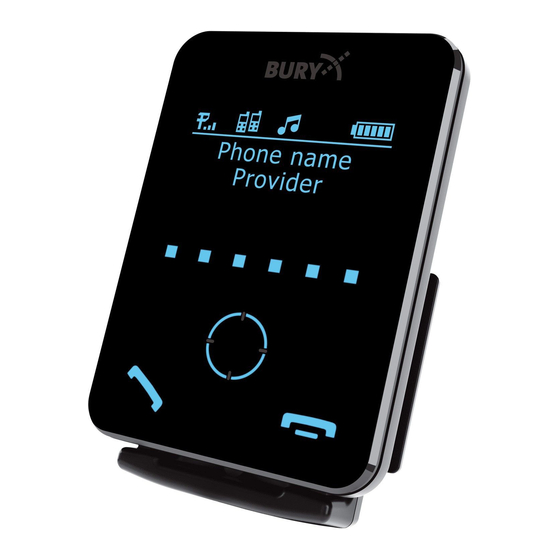

  • Page 16: Handling Via Touch Screen

    Operating guidelines CC 9058 Handling via Touch screen The operation can be carried out via the keys. With the end call button you can cancel an action or go a step back. If you press down the middle button you will return to the main menu. With the call but- you can confirm actions.
