- Page 1 CC 9048 Installation and operating manual...
-
Page 2: Table Of Contents
CC 9048 Index Introductory information 1. General 2. Security guidelines Installation of the hands-free car kit 3. Scope of supply 4. Positioning and installation 5. Connections at electronic box Operating guidelines 6. Language selection 7. Establishing a Bluetooth connection 8. Illuminated remote control 9. -
Page 3: Introductory Information
1. General Dear customer, Congratulations on purchasing a BURY hands-free car kit. You have chosen a high quality product that is extremely easy to use. Please read the operating manual carefully so that you can fully enjoy your BURY hands-free car kit. If you have any further questions concerning installation or operation of your car kit, please contact your dealer. - Page 4 Faults Do not commission the device if you detect or assume a defect. In this case, contact a Bury specialised dealer or our hotline. Improper repair efforts can be dangerous for you. Therefore, only skilled personnel may perform inspections.
-
Page 5: Installation Of The Hands-Free Car Kit
Installation of the hands-free car kit 3. Scope of supply... - Page 6 8) Quick user guide Accessories - available separately / including, if applicable: 9) Mobile phone and Smartphone-specific charging cable 10) BURY ChargingCradle Universal Note: If certain components are added or omitted you will receive the corresponding information on a separate enclosure.
-
Page 7: Positioning And Installation
Installation of the hands-free car kit 4. Positioning and installation Step 1: First of all, choose the most suitable location for the illuminated remote control by positioning it or holding it at different locations in the vehicle yourself. Once you have found a suitable position for the illuminated remote control, you can attach it / mount it appropriately. -
Page 8: Connections At Electronic Box
An extension cable is connected to connection no. 1 (micro USB socket). You can connect a charger or your mobile phone to the other end of the cable. Connection of the BURY ChargingCradle Universal is optional. 2 - PWR/LSP/LINE OUT The hands-free car kit in the vehicle is connected to the car radio with the ISO cable harness. -
Page 9: Installation Of Hands-Free Car Kit
Mobile audio off Mobile audio on Option 3 It does not concern the CC 9048 device Option 4 Mobile audio off refers to the device with BURY loudspeaker Mobile audio on ... - Page 10 If you want music or voice signals to be fed via the four LINE cables, you must adjust them accord- ingly to the respective type of radio and its connections (PHONE-IN or AUX-IN). Appropriate adapters are available from specialists shops. Step 2: The hands-free car kit supports the radio mute function, if this function is also supported by the radio.
-
Page 11: Connection Diagram For Iso Cable Harness
Installation of the hands-free car kit Connection diagram for ISO cable harness - 12V Power - 12/24V Ignition - Ground - Line-out 1 - Line-out 2 1-Line L + / Phone L + 1-Line R + / Phone R + 2-Line L - / Phone L - 2-Line R - / Phone R - - Micro Molex 24 - ISO - connection to the electronic box (HFCK) - Page 12 4 - LINE-IN To connect external music players. 5 - DISPLAY Multifunction display for possible system expansions (not for CC 9048). 6 - RJ45 - Input for the illuminated remote control. Please connect the illuminated remote control plug to this socket.
-
Page 13: Operating Guidelines
Bluetooth devices. In this case, search for a device la- belled “CC 9048...”.If several devices were identified, please select the HFCK and enter the PIN number “1234”. The Bluetooth connection (pairing) will then be established between your mobile phone and the HFCK. - Page 14 Note: If the rechargeable battery of the mobile phone is low, it is sometimes not possible to establish a Bluetooth connection. The HFCK has a memory for the storage of the identification of up to 8 mobile phones. In case a ninth mobile phone is connected, the oldest entry in the HFCK memory will be cancelled.
-
Page 15: Illuminated Remote Control

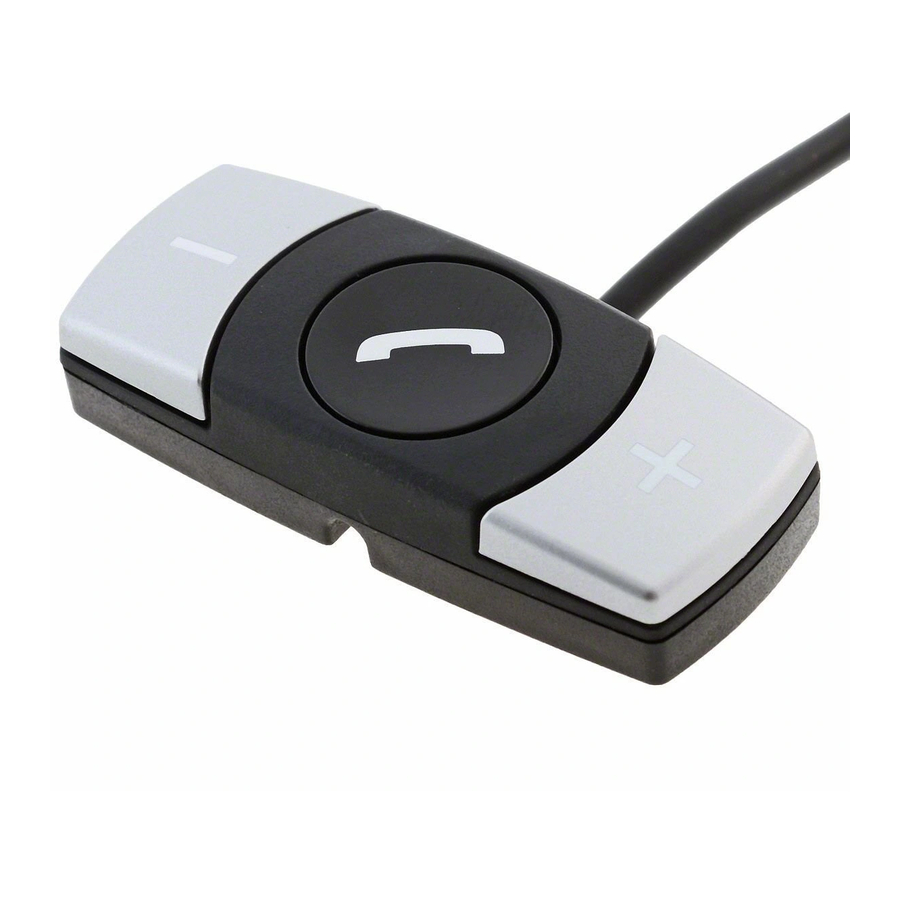

Operating guidelines 8. Illuminated remote control... -
Page 16: Playing Music
9. Playing music There are two ways of playing music in case of the CC 9048 hands-free car kit. Through A2DP ( Bluetooth ) After the phone is connected to the hands-free car kit via Bluetooth , music can be played through A2DP. -
Page 17: Voicetag Feature
This varies depending on your mobile phone but is usually a Pacman. Option 2: Reading out the phonetics For some mobile phones, you can open up the mobile phone directory by pressing down the CC 9048 call button. The device says: Enter voicetag. The voicetag you enter (contact name) is compared with the contacts saved in the mobile phone directory using phonetic technology and selected if there is a match. - Page 18 Optimum playback quality can only be guaranteed if this is the case. If you press the call button on the CC 9048, the device says: Enter voicetag. Some smartphones may then release a signal sound after one to three seconds. Only then can you enter the voicetag.
-
Page 19: Further Information
In case of general or technical queries, suggestions and comments, please do not hesitate to contact our team at any time. Suggestions and feedback are always welcomed: Administration: Producer: BURY GmbH & Co. KG BURY Spółka z o.o. Robert-Koch-Straße 1-7 ul. Wojska Polskiego 4 D-32584 Löhne... -
Page 20: Appropriate Use Of This System
® logos are owned by Bluetooth SIG, Inc. All use of these brands by BURY Technologies takes place within the scope of the corresponding licence. All of the other stated brands are owned by their corresponding owner. © 2013 by BURY. All rights reserved. - Page 21 EXPRESS WARRANTY AGAINST DEFECTS – AUSTRALIA: This product if imported by Point to Point Distributions Pty Ltd is warranted in Australia to be free from any defect in material and workmanship, subject to the following terms and conditions. Who provides this warranty: Point to Point Distributions Pty Ltd Unit 9, 7-8 Len Thomas Place Narre Warren Vic, 3805.
