Page 1: Table Of Contents
CC 9048 Index Introductory information 1. General 2. Security guidelines Installation of the hands-free car kit 3. Scope of supply 4. Positioning of the illuminated remote control 5. Connecting the Electronic box Operating guidelines 6. Switch-on 7. Establishing a Bluetooth connection 8. -
Page 2: Introductory Information
1. General Dear customer, Congratulations on purchasing a BURY hands-free car kit. You have chosen a high quality product that is extremely easy to use. Please read the operating manual carefully so that you can fully enjoy your BURY hands-free car kit. If you have any further questions concerning installation or operation of your car kit, please contact your dealer. - Page 3 Faults Do not commission the device if you detect or assume a defect. In this case, contact a Bury specialised dealer or our hotline. Improper repair efforts can be dangerous for you. Therefore, only skilled personnel may perform inspections.
-
Page 4: Installation Of The Hands-Free Car Kit
Installation of the hands-free car kit 3. Scope of supply... - Page 5 8) Installation and operating manual on CD Accessories - available separately / including, if applicable: 9) Mobile phone and Smartphone-specific charging cable 10) BURY ChargingCradle Universal 11) External loudspeaker Note: If certain components are added or omitted you will receive the corresponding...
-
Page 6: Positioning Of The Illuminated Remote Control

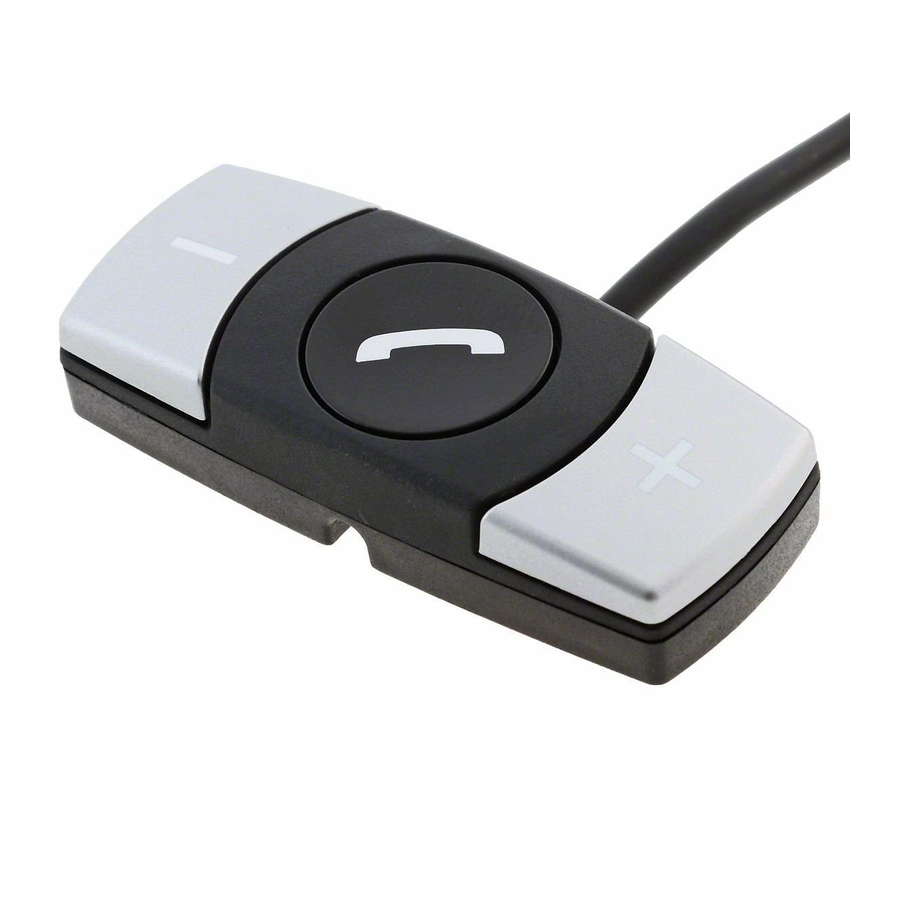

Installation of the hands-free car kit 4. Positioning of the illuminated remote control Step 1: First of all, choose the most suitable location for the illuminated remote control by positioning it or holding it at different locations in the vehicle yourself. -
Page 7: Connecting The Electronic Box
5. Connecting the Electronic box The additional components of the hands-free car kit are connected to the electronics box. The follow- ing connections are provided: Connection options: 1 Mini-USB 2 Power supply/muting using Mute via ISO cable tree 3 Mikrophone 4 LINE-IN 5 Multifunction display - for possible system expansions 6 RJ45-Illuminated remote control... - Page 8 Installation of the hands-free car kit The pin-assignment of the ISO-connectors can vary depending on the type of vehicle / car radio. To prevent damage from occurring, before using the ISO cable harness, make sure that the assignment is correct. Information is provided about this in the description of the car radio. Remove the (a) or the (b) ISO-connector at the back of the radio.
- Page 9 Three other cables are positioned opposite to the single yellow cable (2) for the radio muting. You can also find the correct cable here via Multimeter. Using the ISO-cable harness, you are able to assign the playback of music and voice feedback during a telephone call to the vehicle’s speakers.
- Page 10 Installation of the hands-free car kit Connection 5: Multifunction display for possible system ex- pansions Connection 6: RJ45-Input for the illuminated remote control Please connect the illuminated remote control plug to this socket.
-
Page 11: Operating Guidelines
Bluetooth devices. In this case, search for a device la- belled „CC 9048...“.If several devices were identified, please select the HFCK and enter the PIN number „1234“. The Bluetooth connection (pairing) will then be established between your mobile phone and the HFCK. - Page 12 Operating guidelines Note: If the rechargeable battery of the mobile phone is low, it is sometimes not possible to establish a Bluetooth connection. The HFCK has a memory for the storage of the identification of up to 8 mobile phones. In case a ninth mobile phone is connected, the oldest entry in the HFCK memory will be cancelled.
-
Page 13: Illuminated Remote Control
8. Illuminated remote control... -
Page 14: Play Music With A2Dp
Operating guidelines 9. Play music with A2DP If your mobile telephone possesses the Bluetooth profile A2DP, you can play music (e.g. MP3 files) in stereo quality via the HFCK. It is important to play the music title selected respectively on the HFCK via the function‚... -
Page 15: Further Information
In case of general or technical queries, suggestions and comments, please do not hesitate to contact our team at any time. Suggestions and feedback are always welcomed: Administration: Producer: BURY GmbH & Co. KG BURY Spółka z o.o. Robert-Koch-Straße 1-7 ul. Wojska Polskiego 4 D-32584 Löhne... -
Page 16: Appropriate Use Of This System
13. Approvals and declaration of conformity Purchase and production as well as service and sales at BURY are subject to tough quality and environ- mental management conditions according to ISO/TS 16949 and ISO 14001. The telematic unit has the CE approval pursuant to the R&TTE 1999/5/EC regulation e-mark type approval pursuant to the 2009/19/EC regulation ‘Electromagnetic compatibility in vehicles’... - Page 17 EXPRESS WARRANTY AGAINST DEFECTS – AUSTRALIA EFFECTIVE 1 JANUARY, 2012 This product if imported by Point to Point Technology Pty Ltd is warranted in Australia to be free from any defect in material and workmanship, subject to the following terms and conditions. Who provides this warranty: POINT TO POINT TECHNOLOGY PTY LTD 2/2 KEYSBOROUGH CLOSE, KEYSBOROUGH VIC 3173...
- Page 18 Version: 04/2012 25.1484.0-01-040412 Subject to change. Errors and omissions excepted.
