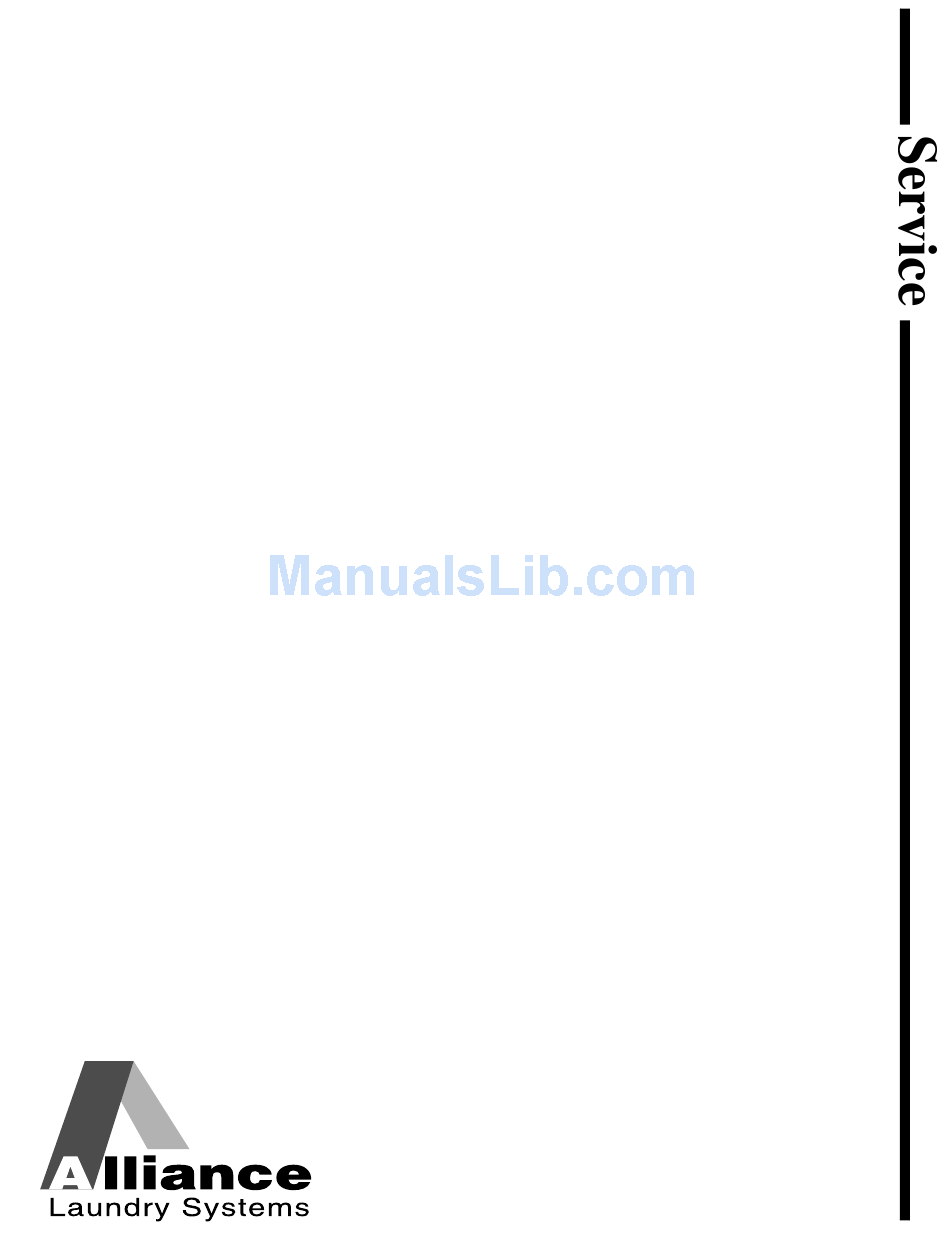

- Page 1 Home Laundry Dryers HE–HG Series and FE0080 Refer to Page 6 for Model Numbers Part No. 53264R6 www.comlaundry.com January 2002...
-
Page 2: Table Of Contents
All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any means without the expressed written consent of the publisher. 53264 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... - Page 3 Through Serial No. SH965837 ......73 Starting Serial No. SH965838 ......74 Model HE6003 Through Serial No. SH965837 ......75 Starting Serial No. SH965838 ......76 Model HG5390 ............77 Model HE5330 and HE4030........78 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 53264...
-
Page 4: Section 1 - Safety Information
• Whenever ground wires are removed during servicing, these ground wires must be reconnected to ensure that the product is properly grounded and to reduce the risk of fire, electric shock, serious injury or death. W006R1 53264 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... -
Page 5: Locating An Authorized Servicer
Locating an Authorized Servicer Alliance Laundry Systems is not responsible for personal injury or property damage resulting from improper service. Review all service information before beginning repairs. Warranty service must be performed by an authorized technician, using authorized factory parts. If service is required after the warranty expires, Alliance Laundry Systems also recommends contacting an authorized technician and using authorized factory parts. -
Page 6: Section 2 - Introduction
Nameplate Location When calling or writing about your product, be sure to mention model and serial numbers. Model and serial numbers are located on nameplate(s) as shown. NAMEPLATE 53264 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... -
Page 7: Model Identification
HE6434 HE4330 HE2430 HG6494 HG4360 HG2090 HE6430 HE4270 HE2250 HG6490 HG4280 HE6370 HE4203 HE2050 HG6380 HG4209 HE6350 HE4103 HE2030 HG6360 HG4109 HE6003 HE4070 HE2003 HG6009 HG4080 FE0080 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 53264... -
Page 8: How Your Dryer Works
The heated air moves through the heater duct and into the cylinder, where it circulates through the wet load. The air then passes through the lint filter, air duct, and exhaust fan, where it is vented to the outdoors. 53264 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... -
Page 9: Section 3 - Troubleshooting
Also check front and rear bulkheads for warping. Check support rollers for binding. Check cylinder seals and glides for wear or damage. Inoperative motor overload protector. • Replace drive motor. 53264 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... -
Page 10: Motor Runs But Cylinder Does Not Turn
• Remove dust or lint and spray with “Slyde”, No. 131P4, lint. to clean and lubricate. Inoperative door switch. • Test switch and replace if inoperative. Inoperative timer. • Test timer and replace if inoperative. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 53264... -
Page 11: Heating Element Does Not Heat And Burner Does Not Ignite
Burner heat not holding sensor contacts open. • Replace sensor, or correct gas supply problem. Insufficient gas supply. • Check gas supply and pressure. Valve coils cycle rapidly. • Replace igniter bracket. 53264 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... -
Page 12: Igniter Glows But Burner Does Not Ignite - Gas Models
• Test thermostat and replace if inoperative. Inoperative timer. • Test timer and replace if inoperative. Broken, loose, or incorrect wiring. • Refer to appropriate wiring diagram. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 53264... -
Page 13: Heating Element Or Burner Repeatedly Cycles Off On Limit Thermostat
Gas Models: Gas line pressure too high or too low. • If natural gas line pressure to dryer exceeds 8 inch water column pressure, or is lower than 4 inch water column, ask gas company to correct. 53264 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... -
Page 14: Timer Does Not Advance In Automatic Cycle
Heating element or burner cycles off prematurely. • Refer to Paragraph 9. Timer improperly set in FLUFF. • Reset timer. Broken, loose or incorrect wiring. • Refer to appropriate wiring diagram. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 53264... -
Page 15: Section 4 - Grounding
MOTOR (Gas and Electric Models) BLOWER HOUSING COVER PLATE (Gas Figure 1 and Electric Models) Figure 2 GROUND WIRE DRY832S GROUND WIRE Figure 1 GROUND WIRE DRY833S Figure 2 53264 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... -
Page 16: Neutral At Terminal Block To Terminal Block
CONTROL PANEL TO DRYER TOP PANEL Models Only) (Electric Models Only) Figure 3 Figure 4 GROUND WIRE GROUND GROUND WIRE WIRE DRY834S Figure 3 DRY835S Figure 4 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 53264... -
Page 17: Power Cord To Terminal Block Bracket (Gas Models Only)
19. TERMINAL BLOCK BRACKET TO BRACKET (Gas Models Only) CONTROL TOP PANEL (Gas Models Only) GROUND WIRE GROUND WIRE GROUND WIRE DRY836S Figure 5 DRY837S Figure 6 53264 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... -
Page 18: Section 5 - Service Procedures
“zero” reading when circuit being tested is completed by timer. Refer to appropriate wiring diagram for Timer Cycle Chart showing when circuit is made. 53264 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... -
Page 19: Signal Control
1000 Ohms at all times. SIGNAL TEMPERATURE TIMER START CONTROL SELECTOR LIGHT SWITCH SWITCH SWITCH CONTROL PANEL ATTACHING SCREW TIMER ATTACHING SCREW CONTROL PANEL DRY841S Figure 8 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 53264... - Page 20 TIMER PANEL ATTACHING SCREW LOCKWASHER CONTROL TIMER PANEL ATTACHING CONTROL START SCREW HOOD SWITCH TEMPERATURE LOCKWASHER SELECTOR SWITCH CONTROL DRY842S PANEL TIMER ATTACHING SCREW LOCKWASHER Figure 9 53264 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
-
Page 21: Light Switch
Meter reading should reverse 3. Set meter to read Ohms and put probes into each time light switch is pressed. terminals for two red wires. Meter should read “infinite.” © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 53264... -
Page 22: Start Switch - All Models
Remove three screws holding timer in control a. Remove panel screw and lift assembly off panel panel. support. b. Remove left and right control hood ends. Refer to Figure 11. 53264 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... - Page 23 NOTE: When reinstalling switches, lockwashers knob indicator. Refer to Paragraph 67. must be between switches and control panel for c. Remove three screws holding timer to control grounding purposes. panel. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 53264...
-
Page 24: Burner System Operation
(3) Ignition is made and the heat from the the holding coil, sensor, booster coil burner flame causes the sensor contacts to and igniter. remain open. 53264 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... -
Page 25: Ignition System Features
(2) Sensor will continue to recycle the igniter system will be in the normal pre-ignition and secondary valve (about once per circuit. minute) until ignition is made or dryer is turned off. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 53264... -
Page 26: Burner System Components - Gas Models
BLOCKS GAS SHUTOFF VALVE (Shown in the closed position) SENSOR WIRES HIGH LIMIT UNION THERMOSTAT BURNER TUBE SCREW BURNER HOUSING SHUTTER HEX HEAD SCREW DRY845S Figure 14 53264 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... - Page 27 NOTE: Test procedure can be performed on workbench if gas valve, igniter, burner tube and DRY871S burner housing are removed from dryer. Figure 15 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 53264...
- Page 28 Use care in removal so as not to damage or break igniter as it is very fragile. Use care in removal so as not to damage or break igniter as it is very fragile. 53264 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
- Page 29 “zero” Ohms. If meter registers an Ohm reading of any amount, replace sensor. NOTE: Test procedure can be performed on workbench if gas valve, igniter, burner tube and burner housing are removed from dryer. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 53264...
-
Page 30: Front Panel And Panel Seal
Refer to Figure 16. k. Remove hex head screw holding front of burner housing to dryer base and remove housing out through front of dryer. 53264 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... -
Page 31: Heat Shroud
Insulation must be in HINGE SCREWS place when reinstalling block. TERMINAL BLOCK SCREW DRY849 LINT FILTER Figure 19 GROUND WIRE ACCESS DRY848S PLATE Figure 18 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 53264... -
Page 32: Inner And Outer Door Panels And Door Handle
Refer to Figure 21. Refer to Figure 20 DOOR STRIKER DOOR SEAL OUTER DOOR PANEL INNER DOOR PANEL DOOR HANDLE HINGE DRY850S Figure 20 53264 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... -
Page 33: Door Hinge And Support Bracket
Refer to front panel. Figure 21. NOTE: Through Serial No. S70U4371, support bracket is removed with lower hinge. Support bracket must be installed when reassembling. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 53264... -
Page 34: Door Switch
3. Apply probes to terminals 1 and 2 with door closed. The meter should read “infinite.” 4. Open door. Meter should read “infinite” between 1 and 3 and “zero” between 1 and 2. 53264 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... -
Page 35: High Or Low Thermostats
THERMOSTAT Figure 24 LIMIT ELEMENT THERMOSTAT GAS VALVE SHOWN IN CLOSED POSITION LIMIT THERMOSTAT ELEMENT DRY855S ATTACHING BURNER SCREWS DRY854S HOUSING ELECTRIC MODELS GAS MODELS Figure 25 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 53264... -
Page 36: Limit Thermostat
Remove two cabinet hold-down screws. Refer to Figure 26. e. Lift front of cabinet top and disengage from hinges on rear of cabinet. Refer to Figure 27. 53264 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... -
Page 37: Control Hood
NOTE: When reassembling, be sure felt seal on exhaust fan cover makes air tight seal on flange of DRY853S duct. Refer to Figure 29. MOTOR MOUNT ATTACHING SCREWS Figure 29 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 53264... -
Page 38: Exhaust Duct
Remove hex head screws holding cover to slot in dryer base. Exhaust duct MUST BE housing. Refer to Figure 29. reinstalled on rear flange of exhaust housing. 53264 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... - Page 39 “no reading.” Manually flex the infinite. centrifugal switch in motor and meter should read “zero” Ohms. MOTOR SWITCH DRIVE MOTOR DRY838S GROUND WIRES Figure 30 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 53264...
-
Page 40: Impeller And Housing
Remove two screws holding switch to motor. Figure 31 b. Disconnect internal motor leads from switch terminals. NOTE: Refer to wiring schematic when rewiring internal motor switch leads. 53264 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... -
Page 41: Motor Pulley And Idler Pulley Assemblies
NOTE: Front air duct will be removed with the Sealant around the entire flanged area where the bulkhead unless it had been previously removed in felt seal contacts the bulkhead. Paragraph 51. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 53264... -
Page 42: Cylinder Belt
While supporting cylinder, carefully remove belt off cylinder. NOTE: When installing belt, be sure belt is properly positioned around cylinder and on motor and idler pulleys. Refer to Figure 35. 53264 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... -
Page 43: Rear Seal
IMPORTANT: When installing seal, tape it to the SHIELD bulkhead in several places to hold in position while replacing seal strap and spring. Remove tape after Figure 37 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 53264... -
Page 44: Rear Bulkhead And Heater Box
Refer DRY866S to Figure 25. f. Electric Models – Disconnect wires from Figure 39 element terminals and from high limit thermostat. 53264 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... -
Page 45: Heat Shield
Electric Models – Remove two hex head screws brackets to rear of dryer cabinet. Refer to holding element and plate to heater box. Pull Figure 40. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 53264... -
Page 46: Cabinet And Base
Electric Models – Disconnect wires from element terminals and from high limit thermostat. NOTE: When reassembling, be sure all wire connections are tight on element terminals and to high limit thermostat. 53264 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... -
Page 47: Section 6 - Adjustments
Turn legs in or out of base as necessary to level dryer. All four legs must rest firmly on the floor. c. Tighten locknuts securely against dryer base. Refer to Figure 41. 53264 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... -
Page 48: Burner Flame (Gas Models)
VALVE CONVERTED OR VALVE NUMBER STICKER HERE SHUT-OFF VALVE HANDLE BURNER TUBE SCREW AIR SHUTTER LOCKSCREW 1/8” (3.1 mm) PIPE PLUG (For checking manifold DRY855S pressure) Figure 42 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 53264... -
Page 49: Section 7 - Gas Burner Conversion Procedures
50326 dryer) that will maintain the gas supply to the dryer Liquefied at 11 ± 2 inches (2.74 ± .4 kPa) water column 51211 Petroleum (L.P.) pressure. 53264 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... -
Page 50: Installation Instructions For 56412 And 56413 Gas Kits
Install one of the No. 56426 L.P. Gas Stickers over the old sticker on rear of cabinet, then place the second sticker over the old sticker located on backside of access door. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 53264... - Page 51 (3) After air shutter is adjusted for proper flame, tighten air shutter lockscrew securely. t. Be sure and observe at least two complete ignition and burn cycles before reinstalling access door. 53264 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
-
Page 52: Section 8 - Internal Wiring Of Dryer Motor Switch
Internal Wiring of Dryer Motor Switch MAIN WINDING START WINDING OVERLOAD PROTECTOR DRY869S GENERAL ELECTRIC MAIN WINDING START WINDING OVERLOAD PROTECTOR 4 BLU 7 BLK 5 YEL DRY870S EMERSON 53264 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... -
Page 53: Section 9 - Wiring Diagrams
W030 WIRING DIAGRAMS AND SCHEMATICS FOUND ON THE FOLLOWING PAGES ARE FOR MODELS COVERED IN THIS MANUAL. 53264 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... -
Page 54: Models Hg9280 And Hg9260
Failure to install, maintain, and/or operate this machine according to the manufacturer's instructions may result in conditions which can produce bodily injury and/or property damage. W030 MODELS HG9280 AND HG9260 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 53264... -
Page 55: Models He9270 And He9250
Failure to install, maintain, and/or operate this machine according to the manufacturer's instructions may result in conditions which can produce bodily injury and/or property damage. W030 MODELS HE9270 AND HE9250 53264 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... -
Page 56: Models Hg7290 And Hg7009 Through Serial No. Sh965992
Failure to install, maintain, and/or operate this machine according to the manufacturer's instructions may result in conditions which can produce bodily injury and/or property damage. W030 MODELS HG7290 AND HG7009 Through Serial No. SH965992 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 53264... -
Page 57: Starting Serial No. Sh965993
Failure to install, maintain, and/or operate this machine according to the manufacturer's instructions may result in conditions which can produce bodily injury and/or property damage. W030 MODELS HG7290 AND HG7009 Starting Serial No. SH965993 53264 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... -
Page 58: Models He7230 And He7003 Through Serial No. Sh965992
Failure to install, maintain, and/or operate this machine according to the manufacturer's instructions may result in conditions which can produce bodily injury and/or property damage. W030 MODELS HE7230 AND HE7003 Through Serial No. SH965992 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 53264... -
Page 59: Starting Serial No. Sh965993
Failure to install, maintain, and/or operate this machine according to the manufacturer's instructions may result in conditions which can produce bodily injury and/or property damage. W030 MODELS HE7230 AND HE7003 Starting Serial No. SH965993 53264 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... -
Page 60: Models Hg6660, Hg6380, Hg4360 And Hg4280
Failure to install, maintain, and/or operate this machine according to the manufacturer's instructions may result in conditions which can produce bodily injury and/or property damage. W030 MODELS HG6660, HG6380, HG4360 AND HG4280 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 53264... -
Page 61: Models He6650, He6370, He4503, He4430
W030 MODELS HE6650, HE6370, HE4503, HE4430, HE4350, HE4330, HE4270 AND HE4203 Through Serial No. SH965992 53264 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... -
Page 62: Starting Serial No. Sh965993
W030 MODELS HE6650, HE6370, HE4503, HE4430, HE4350, HE4330, HE4270 AND HE4203 Starting Serial No. SH965993 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 53264... -
Page 63: Model Hg6494
Failure to install, maintain, and/or operate this machine according to the manufacturer's instructions may result in conditions which can produce bodily injury and/or property damage. W030 MODEL HG6494 53264 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... -
Page 64: Models Hg6490 And Hg2490
Failure to install, maintain, and/or operate this machine according to the manufacturer's instructions may result in conditions which can produce bodily injury and/or property damage. W030 MODELS HG6490 AND HG2490 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 53264... -
Page 65: Model He6434
Failure to install, maintain, and/or operate this machine according to the manufacturer's instructions may result in conditions which can produce bodily injury and/or property damage. W030 MODEL HE6434 53264 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... -
Page 66: Models He6430, He2430 And He2250
Failure to install, maintain, and/or operate this machine according to the manufacturer's instructions may result in conditions which can produce bodily injury and/or property damage. W030 MODELS HE6430, HE2430 AND HE2250 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 53264... -
Page 67: Model Hg6360
Failure to install, maintain, and/or operate this machine according to the manufacturer's instructions may result in conditions which can produce bodily injury and/or property damage. W030 MODEL HG6360 53264 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... -
Page 68: Model He6350
Failure to install, maintain, and/or operate this machine according to the manufacturer's instructions may result in conditions which can produce bodily injury and/or property damage. W030 MODEL HE6350 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 53264... -
Page 69: Model Hg6009 Through Serial No. Sh965837
Failure to install, maintain, and/or operate this machine according to the manufacturer's instructions may result in conditions which can produce bodily injury and/or property damage. W030 MODEL HG6009 Through Serial No. SH965837 53264 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... -
Page 70: Starting Serial No. Sh965838
Failure to install, maintain, and/or operate this machine according to the manufacturer's instructions may result in conditions which can produce bodily injury and/or property damage. W030 MODEL HG6009 Starting Serial No. SH965838 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 53264... -
Page 71: Model He6003 Through Serial No. Sh965837
Failure to install, maintain, and/or operate this machine according to the manufacturer's instructions may result in conditions which can produce bodily injury and/or property damage. W030 MODEL HE6003 Through Serial No. SH965837 53264 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... -
Page 72: Starting Serial No. Sh965838
Failure to install, maintain, and/or operate this machine according to the manufacturer's instructions may result in conditions which can produce bodily injury and/or property damage. W030 MODEL HE6003 Starting Serial No. SH965838 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 53264... -
Page 73: Model Hg5390
Failure to install, maintain, and/or operate this machine according to the manufacturer's instructions may result in conditions which can produce bodily injury and/or property damage. W030 MODEL HG5390 53264 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... -
Page 74: Model He5330 And He4030
Failure to install, maintain, and/or operate this machine according to the manufacturer's instructions may result in conditions which can produce bodily injury and/or property damage. W030 MODEL HE5330 AND HE4030 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 53264... -
Page 75: Model Hg5009 Through Serial No. Sh965837
Failure to install, maintain, and/or operate this machine according to the manufacturer's instructions may result in conditions which can produce bodily injury and/or property damage. W030 MODEL HG5009 Through Serial No. SH965837 53264 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... -
Page 76: Starting Serial No. Sh965838
Failure to install, maintain, and/or operate this machine according to the manufacturer's instructions may result in conditions which can produce bodily injury and/or property damage. W030 MODEL HG5009 Starting Serial No. SH965838 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 53264... -
Page 77: Models He5003 And He2030 Through Serial No. Sh965837
Failure to install, maintain, and/or operate this machine according to the manufacturer's instructions may result in conditions which can produce bodily injury and/or property damage. W030 MODELS HE5003 AND HE2030 Through Serial No. SH965837 53264 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... -
Page 78: Starting Serial No. Sh965838
Failure to install, maintain, and/or operate this machine according to the manufacturer's instructions may result in conditions which can produce bodily injury and/or property damage. W030 MODELS HE5003 AND HE2030 Starting Serial No. SH965838 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 53264... -
Page 79: Models Hg4509, Hg4490, Hg4390 And Hg4209 Through Serial No. Sh965992
Failure to install, maintain, and/or operate this machine according to the manufacturer's instructions may result in conditions which can produce bodily injury and/or property damage. W030 MODELS HG4509, HG4490, HG4390 AND HG4209 Through Serial No. SH965992 53264 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... -
Page 80: Starting Serial No. Sh965993
Failure to install, maintain, and/or operate this machine according to the manufacturer's instructions may result in conditions which can produce bodily injury and/or property damage. W030 MODELS HG4509, HG4490, HG4390 AND HG4209 Starting Serial No. SH965993 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 53264... -
Page 81: Models Hg4109 And Hg4009
Failure to install, maintain, and/or operate this machine according to the manufacturer's instructions may result in conditions which can produce bodily injury and/or property damage. W030 MODELS HG4109 AND HG4009 53264 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... -
Page 82: Models He4103 And He4003
Failure to install, maintain, and/or operate this machine according to the manufacturer's instructions may result in conditions which can produce bodily injury and/or property damage. W030 MODELS HE4103 AND HE4003 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 53264... -
Page 83: Model Hg4080
Failure to install, maintain, and/or operate this machine according to the manufacturer's instructions may result in conditions which can produce bodily injury and/or property damage. W030 MODEL HG4080 53264 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... -
Page 84: Models He4070
Failure to install, maintain, and/or operate this machine according to the manufacturer's instructions may result in conditions which can produce bodily injury and/or property damage. W030 MODELS HE4070 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 53264... -
Page 85: Models He3060
Failure to install, maintain, and/or operate this machine according to the manufacturer's instructions may result in conditions which can produce bodily injury and/or property damage. W030 MODELS HE3060 53264 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... -
Page 86: Models Hg3009 And Hg2090
Failure to install, maintain, and/or operate this machine according to the manufacturer's instructions may result in conditions which can produce bodily injury and/or property damage. W030 MODELS HG3009 AND HG2090 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 53264... -
Page 87: Models He3003, He2050, He2030 And He2003
Failure to install, maintain, and/or operate this machine according to the manufacturer's instructions may result in conditions which can produce bodily injury and/or property damage. W030 MODELS HE3003, HE2050, HE2030 AND HE2003 53264 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... -
Page 88: Model Hg2980
Failure to install, maintain, and/or operate this machine according to the manufacturer's instructions may result in conditions which can produce bodily injury and/or property damage. W030 MODEL HG2980 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 53264... -
Page 89: Model He2970
Failure to install, maintain, and/or operate this machine according to the manufacturer's instructions may result in conditions which can produce bodily injury and/or property damage. W030 MODEL HE2970 53264 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... -
Page 90: Model Hg2260
Failure to install, maintain, and/or operate this machine according to the manufacturer's instructions may result in conditions which can produce bodily injury and/or property damage. W030 MODEL HG2260 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 53264... -
Page 91: Model Fe0080
Failure to install, maintain, and/or operate this machine according to the manufacturer's instructions may result in conditions which can produce bodily injury and/or property damage. W030 MODEL FE0080 53264 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
