Installation and Wiring

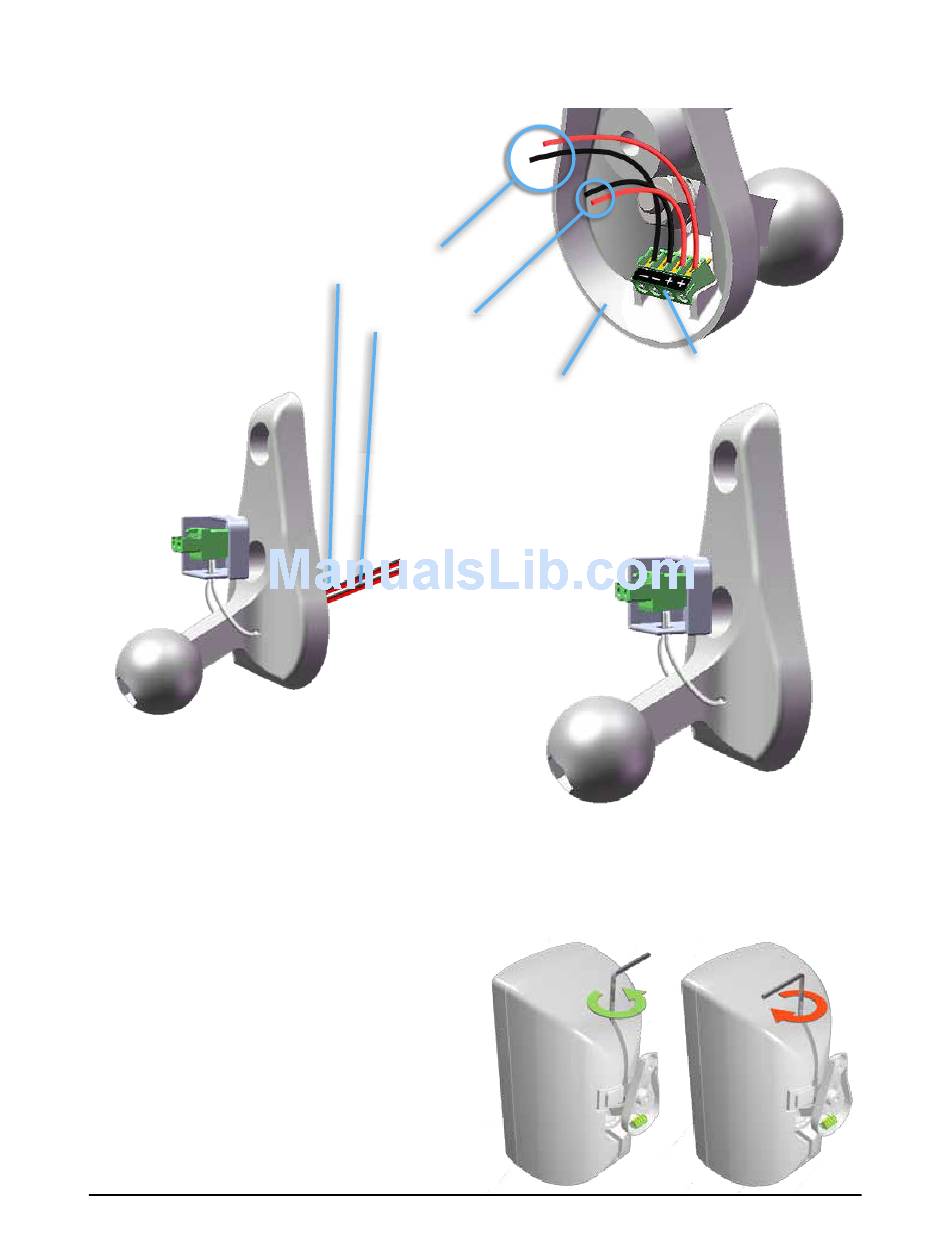

1. Connect incoming input wires (and
optional loop-thru wires) from wall
to 4-pole Euroblock screw terminals
concealed in the base of the Infin-A-Ball
bracket.*
*Note: Check local codes
to determine if a wall box
or metal plate is required
for the integrated wiring.
See page 10.
2. Secure the Infin-A-Ball bracket to the wall
using your screws or other fasteners according
to local building and safety codes.
3. Insert the hex wrench into the socket near
the rear of the loudspeaker cabinet, and turn
counterclockwise to loosen the clamp setscrew.
4. Fit the cabinet onto the IAB bracket's ball-
end, then tighten the clamp sufficiently to
hold the loudspeaker in place, but allowing for
positional adjustment.
Distributed Design Series
Surface Mount Loudspeakers
Input Wires
(not included)
Loop-Thru Wires
(optional)
Infin-A-Ball bracket
Installation and Operation Manual
Terminal Block
Loosen Tighten
