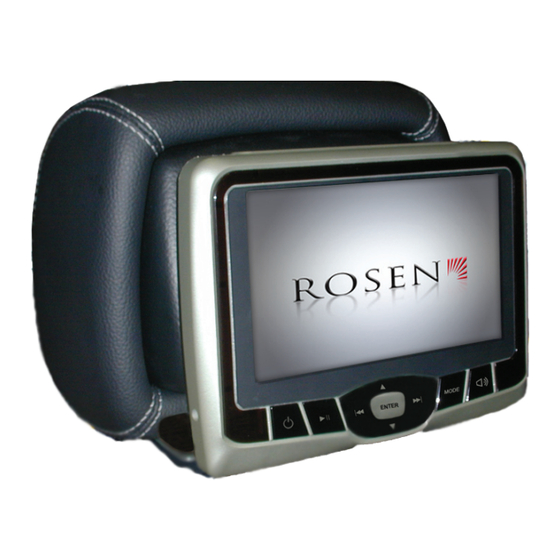

AV7700 Installation Guide
Mercedes-Benz
NOTICE OF INTENDED INSTALLATION AND USE
ROSEN ENTERTAINMENT SYSTEMS VIDEO PRODUCTS ARE NOT INTENDED FOR VIEWING
BY THE DRIVER, AND ARE TO BE INSTALLED ONLY TO BE VIEWED BY REAR-SEAT
OCCUPANTS.
IMPROPER INSTALLATION COULD DISTRACT THE DRIVER OR INTERFERE WITH SAFE
OPERATION OF THE VEHICLE, WHICH COULD RESULT IN SERIOUS INJURY OR DEATH,
AND COULD ALSO VIOLATE STATE LAW.
ROSEN ENTERTAINMENT SYSTEMS DISCLAIMS ANY LIABILITY FOR ANY BODILY INJURY
OR PROPERTY DAMAGE THAT MAY RESULT FROM ANY IMPROPER OR UNINTENDED
INSTALLATION AND/OR USE.
STOP
Damage to the vehicle may occur
Do not proceed until process has been completed
CAUTION
Process must be carefully observed in order to reduce
CAUTION
the risk of damage to the accessory or vehicle
CRITICAL
Process must be carefully observed in order to ensure a
quality installation
TOOLS and EQUIPMENT
Specific tools and equipment recommended for this
process
SAFETY RISK
Observe safe practices, this process can be dangerous
and there is a risk of personal injury
TESTING and TROUBLESHOOTING
Content specific testing and troubleshooting points
Rosen Entertainment Systems
Copyright 2010 All Rights Reserved
AV7700 System Installation Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AV7700 and is the answer not in the manual?

Questions and answers

Summary of Contents for Rosen AV7700

  • Page 1 AV7700 Installation Guide Mercedes-Benz NOTICE OF INTENDED INSTALLATION AND USE ROSEN ENTERTAINMENT SYSTEMS VIDEO PRODUCTS ARE NOT INTENDED FOR VIEWING BY THE DRIVER, AND ARE TO BE INSTALLED ONLY TO BE VIEWED BY REAR-SEAT OCCUPANTS. IMPROPER INSTALLATION COULD DISTRACT THE DRIVER OR INTERFERE WITH SAFE OPERATION OF THE VEHICLE, WHICH COULD RESULT IN SERIOUS INJURY OR DEATH, AND COULD ALSO VIOLATE STATE LAW.
  • Page 2: Preparing For The Installation

    Failure to follow this may cause the AIRBAG FAULT SENSOR to become enabled. Dealer Service Departments charge a significant fee to reset the Fault Sensor. Rosen Entertainment Systems Copyright 2010 All Rights Reserved AV7700 System Installation Guide AP2004-MB Rev A Page 2...
  • Page 3 See Below Attach mounting brackets to electronics by using 4 supplied screws Spacing will vary by application. Use image below as a reference. Rosen Entertainment Systems Copyright 2010 All Rights Reserved AV7700 System Installation Guide AP2004-MB Rev A Page 3...
  • Page 4 STEP Attach back covers to AV7700 electronics Each AV7700 kit is supplied with color-matched back covers Align back cover with AV7700 mounting holes and snap into place Rosen Entertainment Systems Copyright 2010 All Rights Reserved AV7700 System Installation Guide AP2004-MB Rev A...
  • Page 5 Installation Guide AV7700 Installing AV7700 Electronics STEP You will need to install the AV7700 electronics and route the cable through the seat backs. The following steps will guide you through this process. Note: Mercedes-Benz GL/ML/R installation shown Route cables into seat along post guides.
  • Page 6 Note: Moderate force may be needed to engage locking pin Step D Locking pin fully inserted Image of both locking pins and electronics fully installed Rosen Entertainment Systems Copyright 2010 All Rights Reserved AV7700 System Installation Guide AP2004-MB Rev A Page 6...
  • Page 7: Wiring Diagram

    This system requires a minimum of 12V (+) ACC Switched and Ground (-) to operate. The 12V (+) ACC Switched source must be capable of supplying a minimum of 7A. Wiring Diagram STEP Rosen Entertainment Systems Copyright 2010 All Rights Reserved AV7700 System Installation Guide AP2004-MB Rev A Page 7...
  • Page 8 Place the Owners Information package in the glove compartment d. Place the IR headphones, remote control and game controller in a convenient location Rosen Entertainment Systems Copyright 2010 All Rights Reserved AV7700 System Installation Guide AP2004-MB Rev A Page 8...
  • Page 9: Installer Settings

    “B” on headphones. If audio is not present, check the following. Solution: Check A/B switch on headphones. Solution: Reset the system Solution: Check all cable connections Rosen Entertainment Systems Copyright 2010 All Rights Reserved AV7700 System Installation Guide AP2004-MB Rev A Page 9...
  • Page 10 AP2004 Installation Guide AP1029 Warranty Card AP1017 Cable Routing Tool AP2020 Harness, Interface (Black w/ Gray) AP1021 Harness, Interface (Black w/ Black) www.RosenEntertainment.com Rosen Entertainment Systems Copyright 2010 All Rights Reserved AV7700 System Installation Guide AP2004-MB Rev A Page 10...
