NOTICE OF INTENDED INSTALLATION AND USE
ROSEN ENTERTAINMENT SYSTEMS VIDEO PRODUCTS ARE NOT INTENDED FOR VIEWING
BY THE DRIVER, AND ARE TO BE INSTALLED ONLY TO BE VIEWED BY REAR-SEAT
IMPROPER INSTALLATION COULD DISTRACT THE DRIVER OR INTERFERE WITH SAFE
OPERATION OF THE VEHICLE, WHICH COULD RESULT IN SERIOUS INJURY OR DEATH,
ROSEN ENTERTAINMENT SYSTEMS DISCLAIMS ANY LIABILITY FOR ANY BODILY INJURY
OR PROPERTY DAMAGE THAT MAY RESULT FROM ANY IMPROPER OR UNINTENDED

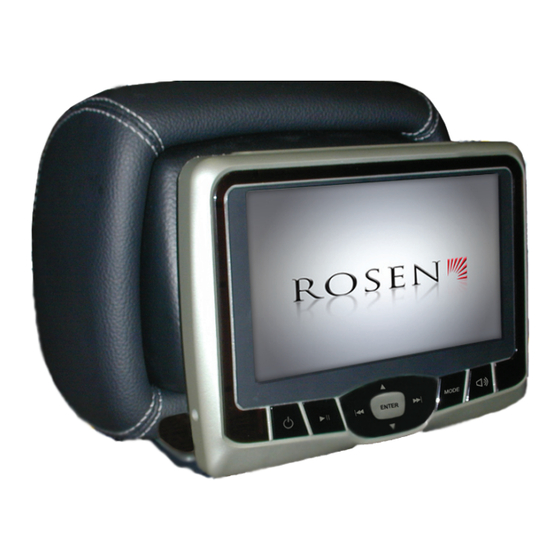

Rosen Entertainment Systems
AV7700 System Installation Guide
AND COULD ALSO VIOLATE STATE LAW.
INSTALLATION AND/OR USE.
Do not proceed until process has been completed
Process must be carefully observed in order to reduce
CAUTION
the risk of damage to the accessory or vehicle
Process must be carefully observed in order to ensure a
Specific tools and equipment recommended for this
Observe safe practices, this process can be dangerous
and there is a risk of personal injury
TESTING and TROUBLESHOOTING
Content specific testing and troubleshooting points
AV7700 Installation Guide
Lexus RX350/400/400H
OCCUPANTS.
STOP
Damage to the vehicle may occur
CAUTION
CRITICAL
quality installation
TOOLS and EQUIPMENT
process
SAFETY RISK
Copyright 2011 All Rights Reserved
Advertisement
Table of Contents
Related Manuals for Rosen AV7700
Summary of Contents for Rosen AV7700
- Page 1 AV7700 Installation Guide Lexus RX350/400/400H NOTICE OF INTENDED INSTALLATION AND USE ROSEN ENTERTAINMENT SYSTEMS VIDEO PRODUCTS ARE NOT INTENDED FOR VIEWING BY THE DRIVER, AND ARE TO BE INSTALLED ONLY TO BE VIEWED BY REAR-SEAT OCCUPANTS. IMPROPER INSTALLATION COULD DISTRACT THE DRIVER OR INTERFERE WITH SAFE OPERATION OF THE VEHICLE, WHICH COULD RESULT IN SERIOUS INJURY OR DEATH, AND COULD ALSO VIOLATE STATE LAW.
-
Page 2: Preparing For The Installation
Failure to follow this may cause the AIRBAG FAULT SENSOR to become enabled. Dealer Service Departments charge a significant fee to reset the Fault Sensor. Rosen Entertainment Systems Copyright 2011 All Rights Reserved AV7700 System Installation Guide AP2004-LX Rev A Page 2... - Page 3 You will need to assemble the vehicle specific mounting brackets. The following steps will guide you through this process Locate mounting bracket assembly as well as hardware mounting kit. Insert AV7700 mounting bracket into cross- bar as shown Use included Phillips screws to secure mounting bracket to cross-bar...
- Page 4 Attaching Mounting Bracket To Electronics STEP Attach mounting brackets to electronics by using 4 supplied screws See below for more details Place the AV7700 electronics system on clean flat surface. Attach mounting bracket using supplied screws. See below for further details...
- Page 5 Installation Guide AV7700 Attach Color-Matched Material STEP Attach mounting bracket wrap to AV7700 electronic mounting brackets Each AV7700 kit is supplied with color-matched monitor back covers and mounting bracket wrap based on application ordered. Route cables underneath wrap material as shown...
- Page 6 Installation Guide AV7700 Installing AV7700 Electronics STEP You will need to install the AV7700 electronics and route the cable through the seat backs. The following steps will guide you through this process. CAUTION Detach/release seat access cover at bottom of seat.
- Page 7 Installation Guide AV7700 Left mounting hole Remove upper J-Clip on right to expose right side mounting hole Unhook J-Clip from crossbar to allow Rosen mounting bracket to attach. CAUTION Insert mounting bracket into seat back and make sure it does NOT restrict safety cable.
- Page 8 Locate proper power source at driver’s kick panel Yellow = 12Volt Accessory OEM Ground = Ground CAUTION Test with digital multimeter before connecting Install complete Rosen Entertainment Systems Copyright 2011 All Rights Reserved AV7700 System Installation Guide AP2004-LX Rev A Page 8...
-
Page 9: Wiring Diagram
This system requires a minimum of 12V (+) ACC Switched and Ground (-) to operate. The 12V (+) ACC Switched source must be capable of supplying a minimum of 7A. Wiring Diagram STEP Rosen Entertainment Systems Copyright 2011 All Rights Reserved AV7700 System Installation Guide AP2004-LX Rev A Page 9... - Page 10 Place the Owners Information package in the glove compartment d. Place the IR headphones, remote control and game controller in a convenient location Rosen Entertainment Systems Copyright 2011 All Rights Reserved AV7700 System Installation Guide AP2004-LX Rev A Page 10...
-
Page 11: Installer Settings
“B” on headphones. If audio is not present, check the following. Solution: Check A/B switch on headphones. Solution: Reset the system Solution: Check all cable connections Rosen Entertainment Systems Copyright 2011 All Rights Reserved AV7700 System Installation Guide AP2004-LX Rev A Page 11... - Page 12 Monitor Back Cover, Parchment AP2060-B06 Bracket Cover, Black AP2010-B06 Monitor Back Cover, Black AP2060-G13 Bracket Cover, Lt. Gray AP2010-G13 Monitor Back Cover, Lt. Gray www.RosenEntertainment.com Rosen Entertainment Systems Copyright 2011 All Rights Reserved AV7700 System Installation Guide AP2004-LX Rev A Page 12...
