Summary of Contents for Rosen AV7000

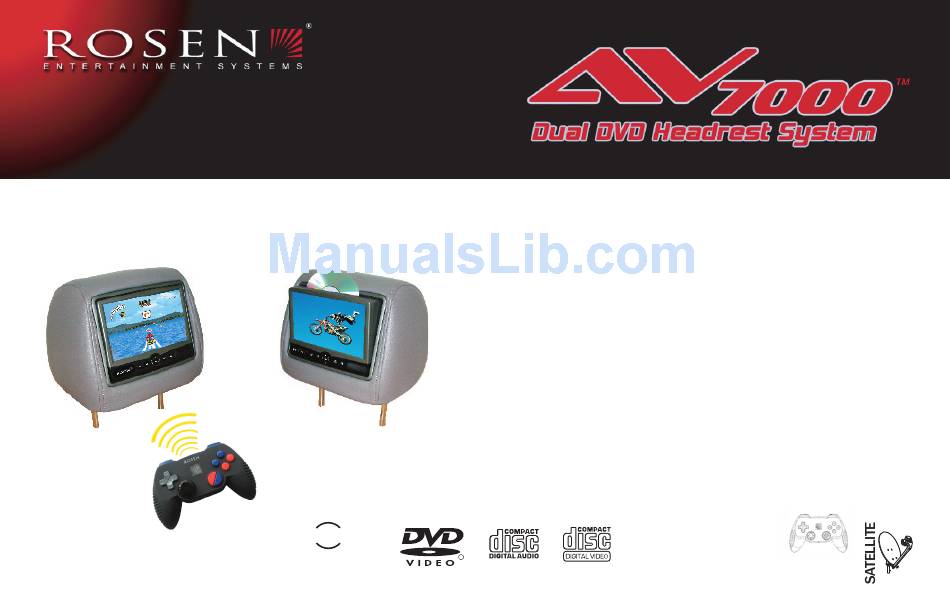

- Page 1 DVD Entertainment System Owner's Manual wireless input integrated .mp3 SURROUND SOUND VIDEOGAMES...
-
Page 3: Notices
NOTICES NOTICE OF INTENDED USE Rosen Entertainment Systems are designed to enable viewing of video ONLY for rear-seat occupants, and are not intended for viewing by the driver when the vehicle is in motion. Such use might distract the driver or interfere with the driver’s safe operation of the vehicle, and thus re-... -
Page 5: Table Of Contents
Listening Over the Car Speakers...…………………………………………………………………………………………………………………...……..……15 Using the Included 2 Channel Wireless Headphones………………………………………………………………………………………………...………….16 Replacing the Headphone Batteries ………………………………………………………………………………………………...………….16 Watching Broadcast Television (with tuner-equipped systems)………………………………………………………………………………………...…...….17 Using the Integrated Game System……………………………………………………………………………………………………………………...………...17 Using External Sources…………………………………………………………………………………………………………………………………...……...….18 Managing Black Bars………………………………………………………………………………………………………………………………………...…..…..18 DVD Player Setup Options………………………………………………………………………………………………..…………………………...…………….20 Frequently Asked Questions……………………………………………………………………………………………...……………………………………...….22... -
Page 6: Getting Started
Rosen AV7000 Owner’s Manual GETTING STARTED Use the system with the vehicle running or with the ignition key switch in the “accessory” position. Make certain that the remote, the headphones, and the game controller have fresh batteries properly installed. To adjust the angle of the screen and switch on the... - Page 7 Front Panel Control The Front Panel Controls Play/Pause Power Infrared Censor Previous Chapter or Track/Navigation Left Rosen Entertainment Systems until “ ” appears on the AUX 1 is off. Press SPEAKER button on the front panel “ SPEAKER SOUND ON ”...
-
Page 8: Introduction
Rosen AV7000 Owner’s Manual INTRODUCTION Congratulations on owning a Rosen Entertainment System! Here’s a list of some things you can do with your system: · Play DVD movies, music CDs, VCD, SVCD or discs with MP3 audio files. · Play video games. -
Page 9: Discs Played
Compatible Discs DVD, Video CD (VCD), and CD-Audio discs are compatible with the AV7000 system. Compatible discs have these logos on their labels: Also, the unit can play most CD-Recordable discs containing CD-Au- dio, MP3 files, and JPEG images - but not all such discs. Since these discs are usually made on home computers, there is no certification... -
Page 10: Changing And Adjusting Display Settngs
Note: The internal DVD player can be configured for either a 16:9 “Wide” image output or a 4:3 “Standard” image output. Since the unit has a wide screen display, the DVD player should be configured for “Wide.” For more information, see page 19. -
Page 11: Using The Remote Control
This is normal operation and is not a problem with your system. System Menu Zoom Navigate Left Enter Navigate Right Display Setup Navigate Down Disc Menu Day/Night Mode Dome Light (Not Active) Output B (Not Active) Rosen Entertainment Systems... -
Page 12: Basic Remote Control Buttons
Rosen AV7000 Owner’s Manual BASIC REMOTE CONTROL BUTTONS Power Pressing this button powers on the unit. This button also powers on the Optional external source unit. Play Press to begin or resume playback of a DVD. Note: When the disc is first inserted, you may have to press PLAY or ENTER to begin playback. -
Page 13: Using Menu And Navigation Buttons, Using Audio Buttons
15 System Menu SYSTEM MENU Pressing this button brings you into the Internal DVD menu. Rosen Entertainment Systems USING AUDIO BUTTONS Speaker Sound Control When this button is pressed, “Speaker Sound On” appears on the screen, along with the FM frequency to which you should tune your radio, such as “FM 87.7.”... -
Page 14: Using Dvd Disc Features
Rosen AV7000 Owner’s Manual USING DVD DISC FEATURES 23 Disc Menu DISC MENU Press to see the main menu for the DVD being played. To resume normal playback, press PLAY. CHANGING THE SHAPE AND SIZE OF THE IMAGE 16 Zoom View the same scene on a DVD at different magnifications. -
Page 15: Cd Audio And Mp3 Playback
When a disc containing MP3, JPEG, or Video CD files is inserted, the following screen appears. Use the arrow buttons to select a file type. Rosen Entertainment Systems LISTENING OVER THE CAR SPEAKERS The system uses a wireless FM Transmitter (FMT) to send audio through the vehicle’s speakers. -
Page 16: Using The Included 2 Channel Wireless Headphones
Rosen AV7000 Owner’s Manual USING THE INCLUDED WIRELESS HEADPHONES The system comes with two (2) infrared (IR) wireless headphones. These headphones receive a signal from an IR transmitter built into the unit. Headphones allow rear-seat passengers to listen without using the vehicle speakers. -
Page 17: Watching Broadcast Television (With Tuner-Equipped Systems)
In “STANDARD” mode, you will see black bars on the sides of the image, like this: Rosen Entertainment Systems USING THE INTEGRATED GAME SYSTEM There are integrated video games built into the system. The Rosen Game Controller is included. -
Page 18: Using External Sources
Rosen AV7000 Owner’s Manual USING EXTERNAL SOURCES You may use optional external video games, camcorders, and other portable video units by connecting the unit to the auxiliary RCA input jacks on the unit. You must remove the cover to access the jacks, and press SOURCE or MODE to select “AUX 1.”... - Page 19 Check the disc jewel box to determine the DVDs aspect ratio - if you see 2.3:1, 2.33:1, or 2.35:1, this applies. 2 The internal DVD player has been set for a 4:3 display instead of a 16:9, wide display. See DVD Setup on page 20 to correct this.
-
Page 20: Dvd Player Setup Options
Rosen AV7000 Owner’s Manual DVD TYPICAL SETUP AND CONFIGURATION The following section explains how to customize various features of the Internal DVD Player, including various languages, display, and parental control features. Note: Many DVD menu settings do not apply to this system, since it is specifically engineered for automotive use. -
Page 21: Parental Control
The factory set Parental Control password is 3308. Changing Language Settings Several language settings can be customized on the DVD Player. These languages can vary depending on the language supported by the DVD disc. To change these settings, select the PREFERENCES page. -
Page 22: Frequently Asked Questions
Rosen AV7000 Owner’s Manual Concealing the “Angle Mark” To display or conceal the “angle mark,” which appears during scenes that support a multiple-viewing-angle feature, select GEN- ERAL and ANGLE MARK. Since the remote included does not support this feature, the default state for this setting is “OFF.”... - Page 23 When you do this you will see “Headphones Only” on the other screen. For other questions and capabilities please contact your authorized Rosen dealer. To locate a Rosen Entertainment Systems authorized www.rosenentertainment.com. Rosen Entertainment Systems dealer, please visit...
- Page 24 Rosen AV7000 Owner’s Manual DVD FACTORY SETTINGS LIST The factory default options are given in bold type. GENERAL PAGE TV DISPLAY: NORMAL/PS, NORMAL/LB, WIDE PICTURE MODE: AUTO ANGLE MARK: ON, OFF OSD LANG: ENGLISH, CHINESE CAPTIONS: ON, OFF SCRN SAVER:...
- Page 26 9100685-90 Rev B RES PN © 2006 Rosen Entertainment Systems www.rosenentertainment.com All rights reserved. No part of this publication may be reproduced, stored in a retrieval system or transmitted in any form, electronic, mechanical, recording or other means without prior written permission from Rosen.
