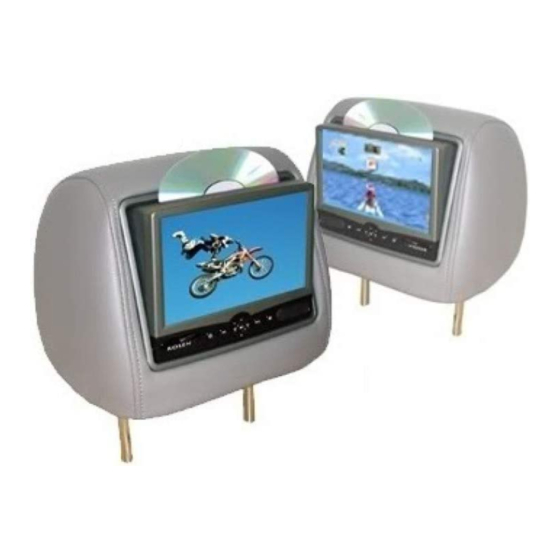

AV7000 Dual DVD Headrest Replacement System
ROSEN ENTERTAINMENT SYSTEMS VIDEO PRODUCTS ARE NOT INTENDED FOR VIEWING BY
THE DRIVER, AND ARE TO BE INSTALLED ONLY TO BE VIEWED BY REAR-SEAT OCCUPANTS.
IMPROPER INSTALLATION COULD DISTRACT THE DRIVER OR INTERFERE WITH SAFE
OPERATION OF THE VEHICLE, WHICH COULD RESULT IN SERIOUS INJURY OR DEATH, AND
COULD ALSO VIOLATE STATE LAW. ROSEN ENTERTAINMENT SYSTEMS DISCLAIMS ANY
LIABILITY FOR ANY BODILY INJURY OR PROPERTY DAMAGE THAT MAY RESULT FROM ANY
IMPROPER OR UNINTENDED INSTALLATION AND/OR USE.
BEFORE YOU START THE INSTALLATION, READ THIS GUIDE!
Rosen "Headrest DVD" systems are the easiest-to-install DVD entertainment systems available today.
However, we strongly recommend reading this guide before starting the installation!
1 Make sure you have the tools you will need
These common items are needed to complete this installation:
· Digital multimeter (DMM)
· Appropriate tool for headrest removal · Allen wrench set
· Panel removing tools
· Security latch tool (included)
· Wire cutters, strippers, and a crimping tool
· 1/4" drive sockets are often needed for dashboard and trim disassembly
· Check if Torx or Allen-drive bolts are used on any panels you will be removing
· You will need a DVD in good condition when testing the system
Standard installation parts you will need include wire, wire ties, wire crimp connectors or solder, and
electrical insulating tape. Installation of aftermarket automotive electronics also often requires access to
special parts. It is a good idea to have a source for these common installation parts.
2 Inspect the vehicle and plan your work
CHECK THE BATTERY
Test the battery voltage to make sure it's fully charged and inspect battery terminals for tightness and any
corrosion. This takes 30 seconds and can save hours of troubleshooting later.
DECIDE ON A LOCATION FOR THE MAIN INTERFACE UNIT
Location of the main interface unit varies by vehicle, but is typically secured underneath a passenger seat
out of sight and unobstructed by moving parts and passengers.
IF YOU HAVE PURCHASED A PRE-ASSEMBLED HEADREST SYSTEM, SKIP TO SECTION 6
Rosen Entertainment Systems
AV7000 Installation Guide
INSTALLATION GUIDE
NOTICE OF INTENDED INSTALLATION AND USE
For additional technical tips, please see
www.rosendealercentral.com
· #2 Phillips screwdriver
· Cable routing tool (included)
· Retractable knife
(on page 5)
Copyright 2006 all rights reserved
9100685-91 Rev B
E
k
Page 1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Rosen AV7000
Summary of Contents for Rosen AV7000
- Page 1 IMPROPER OR UNINTENDED INSTALLATION AND/OR USE. BEFORE YOU START THE INSTALLATION, READ THIS GUIDE! Rosen “Headrest DVD” systems are the easiest-to-install DVD entertainment systems available today. However, we strongly recommend reading this guide before starting the installation! For additional technical tips, please see www.rosendealercentral.com...
- Page 2 This will prevent the unit from closing properly, could permanently damage the unit, or cause overheating. 4 Mounting the AV7000 electronics into the headrest bucket You will need to mount the AV7000 electronics unit into the headrest bucket. The following steps will guide you through this process. CAUTION! Do NOT press directly on the surface of the LCD.
- Page 3 If you feel resistance when closing the unit, please confirm that all cable slack has been removed. 5 Recommended pre-installation test Rosen recommends that you pre-test the operation of the system. The following steps will guide you through this process. CAUTION! Never exceed 16VDC when operating the system otherwise permanent damage may occur.
-
Page 4: Wiring Diagram
Gray – 12V Switch-FMM Black – Ground-FMM MONITOR B MONITOR A REMOTE AUX2 AUX Source Power Blue – 12V Black – Ground Purple – Antenna Rosen Entertainment Systems Copyright 2006 all rights reserved AV7000 Installation Guide 9100685-91 Rev B Page 4... - Page 5 7 Installing the AV7000 headrests You will need to install the AV7000 headrests and route the cables through the seat backs. The following steps will guide you through this process. Step 1: Check the headrest down tubes in the seat backs for any obstructions.
- Page 6 Step 2: Select a location to mount the junction box for the AV7000 unit. Normally the junction box is best located under the passenger seat. Be sure to locate it so that it will not obstruct any moving parts in the seat or damaged by the feet of passengers.
-
Page 7: Specifications
Solution: Ensure that there are no kinks or knots in the cables. The monitor doesn’t fit into the headrest bucket The AV7000 unit has been designed to fit tightly into the headrest bucket. This was done to ensure a high quality fit with no gaps. - Page 8 Solution: Check the ground point selected, by moving the ground point to a new location. Solution: In some cases, inline audio filters may be required. Contact Rosen for support on selection of a filter. Service and optional parts list...
