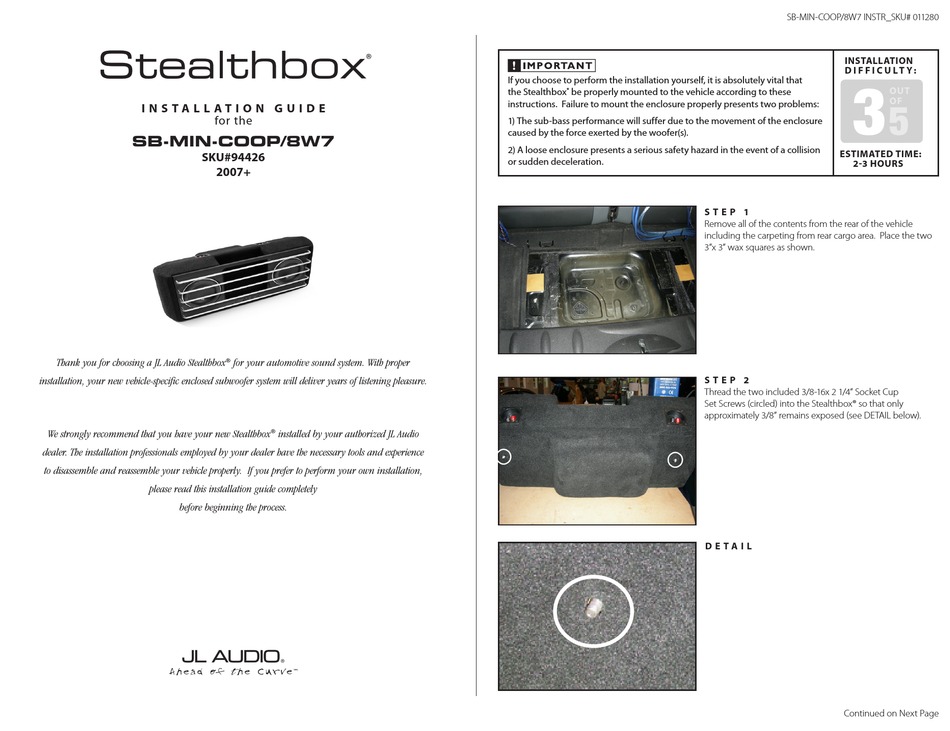

JL Audio Stealthbox SB-MIN-COOP/8W7 Installation Manual

I n s t a l l a t I o n G u I d e
for the
SB-MIN-COOP/8W7
sKu#94426
2007+
Thank you for choosing a JL Audio Stealthbox
installation, your new vehicle-specific enclosed subwoofer system will deliver years of listening pleasure.
We strongly recommend that you have your new Stealthbox
dealer. The installation professionals employed by your dealer have the necessary tools and experience
to disassemble and reassemble your vehicle properly. If you prefer to perform your own installation,
please read this installation guide completely
before beginning the process.
® for your automotive sound system. With proper
® installed by your authorized JL Audio
If you choose to perform the installation yourself, it is absolutely vital that
the Stealthbox ® be properly mounted to the vehicle according to these
instructions. Failure to mount the enclosure properly presents two problems:
1) The sub-bass performance will suffer due to the movement of the enclosure
caused by the force exerted by the woofer(s).
2) A loose enclosure presents a serious safety hazard in the event of a collision
or sudden deceleration.
SB-MIN-COOP/8W7 INSTR_SKU# 011280
InstallatIon
d I F F I C u l t Y :
3
estImated tIme:
2-3 HouRs
s t e P 1
Remove all of the contents from the rear of the vehicle
including the carpeting from rear cargo area. Place the two
3"x 3" wax squares as shown.
s t e P 2
Thread the two included 3/8-16x 2 1/4" Socket Cup
Set Screws (circled) into the Stealthbox® so that only
approximately 3/8" remains exposed (see DETAIL below).
d e t a I l
Continued on Next Page
out
oF
5
