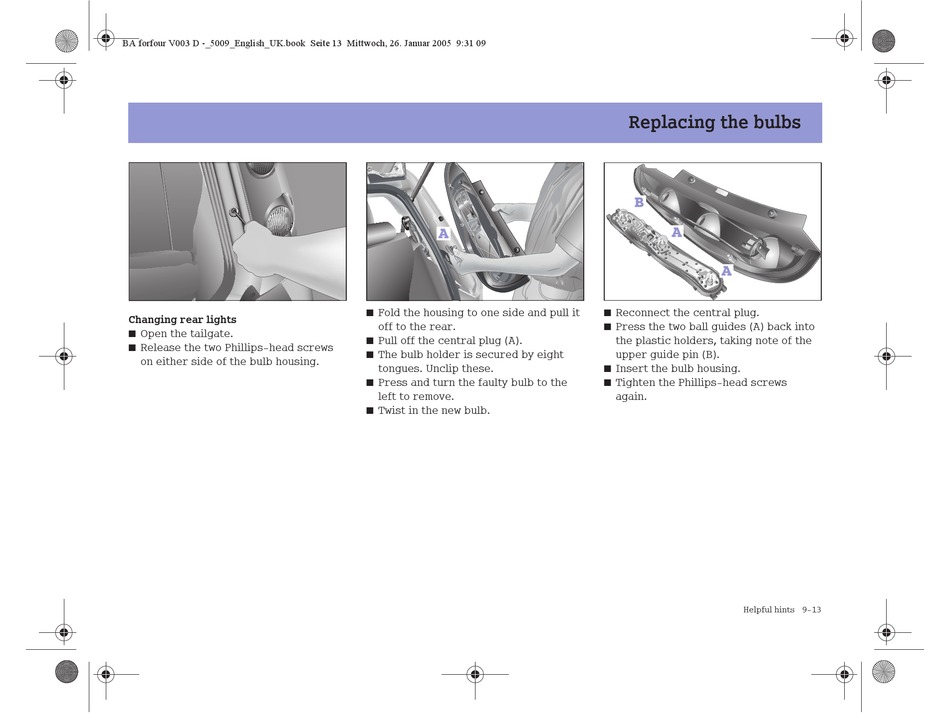

Changing rear lights
Open the tailgate.
Release the two Phillips head screws
on either side of the bulb housing.
Fold the housing to one side and pull it
off to the rear.
Pull off the central plug (A).
The bulb holder is secured by eight
tongues. Unclip these.
Press and turn the faulty bulb to the
left to remove.
Twist in the new bulb.
Replacing the bulbs
Reconnect the central plug.
Press the two ball guides (A) back into
the plastic holders, taking note of the
upper guide pin (B).
Insert the bulb housing.
Tighten the Phillips head screws
again.
Helpful hints 9 13
