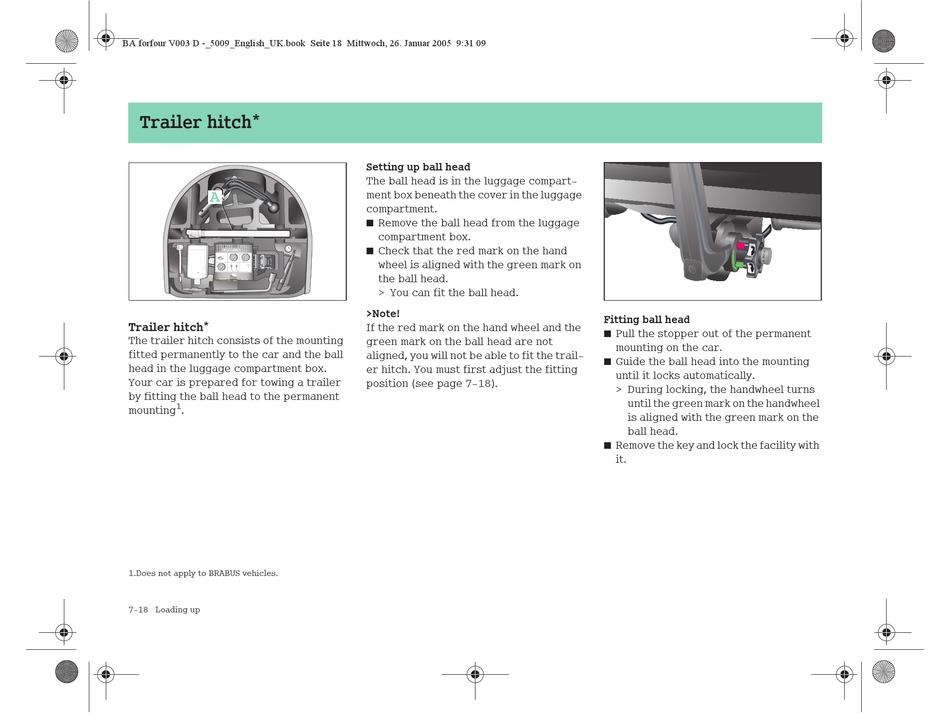

Trailer hitch*

Trailer hitch*
The trailer hitch consists of the mounting
fitted permanently to the car and the ball
head in the luggage compartment box.
Your car is prepared for towing a trailer
by fitting the ball head to the permanent
1
mounting .
1.Does not apply to BRABUS vehicles.
7 18 Loading up
Setting up ball head
The ball head is in the luggage compart
ment box beneath the cover in the luggage
compartment.
Remove the ball head from the luggage
compartment box.
Check that the red mark on the hand
wheel is aligned with the green mark on
the ball head.
> You can fit the ball head.
>Note!
If the red mark on the hand wheel and the
green mark on the ball head are not
aligned, you will not be able to fit the trail
er hitch. You must first adjust the fitting
position (see page 7 18).
Fitting ball head
Pull the stopper out of the permanent
mounting on the car.
Guide the ball head into the mounting
until it locks automatically.
> During locking, the handwheel turns
until the green mark on the handwheel
is aligned with the green mark on the
ball head.
Remove the key and lock the facility with
it.
