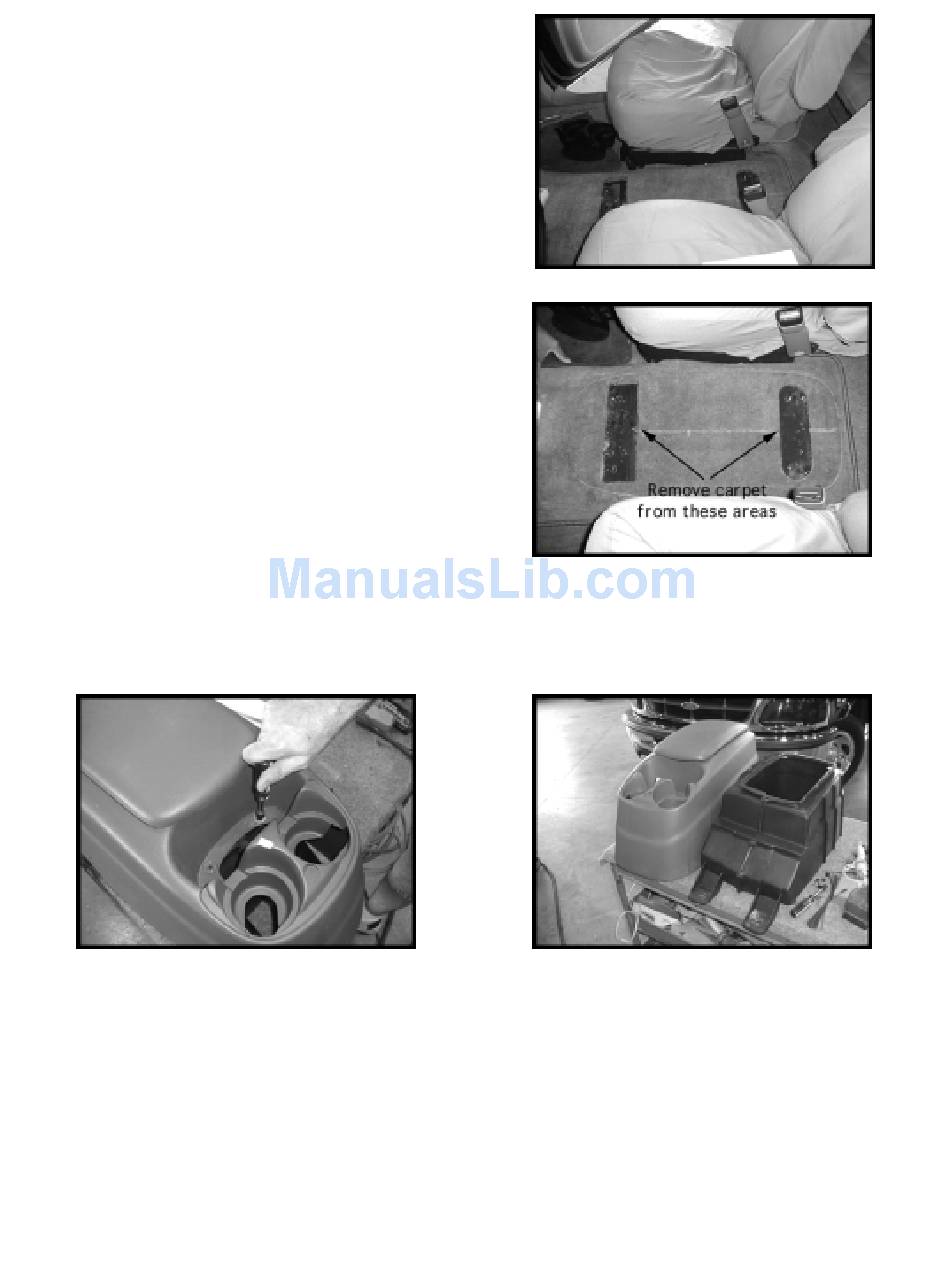

STEP 3: Remove the console from the vehicle.
STEP 4: Cut the carpet between each set of mounting
studs in the vehicle. The Stealthbox should sit directly on
the metal floor of the vehicle.
STEP 5: Remove the six screws holding the outer shell of the console to the storage unit. There are two
screws in the cup holder and two in each side near the bottom of the unit. Remove the outer shell.
STEP 6: Place the outer shell over the Stealthbox. Bolt the shell to the Stealthbox using the six factory
screws.
IMPORTANT: Only screw into the predrilled holes in the Stealthbox, do not drill new holes!
SB-F-TRKCTR/10W3, JL AUDIO, Inc 1999 • Page 2
Sheet SKU#011113 Revision 9/4/01
