I N S T A L L A T I O N G U I D E
for the

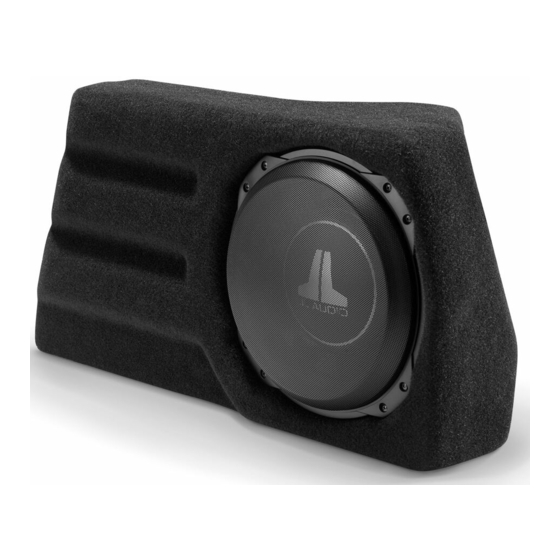

SB-F-FOC5DR/10TW3
SKU# 94560
2012 & Up Ford Focus 5 Door Hatchback
Thank you for choosing a JL Audio Stealthbox® for your automotive sound system.
With proper installation, your new vehicle-specific enclosed subwoofer system
will deliver years of listening pleasure.
We strongly recommend that you have your new Stealthbox® installed by your authorized
JL Audio dealer. The installation professionals employed by your dealer have the necessary tools
and experience to disassemble and reassemble your vehicle properly. If you prefer to perform your
own installation, please read this installation guide completely before beginning the process.
If you choose to perform the installation yourself, it is absolutely vital that
the Stealthbox ® be properly mounted to the vehicle according to these
instructions. Failure to mount the enclosure properly presents two problems:
1) The sub-bass performance will suffer due to the movement of the enclosure
caused by the force exerted by the woofer(s).
2) A loose enclosure presents a serious safety hazard in the event of a collision
or sudden deceleration.
S P E C I F I C A T I O N S
Enclosure Type: Acoustic Suspension (sealed)
Driver Type: 10TW3-D4
Nominal Impedance: 2 ohms
Continuous Power Handling: 400 watts (RMS method)
I N C L U D E D H A R D W A R E
(1) 3/8 - 16 x 2-1/2" Hex Bolt
(1) 3/8" Flat Washer
(2) 3/8" Split Lock Washer
(4) 3/8" Fender Washer
(2) 3/8 - 16 Hex Nut
SB-F-FOC5DR/10TW3 INSTR_SKU# 011352
INSTALLATION
D I F F I C U L T Y :
2
OUT
5
OF
ESTIMATED TIME:
2 HOURS
Continued on Next Page
